The Definitive Guide to Pallet Racking Load Capacity: Engineering Safety into Every Storage Bay

For logistics managers, warehouse operators, and business owners across the industrial hubs of Southeast Asia, the Middle East, Africa, and Latin America, the structural integrity of storage infrastructure is the unshakeable foundation of operational continuity. At the heart of this integrity lies a singular, critical metric: pallet racking load capacity. This is not a static number pulled from a catalogue; it is a dynamic, living specification that dictates the very safety, efficiency, and scalability of a storage facility.

Misunderstanding or neglecting the true meaning of pallet racking load capacity is not an operational oversight—it is a profound financial and safety risk. This resource transcends basic explanation, offering a masterclass in the principles, pitfalls, and precise engineering required to master pallet racking load capacity for modern, demanding supply chains.

 Decoding the Language of Load: From UDL to Real-World Stress

A warehouse manager reviewing a specification sheet encounters the term Uniformly Distributed Load (UDL). This is the cornerstone of all pallet racking load capacity ratings. It signifies the maximum weight, perfectly spread across the entire length of a beam, that the component can support under ideal conditions. The critical nuance, often lost, is that a 5,000 kg UDL rating does not permit a single 5,000 kg pallet concentrated in the beam’s centre. Such a point load creates catastrophic stress concentrations. The true load capacity of pallet racking is realised only when weight is appropriately distributed, typically via a pallet spanning the two beam ends.

Furthermore, the overall system load capacity is governed by its weakest link. A common and dangerous misconception is focusing solely on beam capacity. The upright frames must be evaluated for their cumulative load capacity—the sum of the loads from all beam levels attached to them, plus considerations for seismic and impact forces. A warehouse may specify beams with a high individual pallet racking load capacity, only to have the upright frames fail because their cumulative rating was overlooked. This systemic understanding separates basic installation from engineered integrity.

The Invisible Forces Eroding Your Rack’s Rated Capacity

The pristine load capacity figures published by manufacturers assume laboratory conditions. The real warehouse environment is a brutal proving ground where multiple, concurrent factors actively degrade this rated capacity. Recognizing these factors is the first step in proactive risk management.

• Dynamic Loading and Impact Forces: The stated pallet racking load capacity is a static measure. However, each placement or retrieval of a pallet by a forklift or AGV imposes a dynamic force significantly greater than the pallet’s weight. A 1,000 kg load being set down can impart an instantaneous force of 1,500 kg or more. Over time, these repeated dynamic loads contribute to metal fatigue. More immediately damaging are direct impacts from material handling equipment (MHE). A 5 km/hr collision from a forklift can generate a force exceeding 15,000 kg, easily exceeding the load capacity of an upright column and causing permanent, capacity-reducing damage.

• The Peril of Eccentric Loading: Perhaps the most insidious threat to designed pallet racking load capacity is eccentric loading. This occurs when a pallet’s weight is not centred or is unevenly distributed. A pallet with dense items on one side creates a torsional, or twisting, force on the beam and the connected upright frame. Standard load capacity tables do not account for this torsion. This off-centre loading can precipitate a progressive failure, often beginning with the loosening of beam locks, leading to beam deflection, and potentially culminating in a collapse.

• Environmental Degradation: Climate as an Adversary: In the humid, salt-laden air of coastal Vietnam or Thailand, corrosion relentlessly attacks steel, thinning cross-sections and silently reducing the load-bearing capacity of pallet racking. In the arid, sandy environments of the Middle East, abrasive dust can wear protective coatings and infiltrate moving parts. For cold storage facilities, the brittleness of steel at low temperatures must be factored into the load capacity calculation, requiring special grades of steel and design considerations.

• Improper Modifications and Compromised Integrity: The moment a warehouse team drills an unapproved hole in an upright to mount a sign, or uses a beam from a different manufacturer, the certified pallet racking load capacity is nullified. These modifications alter stress distribution and create failure points. Similarly, installations that are not perfectly plumb or where beam locks are not fully engaged can reduce the effective system load capacity by 20-30% from day one.

The Financial Calculus of Load Capacity Failure: Beyond Collapse

Underestimating the importance of verified pallet racking load capacity is a deliberate financial gamble. The cost of failure extends far beyond the immediate drama of a collapse, seeping into every facet of operational profitability.

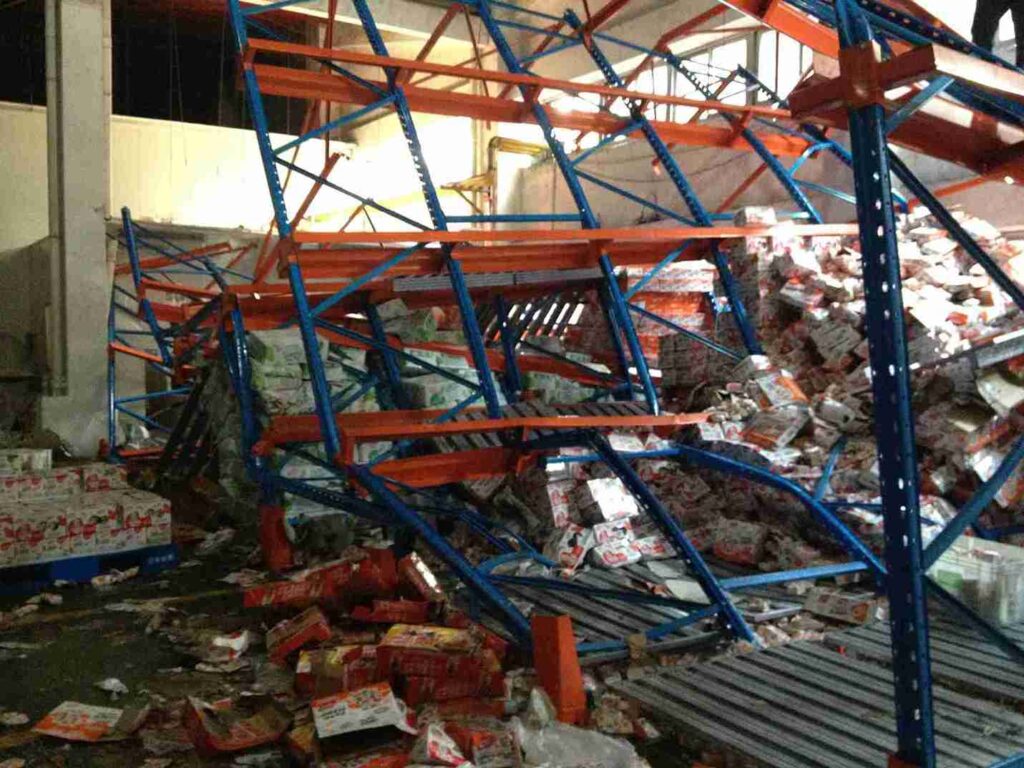

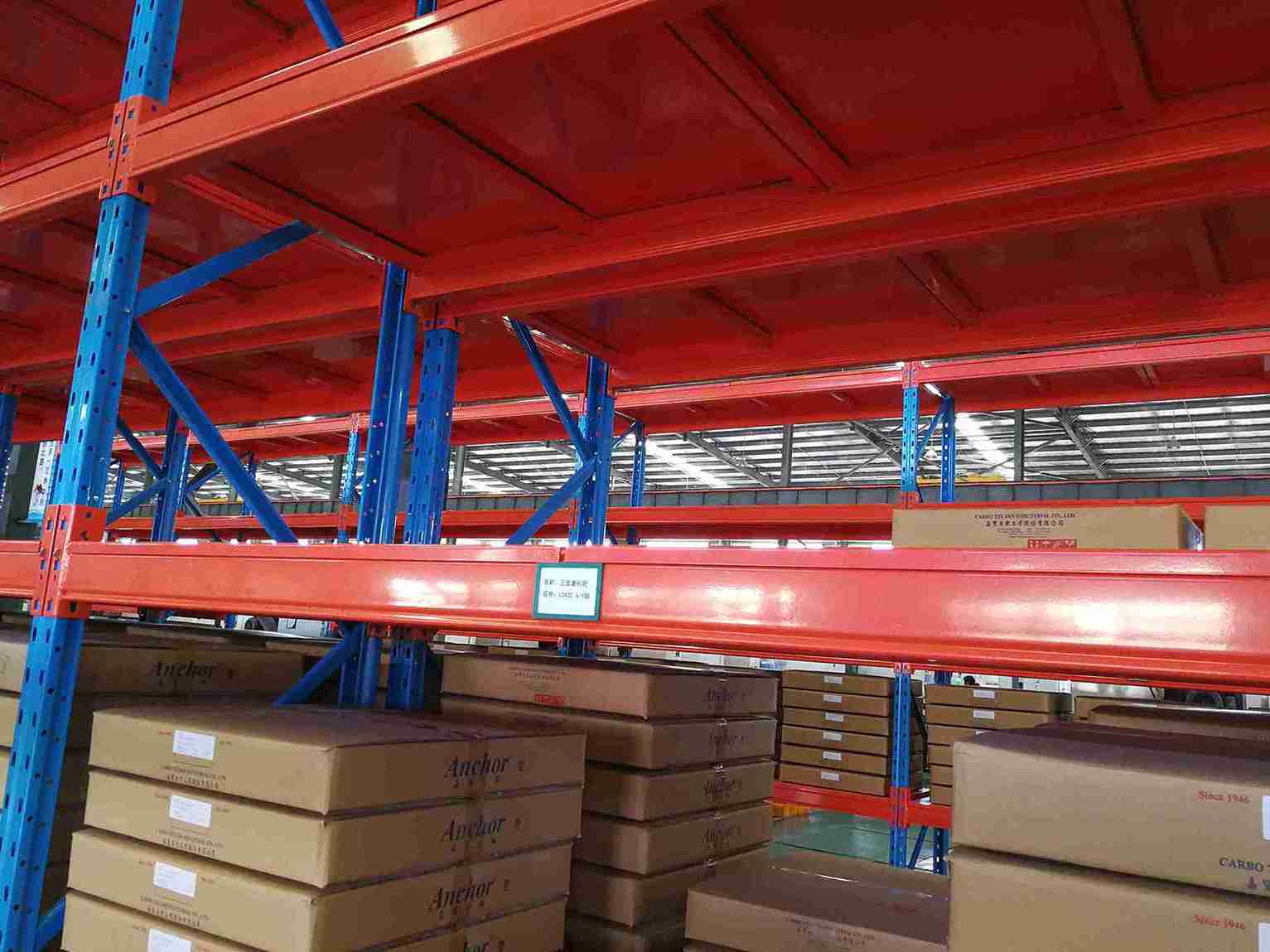

The Catastrophic Event: A Logistics Heart Attack

A total or partial racking collapse is a crisis of the highest order. The immediate financial hemorrhage is multi-faceted:

• Total Inventory Loss: Goods in the collapsed bays are often total write-offs due to damage and contamination.

• Capital Equipment Destruction: Forklifts, AGVs, and conveyor systems caught in the collapse represent massive capital loss.

• Facility Damage: The incident can damage flooring, sprinkler systems, lighting, and building columns.

• Business Interruption: This is the most crippling cost. The affected zone becomes a crime scene for investigation and a prolonged reconstruction project. For a third-party logistics (3PL) provider in Singapore or an e-commerce fulfilment centre in Dubai, days or weeks of halted operations can mean irrevocable client loss and reputation annihilation. The total cost of a major collapse can easily run into millions of dollars, dwarfing the investment in a properly engineered system with a verified pallet racking load capacity.

The Chronic, Hidden Cost of Poor Load Management

More common, and often more financially draining over time, is the inefficiency born from poor load capacity understanding.

• Underutilised Vertical Space: Fear of overloading leads managers to only use lower beam levels, wasting invaluable cubic air space. In markets like Jakarta or Riyadh where warehouse rental costs are soaring, this underutilisation is a direct, continuous drain on the bottom line. Effectively leveraging vertical space requires confidence in the pallet racking load capacity at every height.

• Operational Inefficiency and Congestion: An uneven understanding of load capacity leads to chaotic storage practices. Heavy loads may be placed haphazardly, creating “hot spots” of congestion as forklifts navigate to the few “trusted” bays. This reduces picking and storing efficiency, increases labour hours, and accelerates wear on MHE.

• Spiralling Insurance and Compliance Costs: Insurers are increasingly sophisticated. They now routinely demand third-party, certified reports on racking integrity and load capacity. A facility unable to provide this documentation faces exorbitant premiums. Following an incident, insurance can be withdrawn entirely. Furthermore, non-compliance with local occupational health and safety regulations, which inherently involve load capacity management, can result in severe fines and operational shutdowns.

The Expert Methodology: A Forensic Audit of Your System’s True Capacity

Moving from awareness to action requires a systematic, expert-led process. A genuine Expert Pallet Racking Load Capacity Analysis is not a cursory visual check; it is a forensic engineering assessment that establishes the definitive safe working limits of every component in your storage system.

Phase 1: Digital Twins and Physical Verification

The process begins with capturing the facility’s exact “as-built” state.

• 3D Laser Scanning & Photogrammetry: Advanced tools create a millimeter-accurate digital twin of the racking system. This model reveals plumb deviations, beam height inconsistencies, and bay width variations invisible to the naked eye—all critical factors influencing real-world load capacity.

• Non-Destructive Testing (NDT): Ultrasonic thickness gauges measure the actual remaining thickness of upright columns and beam flanges, quantifying corrosion loss. Dye penetrant tests may identify hairline cracks in welds or connectors.

• Load Audit and Configuration Mapping: Every SKU is catalogued by weight, pallet type, and typical placement pattern. This audit often reveals dangerous mismatches between item weight and the designated bay’s pallet racking load capacity, as well as patterns of eccentric loading.

• Impact Damage Mapping: Each upright is meticulously inspected and graded for impact damage. A standardized notation system maps the location, severity, and depth of dents, which are then correlated against engineering models to quantify the precise percentage loss in that column’s load capacity.

Phase 2: Advanced Engineering Simulation

Collected data fuels sophisticated analytical models.

• Finite Element Analysis (FEA): This computational method simulates stress and deflection across the entire racking structure under various load scenarios. It identifies hidden failure points, such as overstressed connectors or beams prone to excessive deflection, that compromise the system’s overall load capacity.

• Region-Specific Lateral Force Modeling: For a warehouse in the Philippines (seismic Zone 4) or one in a coastal Gulf region subject to high winds, the analysis models these lateral forces. The pallet racking load capacity for upright frames is recalculated to withstand not just vertical weight, but also these powerful side-to-side forces, often requiring the specification of additional bracing.

• Progressive Collapse Simulation: Engineers model the “domino effect” of a single component failure. This analysis is vital for understanding whether the system has redundant load paths or if a single beam failure could trigger a catastrophic section collapse.

Phase 3: The Actionable Roadmap to Resilience

The deliverable is a clear, prioritised plan.

• Colour-Coded Operational Floor Plans: These maps transform complex data into simple instructions: Green zones (safe for full rated load capacity), Yellow zones (requires monitoring or reduced loading), Red zones (immediate offloading and repair).

• Revised, Condition-Based Load Charts: Each beam and frame receives a new, safe working load limit—a de-rated pallet racking load capacity that reflects its actual condition and the real-world operating environment.

• Phased Reinforcement and Retrofit Solutions: Rather than a blanket recommendation for replacement, the report outlines targeted upgrades. This may involve installing bolt-on column reinforcements for damaged uprights, adding seismic bracing kits, or replacing specific beams with higher load capacity units—all designed to restore system integrity efficiently.

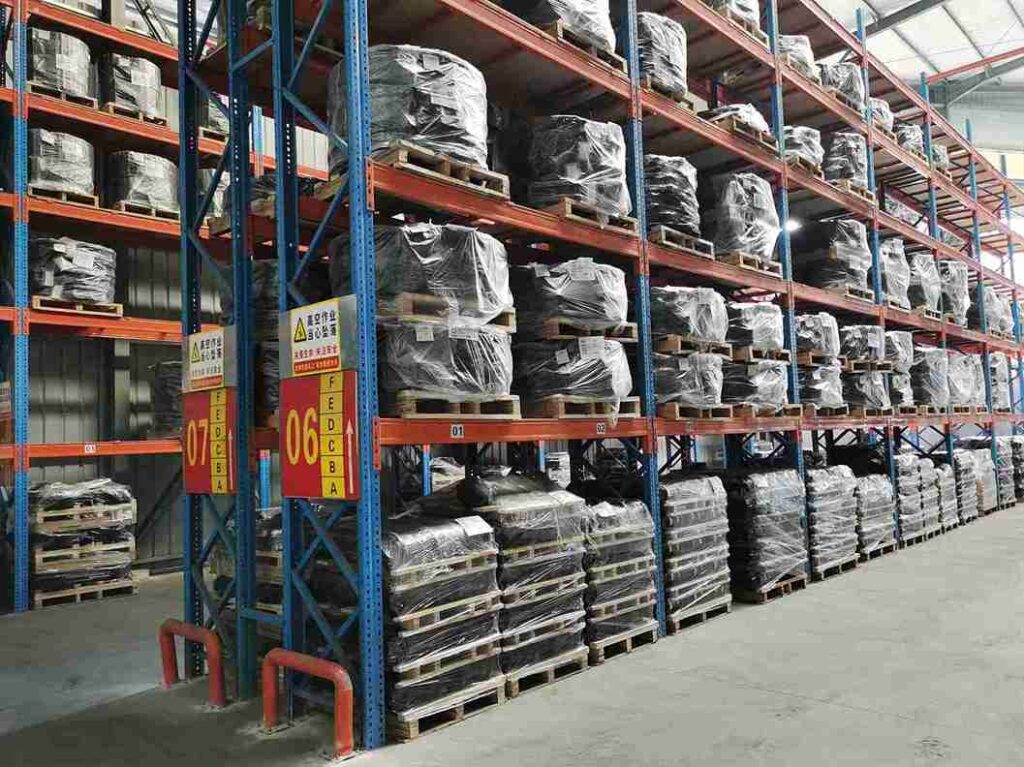

The Localised Imperative: Why Global Standards Need Regional Customisation

A pallet racking load capacity design perfect for a temperate, low-seismic zone is often wholly inadequate for the challenging environments of growth markets. Expertise lies in adapting core engineering principles to local realities.

Engineering for Climate Extremes

• High Humidity and Corrosion: In ASEAN nations, the constant attack of moisture mandates specifications beyond standard galvanization. Experts recommend hot-dip galvanized steel with a thicker zinc coating (e.g., 600 g/m²) and may advise powder-coating over galvanization for additional chemical resistance in certain industries. The design of the pallet racking load capacity must also consider potential corrosion-related thinning over a 20-year lifespan, building in a calculated safety margin.

• Thermal Cycling and Abrasive Environments: In the Middle East, the extreme temperature swing between day and night causes continuous expansion and contraction. Racking designs must incorporate slack in bracing connections to prevent stress buildup. In sandy areas, sealing mechanisms for beam locks and the use of closed tubular upright sections can prevent abrasive ingress that wears down components and subtly reduces load capacity over time.

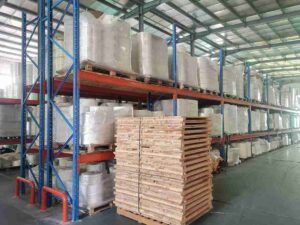

Designing for Seismic and Regulatory Landscapes

• Seismic Compliance in ASEAN: Countries like Indonesia and the Philippines enforce stringent building codes. A pallet racking load capacity analysis here is incomplete without seismic analysis. This involves calculating the racking’s natural frequency and ensuring its design includes sufficient ductility and lateral force resistance through moment frames and cross-bracing, which directly influence the allowable vertical load capacity.

• Navigating Local Regulations: In the Gulf Cooperation Council (GCC) states, compliance with civil defense regulations for aisle widths, flue spaces, and access can affect racking layout and density. An expert provider doesn’t just sell racking; they deliver a system whose load capacity and configuration are documented to meet both international engineering standards (FEM, RMI) and local authority requirements.

The Integration with Local Labour and Supply Chains

True customisation considers operational reality. Designs should account for the local availability of skilled installers. A design relying on complex field welding may be impractical in some locations, making bolt-together reinforcement kits a more viable solution to restore load capacity. Furthermore, a strategic partner will advise on maintaining a local inventory of critical spare parts—like specific beam connectors—to ensure that any damage impacting load capacity can be swiftly repaired, minimising downtime.

 Synergy with Automation: When Load Capacity Meets the Machine

The modern warehouse is increasingly automated. The integration of Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), and Automated Storage and Retrieval Systems (AS/RS) imposes new, precise demands on pallet racking load capacity.

The Precision Interface for Robotics

• Racking as a Navigational Benchmark: AGVs using LiDAR or vision systems often use the racking structure itself for positioning. Therefore, the racking must be installed with exceptional precision—perfectly plumb and with consistent bay widths—to serve as a reliable digital landmark. Any deviation can cause navigation errors and impacts.

• Deflection Tolerance for Robotic Arms: An automated pallet shuttle or robotic fork arm expects the pallet to be in an exact position in three-dimensional space. Excessive beam deflection under load—a factor directly governed by the beam’s design and load capacity—can cause the pallet to be out of reach, leading to failed picks, product damage, and system stoppages. Engineering for minimal deflection is thus a critical part of specifying the correct pallet racking load capacity for automated environments.

 The Demands of a 24/7 Operation

An automated warehouse runs with minimal human intervention, placing the racking structure under near-constant, cyclical loading. This high-cycle operational regime necessitates a different engineering perspective on pallet racking load capacity. Analysis must consider fatigue life—the number of load/unload cycles a component can endure before microscopic cracks develop. The specified load capacity must therefore incorporate a robust safety factor to ensure longevity over millions of cycles, a consideration far more critical than in a manually operated, single-shift warehouse.

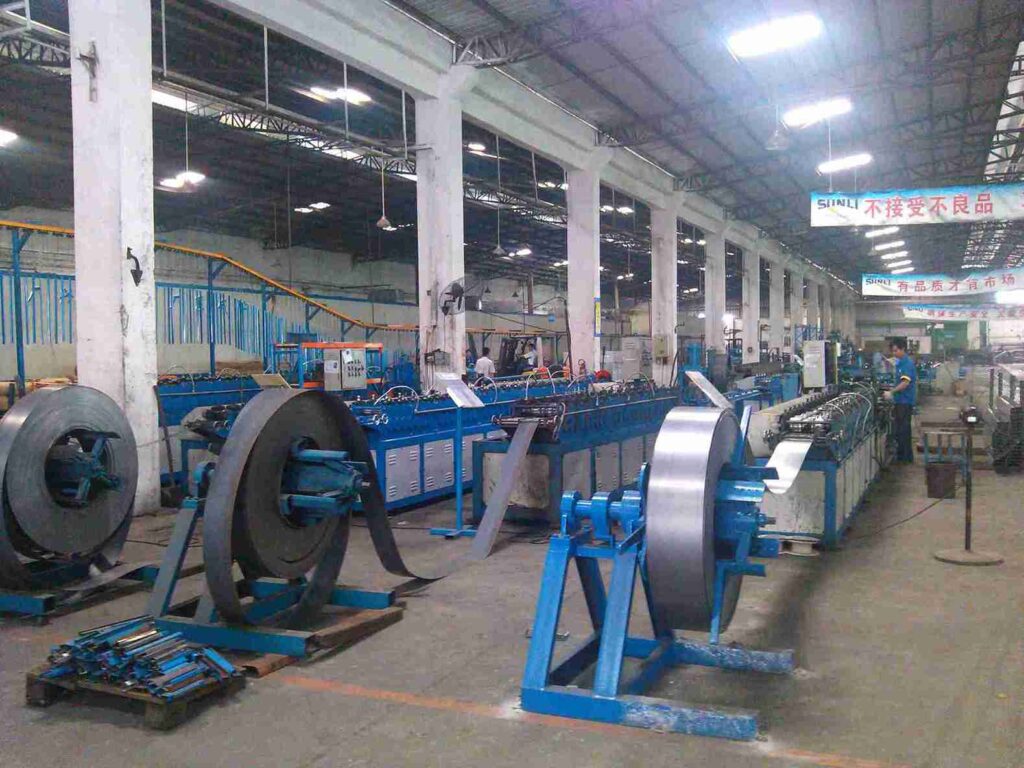

From Analysis to Blueprint: The Value of a Custom Design Proposal

For qualifying operations in key regions, a Free Custom Design Proposal is the tangible bridge between identifying load capacity issues and implementing a solution. This document is a strategic blueprint, not a simple quotation.

Deconstructing the Proposal Deliverables

A comprehensive proposal provides clarity and confidence:

1. Optimised Layout CAD Drawings: These are not generic plans. They show the exact racking configuration to maximise storage positions within your specific building envelope, respecting all clearances for MHE, accounting for building columns, and optimising the pallet racking load capacity utilisation per bay.

2. Certified Component Schedule: A detailed bill of materials listing every upright, beam, brace, and accessory, each with its manufacturer-part number and certified load capacity. This transparency eliminates ambiguity.

3. Total Cost of Ownership (TCO) Comparison: A responsible proposal contrasts the upfront investment against long-term value. It models scenarios like future expansion or integration with a mezzanine, demonstrating how the designed load capacity provides a scalable foundation.

4. Risk Mitigation and Compliance Statement: A formal document for your management and insurers, affirming that the proposed system’s load capacity and design meet all applicable safety standards and local regulations, thereby mitigating liability.

Cultivating a Culture of Load Awareness: The Human Factor

Technology and design are futile without operational discipline. The final, crucial layer in mastering pallet racking load capacity is fostering a warehouse culture where every team member is an active guardian of structural safety.

Targeted Training and Clear Protocols

• Visual Inspection Competency: Training programs for forklift operators and floor staff to recognise the red flags: a bent beam end, a dislodged beam lock, a severely overloaded bay, or an eccentrically stacked pallet. They become the first line of defense.

• Damage Reporting and Response Procedures: Establishing a simple, non-punitive, and rapid reporting system for any impact or observed damage. The protocol must guarantee that once reported, the affected bay is immediately offloaded and quarantined until a professional assessment of its remaining load capacity can be made.

Implementing a Tiered Inspection Regime

A proactive facility operates on a multi-tiered inspection model:

• Operator Visual Checks: Daily, by equipment operators.

• Supervisory Weekly Inspections: More detailed checks using a provided checklist.

• Formal Quarterly Inspections: Conducted by a trained, in-house “Racking Safety Officer.”

• Annual Professional Audit: The mandatory, in-depth assessment by external certified engineers to validate the ongoing integrity and load capacity of the entire system.

This layered approach embeds safety into daily routine, transforming pallet racking load capacity from an engineering term into a shared operational priority.

Conclusion: The Strategic Imperative of Calculated Capacity

In the competitive landscapes of emerging global markets, where supply chain resilience is paramount, the strength of your storage infrastructure cannot be left to chance. Pallet racking load capacity is the fundamental engineering parameter that simultaneously enables safety, drives storage density, and permits scalable growth. To treat it as a simple number is to build on a foundation of sand.

Partnering with experts who possess the analytical tools, regional experience, and engineering rigor to decode, validate, and optimise this critical metric is a strategic investment with a measurable return. This investment secures not only assets and inventory but also operational continuity, insurance viability, and workforce safety. The ultimate goal is a warehouse where the pallet racking load capacity is not a hidden variable but a known, managed, and optimised asset—a solid foundation for today’s operations and tomorrow’s expansion.

Frequently Asked Questions (FAQs)

1: Can we use load beams from a different manufacturer on our existing upright frames to increase capacity?

A: This is strongly discouraged and typically voids all engineering certifications. Pallet racking systems are engineered and tested as complete units. The connection between the beam end and the upright column—the beam lock—is a precision interface. Mixing brands or even different generations from the same brand can lead to improper engagement, altering load paths and creating unpredictable stress points that severely compromise the system’s safe pallet racking load capacity. Always consult the original manufacturer or a qualified engineer for compatible upgrade options.

2: How does pallet overhang affect the actual load capacity of a beam?

A: Pallet overhang significantly impacts the effective load capacity. While some overhang is common, excessive overhang (typically more than 75mm per side) creates a lever effect, increasing the bending moment on the beam. This can effectively reduce its safe working load. Furthermore, overhang places the load further from the upright support, increasing the torque on the beam lock connection. Proper pallet-to-beam matching is essential for maintaining rated load capacity.

3: Our warehouse is subject to frequent power surges that sometimes affect the WMS. Could this impact load capacity data or safety?

A: The pallet racking load capacity is a physical property of the steel structure and is unaffected by IT issues. However, your Warehouse Management System (WMS) is a critical administrative control for managing that capacity. If the WMS fails or its data is corrupted, the operational safeguards it provides—like directing stock to appropriate bays based on their load capacity—are lost. Robust IT infrastructure and manual backup procedures are necessary to ensure load-related rules are always followed, irrespective of system status.

4: For a multi-client 3PL warehouse storing a vast variety of products, how can we practically manage such diverse load capacity requirements?

A: This requires a robust process. First, a thorough pallet racking load capacity analysis zones the warehouse, categorising bays by their verified safe working load. Second, client intake must mandate accurate pallet weight and dimension data. Third, the WMS must be configured with strict put-away rules that match incoming pallet weight to the pre-defined load capacity of the destination bay. Regular audits are crucial to ensure compliance, making the management of pallet racking load capacity a core element of your service-level agreement (SLA) and safety protocol.

5: We are considering a very narrow aisle (VNA) system to increase density. How does this change our approach to load capacity?

A: VNA systems place unique demands on racking. The precision required for VNA forklift operation means even minor beam deflection or racking misalignment can cause operational issues. The pallet racking load capacity analysis for a VNA project must place a premium on specifying beams with higher stiffness (resistance to deflection) to maintain aisle clearances. Furthermore, because VNA racks are often taller and more dense, the cumulative loads on upright frames are greater, and the consequences of a collapse more severe. The engineering analysis for load capacity in a VNA application is therefore more rigorous, often requiring higher-grade materials and more robust connections.
