Introduction: Why Proper Pallet Racking Anchoring Methods Are Essential
In any warehouse, pallet racking anchoring methods determine the difference between a safe, efficient storage system and a potential disaster. Every year, improperly secured racking leads to collapses, injuries, and costly operational shutdowns. This guide dives deep into the best pallet racking anchoring methods, compliance requirements, and expert installation techniques to ensure maximum stability.
Whether setting up a new facility or reinforcing existing structures, understanding pallet racking anchoring methods is non-negotiable for warehouse managers, safety officers, and logistics professionals.
H1: The Life-Saving Role of Pallet Racking Anchoring Methods
H2: Legal and Safety Implications of Proper Anchoring
Regulatory bodies like OSHA (1910.176(b)) and ANSI MH16.1 mandate that all pallet racking anchoring methods meet strict safety standards. Non-compliance can result in:
- Heavy fines (up to $15,000 per violation)
- Increased liability risks in workplace accidents
- Voided insurance policies if racking isn’t properly secured
The right pallet racking anchoring methods prevent:
- Racking collapses from forklift impacts or seismic activity
- Load shifting, which can cause pallets to fall
- Premature wear and tear on racking components
H2: Real-World Consequences of Poor Anchoring
- A major retail warehouse in Texas faced a $200,000 OSHA penalty after an unanchored rack collapsed, injuring two workers.
- A food distribution center in California lost three days of operations due to a racking failure caused by weak anchors.
- Insurance claims denied for multiple facilities that skipped proper pallet racking anchoring methods.
H1: The Top 5 Pallet Racking Anchoring Methods Compared
H2: 1. Concrete Expansion Anchors (Wedge Anchors) – The Heavy-Duty Choice
Best for: High-capacity racking on solid concrete floors.
- How it works: A steel bolt expands inside the concrete, creating an ultra-secure hold.
- Why it’s a top pallet racking anchoring method:
- Supports up to 50,000 lbs per upright
- Ideal for seismic zones when installed correctly
- Installation must-knows:
- Drill holes at least 4x the anchor diameter
- Use a torque wrench to prevent under/over-tightening

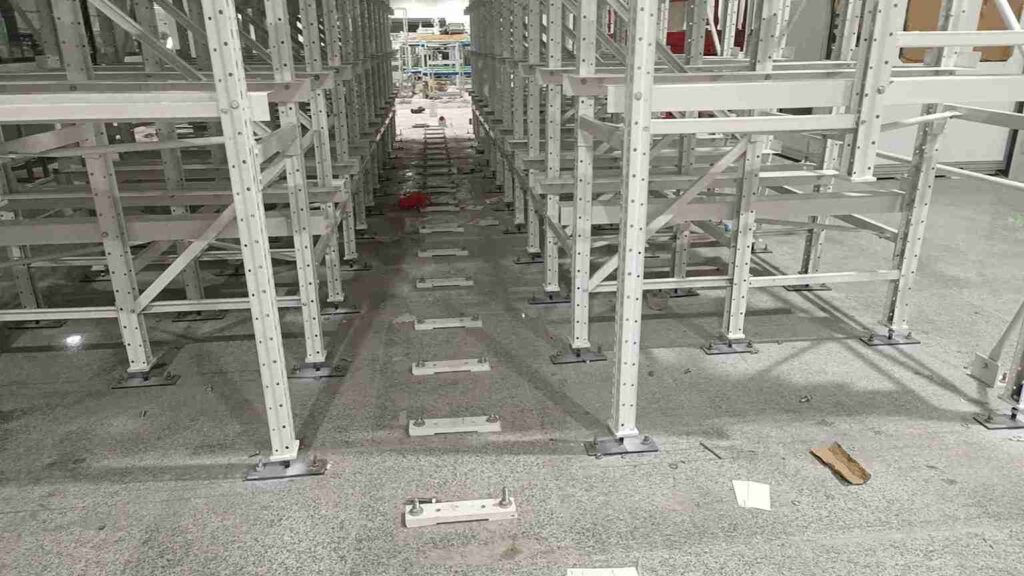

H2: 2. Chemical Anchoring (Epoxy Anchors) – The High-Strength Solution
Best for: Warehouses in earthquake-prone areas or with cracked concrete.
- How it works: A two-part epoxy resin bonds the anchor to the concrete.
- Why it’s superior among pallet racking anchoring methods:
- Resists vibration better than mechanical anchors
- Works in damp or damaged concrete
- Pro tip: Allow 24-48 hours curing time before loading racks.
H2: 3. Drop-In Anchors – The Fast-Installation Option
Best for: Facilities that frequently reconfigure layouts.
- How it works: A sleeve expands when a bolt is tightened.
- Where it fits among pallet racking anchoring methods:
- Faster installation than wedge anchors
- Flush mounting prevents tripping hazards
- Limitation: Not suitable for high-capacity seismic zones.
H2: 4. Powder-Actuated Anchors – The Steel Deck Specialist
Best for: Thin concrete slabs or steel decking.
- How it works: A high-velocity pin embeds into the base material.
- Where it stands in pallet racking anchoring methods:
- No drilling required – ideal for retrofits
- Fast installation for temporary setups
- Critical limitation: Not for heavy-duty pallet racking.
H2: 5. Cast-In Anchors – The Permanent Industrial Solution
Best for: New warehouse construction.
- How it works: Anchor plates are set in wet concrete.
- Why it’s the most robust pallet racking anchoring method:
- Highest load capacity available
- No drilling needed – strongest possible hold
- Downside: Cannot be added later – must be planned during construction.
H1: How to Select the Right Pallet Racking Anchoring Method
H2: The 5 Key Decision Factors
- Floor Material – Concrete, steel, or asphalt?
- Weight Requirements – Light, medium, or heavy-duty loads?
- Seismic/Wind Risks – Is the warehouse in a high-risk zone?
- Future Flexibility Needs – Will racks need moving later?
- Compliance Standards – OSHA, ANSI, or local building codes?
H2: Special Considerations for Seismic Zones
- California, Japan, and other earthquake-prone regions require enhanced pallet racking anchoring methods.
- Best choices:
- Epoxy anchors (best crack resistance)
- Wedge anchors with seismic sleeves (extra reinforcement)
H1: Step-by-Step Guide to Installing Pallet Racking Anchors
H2: Pre-Installation Must-Do’s
- Inspect the floor for cracks, moisture, or weak spots.
- Verify anchor spacing (typically 4-6 feet per upright).
- Use a laser level to ensure perfect alignment.
H2: The Installation Process
- Mark drill points based on racking blueprints.
- Drill holes (depth = anchor length + ½ inch).
- Clean holes thoroughly (wire brush + air blower).
- Insert anchors and tighten to manufacturer specs.
- Torque-test a sample anchor to confirm holding strength.
H2: Post-Installation Safety Checks
- Look for:
- Loose anchors (retighten if needed)
- Cracked concrete (switch to epoxy if necessary)
- Uneven load distribution (rebalance if required)
H1: Common Pallet Racking Anchoring Mistakes (And How to Avoid Them)
H2: Mistake #1: Choosing the Wrong Anchor Type
- Example: Using powder-actuated anchors for heavy-duty racking.
- Solution: Always match the anchor to load requirements.
H2: Mistake #2: Incorrect Hole Depth
- Problem: Shallow holes reduce holding strength.
- Fix: Drill at least ½ inch deeper than the anchor length.
H2: Mistake #3: Skipping Torque Testing
- Risk: Anchors may loosen under load.
- Best Practice: Use a torque wrench and recheck after 24 hours.
H1: OSHA & ANSI Compliance for Pallet Racking Anchoring Methods
H2: Mandatory Requirements
- Anchors at every upright base
- Minimum pull-out strength: 3,125 lbs per anchor (ANSI MH16.1)
- Annual inspections required
H2: Required Documentation
- Anchor manufacturer specifications
- Installation torque records
- Inspection reports (retain for 3+ years)
H1: Expert Tips for Long-Term Racking Stability
H2: Reinforce High-Impact Zones
- Extra anchors near forklift lanes
- Protective column guards to prevent damage
H2: Monitor for Wear & Tear
- Inspect anchors every 6 months
- Replace corroded or bent anchors immediately
H1: Conclusion – Secure Your Racking With the Right Anchoring Method
Choosing the correct pallet racking anchoring methods isn’t optional—it’s a safety, legal, and operational necessity. By following this guide, warehouse operators can:
- Prevent collapses and injuries
- Avoid OSHA violations and fines
- Extend racking lifespan
For a free racking safety audit, contact our team of experts today.
H1: Frequently Asked Questions (FAQs)
H2: 1. How often should pallet racking anchors be inspected?
- Answer: At least annually, or more in high-impact areas.
H2: 2. Can pallet racking be anchored to asphalt?
- Answer: No—only concrete or steel provides sufficient strength.
H2: 3. What’s the minimum anchor spacing for pallet racking?
- Answer: Typically 4-6 feet per upright, but check engineering specs.
H2: 4. Are seismic anchors needed outside earthquake zones?
- Answer: Recommended for high-wind areas or multi-level racking.
H2: 5. Can anchors be reused when relocating racking?
- Answer: Never reuse anchors—always install new ones for safety.
