Introduction to Pallet Flow Racking Systems

In today’s fast-paced logistics environment, pallet flow racking has emerged as a game-changing storage solution for warehouses that demand high-density storage, efficient FIFO (First-In, First-Out) inventory control, and reduced labor costs. Unlike conventional selective pallet racking, pallet flow systems leverage gravity to automatically move pallets from the loading end to the unloading end, ensuring seamless product rotation—a critical feature for industries dealing with perishable goods, pharmaceuticals, and time-sensitive materials.

This in-depth guide explores the mechanics, advantages, design considerations, and real-world applications of pallet flow racking, helping warehouse managers and logistics professionals determine whether this system is the right fit for their operations.



How Pallet Flow Racking Works: A Gravity-Based FIFO System

The Science Behind Gravity-Fed Pallet Movement

At the heart of pallet flow racking is a carefully engineered gravity-fed mechanism. Pallets are loaded onto inclined flow rails or wheel tracks, where they glide smoothly toward the unloading side. As new pallets are added at the rear, they push existing stock forward, ensuring strict FIFO compliance without manual intervention.

Core Components of a Pallet Flow Rack System

1. Flow Rails (Roller or Wheel Tracks) – Designed for smooth, low-friction pallet movement.

2. Braking Systems – Prevent pallets from gaining excessive speed, reducing collision risks.

3. Load Separators & Lane Dividers – Maintain proper spacing between pallets for safety.

4. Structural Steel Framework – Heavy-duty construction to support high-capacity loads.

---

Top 6 Benefits of Pallet Flow Racking for Modern Warehouses

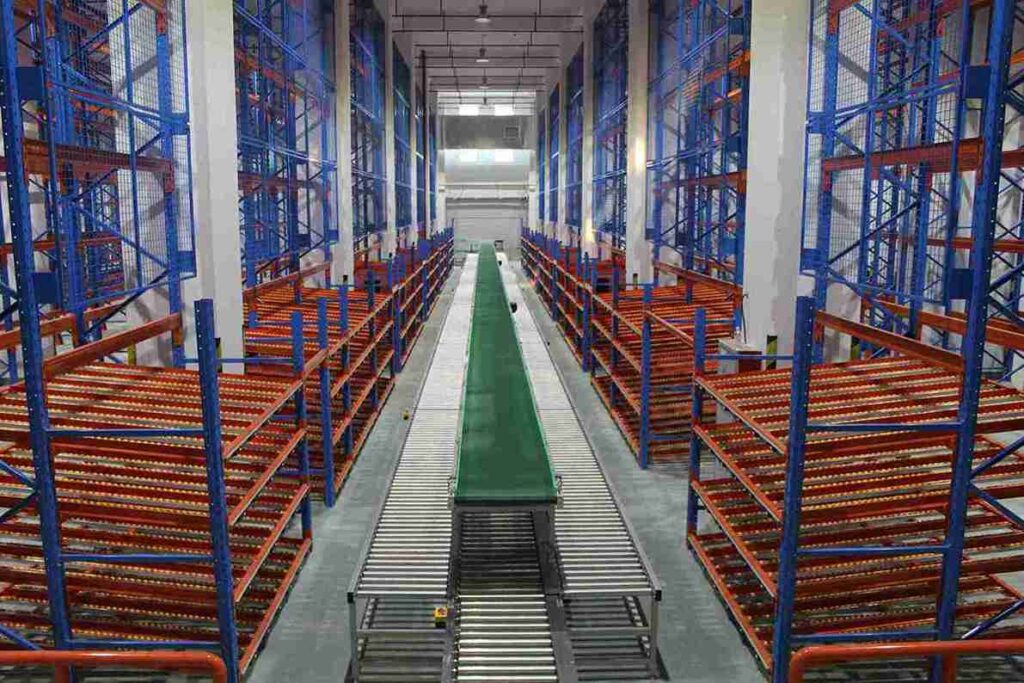

1. Unmatched Storage Density Compared to Selective Racking

Pallet flow racking eliminates multiple aisles by storing pallets in deep lanes, increasing storage capacity by up to 75% compared to traditional selective racking. This makes it ideal for warehouses with limited space.

2. Perfect FIFO Inventory Management for Perishable Goods

Industries that rely on FIFO stock rotation—such as food & beverage, pharmaceuticals, and chemicals—benefit immensely from pallet flow racking since it automatically ensures older stock is picked first.

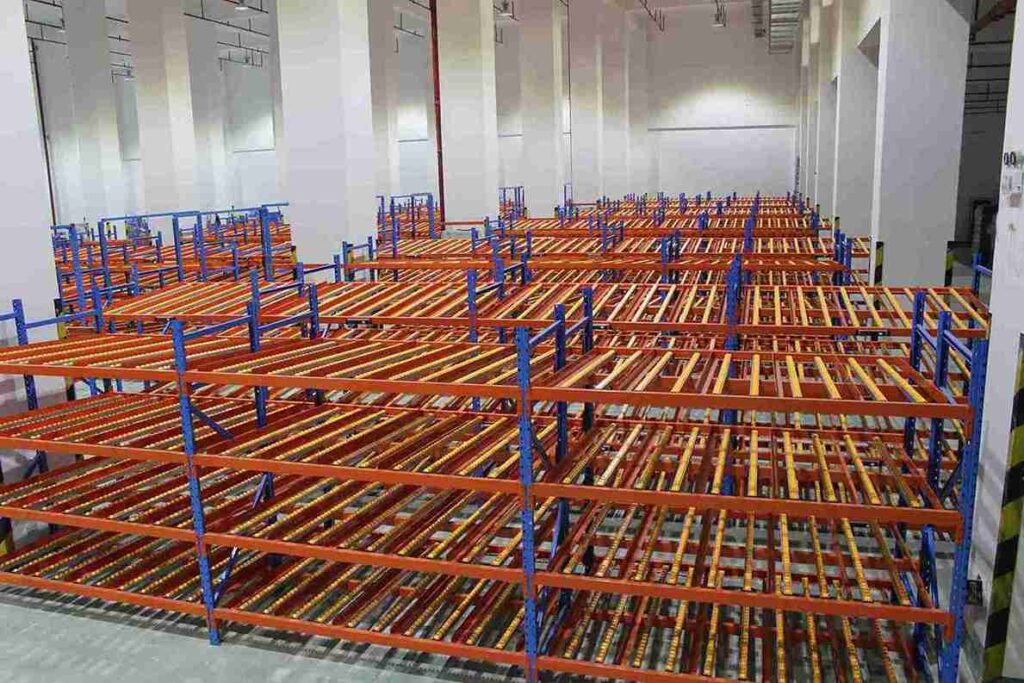

3. Faster Order Fulfillment & Reduced Labor Costs

Since pallets automatically advance to the picking face, forklift travel time is minimized, leading to faster order processing and lower labor expenses.

4. Enhanced Workplace Safety & Reduced Product Damage

With speed controllers, braking systems, and load separators, pallet flow racking minimizes accidents and prevents pallet collisions, protecting both workers and inventory.

5. Scalability for Growing Warehouses

Pallet flow systems can be customized for varying lane depths, load capacities, and warehouse layouts, making them adaptable for future expansion.

6. Energy Efficiency in Cold Storage Environments

For refrigerated and frozen storage, pallet flow racking reduces the need for frequent forklift movement, helping maintain consistent temperatures and lowering energy costs.

---

Pallet Flow Racking vs. Alternative Storage Systems

Comparison with Drive-In, Push-Back, and Selective Racking

Why Pallet Flow Racking Outperforms Selective Racking

• Higher storage density (up to 75% more pallet positions).

• Automated stock rotation eliminates manual handling errors.

• Lower long-term operational costs due to reduced labor needs.

---

Key Design Considerations for Pallet Flow Racking Systems

1. Lane Depth & Configuration

• Single-Depth vs. Multi-Depth Lanes (typically 5-15 pallets deep).

• Optimal lane length depends on SKU velocity and warehouse layout.

2. Load Capacity & Weight Distribution

• Standard systems handle 1,000–3,000 lbs per pallet.

• Heavy-duty pallet flow racking supports 5,000+ lbs per pallet.

3. Floor Slope & Brake Mechanisms

• 1-3% incline ensures smooth pallet movement.

• Electromagnetic or hydraulic brakes control speed for safety.

4. Material Selection for Harsh Environments

• Stainless steel rollers for cold storage.

• Galvanized steel frames for corrosive environments.

---

Industry-Specific Applications of Pallet Flow Racking

1. Food & Beverage Distribution

• Ensures FIFO compliance for perishable items.

• Reduces spoilage and waste.

2. Pharmaceutical & Healthcare Warehousing

• Maintains strict lot control for medicines and vaccines.

• Accelerates order picking for time-sensitive shipments.

3. Automotive & Manufacturing Parts Storage

• Ideal for just-in-time (JIT) inventory systems.

• Streamlines bulk component retrieval.

4. Retail & E-Commerce Fulfillment Centers

• Speeds up high-volume order picking.

• Maximizes storage in urban fulfillment hubs.

---

Installation & Maintenance Best Practices for Pallet Flow Racks

Professional Installation Guidelines

• Ensure level flooring to prevent pallet jams.

• Conduct load testing before full-scale operation.

Long-Term Maintenance Tips

• Lubricate rollers annually to maintain smooth movement.

• Inspect braking systems quarterly for wear and tear.

---

Cost Analysis & ROI of Pallet Flow Racking

Initial Investment vs. Long-Term Savings

• Higher upfront cost than selective racking but ROI within 2-3 years.

• Labor savings from reduced forklift travel time.

Customization & Pricing Factors

• Standard pallet flow racking: $1,500–$3,000 per lane.

• Heavy-duty configurations: $4,000+ per lane.

---

Future Trends in Pallet Flow Racking Technology

1. Automation & Robotics Integration

• Automated pallet retrievers for fully hands-free FIFO systems.

• IoT-enabled tracking for real-time inventory visibility.

2. Sustainable & Eco-Friendly Designs

• Recycled steel construction for greener warehouses.

• Energy-efficient layouts for cold storage facilities.

---

Conclusion: Is Pallet Flow Racking the Right Choice for Your Warehouse?

For warehouses prioritizing high-density storage, FIFO compliance, and operational efficiency, pallet flow racking stands out as the optimal solution. Its ability to maximize space, reduce labor costs, and improve inventory accuracy makes it indispensable for industries like food distribution, pharmaceuticals, and retail logistics.

By carefully assessing lane depth, load requirements, and future scalability, businesses can implement a pallet flow system that delivers long-term cost savings and productivity gains.

---

Frequently Asked Questions (FAQs)

1. Can pallet flow racking handle mixed pallet sizes?

Yes, adjustable lane dividers and custom roller configurations can accommodate varying pallet dimensions.

2. What’s the maximum lane depth for pallet flow systems?

While some systems support up to 20 pallets deep, optimal depth depends on product turnover and forklift access.

3. Are pallet flow racks suitable for outdoor use?

No, they require a controlled indoor environment to prevent roller corrosion and ensure smooth operation.

4. How do I prevent pallet jams in a flow system?

Regular lane inspections, proper load balancing, and speed controllers minimize jamming risks.

5. Can existing racking be converted into a pallet flow system?

In some cases, retrofitting is possible, but a custom-designed solution typically offers better performance.

By implementing pallet flow racking, warehouses can achieve higher efficiency, better space utilization, and seamless FIFO inventory control. For expert guidance, consult a storage solutions specialist to design a system tailored to your needs.
