Mastering the Convergence of Safety, Density, and Automation: The Definitive Guide to OSHA Pallet Racking Regulations for Modern Logistics

In today’s logistics landscape, OSHA pallet racking regulations have transcended mere compliance checklists to become the foundational bedrock for building efficient, high-density storage systems. For enterprises operating across Southeast Asia, the Middle East, Africa, and Latin America, a deep understanding and proactive implementation of these rules are critical for ensuring operational safety, enhancing productivity, and securing a position within global supply chains.

This article provides an exhaustive exploration of the core principles behind OSHA pallet racking regulations and details their seamless integration with automated, high-density storage solutions. We present a comprehensive blueprint for constructing warehouse facilities that are not only compliant but also strategically competitive and inherently safe.

OSHA Racking Standards: The Embodiment of Safety Philosophy and the Cornerstone of Engineering Practice

A common misconception among managers is viewing OSHA pallet racking regulations as a set of restrictive, static rules. In reality, these regulations embody a fundamental philosophy of safety: preventive risk management. At its core, 29 CFR 1910.176(b), a key component of OSHA pallet racking regulations, mandates that storage equipment must be capable of safely supporting the maximum intended load. This principle is the very soul of OSHA pallet racking regulations, directly informing engineering practices across the entire lifecycle of a racking system—from design and installation to daily use and maintenance.

Whether selecting traditional selective pallet racking or investing in an automated pallet shuttle system, adherence to OSHA pallet racking regulations is the non-negotiable first step in safeguarding both personnel and capital investment. A profound grasp of the intent behind OSHA pallet racking regulations enables businesses to identify and mitigate the vast majority of potential risks during the planning phase, a necessity that becomes even more crucial when dealing with complex systems like Very Narrow Aisle (VNA) racking or Automated Storage and Retrieval Systems (ASRS).

From Code to Operation: A Detailed Analysis of the Regulations

On a practical level, OSHA pallet racking regulations are implemented through consensus standards such as those published by the Rack Manufacturers Institute (RMI) and ANSI MH16.1. These standards translate the principles of OSHA pallet racking regulations into specific, actionable technical parameters.

1. Load Certification and Design Basis: Compliance begins with the load. In the spirit of OSHA pallet racking regulations, every racking system must have engineering design documents based on a clearly defined “unit load.” This means businesses cannot rely on estimates; they must provide precise pallet dimensions, weight, and center of gravity data. For companies planning to implement an Automated Storage and Retrieval System (AS/RS), this is paramount. The control software for the automated equipment must be programmed using these OSHA pallet racking regulations-reviewed load data to ensure every storage transaction occurs within the structural safety limits.

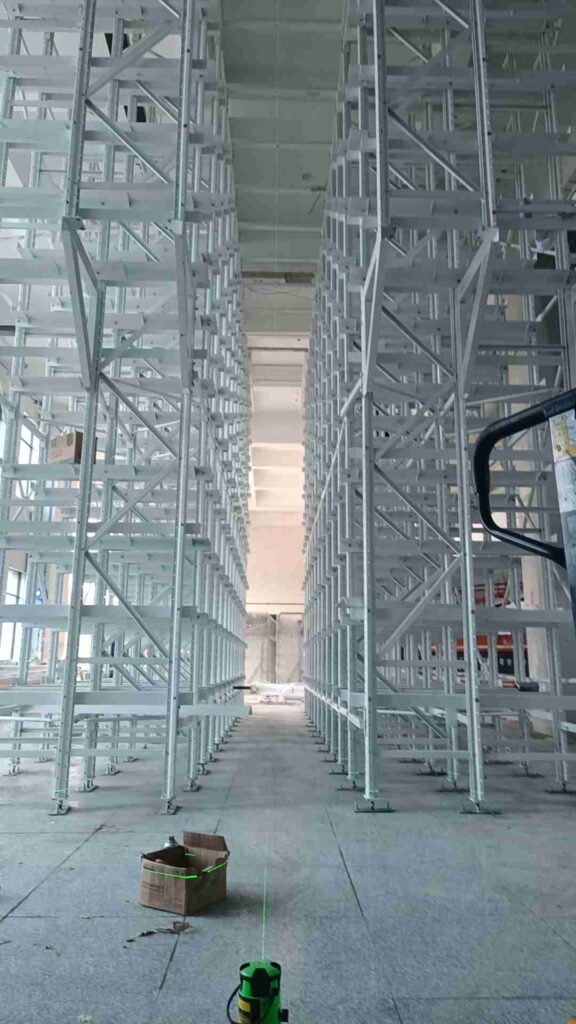

2. The Mandate for Installation Precision: OSHA pallet racking regulations require that racks be correctly and securely installed. In seismically active regions, such as parts of Southeast Asia or Chile, this involves far more than tightening bolts. It requires professional structural calculations to ensure the racking system—particularly high-rise racking that may form part of the building structure—can withstand lateral forces. An installation that meets OSHA pallet racking regulations forms the essential foundation for the long-term, smooth, and precise operation of automated equipment like AS/RS cranes, as even minor deformation or misalignment can lead to serious equipment failure or safety incidents.

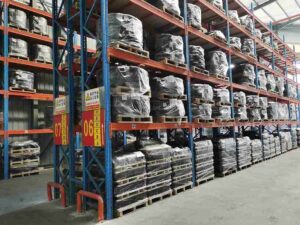

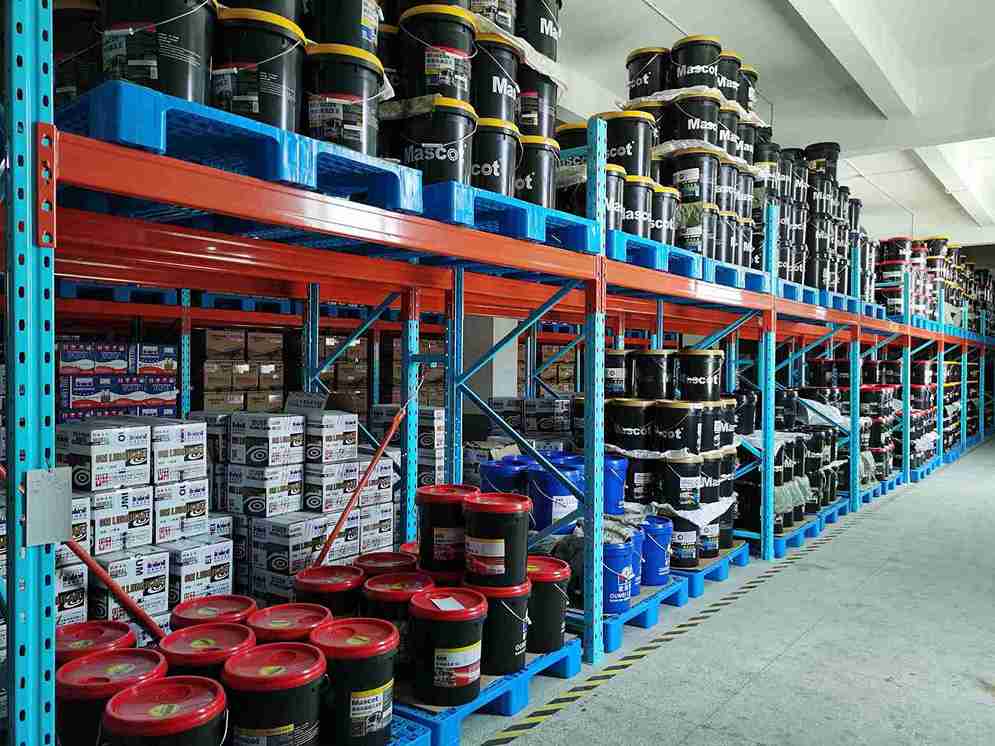

3. Damage Tolerance and Repair Protocols: OSHA pallet racking regulations explicitly classify storage racks as production equipment requiring maintenance. A dent in an upright column caused by a forklift impact cannot be simply hammered out; its repair must follow RMI standards, typically requiring manufacturer-approved repair kits or component replacement. The introduction of Automated Guided Vehicles (AGVs) or autonomous mobile robots (AMRs) can drastically reduce such collision events at their source, serving as a prime example of using automation technology to proactively meet the requirements of OSHA pallet racking regulations. However, a regular, documented rack inspection program remains an irreplaceable pillar of compliance with OSHA pallet racking regulations.

High-Density Storage Solutions: Maximizing Spatial Efficiency Within a Compliant Framework

The pursuit of higher storage density is an industry imperative. Each high-density solution must embed considerations for OSHA pallet racking regulations into its very design and operational protocols.

The Compliance Dualism of Narrow-Aisle (VNA) Solutions

Narrow-aisle systems increase storage positions by reducing aisle widths to approximately 1.6 meters or less. In a manually operated VNA scenario, the focus of OSHA pallet racking regulations is on fall protection for personnel working at height (e.g., integrated safety cages on turret trucks) and the racking’s tolerance to frequent forklift interaction.

When upgraded to a fully automated VNA AS/RS, the nature of compliance transforms qualitatively. Personnel are removed from high-risk environments, and the risk is transferred to the management of equipment reliability and racking precision. Here, the requirements of OSHA pallet racking regulations converge tightly with machinery safety standards (like ANSI B11), and the racking must provide an absolutely stable rail foundation for high-speed S/R machines.

The King of Dense Storage: Drive-In/Drive-Through Rack and the Automation Transformation

Drive-in racking is a classic high-density solution where “the forklift is the storage device.” In traditional operation modes, compliance pressure related to OSHA pallet racking regulations is immense, as forklifts operate inside the rack structure, presenting a high risk of impact and demanding extremely strict design and installation precision. Implementing an automated pallet shuttle or satellite vehicle system is a revolutionary solution. The forklift or AGV only interfaces with the shuttle at the lane entrance; the shuttle then carries the load into deep storage. This model almost entirely eliminates damage to the rack interior by forklifts,OSHA pallet racking regulations。

Compliance Essentials for Dynamic Storage: Gravity Flow Rack

Gravity flow rack utilizes rollers to achieve First-In-First-Out (FIFO) product movement. Within the framework of OSHA pallet racking regulations, its design must incorporate reliable braking zones to prevent loads from accelerating uncontrollably down the lane. Additionally, appropriate end stops and guarding are required. When integrated with automated piece-picking robots or Goods-to-Person workstations, the system isolates personnel from fast-moving product lines, directly addressing safety hazards in human-machine interaction zones. This perfectly illustrates the concept of leveraging automation to elevate compliance with OSHA pallet racking regulations.

Automation: Beyond Tool, Becoming the Heart of the Compliance Ecosystem

Viewing automated equipment solely as tools for efficiency gains is a limited perspective. In addressing the challenges posed by OSHA pallet racking regulations, automated systems assume the role of an “active compliance enforcer.”

Eliminating Human Variables in High-Risk Tasks

Statistics show that the vast majority of warehouse accidents involve forklifts or manual handling. Unmanned transport equipment (AGVs/AMRs) and AS/RS take over these repetitive, heavy, and high-reach tasks. They do not tire, remain focused, and operate strictly according to protocol, fundamentally eliminating violations caused by fatigue, distraction, or misjudgment. This shift from “reliance on human vigilance” to “reliance on technical prevention” is one of the most efficient and thorough ways to meet OSHA pallet racking regulations.

Digital Twin and Load Verification: Pre-Transaction Compliance

Advanced Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS) create a digital twin of the physical racking. Before an automated system executes a storage command, it can perform a virtual load-location compatibility check. An overweight or oversized pallet is automatically intercepted and rerouted by the system. This pre-transaction screening, conducted in virtual space, transforms the OSHA pallet racking regulations rule against overloading from a post-operation check reliant on personnel diligence into a system-enforced pre-emptive control, embedding compliance proactively.

Data-Driven Insights and Predictive Maintenance

An automated system is itself a vast network of sensors. Vibration sensors can monitor the smooth operation of an AS/RS crane, providing early warning of rail alignment issues; thermal sensors can monitor motor temperatures. This philosophy of predictive maintenance can be extended to the rack structure itself. Although not yet commonplace, integrating sensors at critical structural points to monitor stress in real-time represents the future direction of OSHA pallet racking regulations compliance: evolving from periodic manual inspections to continuous, data-driven structural health monitoring.

Building a Compliant, Automated, High-Density Warehouse: A Five-Phase Implementation Roadmap

Successfully fusing OSHA pallet racking regulations with automation requires a structured implementation process.

Phase 1: Conceptual Design and Regulatory Scoping

This is the most critical phase. Businesses must collaborate with an experienced warehouse systems integrator to conduct a comprehensive site-specific risk assessment. Key actions include: performing a site-specific seismic and wind load analysis (vital for projects in locations like the Philippines or coastal Middle Eastern regions); explicitly defining the “Maximum Intended Load” with an appropriate safety factor; and engaging early with local fire and building authorities to ensure the automated high-density warehouse design meets all local codes. All this work must be guided by the safety philosophy underlying OSHA pallet racking regulations.

Phase 2: Integrated Engineering and Simulation Validation

The rack manufacturer, automation supplier, and structural engineer must form a unified team. Using Finite Element Analysis (FEA), the rack structure is digitally modeled and stress-tested to validate its safety under static loads, dynamic equipment forces, and seismic events. Concurrently, logistics simulation software models the entire material flow to ensure the automation system’s operational logic does not adversely affect the racking. This phase is key to translating the textual requirements of OSHA pallet racking regulations into concrete engineering drawings.

Phase 3: Factory Acceptance Test (FAT) and Quality Assurance

Prior to shipment, a comprehensive FAT should be conducted at the supplier’s factory. This includes verifying all safety functions of the automated equipment (emergency stops, anti-collision, overload detection, etc.) operate as designed. Witnessing the FAT is a crucial step in ensuring the purchased system possesses the inherent safety integrity aligned with OSHA pallet racking regulations before it reaches the site.

Phase 4: Site Installation and Integrated Commissioning

Site installation must be supervised by certified personnel strictly following engineering specifications. Focus areas include: verifying foundation levelness and anchor bolt torque; ensuring rack installation plumb and alignment meets the extremely high tolerances (typically millimeter-level) required by automated equipment. The final Site Acceptance Test (SAT) should include full-load operational tests, safety function activation tests, and performance tests to demonstrate the fully integrated system complies with OSHA pallet racking regulations and all performance requirements in the live environment.

Phase 5: Operational Training and Sustaining a Safety Culture

Automation changes the nature of work. Training must cover: lock-out/tag-out (LOTO) procedures specific to automated systems for maintenance staff; emergency response drills for all personnel in automated areas (e.g., manual retrieval, fire response); and establishing a tiered continuous inspection regime (operator daily/visual, technician weekly, professional annual). Only by integrating the requirements of OSHA pallet racking regulations into daily operational culture can safety be truly assured.

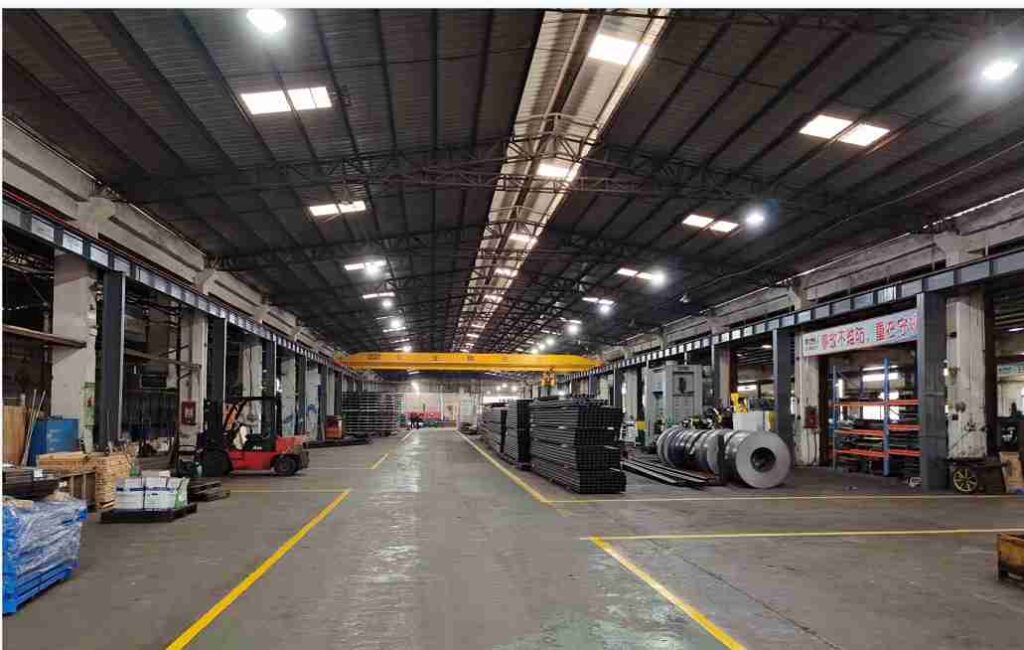

Global Vision, Local Application: Regional Practice of OSHA Standards

While OSHA pallet racking regulations originate in the United States, their principles are the universal language of global warehouse safety. Applying them in target markets requires adaptation to local conditions.

• Southeast Asia Markets: High humidity and seismic activity are primary considerations. Racking often requires hot-dip galvanizing for corrosion protection. Structural design must comply with local seismic codes (e.g., SNI standards in Indonesia). Rising labor costs are making the return on investment for automation increasingly attractive, and automation itself is a powerful tool for meeting the stringent requirements of OSHA pallet racking regulations.

• Middle East Markets: Extreme heat can affect the performance of automation components. System specification must account for component operating temperature ranges. Sandy, dusty environments also pose special requirements for ventilation and filtration. Factoring these into design and operation is prerequisite for ensuring long-term, stable, and safe system performance, thereby sustaining compliance with OSHA pallet racking regulations.

• African and Latin American Markets: Power supply stability is a common challenge. Automation system design should include Uninterruptible Power Supplies (UPS) and orderly shutdown procedures. Simultaneously, establishing a localized technical support and spare parts network is critical for maintaining system availability and safety, which is also the foundation for ongoing compliance.

Case Study: The Compliance and Automation Transformation of a Pharmaceutical Cold Storage Facility

Background: A pharmaceutical distributor in Mexico City required a new high-density cold storage facility. Space was limited, throughput demands were high, product required strict temperature control, and the location was in a seismically active zone.

Solution: A cold storage facility utilizing a 12-meter high, rack-supported building structure, internally deployed with a four-deep pallet shuttle system, served by AGVs for transport from the dock to the shuttle lane entrances.

OSHA Regulations and Automation Synergy in Action:

1. The rack structure was designed for pharmaceutical-specific unit loads and the seismic requirements of Mexico City, fundamentally meeting the core structural safety demands of OSHA pallet racking regulations.

2. AGVs replaced traditional forklifts in dense staging areas, virtually eliminating collision risks.

3. The shuttle system removed the need for forklifts to enter the rack structure, perfectly preserving rack integrity—a best practice for the OSHA pallet racking regulations clause on preventing equipment damage.

4. The Warehouse Management System enforced First-In-First-Out (FIFO) and provided full lot traceability, enhancing not only quality control but also operational safety and accountability.

5. The high-density storage area achieved complete segregation of personnel and vehicles, with entry permitted only under strict maintenance protocols, drastically reducing safety risks.

This case demonstrates that through integrated automated design, it is possible to meet and even exceed the requirements of OSHA pallet racking regulations while achieving exceptional space utilization and operational efficiency.

Future Outlook: Smart Technologies Empowering Next-Generation Safety Compliance

Cutting-edge technologies are elevating the practice of OSHA pallet racking regulations compliance to new heights:

• Computer Vision-Based Proactive Inspection: AGVs equipped with cameras can automatically scan rack uprights during routine travel, using AI image recognition to identify damage and auto-generate repair work orders.

• AI-Powered Digital Twin: System AI learns normal equipment operation patterns; any anomalous vibration or noise is identified and triggers an alert, enabling predictive maintenance and preventing incidents before they occur.

• Blockchain-Secured Audit Trails: Every inspection, repair, and load test record can be encrypted and stored on a blockchain, providing an immutable, authoritative proof of the racking system’s safety compliance throughout its entire lifecycle.

These trends suggest that future compliance with OSHA pallet racking regulations will not be a passive, reactive function but an active, adaptive core module embedded within intelligent warehouse operating systems.

Conclusion: Towards the Unification of Intrinsic Safety and Operational Excellence

A deep dive into OSHA pallet racking regulations and their integration with automated, high-density storage solutions reveals a clear logic: the pursuit of safety and efficiency, supported by modern engineering and intelligent technology, converges. OSHA pallet racking regulations provide a time-tested safety framework for warehouse facilities. Automation technologies—particularly AGVs, AS/RS, and shuttle systems—are the most powerful and precise tools for realizing this framework. They not only reduce human error but also, through data-driven and systematic approaches, transform safety compliance from a cost center into a core operational capability and competitive advantage.

For businesses operating in global emerging markets, adopting this integrated strategy is a strategic imperative. It safeguards personnel, protects assets, meets increasingly stringent global supply chain audit requirements, and delivers significant economic returns through improved space utilization and operational reliability. The ultimate goal is not merely to comply with OSHA pallet racking regulations, but to construct an intrinsically safe, intelligently efficient, and future-ready modern logistics hub.

Frequently Asked Questions (FAQ)

1. Our country has no explicit local racking codes. Do we still need to follow OSHA Pallet Racking Regulations?

Yes, it is highly advisable to use OSHA pallet racking regulations and the associated ANSI MH16.1/RMI standards as your baseline for design, installation, and operation. These standards represent the highest global engineering practices and the recognized standard of “due care” in industrial storage safety. Adhering to them not only maximizes protection for your workforce and assets but also aligns your facility with the expectations of most international clients and insurers, facilitating global business operations.

2. After implementing automation, is our compliance responsibility under OSHA Pallet Racking Regulations reduced or changed?

The nature of the responsibility evolves but is absolutely not reduced. The employer remains ultimately responsible for ensuring a safe workplace. Automation reduces risks directly caused by manual operation (e.g., impacts) but introduces new risk points (e.g., automated equipment zones, electromechanical safety). Therefore, compliance responsibility expands from primarily managing human behavior to also managing human-machine interfaces and equipment system safety. You must update safety procedures, train staff for the new risk environment, and ensure the automation system itself complies with relevant machinery safety standards. This actually places higher, more specialized demands on management.

3. For existing older racking, how do we assess its compliance with OSHA Pallet Racking Regulations to facilitate automation retrofitting?

This requires a rigorous engineering assessment process. First, you must engage a qualified professional agency or the original rack manufacturer to conduct a comprehensive site survey and structural assessment. This assessment includes: verifying if the original design loads meet the demands of the new automated operation; inspecting the current damage condition and repair history of the existing rack; measuring its current plumb and alignment; and validating the effectiveness of the anchorage system. Only after this assessment report confirms the rack structure has a sound basis for upgrade can automation integration design proceed. Never install automated equipment directly onto unverified old racking.

4. In an automated warehouse, how should daily rack inspections be conducted? What should be the frequency and focus?

Even in an automated warehouse, regular visual inspections remain irreplaceable, though the method and focus can be optimized. A tiered inspection system is recommended:

• Daily/Weekly Quick Visual Checks: Performed by trained operations or maintenance personnel, focusing on easily visible areas like aisle entrances and rack bases for obvious damage, loose bolts, or improperly placed loads.

• Monthly Detailed Inspections: Conducted by in-house technicians using a checklist for a systematic review of broader areas.

• Annual Professional Inspection: Performed by an external certified rack inspector or the OEM engineer for a comprehensive, in-depth examination, resulting in a formal report.
  The inspection focus should extend beyond structural damage to include wear on rails or guides contacted by automation equipment, and the integrity of safety devices like end stops.

5. How can we justify to company management that investing in a high-end automated system compliant with OSHA Pallet Racking Regulations is worthwhile?

This is a comprehensive value proposition that must extend beyond simple equipment cost calculations, emphasizing risk mitigation value and operational enhancement value:

• Direct Cost Avoidance: Articulate the potential catastrophic costs of a major rack collapse—including worker injury compensation, product loss, business interruption, legal fines, and irreparable reputational damage. A system compliant with OSHA pallet racking regulations is a fundamental defense against such disasters.

• Insurance and Compliance Benefits: Explain how such systems may lower corporate liability insurance premiums and ensure smooth passage of international client and third-party audits, avoiding lost orders or fines due to non-compliance.

• Efficiency and Spatial Gains: Quantify the space savings from high-density automated storage (equivalent to saved rent or expansion costs) and the throughput increase (revenue generation capability).

• Long-Term Asset Value Preservation: High-quality, compliantly designed systems have longer lifespans, lower maintenance costs, and higher residual value as core corporate assets.
  By repositioning safety compliance from a “cost center” to a “strategic investment in risk control and efficiency,” you can effectively secure management buy-in.
