Introduction: Why Heavy-Duty Industrial Racking Defines Modern Warehousing

In today’s fast-paced logistics environment, heavy-duty industrial racking isn’t just storage—it’s the structural foundation of an efficient supply chain. Warehouses leveraging high-capacity racking systems achieve 30%+ space utilization gains, 20% faster order fulfillment, and reduced product damage rates compared to outdated storage methods.

This guide delivers actionable, technical insights for operations managers, warehouse designers, and procurement specialists seeking to:

• Maximize storage density without compromising accessibility

• Extend racking lifespan through proper engineering and maintenance

• Integrate automation with existing heavy-duty industrial racking infrastructure

• Avoid costly compliance violations through OSHA-aligned safety practices

With over 70% of warehouse costs tied to space utilization and labor efficiency, selecting the right heavy-duty industrial racking system becomes a profitability decision, not just an equipment purchase.



1. Heavy-Duty Industrial Racking: Engineering Principles for Peak Performance

1.1 The Physics Behind True Heavy-Duty Capacity

Not all racking marketed as “heavy-duty” meets industrial demands. True heavy-duty industrial racking adheres to:

• Static vs. Dynamic Load Ratings

  • Static capacity: 30,000+ lbs per bay (stationary loads)

  • Dynamic capacity: 15,000-20,000 lbs per bay (forklift-impact loads)

• Steel Metallurgy Standards

  • ASTM A500 Grade C steel (minimum yield strength: 50,000 psi)

  • Hot-rolled vs. cold-formed steel (hot-rolling provides 18% greater structural integrity)

Case Example: A Midwest auto parts distributor increased storage capacity by 42% after switching from generic “heavy-duty” racking to engineered industrial racking with reinforced uprights (12-gauge steel vs. previous 14-gauge).

1.2 Load Distribution: The Silent Racking Killer

Improper weight distribution causes 63% of racking failures (RMI 2023 Safety Report). Key mitigation strategies:

• Beam Deflection Limits

  • ≤1/180 of span length (e.g., 8′ beam deflects ≤0.53″ under max load)

  • Use box beams vs. step beams for loads >15,000 lbs

• Pallet Overhang Rules

  • Maximum 3″ overhang per side

  • 3″ overhang requires teardrop-style beam connectors

---

2. Heavy-Duty Racking Configurations: Matching Systems to Workflow

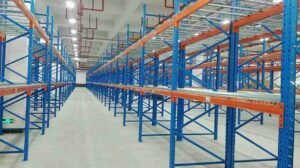

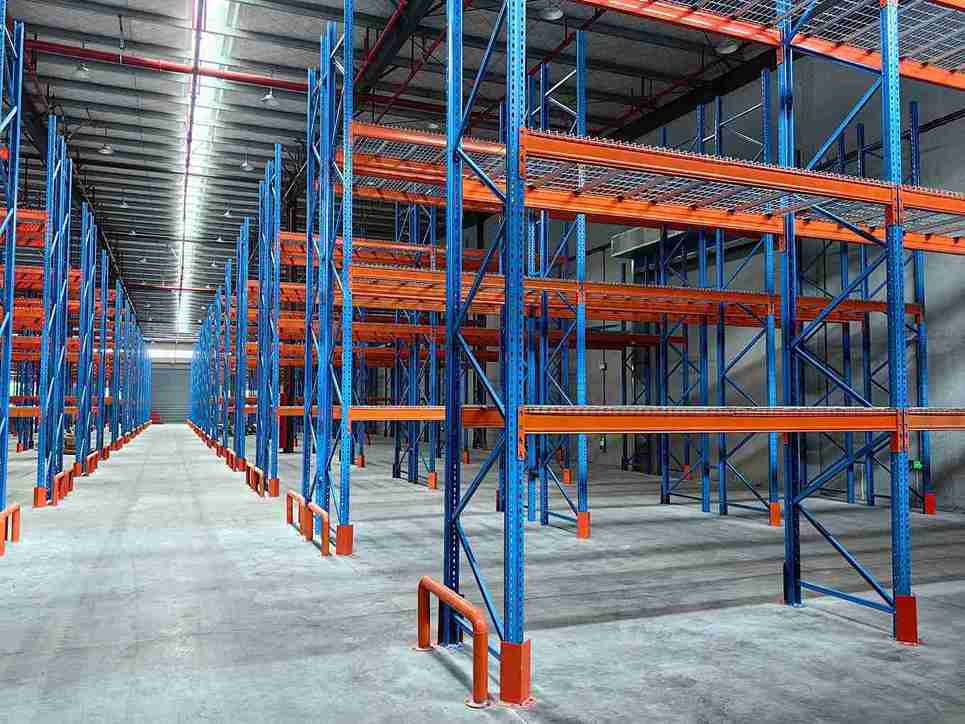

2.1 Selective Racking: The Workhorse of Industrial Warehousing

Heavy-duty selective racking dominates 78% of palletized storage (Modern Materials Handling 2024) due to:

• Accessibility

  • 100% SKU accessibility vs. 40-60% in drive-in systems

  • Ideal for e-commerce fulfillment centers with high SKU turnover

• Cost-Per-Pallet Metrics

  • $85-$120/pallet position (installed)

  • 15% lower operating costs vs. push-back systems

Pro Tip: Combine selective heavy-duty industrial racking with narrow-aisle (NA) forklifts (9-10′ aisles) to increase storage density by 25% without sacrificing accessibility.

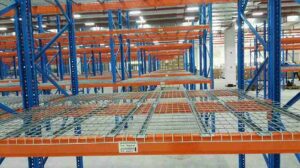

2.2 Drive-In/Drive-Thru Racking: High-Density Heavy-Duty Solutions

When storage density trumps accessibility, heavy-duty drive-in racking delivers:

• Storage Density Comparison

  System Type	Pallets/Sq Ft	Accessibility
  Selective	1.2	100%
  Drive-In	2.8	45%

Best Applications:

• Beverage distribution (same SKU, high volume)

• Cold storage (-20°F environments require galvanized heavy-duty industrial racking)

---

3. The Automation Revolution: Heavy-Duty Racking Meets Industry 4.0

3.1 AS/RS Integration: Engineering Considerations

Automated Storage/Retrieval Systems require modified heavy-duty industrial racking:

• Tolerance Requirements

  • ±1/8″ vertical alignment per 10′ of height

  • Laser-guided installation mandatory

• Structural Reinforcements

  • Continuous base plates (vs. standard bolt-down)

  • Cross-aisle bracing for robotic shuttle stability

ROI Example: A 3PL provider achieved 14-month payback after retrofitting existing heavy-duty racking with AutoStore robots, increasing throughput by 220 pallets/hour.

3.2 IoT-Enabled Racking: The Future of Predictive Maintenance

Smart heavy-duty industrial racking now incorporates:

• Strain Gauges

  • Monitor real-time load stresses

  • Alert when >80% capacity reached

• RFID Beam Tags

  • Track last inspection date

  • Automate replacement scheduling

---

4. Safety Engineering: Protecting Your Heavy-Duty Racking Investment

4.1 The 6-Point Racking Inspection Protocol

OSHA-compliant facilities implement:

1. Upright Inspection

   • 1/4″ deflection requires replacement

   • Check for forklift impact damage at 3′ height (most common strike zone)

2. Beam Connector Wear

   • 10% deformation = immediate replacement

   • Use magneto-elastic sensors for hidden fatigue detection

4.2 Seismic Ratings for Heavy-Duty Industrial Racking

Facilities in seismic zones require:

• RMI Seismic Certification

  • Zone 4: 0.6g lateral force resistance

  • Base isolation systems for racks >20′ tall

---

5. Procurement Strategy: Buying Heavy-Duty Racking Like a Pro

5.1 Total Cost of Ownership Calculations

Cheap heavy-duty industrial racking costs more long-term:

5.2 Vendor Qualification Checklist

Demand these certifications:

• RMI Member (ensures compliance with ANSI MH16.1)

• AWS Certified Welding for structural components

• Third-Party Load Testing Reports

---

Conclusion: Heavy-Duty Industrial Racking as a Competitive Advantage

Forward-thinking operations now view heavy-duty industrial racking as a strategic asset—not just infrastructure. By implementing engineered racking systems, integrating smart technologies, and enforcing rigorous safety protocols, warehouses transform storage into a profit center.

The difference between adequate and optimized heavy-duty industrial racking shows in:

• 28-35% lower operational costs

• 3-5X longer system lifespan

• 15-20% higher storage throughput

Those who specify, install, and maintain their racking to true industrial standards gain an unassailable logistics advantage.

---

FAQs: Heavy-Duty Industrial Racking Expertise

1. How does heavy-duty industrial racking handle uneven pallet loads?

Engineered systems use asymmetric beam designs and load-spreading decking to safely handle 60/40 unbalanced loads—common with machinery parts or bagged goods.

2. What’s the ROI of upgrading to seismic-rated heavy-duty racking?

In California warehouses, seismic retrofits deliver 7:1 ROI by preventing $250,000+ per incident collapse damages while reducing insurance premiums by 18-22%.

3. Can existing heavy-duty racking support automated guided vehicles (AGVs)?

Yes, but requires aisle width verification (minimum 5′ clearance) and floor flatness (<1/4″ deviation over 10′). Most AGV providers offer racking compatibility audits.

4. How does heavy-duty industrial racking performance differ in humid climates?

Humidity accelerates corrosion by 4X. Specify hot-dip galvanized steel (5.0 mil coating) over standard powder coating in Gulf Coast or tropical regions.

5. What’s the weight penalty for fireproofed heavy-duty racking?

Intumescent coatings add 1.2 lbs/sq ft but allow racks to maintain 85% of load rating during 2-hour fire events—critical for pharmaceutical or data center warehouses.

---
