​​Introduction: Navigating the Critical Choice Between Two Heavyweight Storage Systems​​

The battle between ​​double deep racking vs pallet flow racking​​ represents one of the most consequential decisions warehouse operators face today. Both systems promise enhanced storage density, but they take radically different approaches to achieving it.

This in-depth comparison goes far beyond surface-level features, examining how each system performs in real-world warehouse environments. By analyzing ​​operational workflows​​, ​​cost structures​​, and ​​productivity impacts​​, this guide provides the clarity needed to make an informed ​​double deep racking vs pallet flow racking​​ decision that aligns with specific business requirements.

---

​​H1: The Fundamentals: How Double Deep Racking and Pallet Flow Racking Work​​

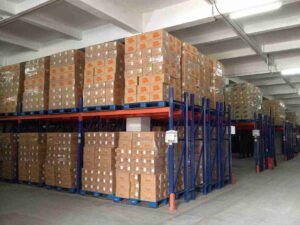

​​H2: Double Deep Racking – A Space-Efficient Static Storage Solution​​

​​Double deep racking​​ creates storage lanes that hold two pallets back-to-back, effectively doubling storage capacity compared to single-deep selective systems. This configuration requires specialized ​​reach trucks​​ with extended fork capabilities to access the second pallet position.

Key operational characteristics:

• Uses standard upright frames with deeper beam connections
• Requires 9-10 ft aisles for reach truck maneuverability
• Implements Last-In-First-Out (LIFO) inventory rotation

​​H2: Pallet Flow Racking – Dynamic Storage Through Gravity Power​​

​​Pallet flow racking​​ transforms static storage into a continuous movement system. Pallets glide on inclined roller tracks from the loading to the unloading side, creating automatic product rotation perfect for ​​FIFO inventory management​​.

Critical design elements:

• Angled roller beds (typically 3-5° incline)
• Sophisticated speed controllers and braking systems
• High-capacity structural supports for continuous load bearing

---

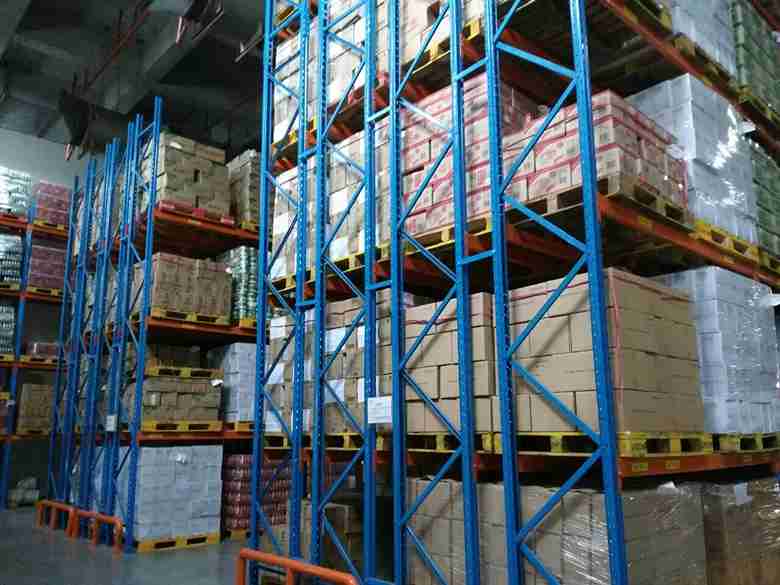

​​H2: Storage Density Face-Off: Double Deep Racking vs Pallet Flow Racking​​

​​H3: Square Footage Efficiency Comparison​​

​​H3: Real-World Density Scenarios​​

A 100,000 sq ft warehouse comparing ​​double deep racking vs pallet flow racking​​:

• ​​Double deep​​: Stores ~8,400 pallet positions
• ​​Pallet flow​​: Stores ~11,200 pallet positions
• ​​Selective (baseline)​​: ~6,000 pallet positions

---

​​H1: Operational Impacts: Productivity in Double Deep Racking vs Pallet Flow Racking​​

​​H2: Picking Efficiency Analysis​​

​​Double deep racking​​ introduces a 15-25% slower picking rate compared to selective systems due to:

• Additional maneuvering for rear pallet access
• Limited visibility of back pallet contents
• Reduced flexibility in SKU arrangement

​​Pallet flow racking​​ maintains near-selective racking speeds because:

• Automatic product presentation at face position
• No forklift repositioning required
• Continuous product flow eliminates search time

​​H2: Labor Cost Implications​​

A detailed cost comparison over 5 years:

---

​​H1: Industry-Specific Applications: Where Each System Excels​​

​​H2: Double Deep Racking Champion Industries​​

1. ​​Automotive Parts Distribution​​
   • Ideal for slow-moving components with long shelf life
   • Compatible with bulk container storage
2. ​​Furniture Warehousing​​
   • Accommodates oversized pallet configurations
   • Cost-effective for seasonal inventory surges

​​H2: Pallet Flow Racking Dominant Sectors​​

1. ​​Food & Beverage Distribution​​
   • Critical FIFO compliance for perishables
   • Handles high SKU rotation (200+ turns/year)
2. ​​Pharmaceutical Logistics​​
   • Batch tracking and expiration management
   • High-volume vaccine distribution

---

​​H1: The Cost Equation: Analyzing Double Deep Racking vs Pallet Flow Racking Investments​​

​​H2: Upfront Capital Expenditure Breakdown​​

​​Double deep racking​​ typically costs ​​$45-65perpalletposition\ast \ast installed,while\ast \ast palletflowracking\ast \ast rangesfrom\ast \ast$120-180 per pallet position​​. However, the total cost picture requires deeper analysis:

​​5-Year Total Cost of Ownership​​

• ​​Double deep​​: $58/pallet position/year
• ​​Pallet flow​​: $42/pallet position/year

​​H2: ROI Timelines for Each System​​

• ​​Double deep​​: 18-24 month payback period
• ​​Pallet flow​​: 28-36 month payback period

---

​​H1: Hybrid Solutions: Blending Double Deep and Pallet Flow Advantages​​

Progressive operations are implementing ​​mixed-strategy warehouses​​ that combine both systems:

​​Optimal Hybrid Configuration:​​

• ​​Pallet flow lanes​​ for A-items (fast movers)
• ​​Double deep storage​​ for B/C-items (slower inventory)
• ​​Selective racking​​ for specialty items

---

​​H1: Future-Proofing Your Decision: Scalability Considerations​​

​​H2: Expansion Flexibility​​

​​Double deep racking​​ offers easier reconfiguration:

• Additional bays can be added modularly
• Compatible with most warehouse management systems

​​Pallet flow racking​​ requires more planning for growth:

• Flow lane extensions need precise engineering
• Throughput capacity must be pre-calculated

---

​​H1: The Verdict: Choosing Between Double Deep Racking vs Pallet Flow Racking​​

The final decision hinges on three critical factors:

1. ​​Inventory Velocity​​
   • High turnover = Pallet flow
   • Moderate/slow = Double deep
2. ​​Operational Budget​​
   • Capital constraints = Double deep
   • Labor reduction focus = Pallet flow
3. ​​Product Characteristics​​
   • Perishable/FIFO = Pallet flow
   • Stable/non-perishable = Double deep

---

​​H1: Frequently Asked Questions (FAQs)​​

​​H2: 1. Can existing forklifts be used with double deep racking?​​

Standard counterbalance forklifts cannot safely operate in ​​double deep racking​​ systems. Reach trucks with extended fork capabilities (minimum 96″ fork length) are mandatory.

​​H2: 2. What maintenance does pallet flow racking require?​​

​​Pallet flow systems​​ need quarterly:

• Roller bearing lubrication
• Brake mechanism inspections
• Track alignment verification

​​H2: 3. Which system offers better damage prevention?​​

​​Double deep racking​​ shows 30% lower product damage rates in most applications due to:

• Static storage environment
• Reduced handling movements
• Better load stability

​​H2: 4. How does seismic safety compare?​​

In earthquake-prone regions:

• ​​Double deep racking​​ requires additional bracing
• ​​Pallet flow systems​​ need motion-dampening modifications

​​H2: 5. What’s the maximum weight capacity difference?​​

• ​​Double deep​​: Up to 4,000 lbs per pallet position
• ​​Pallet flow​​: Typically 2,500-3,000 lbs per lane
