Stop Letting Uneven Floors Ruin Your Warehouse! The Ultimate Beam Racking Leveling Guide for Emerging Markets

Summary

Throughout the rapidly developing industrial landscapes of Southeast Asia, the Middle East, Africa, and Latin America, warehouse operators face a persistent and often underestimated challenge that threatens both operational safety and business continuity. Uneven concrete floors—whether resulting from initial construction shortcuts, ongoing soil settlement, or the relentless wear of heavy forklift traffic—create conditions where even the highest quality pallet racking systems become unstable and dangerous.

This comprehensive guide explores the critical relationship between floor conditions and beam racking leveling techniques, providing warehouse managers, facility owners, and logistics professionals with the technical knowledge and practical strategies needed to diagnose floor irregularities, implement effective corrections, and maintain safe, productive storage environments.

Drawing on international standards including EN 15635 and insights from leading industry authorities such as SEMA and SGS, this resource examines everything from basic shimming methods to advanced polyurethane injection technologies, with special attention to the unique challenges facing warehouses in emerging markets where construction standards may vary and facilities often operate under demanding conditions .

Understanding the Critical Relationship Between Floors and Beam Racking Systems

Why Floor Conditions Determine Racking Safety and Performance

The foundation of any safe and efficient warehouse is the floor beneath your feet—and beneath your beam racking systems. When industry professionals discuss beam racking leveling techniques, they must begin with a fundamental truth that experienced warehouse managers learn through hard experience: no racking system can perform as designed if the floor supporting it is compromised. In emerging markets across Southeast Asia, the Middle East, Africa, and Latin America, where construction standards may vary significantly and industrial buildings often repurpose existing structures originally designed for purposes, floor irregularities are not merely occasional problems—they are expected conditions that require proactive management .

Every upright frame in a selective pallet rack system transfers thousands of kilograms of static and dynamic load downward through baseplates and into the concrete slab. When that supporting slab is uneven, the loads distribute unevenly across the baseplate surface. This uneven distribution creates stress concentrations that can overload specific portions of uprights, cause beams to sit visibly out of level, and ultimately compromise the structural integrity of the entire system.

The relationship between floors and racks is governed by strict tolerance requirements established in international standards. According to industry guidelines, pallet rack uprights must be plumb within specific limits—typically not exceeding 1/4 inch variation over the full height of the frame. When warehouse floors are out of level, achieving and maintaining this plumb requirement becomes technically impossible without proper intervention using appropriate beam racking leveling techniques .

Common Floor Problems Encountered in Emerging Market Warehouses

Warehouse facilities operating across Southeast Asia, the Middle East, Africa, and Latin America face unique geological and climatic challenges that contribute to progressive floor deterioration. Understanding these challenges is essential for selecting appropriate beam racking leveling techniques that address root causes rather than merely treating symptoms.

Soil settlement remains the most prevalent and consequential issue affecting warehouse floors throughout emerging markets. Many warehouses in rapidly developing regions are built on fill soils that continue to compress and consolidate years after initial construction completion. Unlike engineered sites in more developed economies where soil conditions receive extensive pre-construction analysis and treatment, warehouses in emerging markets often occupy sites selected for economic or logistical convenience rather than geological suitability. Seasonal weather patterns characteristic of these regions—monsoon rains in Southeast Asia, dramatic temperature swings between day and night in the Middle East, and prolonged drought followed by intense rainfall in parts of Africa and Latin America—accelerate this settlement through repeated cycles of soil expansion and contraction .

Differential settlement occurs when one portion of a concrete slab sinks more than adjacent areas, creating slopes, steps at construction joints, and hidden voids beneath the concrete surface. For beam racking systems, differential settlement is particularly dangerous because it can twist upright frames and induce structural stresses that the original engineering never anticipated or accommodated. When a racking system experiences twisting forces due to differential floor settlement, the beam connector locks may loosen, the frame bracing may buckle, and the overall load capacity may reduce dramatically even though the racks appear superficially intact .

Poor initial construction practices compound these natural settlement problems throughout emerging markets. Warehouse floors may be placed without adequate reinforcement, on improperly compacted subgrades, or using concrete mixes that lack the strength to support heavy pallet racking loads over extended periods. In some facilities visited by SEMA technical experts, floors have been found with insufficient thickness at baseplate locations, inadequate curing before rack installation, or missing control joints that would normally accommodate thermal expansion and contraction. Over time, these initial deficiencies manifest as progressive cracking, spalling at joint edges, and accelerating settlement under the concentrated loads imposed by rack uprights .

The Hidden Operational and Financial Costs of Ignoring Floor Problems

When warehouse operators choose to ignore developing floor irregularities or attempt makeshift solutions without understanding proper beam racking leveling techniques, the consequences extend far beyond visibly wobbly racks. The hidden costs accumulate silently until they reach crisis proportions.

Forklift accidents increase dramatically when floors are uneven and racks are correspondingly out of level. Operators must constantly correct for slopes and irregular surfaces, reducing their productivity while simultaneously increasing the risk of impacts with rack uprights and beam ends. These impacts damage both the forklift and the rack structure simultaneously, creating a dangerous cycle of progressive deterioration where initial minor damage leads to increased vulnerability, which leads to more frequent impacts, and ultimately to catastrophic failure. According to SEMA guidelines, the bottom five feet of any upright frame represents the zone of highest risk for impact damage—precisely the area most affected when floor irregularities cause racks to shift out of proper alignment .

Product damage becomes inevitable when racks are out of level beyond acceptable tolerances. Pallets may not seat properly on load beams, increasing the risk of falls during automated guided vehicle operations or manual handling. Loads may shift during storage due to the angle of shelf beams, crushing merchandise at the bottom of pallets and creating hazardous falling object conditions for workers in aisles below. For warehouses storing high-value goods or temperature-sensitive products, even minor tilting can render entire pallet positions unusable .

Insurance implications cannot be overlooked by prudent warehouse operators in emerging markets. International insurers operating in Southeast Asia, the Middle East, Africa, and Latin America are increasingly requiring documented rack inspections and maintenance programs before issuing or renewing coverage. When a claim arises from a rack collapse or product damage incident, investigators will examine floor conditions and leveling records with forensic attention. Facilities that cannot demonstrate proper attention to beam racking leveling techniques and regular inspections may find their claims denied entirely, leaving them to bear the full financial burden of recovery. The European standard EN 15635 specifically addresses this documentation requirement, emphasizing that users must maintain records demonstrating ongoing attention to storage equipment safety .

The Engineering Science Behind Beam Racking Leveling

Understanding Plumb, Level, and Their Critical Interrelationship

Before exploring specific beam racking leveling techniques in detail, warehouse professionals must establish clear definitions of what constitutes acceptable installation according to international standards. Industry practice distinguishes between two critical measurements that, while related, serve different purposes in racking system performance: plumb and level.

Plumb refers specifically to vertical alignment. Each upright frame must be perfectly vertical from its baseplate at floor level to its top at the highest beam connection. When frames are out of plumb, they experience bending stresses that structural engineers never intended them to carry. These stresses reduce load capacity and increase the risk of buckling, particularly in taller racks or those supporting maximum design loads. Most engineering standards, including those referenced in EN 15620, limit out-of-plumb to 1/4 inch over the full frame height for conventional selective pallet rack applications. For very narrow aisle systems where automated guided vehicles operate, these tolerances become significantly tighter .

Level refers to horizontal alignment of load beams and shelf beams. Beams must be level within specified tolerances to ensure proper load distribution and prevent pallets from sliding or shifting during storage. The interaction between plumb and level is technically complex and practically critical—if the floor is uneven, achieving level beams while maintaining plumb uprights requires careful adjustment at the base of each column using appropriate beam racking leveling techniques. SEMA guidelines acknowledge that in some installations, it may be preferable to allow racks to “follow the floor” rather than forcing them perfectly plumb, particularly when operational equipment like forklifts must also navigate the same uneven surface .

European Standards Framework for Racking Installation and Maintenance

EN 15635:2008 Steel static storage systems—Application and maintenance of storage equipment provides the comprehensive framework for safe rack operation throughout Europe and increasingly influences practices worldwide . This standard, developed by CEN/TC 344, establishes requirements that warehouse operators in emerging markets would be wise to adopt as best practice regardless of local regulatory requirements.

The standard requires that all steel storage systems be installed according to manufacturer specifications and inspected regularly throughout their service life. It addresses operational requirements including system planning, assembly and installation procedures, changes to storage equipment configuration, and daily use protocols. Section 4 of EN 15635 specifically addresses operational requirements, while Section 6 provides detailed guidance on installation quality and structural design considerations .

A key provision of EN 15635 mandates that warehouse operators designate a Person Responsible for Storage Equipment Safety (PRSES) who understands the relationship between floor conditions and rack safety at a technical level . This individual must ensure that beam racking leveling techniques are properly applied during installation and documented for future reference. The standard also requires that any changes to rack configuration be evaluated for structural implications, including how those changes might interact with existing floor conditions.

EN 15620 specifically addresses tolerances for racking systems, including floor flatness requirements that directly impact beam racking leveling techniques. For conventional selective pallet rack, floors must be flat within ±3mm over 1 meter and ±10mm over 3 meters of measurement. For very narrow aisle applications where automated guided vehicles operate, these tolerances become significantly tighter—often ±2mm over any 3-meter span, with additional requirements for the rate of change between adjacent floor areas .

The Chinese National Standard Perspective on Rack Safety

While European standards provide comprehensive guidance, warehouse operators serving global supply chains should also be aware of GB 33454-2016, the Chinese national standard for仓储货架使用规范 (warehouse rack usage specifications) . This standard, which applies to manual and forklift-accessed warehouses (excluding automated systems), establishes requirements that reflect the operational realities of rapidly developing economies.

GB 33454-2016 specifies that warehouses must conduct daily inspections by forklift operators, weekly or monthly inspections by designated safety personnel, and comprehensive professional inspections every three to five years. The standard explicitly requires examination of floor conditions,垫片 (shims), anchor bolts, and column倾斜度 (inclination) as part of routine safety checks . This emphasis on floor-rack interaction acknowledges what experienced warehouse professionals know: the two systems cannot be considered separately when evaluating safety.

The Chinese standard also addresses柱及柱的保护装置 (column and column protection devices), recognizing that impact damage at the base of uprights—the area most affected by floor-induced misalignment—represents a primary safety concern. For warehouse operators in Southeast Asia, where Chinese investment and construction have established many facilities, understanding GB 33454-2016 provides valuable insight into the design assumptions underlying many racking installations .

Load Transfer Mechanisms from Racks to Floors

Understanding how loads transfer from racks to floors is essential for appreciating why beam racking leveling techniques matter structurally. Each upright frame terminates in baseplates—typically steel plates measuring 150mm to 200mm square—that distribute concentrated column loads to the concrete slab beneath. These baseplates transfer forces through anchor bolts embedded in the concrete, which resist both vertical uplift (rare in storage applications) and horizontal shear forces from forklift impacts or seismic events .

When floors are uneven, only a portion of the baseplate makes intimate contact with the concrete surface. This contact reduction concentrates the full column load onto a smaller effective area, potentially exceeding the concrete’s bearing capacity and causing progressive crushing of the slab surface at the baseplate edges. Over time, this crushing accelerates, increasing the gap beneath the baseplate and worsening the uneven load distribution. Shims placed beneath baseplates restore full contact area and distribute loads properly across the entire baseplate surface, preventing this progressive deterioration .

SEMA guidelines emphasize that when beam racking leveling techniques involve shims, the shims must provide full bearing contact across the entire baseplate area. Using shims that are too small, improperly stacked, or made from unsuitable materials compromises the very load distribution that leveling aims to achieve. The guidelines also note that anchor bolt installation must account for shim thickness, as standard anchor bolts have fixed lengths and adding shims reduces the effective thread engagement in the concrete below .

Comprehensive Guide to Beam Racking Leveling Techniques

Pre-Installation Floor Assessment: The Foundation of Successful Leveling

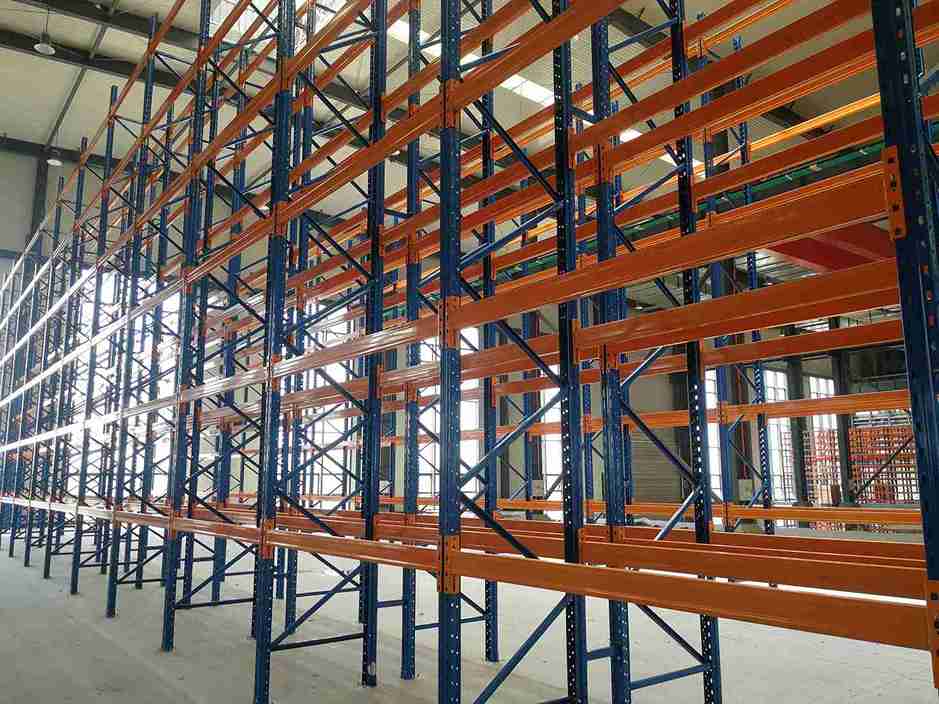

Before any beam racking leveling techniques can be applied, thorough floor assessment is essential to establish baseline conditions and identify the most appropriate correction methods. This assessment process begins with visual inspection for obvious defects—cracks wider than 3mm, spalling at joint edges, standing water indicating poor drainage and potential subgrade saturation, or visible slopes that catch the eye when walking the aisle. More sophisticated measurement uses digital levels, laser scanners, or floor flatness testing equipment to create detailed floor profiles that quantify irregularities with precision .

For facilities planning automated warehouse systems incorporating AGVs or AS/RS, floor flatness requirements become dramatically stricter than for conventional operations. Ultra-flat floor specifications (FF100 or better) may be required, with tolerances measured in fractions of millimeters rather than the millimeters acceptable for manual operations. These specifications recognize that automated guided vehicles navigate using precision guidance systems that require consistent, predictable floor conditions—when floors are uneven, AGVs lose positioning accuracy, reducing efficiency and increasing collision risks with racks and other equipment.

The pre-installation assessment should identify areas requiring correction before beam racking leveling techniques can be applied. In some cases, floor leveling through grinding down high spots or applying self-leveling underlayments over low areas may be necessary before racks can be installed at all. In others, the floor conditions fall within acceptable ranges for the planned rack type, and shimming during installation will suffice to achieve proper alignment. The key is knowing which situation applies before committing to a particular leveling approach .

Shim Techniques for Beam Racking Leveling: Practical Applications

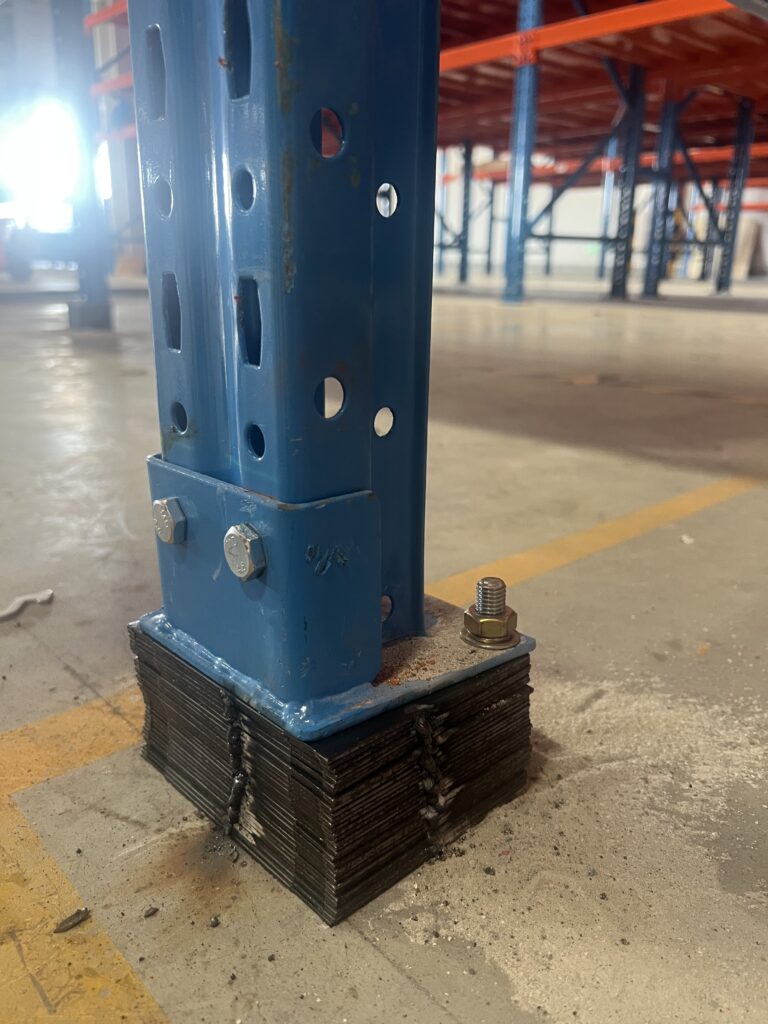

Shims represent the most common and straightforward solution for minor floor irregularities encountered during rack installation or correction. These thin plates, typically manufactured from steel and zinc-plated for corrosion resistance, insert between the baseplate and concrete to fill measured gaps and establish proper upright alignment .

Steel shims are available in various thicknesses, from 1mm sheets suitable for fine-tuning to 10mm or thicker plates for addressing more significant low spots. For beam racking leveling, installers stack multiple shims as needed to achieve the required height at each upright location. Critical requirements for proper shim use include:

Full bearing contact is absolutely essential—shims must contact the entire baseplate area, not merely support edges or corners. Shims should match the baseplate dimensions precisely to ensure even load distribution across the full contact surface. Using multiple thin shims is generally preferable to a single thick shim, as the stack compresses slightly under initial load to achieve full conforming contact with both baseplate and floor surfaces. However, excessively thick shim stacks may indicate that floor correction rather than shimming is the appropriate solution .

Anchor bolt installation must account for shim thickness in a technically sound manner. Standard anchor bolts have fixed lengths determined by engineering requirements for embedment in concrete. Adding shims beneath the baseplate raises the baseplate relative to the bolt head, reducing the effective thread engagement in the concrete below. Installers must verify that sufficient embedment remains after leveling to achieve the required pullout and shear capacity specified in the rack design. In cases where shim thickness reduces embedment below acceptable limits, longer bolts or different leveling approaches may be necessary .

The “Follow the Floor” Approach Versus Absolute Leveling

SEMA guidelines introduce an important distinction that every warehouse operator should understand when considering beam racking leveling techniques: the choice between allowing racks to “follow the floor” versus forcing them to absolute level regardless of floor conditions .

When building low-rise, wide-aisle racking on reasonable quality floors, many suppliers allow the racking to “follow the floor” rather than enforcing absolute level across the entire installation. This approach accepts that floors have inherent slopes and irregularities, and matches the rack base to those conditions as long as uprights do not “float” without solid bearing. Metal shims are inserted where needed to ensure each footplate has a firm foundation, with fixings installed to prevent shims from sliding out over time .

The rationale behind this approach is practical and operationally sound: if racks are forced to absolute level on a floor that is not level, the forklifts and other equipment operating in the aisles will still experience the floor’s unevenness. Operators may find that while their racks are perfectly level, their trucks are running out of level due to the floor, creating operational problems that level racks alone cannot solve.

In extreme cases, some rack designs actually allow the structure to lean so that it remains at right angles to a sloped floor, enabling handling equipment to operate satisfactorily despite the slope. However, this approach requires specially designed racks and typically involves reduced load capacities to account for the angular forces introduced .

Grouting and Underlayment Solutions for Significant Floor Irregularities

For more significant floor irregularities that exceed the correction capacity of shims alone, grouting beneath baseplates provides superior load transfer and permanent correction. Epoxy or cementitious grout is pumped beneath the baseplate after the rack is positioned and leveled using temporary supports. The grout flows into all voids beneath the baseplate, cures to a high-strength solid that exactly matches the floor contour, and provides full bearing support across the entire baseplate area .

Grouting offers advantages over shimming for larger gaps because the grout conforms perfectly to both baseplate and floor surfaces, eliminating point contacts that can occur with stacked shims. The cured grout also bonds to the concrete floor, providing some resistance to horizontal movement that shims alone cannot offer. However, grouting requires more time and expertise than shimming, and racks must typically remain unloaded during grout placement and curing.

Self-leveling underlayments offer solutions for entire floor areas requiring comprehensive correction rather than localized baseplate adjustments. These cementitious compounds pour over existing slabs in liquid form, flowing to create perfectly level surfaces that harden into durable, high-strength toppings. While more expensive than localized shimming or even grouting, self-leveling underlayments provide permanent floor correction that benefits all warehouse operations, not just racking. Forklift performance improves, worker fatigue from traversing uneven surfaces reduces, and the entire facility becomes suitable for future automation without additional floor work.

Polyurethane Injection: Advanced Technology for Subsurface Void Filling

When floor settlement results from voids beneath the concrete slab, surface solutions alone cannot address the root cause. Polyurethane injection technology has revolutionized floor leveling in such cases by filling subsurface voids and actually lifting settled slabs back to original grade without demolition or replacement.

The polyurethane injection process involves drilling small holes (typically penny-sized, approximately 16mm diameter) through the concrete slab in a strategic grid pattern based on engineering assessment of void locations and slab conditions. Through these injection points, polyurethane resin is pumped beneath the slab in liquid form under controlled pressure. The material undergoes a chemical reaction as it flows, expanding significantly—often 10 to 20 times its liquid volume—to fill voids completely, compact loose soils beneath the slab, and exert controlled lifting force on the concrete above.

For warehouse applications, polyurethane injection offers remarkable advantages over traditional methods. Projects typically complete in days rather than the weeks or months required for slab replacement, with minimal disruption to ongoing operations. The lightweight nature of expanded polyurethane—typically 40 to 80 kg per cubic meter compared to 2400 kg per cubic meter for concrete—adds virtually no additional load to underlying soils. This characteristic is critical when soils have already demonstrated settlement issues, as adding heavy concrete would only worsen the problem .

In a documented Australian project, a 20,000-square-meter warehouse with 120mm of differential settlement was completely restored to operational tolerances through polyurethane injection. The facility now safely supports forklift traffic and high-level racking systems with no recurrence of settlement years after treatment. This approach represents the ultimate expression of beam racking leveling techniques applied at the floor level rather than the rack level, addressing root causes rather than symptoms .

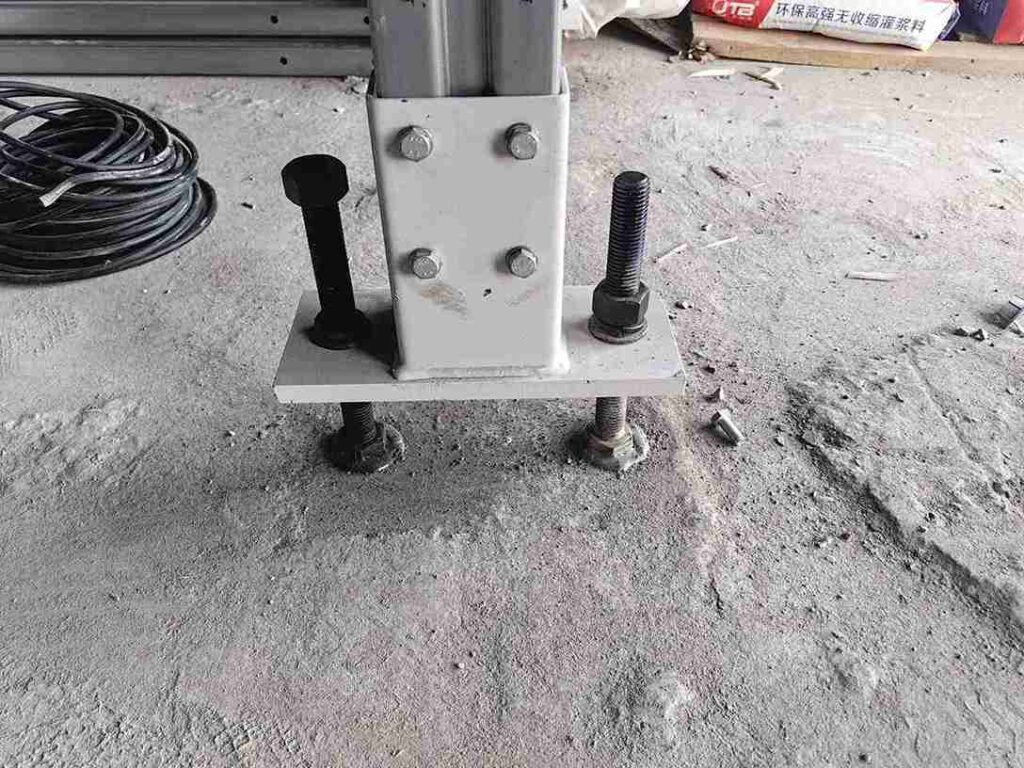

Adjustable Baseplates and Specialty Components for Ongoing Movement

Modern racking systems increasingly incorporate adjustability directly into their component design, recognizing that floors in many facilities—particularly those in emerging markets—may continue moving over time. Adjustable baseplates with threaded components allow fine-tuning of upright heights after initial installation, providing ongoing correction capability without requiring rack disassembly.

Swivel baseplates accommodate sloping floors while maintaining full bearing contact across the entire baseplate surface. These specialized components pivot on spherical bearings to match floor angles precisely while transferring loads vertically through the upright frame above. They prove particularly valuable in facilities where floor correction is impractical or where ongoing settlement requires periodic adjustment capability.

For warehouses in seismic zones across Latin America and parts of Southeast Asia, baseplate design must account for dynamic loads during earthquakes as well as static storage loads. Beam racking leveling techniques in these regions must integrate with seismic anchorage requirements to ensure racks remain stable during ground motion. This may involve baseplates with oversized holes for anchor bolts, allowing some movement during seismic events while maintaining connection, or special energy-dissipating connections that protect racks from catastrophic failure .

Safety Standards and Inspection Protocols

EN 15635 Requirements for Operational Safety

EN 15635:2008 establishes comprehensive requirements for the safe use and maintenance of steel storage systems throughout their service life . While developed for European application, its principles apply globally and are increasingly adopted by multinational companies operating warehouses in emerging markets where local regulations may be less developed.

The standard requires multiple levels of inspection with increasing thoroughness and technical expertise:

Daily visual checks by forklift operators and other personnel working regularly in the warehouse identify obvious damage or developing problems. These inspections focus on visible issues—displaced beams, impact damage to uprights, missing load notices, or changes in rack alignment that catch the eye during normal operations. Operators receive training on what to look for and how to report findings through established channels .

Monthly documented inspections by trained personnel use standardized checklists to examine every component of every rack systematically. These inspections evaluate all uprights, beams, beam connector locks, baseplates, anchor bolts, shims, and floor conditions at each column location. Findings are documented in written reports that become part of the facility’s permanent safety record .

Annual expert inspections by qualified professionals—such as SEMA Approved Rack Inspectors or personnel meeting equivalent qualifications—provide comprehensive evaluation including measurements of upright plumb, beam level, floor flatness, and structural condition assessments that untrained observers might miss. These inspections typically result in formal reports with specific recommendations for correction where needed .

The standard requires damage classification using a traffic-light system that operators can understand and act upon consistently :

GREEN LEVEL damage is minor—surface scratches, slight deformations within acceptable limits—requiring surveillance and documentation only. No immediate action is needed, but the damage must be monitored for possible progression .

AMBER RISK damage represents hazardous conditions requiring action as soon as practical. The affected area may need to be isolated or unloaded until repairs complete. This classification triggers formal planning for correction within defined timeframes .

RED RISK damage is very serious, requiring immediate action. Affected racks must be unloaded immediately and the area cordoned off until repairs or replacements are complete. No loads may be placed in RED RISK racks under any circumstances .

Documentation of all inspections, damage reports, and repairs is mandatory under EN 15635. This rack book or equivalent record provides traceability and demonstrates due diligence to insurers and regulators. For warehouses in emerging markets seeking international certification or serving multinational clients, maintaining such documentation is essential .

SEMA Technical Guidance on Rack Leveling and Floor Interaction

The Storage Equipment Manufacturers’ Association (SEMA) provides technical guidance that complements formal standards with practical advice drawn from decades of industry experience . Their responses to member inquiries offer valuable insights into real-world application of beam racking leveling techniques.

One SEMA technical inquiry addressed the question of tolerances for rack leveling when floors are imperfect. The response emphasized that while formal guidelines exist, practical considerations often govern installation decisions. When building low-rise, wide-aisle racking, most suppliers allow racks to “follow the floor” on reasonable quality floors as long as uprights do not float without solid bearing. Metal shims inserted to ensure firm foundation and properly fixed to prevent sliding accommodate small degrees of floor unevenness while avoiding operational problems that might arise from perfectly level racks on unlevel floors .

For significant unevenness, SEMA acknowledges that it is perfectly possible to level racks totally. However, operational problems may then arise due to trucks running out of level on the same unlevel floor. In extreme cases, some form of floor leveling—either screeding over existing floors in aisle areas or grinding off high spots—may be necessary to achieve both rack and equipment compatibility. On rare occasions, racks may be specially designed to lean at right angles to a consistently sloped floor, enabling equipment operation while maintaining structural integrity, though this approach typically reduces load capacity .

SEMA also emphasizes the importance of written confirmation from manufacturers or suppliers before making any changes to rack configuration. Any modification affecting bay configuration impacts overall loading capacity and must be checked by the original supplier or a qualified engineer. This principle applies equally to leveling interventions—changing the elevation or alignment of uprights through shimming or other beam racking leveling techniques effectively modifies the rack configuration and should be evaluated accordingly .

SGS Inspection Services and Third-Party Verification

International inspection and certification bodies like SGS play an increasingly important role in warehouse safety management, particularly for facilities serving global supply chains or seeking insurance coverage in emerging markets . SGS offers comprehensive rack inspection services based on European standards including EN 15512, EN 15620, and EN 15635.

Their inspection scope includes货架支撑完整性检查 (rack support integrity checks),货架垂直度偏移量检测 (rack verticality deviation measurement),货架底层水平偏移量检测 (base level horizontal deviation measurement),货架横梁水平形变检测 (beam horizontal deformation measurement), and货架被撞点检测及分级评估 (impact point detection and classification assessment) following the traffic-light system . Importantly for beam racking leveling techniques, SGS inspections also include地面沉降水平平面检测 (floor settlement and level plane measurement), evaluating how floor conditions affect rack alignment and safety.

SGS emphasizes the importance of regular professional inspections—every 12 months according to European best practice—with comprehensive documentation and recommendations for corrective action where needed. Their technical personnel maintain qualifications through internal and external training, and the company holds CNAS and CMA检验检测资质 (inspection and testing accreditations) in China, demonstrating recognized competence .

For warehouse operators in emerging markets, engaging qualified third-party inspectors provides several benefits: objective assessment free from internal biases, documentation recognized by international insurers, and access to specialized expertise that may not be available internally. The inspection reports generated by such firms become valuable evidence of due diligence should incidents occur .

Developing a Comprehensive Rack Inspection Program

Every warehouse operating beam racking systems needs a formal inspection program tailored to its specific conditions, operations, and risks. Based on EN 15635, GB 33454-2016, and SEMA guidance, such programs should include multiple components :

Pre-operation checks by forklift operators at the start of each shift establish baseline awareness. Operators should walk their assigned aisles, looking for obvious damage from previous shifts, displaced beams, new impacts, or changes in rack alignment since the previous day. This daily attention creates a culture of safety awareness where every employee participates in hazard identification.

Monthly documented inspections by trained personnel using standardized checklists examine every component of every rack systematically. These inspections should evaluate uprights for damage or deformation, beam connector locks for proper engagement, baseplates for full floor contact, anchor bolts for tightness, shims for secure positioning, and floor conditions at each column for new cracking or settlement. Findings should be recorded in consistent formats that enable trend analysis over time .

Annual expert inspections by qualified professionals provide comprehensive evaluation using measurement tools and analytical methods beyond the scope of monthly checks. These inspections should include plumb measurements of uprights, level measurements of beams, floor flatness evaluation along aisles, and structural assessments of components showing wear or damage. Expert inspectors should produce formal reports with prioritized recommendations .

Immediate response protocols for discovered damage ensure that when inspectors identify problems, clear procedures govern who to notify, how to isolate affected areas, when to unload racks, and how to engage repair specialists. These protocols should be documented and practiced so that responses become automatic when issues arise.

Documentation systems maintain all inspection reports, damage records, repair documentation, and modification authorizations in an organized, accessible format. This rack book or digital equivalent serves multiple purposes: demonstrating due diligence to insurers, providing baseline data for trend analysis, and ensuring knowledge continuity when personnel change .

Automation Integration: Leveling for AGVs and Robotic Systems

The Rising Demand for Automated Warehouse Solutions in Emerging Markets

Across Southeast Asia, the Middle East, Africa, and Latin America, automated warehouse systems are transforming logistics operations at an accelerating pace. Automated guided vehicles (AGVs) , autonomous mobile robots (AMRs) , and automated storage and retrieval systems (AS/RS) offer dramatic efficiency improvements—30% higher storage density and 50% faster order fulfillment according to industry data. These technologies enable warehouses in emerging markets to compete globally, serving international clients with speed and accuracy previously unattainable.

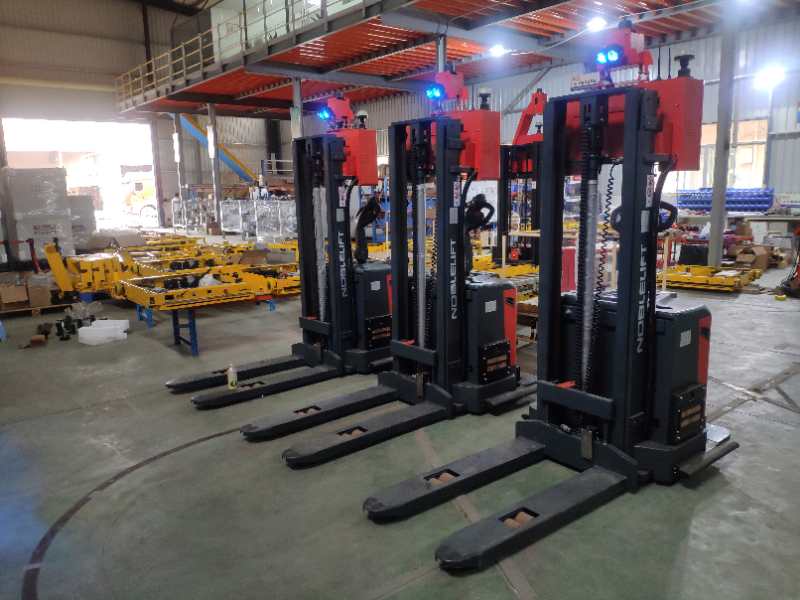

However, automation places unprecedented demands on warehouse floors and racking systems. AGVs navigate using precision guidance systems—laser, magnetic, or vision-based—that require consistent, predictable floor conditions to maintain accurate positioning. When floors are uneven, AGVs lose positional accuracy, reducing efficiency, increasing collision risks with racks, and potentially damaging both vehicles and stored products .

Floor Flatness Requirements for Automated Warehouse Systems

Automated warehouse installations require ultra-flat floor specifications far beyond conventional warehouse requirements. Research from multiple sources demonstrates that ultra-flat floors are essential for deploying AGVs successfully in automated warehouses .

Typical requirements for automated operations include:

FF100 flatness or better, compared to FF50 often considered acceptable for conventional warehouses with manual forklift operation. This represents approximately a doubling of flatness requirements. For critical applications with very narrow aisle AGVs, requirements may reach FF150 or even higher.

Floor levelness must be measured continuously across entire travel paths, not merely at discrete points. AGVs cannot tolerate sudden changes in floor elevation, even at construction joints, expansion joints, or boundaries between repaired and original floor areas. The rate of change—how quickly elevation varies along travel paths—often matters more than absolute elevation differences.

Surface quality requirements extend beyond flatness to include texture, wear resistance, and freedom from dusting or spalling. AGV guidance systems may be optical, requiring clean surfaces for reflector recognition. Even magnetic or inductive guidance systems can be affected by rough surfaces that cause vehicle vibration and sensor noise.

For warehouse operators considering future automation, floor assessment should include evaluation against automation requirements, even if immediate plans use manual equipment. Investing in floor leveling that meets future automation needs during initial construction or renovation costs far less than retrofitting after automation equipment arrives.

Racking Alignment Requirements for Automated Guided Vehicle Operations

When AGVs and racking systems must interact, racking leveling becomes even more critical than in manual warehouses. AGVs typically interface with racks through precise positioning systems—they must align perfectly with each storage location to deposit and retrieve loads without incident .

If racks are out of level, AGV positioning systems cannot fully compensate. The vehicle may attempt to deposit a load into a rack that is tilted, causing collisions, load damage, or vehicle stalling. In extreme cases with significant slopes, AGVs can tip when operating on uneven floors while carrying raised loads.

For facilities planning automation, beam racking leveling techniques must achieve tolerances that support both structural safety and automated operations simultaneously. This often requires more sophisticated approaches than traditional shimming, including precision grouting of all baseplates, post-installation verification using the same measurement standards applied to floors, and periodic re-verification to detect any movement that might affect AGV operations.

The integration of racking and AGV systems also affects baseplate design and anchor bolt specification. AGV impacts with racks, while undesirable, are statistically inevitable over extended operations. Baseplates must be designed to withstand these impacts without failing, while anchor bolts must maintain holding capacity despite potential cyclic loading from repeated minor impacts.

Regional Considerations for Beam Racking Leveling in Emerging Markets

Southeast Asia: Humidity, Monsoons, and Tropical Soil Challenges

Southeast Asian warehouses face unique challenges from tropical climates that directly affect both floors and racks. High humidity accelerates corrosion of racking components if protective coatings are compromised during installation or damaged in service. For beam racking leveling techniques, this means shims and anchor bolts must be specified with appropriate corrosion protection—typically galvanized or stainless materials rather than standard steel .

Monsoon seasons bring intense rainfall that can saturate soils beneath concrete slabs, triggering sudden settlement or heave depending on soil types. Expansive clays common throughout the region absorb water during rainy seasons, swelling and lifting slab edges. During dry seasons, these same clays shrink and crack, creating voids beneath slabs that later fill with water and worsen the cycle. Polyurethane injection has proven particularly valuable in this region because the injected material remains flexible after curing, accommodating some soil movement while maintaining void fill .

Soil conditions across much of Southeast Asia include soft marine clays, organic peats, and alluvial deposits that compress under load over extended periods. Warehouses built on these soils may experience continuing settlement for years after construction, requiring periodic re-leveling of racks to maintain safety. Beam racking leveling techniques in this region must account for ongoing movement, with systems designed for periodic adjustment rather than assuming permanent correction.

Middle East: Temperature Extremes and Problematic Soil Chemistry

The Middle East presents opposite challenges—extreme heat, arid conditions, unique soil chemistry, and dramatic temperature swings. Concrete slabs in this region experience thermal expansion and contraction cycles that can exceed 30°C daily. This continuous movement affects racking alignment over time as baseplates and anchor bolts must accommodate slab movement without losing connection integrity .

Sabkha soils (salt flats) common throughout the Arabian Peninsula present particular challenges for warehouse floors. When these saline soils wet—from leaking pipes, seasonal rainfall, or rising water tables—they can collapse dramatically, causing sudden slab settlement that endangers racks above. Polyurethane injection has proven effective in stabilizing these problematic soils, but injection must reach below the sabkha layer to be effective.

Sand migration beneath slabs creates voids over time through a process familiar to regional warehouse operators. Wind-blown sand infiltrates through slab edges, construction joints, and around column penetrations, then migrates beneath the slab as forklift traffic pumps the concrete up and down. This gradual process can create extensive voids without obvious surface indicators until racks begin to settle suddenly.

Africa: Variable Standards and Resource Constraints

Across Africa, warehouse construction standards vary dramatically between countries and even between projects within the same country. Facilities range from world-class distribution centers serving international clients to repurposed buildings never designed for industrial use. Beam racking leveling techniques in this context require adaptability and pragmatic solutions that work within local constraints .

Resource constraints may limit access to specialized leveling materials and expertise in many African markets. Simple, robust solutions like heavy-duty shims and mechanically adjustable baseplates often prove most practical for local conditions. Training local personnel in proper leveling techniques becomes essential for maintaining safety over time, as outside experts may not be readily available for ongoing adjustments.

Power reliability affects not only warehouse operations but also automated leveling solutions. Facilities considering AGV integration must ensure consistent power for both vehicle charging and the precision floor leveling equipment these systems require. Unstable power can damage sensitive leveling equipment and compromise AGV guidance systems.

Latin America: Seismic Considerations and Rapid Growth Pressures

Much of Latin America lies in active seismic zones where earthquake risk must inform every aspect of warehouse design and operation. Beam racking leveling techniques in these regions must account not only for static loads but also for dynamic forces during seismic events. Baseplate connections and anchor bolts become critical load paths during earthquakes, and leveling interventions must not compromise these connections .

Rapid economic growth across Latin America means many warehouses operate at or beyond original design capacities. Floors designed for lighter loads may now support heavy racking systems storing dense products. This overloading accelerates settlement and deterioration, requiring more frequent leveling interventions and potentially reducing the useful life of both floors and racks.

Seismic retrofit of existing warehouses often requires comprehensive floor evaluation and correction before racks can be upgraded to meet current codes. Leveling techniques must integrate with seismic anchorage requirements to ensure racks remain stable during ground motion. This may involve special baseplate details, additional anchor bolts, or connection reinforcement that exceeds standard practice in non-seismic regions.

Cost-Benefit Analysis of Leveling Solutions

Comparing Leveling Options: Initial Cost Versus Long-Term Value

Warehouse operators evaluating beam racking leveling techniques must consider multiple factors beyond initial installation cost. Each approach offers different characteristics that affect long-term value and total cost of ownership .

Shimming offers the lowest upfront investment among leveling options. Steel shims are inexpensive, installation requires minimal specialized equipment, and the work can often be completed without unloading racks or disrupting operations significantly. However, shimming may require repeated adjustment if settlement continues, and extremely thick shim stacks can indicate underlying floor problems that shims alone cannot solve.

Grouting provides permanent correction at moderate cost but requires racks to be unloaded during application and grout curing. For busy warehouses, the operational disruption may exceed the direct cost of the work. However, once completed, grouting typically requires no further attention and provides superior load transfer compared to shims.

Polyurethane injection costs more than shimming but less than slab replacement in most cases. Its key advantage is minimal operational disruption—injection completes in days with racks remaining in place and often remaining partially loaded during the work. The Australian warehouse project described earlier achieved full correction at a fraction of replacement cost while maintaining operations throughout .

Full slab replacement represents the ultimate solution but at maximum cost and disruption. Months of downtime, complete rack removal and storage, extensive construction work, and recommissioning of all systems make this option feasible only in extreme circumstances where other approaches cannot achieve required conditions.

Return on Investment Calculations for Automated System Support

For facilities implementing automated warehouse systems, proper floor leveling delivers compelling return on investment that justifies significant expenditure. Data from automated installations worldwide shows that floor flatness directly impacts AGV performance and reliability .

AGV uptime improves by 15-20% when floors meet manufacturer specifications. Vehicles spend less time recovering from positioning errors caused by floor irregularities and more time moving product productively. For a facility with 50 AGVs operating at typical utilization rates, this improvement can justify substantial floor correction investment within months.

Battery life extends when AGVs operate on level floors. Drive motors work less hard to maintain position against gravity, and regenerative braking systems operate more efficiently on consistent surfaces. Over the vehicle fleet’s typical five-to-seven-year life, energy savings alone can offset a meaningful portion of floor correction costs.

Maintenance costs decrease significantly when AGVs aren’t subjected to shock loads from uneven floors. Wheel wear reduces, drive train stress diminishes, and guidance system recalibration requirements drop. Facilities with proper floors report 20-30% lower AGV maintenance costs compared to those operating on marginal floors.

Long-Term Value of Preventive Leveling Programs

Perhaps the most compelling argument for proper beam racking leveling techniques is the preventive value they provide. Facilities that address floor issues proactively avoid the cascade of problems that inevitably follow neglect .

Rack replacement costs far exceed leveling costs by any measure. When racks fail due to floor-induced stresses—whether through progressive damage or sudden collapse—replacement requires complete facility shutdown, new equipment purchase, weeks or months of installation labor, and often significant product damage during the failure itself. A single rack collapse can easily cost ten times more than comprehensive floor correction across an entire facility.

Insurance premium impacts are increasingly significant in emerging markets. Insurers are developing sophisticated risk models that consider floor conditions and rack maintenance history when setting rates for warehouse operations. Facilities with documented leveling programs and regular inspection records qualify for better rates than those without such documentation. Over time, these premium differences can fund ongoing maintenance programs.

Operational efficiency improves across all warehouse activities when floors are level and racks are properly aligned. Forklift productivity increases as operators spend less time compensating for slopes and irregularities. Product damage decreases as loads remain stable on level beams. Worker fatigue reduces when walking surfaces are even and consistent. These benefits extend far beyond the racking systems themselves to encompass every aspect of warehouse operations.

Implementation Guide: Step-by-Step Leveling Process

Phase 1: Comprehensive Assessment and Strategic Planning

Successful beam racking leveling begins with thorough assessment that establishes baseline conditions and identifies appropriate interventions. This phase should engage qualified professionals who understand both floor systems and racking structures .

The assessment should evaluate floor conditions using appropriate measurement tools. Laser levels, digital inclinometers, and floor flatness testing equipment provide objective data for decision-making. Measurements should be taken along all aisles, at all upright locations, and across representative areas of open floor. For facilities considering future automation, assessment should include evaluation against automation requirements even if immediate plans use manual equipment.

Document current conditions thoroughly with photographs, measurements, and written descriptions. Identify areas requiring immediate correction versus those that can be monitored. Consider future plans—if automation is contemplated within five years, more aggressive correction may be justified to avoid duplicate work later.

Develop a prioritized plan addressing most critical areas first. High-traffic aisles, areas supporting heaviest loads, and locations with visible rack lean should take precedence over low-use storage zones. Include budget estimates and realistic timeline projections in the plan.

Phase 2: Informed Solution Selection

Based on assessment findings, select appropriate beam racking leveling techniques matched to specific conditions and requirements :

For minor irregularities (less than 5mm gap beneath baseplates), steel shims provide adequate correction when properly installed. Ensure shims match baseplate dimensions exactly and specify galvanized or zinc-plated materials for corrosion resistance appropriate to the local environment.

For moderate irregularities (5-15mm gaps), consider grouting beneath baseplates for permanent correction and superior load transfer. Engage experienced contractors familiar with racking system requirements and proper grout materials.

For significant settlement (greater than 15mm gaps or visible slab depression), investigate subsurface conditions before selecting surface solutions. Polyurethane injection may be necessary to fill voids and stabilize soils before any surface-level correction.

For facilities planning automation, evaluate ultra-flat floor requirements against current conditions. Grinding of high spots combined with self-leveling underlayments in low areas may be necessary to achieve required tolerances across entire operational zones.

Phase 3: Professional Execution with Quality Control

Schedule leveling work to minimize operational disruption while ensuring proper execution. For polyurethane injection, plan for rapid completion—many projects finish in days with racks remaining in place. For grouting, allow adequate cure time before reloading racks to prevent damage to uncured material .

During execution, maintain strict quality control throughout the process. Verify each baseplate achieves full bearing contact before proceeding to the next. Document as-built conditions with photographs and measurements that will serve as baseline for future inspections.

For automated facilities, conduct post-installation verification using the same measurement standards applied during initial assessment. Confirm that corrected areas meet required tolerances before resuming full operations. This verification should be documented and included in the facility’s permanent records.

Phase 4: Ongoing Monitoring and Maintenance Integration

Beam racking leveling is not a one-time event but an ongoing process requiring regular attention throughout the facility’s life. Establish monitoring intervals based on facility conditions, usage intensity, and the leveling methods employed .

Facilities with known soil issues or active settlement may require quarterly inspections to detect new movement early. Stable facilities with good floors and light usage may extend to annual checks. The key is matching inspection frequency to actual conditions rather than following arbitrary schedules.

Document all inspections and any adjustments performed. This record demonstrates due diligence and provides early warning of developing trends. If settlement resumes after correction, early detection enables prompt intervention before problems escalate.

Train all personnel to recognize signs of floor or rack movement. Operators who understand what to look for—new gaps beneath baseplates, changes in beam alignment, unusual sounds during forklift operation—become valuable partners in maintaining safe conditions.

Frequently Asked Questions

1: How often should warehouse floors be professionally evaluated for flatness and levelness?

Professional floor evaluation should occur at minimum every three to five years as part of comprehensive rack inspections required by EN 15635 and GB 33454-2016 . However, facilities experiencing active settlement, those with heavy forklift traffic, or warehouses preparing for automation should consider more frequent evaluations—annually or semi-annually depending on conditions. Additionally, floors should always be evaluated after any significant seismic event, flood, or other incident that might affect subgrade conditions.

2: Can wood or plastic shims ever be acceptable for leveling pallet rack uprights?

No, under no circumstances should wood or plastic shims be used for beam racking leveling. Wood compresses over time under sustained load, rots in moist warehouse environments, and burns in fires—all compromising rack stability and safety. Plastic shims creep under continuous load, deforming permanently and allowing racks to settle over time. Only steel shims matching baseplate dimensions and properly fixed in place should be used for rack leveling .

3: What floor flatness tolerance is required for very narrow aisle (VNA) forklift operations?

Very narrow aisle operations typically require floor flatness of FM2 or better under the Face Manufacturers Association classification system, with specific tolerances of ±2mm over any 3-meter span and strict limits on rate of change between adjacent floor areas . Some VNA systems with heights exceeding 15 meters may require even tighter tolerances. Always verify requirements with your specific equipment manufacturer before finalizing floor specifications.

4: How can warehouse operators determine whether floor settlement is ongoing or has stabilized?

Determining settlement status requires monitoring over time using established reference points. Install monitoring markers at multiple locations across the warehouse, particularly in areas showing previous movement. Measure elevations relative to stable benchmarks (deep foundations or structures unaffected by settlement) at regular intervals—quarterly for active areas, annually for stable zones. Plot measurements over time to identify trends. Professional geotechnical engineers can analyze these measurements to estimate future settlement and recommend appropriate interventions.

5: Does insurance typically cover rack damage caused by floor settlement?

Insurance coverage for rack damage from floor settlement depends entirely on policy terms and demonstrated due diligence. Most standard property policies exclude gradual deterioration, including settlement, unless specifically endorsed with appropriate additional premiums . However, if settlement causes a sudden collapse—the rapid failure of previously stable racks—coverage may respond differently. The key factor in any claim will be documentation: facilities with regular inspection records, documented leveling interventions, and professional evaluations demonstrate responsible management and strengthen their coverage position significantly.

Conclusion

Beam racking leveling techniques stand at the critical intersection of warehouse safety, operational efficiency, and long-term asset protection. For operators in emerging markets across Southeast Asia, the Middle East, Africa, and Latin America, the challenges of uneven floors are real, immediate, and too often underestimated until problems escalate to crises. But as this comprehensive guide has demonstrated, the solutions are equally real and accessible to those who understand them.

We have explored the full spectrum of beam racking leveling techniques, from simple steel shims appropriate for minor adjustments to advanced polyurethane injection technologies that can lift settled slabs by centimeters without demolition or operational disruption. We have examined the rigorous standards—EN 15635:2008, GB 33454-2016, and SEMA technical guidance—that define best practices for rack safety worldwide and provide frameworks for developing effective inspection and maintenance programs . And we have considered the special demands of automated warehouse systems, where ultra-flat floors and precise rack alignment make the difference between AGV success and failure.

The message for warehouse operators across emerging markets is clear and urgent: do not ignore your floors. What begins as a minor slope beneath a single baseplate or a barely visible crack at a construction joint progresses inevitably toward unsafe conditions, reduced productivity, and ultimately, the risk of catastrophic failure. But with proper assessment, appropriate intervention using proven beam racking leveling techniques, and ongoing monitoring integrated into daily operations, even challenging floor conditions can be managed effectively and safely.

Beam racking leveling is not merely a technical exercise for engineers and installers—it is an investment in safety for every worker entering the warehouse, in efficiency for every forklift operating in the aisles, and in peace of mind for every manager responsible for facility performance. The techniques and technologies exist to correct virtually any floor condition encountered in emerging market warehouses. The question facing each operator is whether to apply them proactively, or to wait until uneven floors force the issue through incident or accident.

As emerging markets continue their rapid industrial development, the warehouses being built and operated today will serve their economies for decades to come. Let us build them—and maintain them—on foundations that are truly level, in every sense of the word.

If you require perfect CAD drawings and quotes for warehouse racking, please contact us. We can provide you with free warehouse racking planning and design services and quotes. Our email address is: jili@geelyracks.com
