Introduction
A properly installed beam racking system is the backbone of any efficient warehouse. Whether it’s selective pallet racking, drive-in racks, or push-back systems, following a precise beam racking installation guide ensures safety, compliance, and long-term durability.
This comprehensive beam racking installation guide provides step-by-step instructions, industry best practices, and expert tips to help warehouse managers, logistics professionals, and installers avoid costly mistakes. From pre-installation planning to final load testing, this guide covers everything needed to build a secure and high-performing beam racking system.

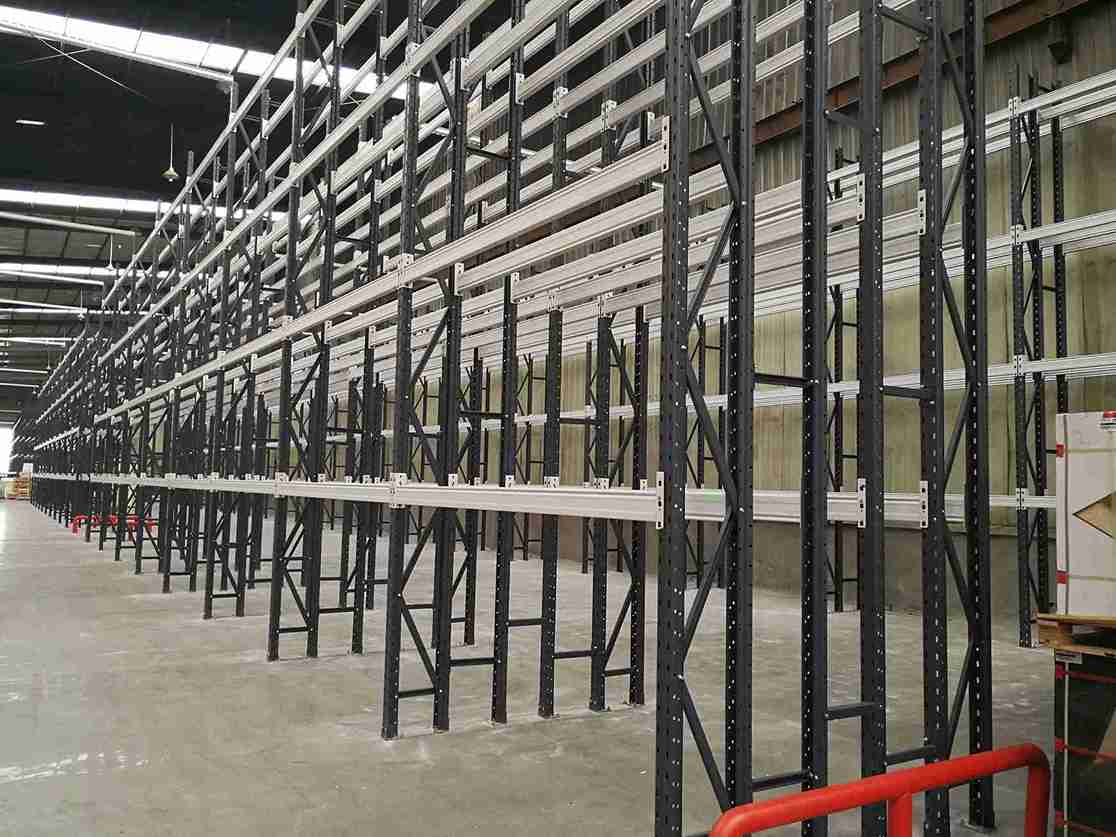

H1: Pre-Installation Planning for Beam Racking
H2: Evaluating Warehouse Space & Requirements
Before starting the beam racking installation, a thorough assessment of the warehouse is essential. Key considerations include:
- Floor conditions – Must be level and capable of supporting heavy loads.
- Ceiling height – Determines maximum beam racking height and forklift clearance.
- Aisle width – Narrow aisles require specialized forklifts, while standard aisles need wider spacing.
- Storage needs – Weight capacity, pallet dimensions, and future expansion plans.
H2: Selecting the Right Beam Racking Components
Choosing the correct components is critical for a successful beam racking installation. Key elements include:
- Upright frames – Available in roll-formed or structural steel, with varying load capacities.
- Beams (crossbars) – Must match the uprights’ connection type (teardrop, bolt-together, or welded).
- Decking options – Wire mesh, particleboard, or steel panels for different storage needs.
- Safety accessories – Column protectors, rack guards, and seismic bracing for compliance.
H2: Essential Tools & Safety Gear for Installation
A smooth beam racking installation requires the right tools:
- Torque wrench – Ensures bolts are tightened to manufacturer specifications.
- Laser level & measuring tape – Guarantees precise alignment.
- Forklift or scissor lift – Necessary for lifting and positioning heavy components.
- Personal protective equipment (PPE) – Hard hats, gloves, and harnesses for OSHA compliance.
H1: Step-by-Step Beam Racking Installation Process
H2: Step 1 – Preparing the Installation Site
Before assembling the beam racking system, the area must be cleared and marked.
- Remove debris and obstacles.
- Use chalk or tape to outline rack placement.
- Verify floor levelness with a laser level (shims may be needed for adjustments).
H2: Step 2 – Assembling Upright Frames
Uprights form the backbone of the beam racking system. Installation steps include:
- Lay frames horizontally to attach base plates and cross braces.
- Lift uprights vertically using a forklift (temporarily brace for stability).
- Check alignment with a 4-foot level—adjust until perfectly plumb.
H2: Step 3 – Installing Horizontal Beams
Beams must be securely attached to prevent shifting or collapse.
- Insert beams into teardrop or bolt-on connectors.
- Ensure even weight distribution—never exceed manufacturer load ratings.
- Tighten bolts with a torque wrench (typically 35-45 ft-lbs).
H2: Step 4 – Adding Decking & Safety Features
Additional components enhance functionality and safety:
- Wire mesh decks – Ideal for small-item storage.
- Column protectors – Prevent forklift damage.
- End-of-aisle guards – Improve visibility and reduce accidents.
H2: Step 5 – Final Inspection & Load Testing
Before operational use, a thorough inspection is mandatory:
- Check all bolts for proper tightness.
- Conduct a gradual load test (start at 25% capacity).
- Look for sway or misalignment—address immediately if found.
H1: Common Beam Racking Installation Mistakes & How to Avoid Them
H2: Mistake #1 – Improper Beam Leveling
- Problem: Uneven beams cause pallets to tilt or fall.
- Solution: Always use a laser level during installation.
H2: Mistake #2 – Overloading or Uneven Weight Distribution
- Problem: Exceeding load limits leads to structural failure.
- Solution: Follow manufacturer guidelines strictly.
H2: Mistake #3 – Skipping Safety Accessories
- Problem: Missing guards or braces increases accident risks.
- Solution: Install all recommended safety components.
H1: Maintaining & Optimizing Your Beam Racking System
H2: Routine Inspections for Longevity & Safety
- Monthly checks for bent beams, loose bolts, or corrosion.
- Annual professional inspections for OSHA compliance.
H2: Reconfiguring for Changing Storage Needs
- Adjust beam heights for new SKUs.
- Add cantilever arms for long or bulky items.
H1: Conclusion
Following this beam racking installation guide ensures a safe, efficient, and durable storage system. Proper installation prevents accidents, maximizes space, and extends the lifespan of the beam racking system.
For further guidance, explore our pallet racking safety checklist or warehouse layout optimization tips.
H1: Frequently Asked Questions (FAQs)
H2: How deep should beam racking be for standard pallets?
Most 48×40-inch pallets require 42-48″ deep beams for secure support.
H2: Can I install beam racking on uneven flooring?
Yes, but adjustable shims must be used to ensure stability.
H2: What’s the maximum height for beam racking without permits?
Typically 20 feet, but local regulations vary—always consult building authorities.
H2: How often should I inspect my beam racking system?
Monthly visual checks and annual professional inspections are recommended.
H2: Are bolt-together racks stronger than teardrop racks?
Bolt-together racks offer higher load capacities, while teardrop racks allow faster reconfiguration.
