Introduction
In the competitive world of warehousing and logistics, businesses constantly seek storage solutions that maximize space utilization, durability, and operational efficiency. Z-beam racking has rapidly become the preferred choice for carton storage and manual handling operations, outperforming traditional racking systems with its superior load-bearing capacity, structural stability, and adaptability.
Unlike conventional C-channel or roll-formed racking, Z-beam racking features a unique Z-shaped profile that enhances strength while minimizing material usage. This makes it ideal for high-density storage, manual picking operations, and heavy-duty warehousing. Whether managing e-commerce fulfillment, manufacturing inventory, or retail distribution, companies adopting Z-beam racking experience faster workflows, reduced damage rates, and long-term cost savings.
This in-depth guide explores why Z-beam racking dominates modern storage applications, its engineering advantages, installation best practices, and how it enhances manual storage efficiency.
1. Understanding Z-Beam Racking: A Structural Breakthrough
1.1 The Science Behind the Z-Beam Design

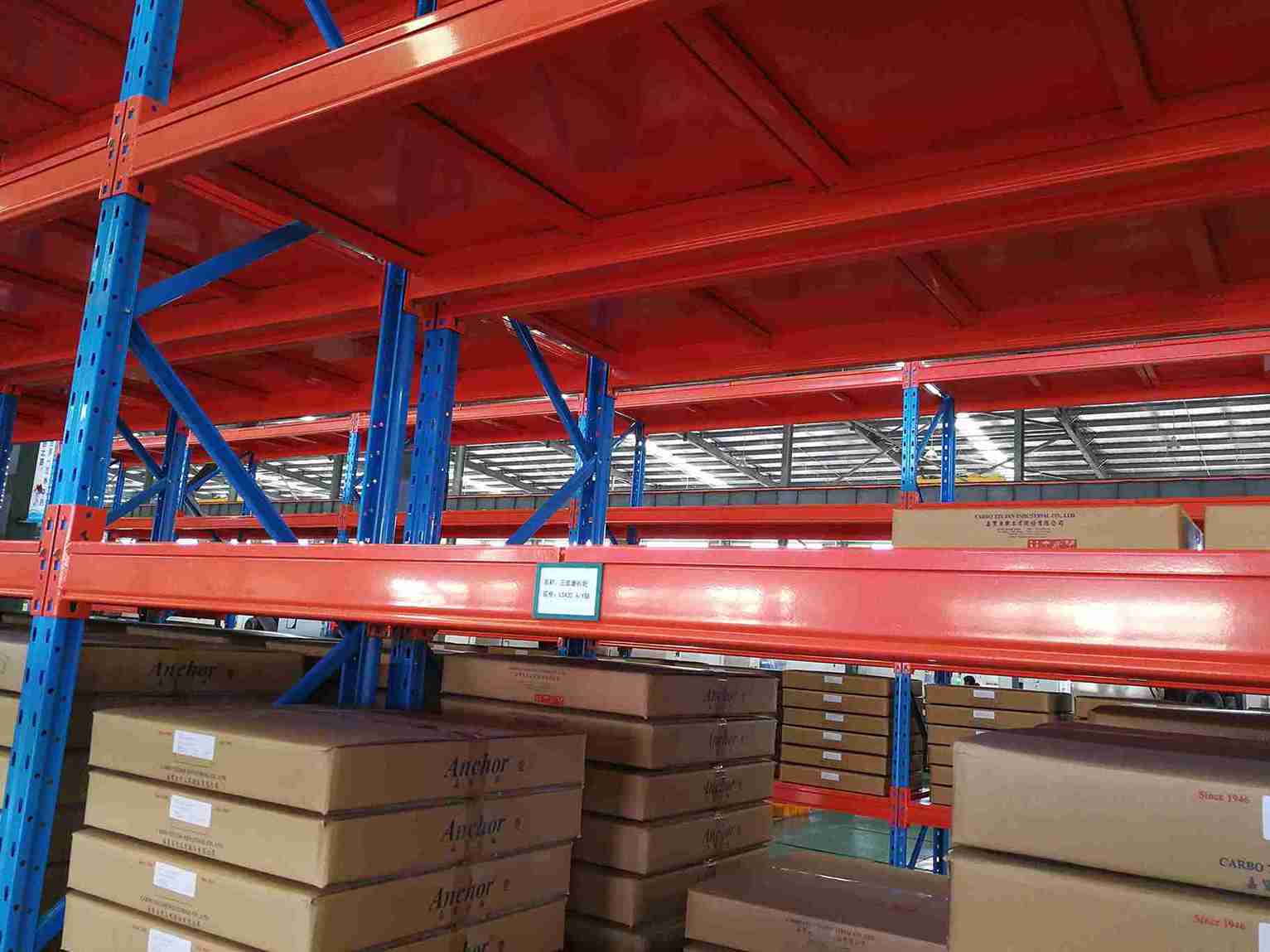

The defining feature of Z-beam racking is its Z-shaped cross-section, which provides greater rigidity compared to standard beams. This design:
- Distributes weight more evenly, preventing beam sagging.
- Resists deflection under heavy loads, maintaining structural integrity.
- Reduces steel usage without compromising strength, lowering costs.
1.2 Key Components of a Z-Beam Racking System
A fully optimized Z-beam racking system includes:
- Heavy-duty upright frames (available in various heights and capacities).
- Z-profile horizontal beams (adjustable for flexible storage configurations).
- Wire mesh decks or particle boards (ideal for carton storage).
- Safety locks and reinforcement braces (prevents accidental dislodging).
This modular construction allows warehouses to customize layouts based on inventory needs, making Z-beam racking a future-proof investment.
2. Why Z-Beam Racking Excels in Carton Storage Applications
2.1 Unmatched Load Capacity for Carton Storage
Traditional racking often struggles with uneven weight distribution, leading to beam deformation and safety risks. Z-beam racking eliminates these issues by:
- Supporting up to 5,000 lbs per beam (30% more than roll-formed alternatives).
- Maintaining stability even with non-palletized cartons.
- Preventing shelf bowing over time, reducing product damage.

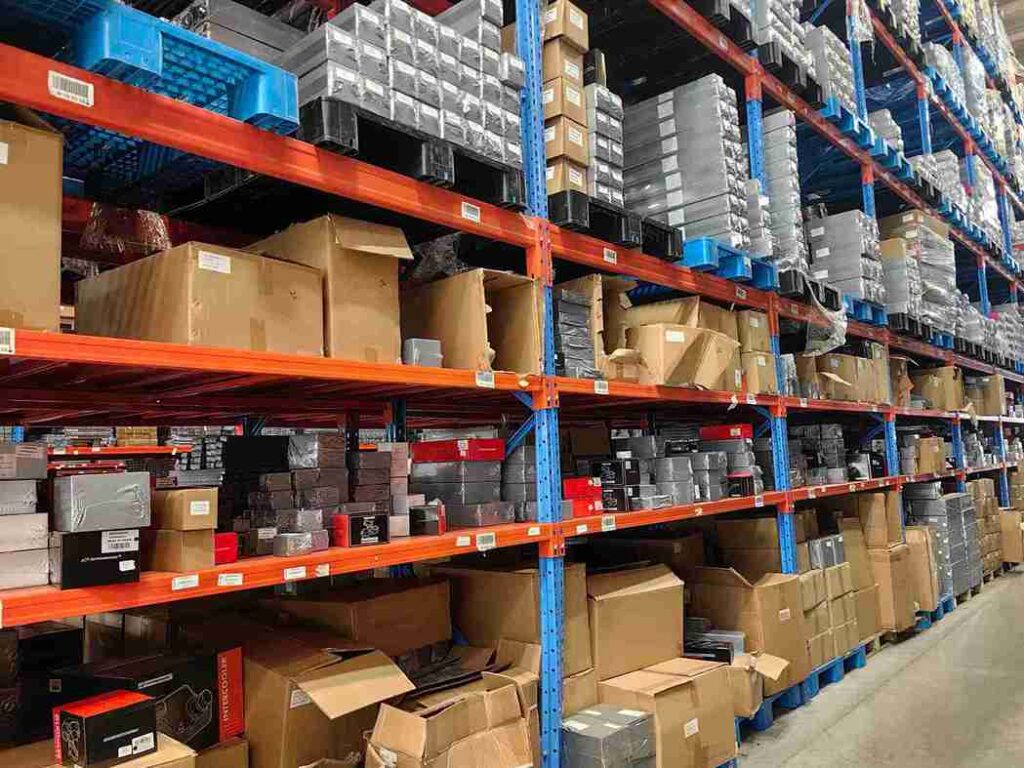

2.2 Maximizing Vertical Space for High-Density Storage
With adjustable beam heights, Z-beam racking enables ultra-efficient space utilization, crucial for:
- E-commerce warehouses (storing thousands of SKUs).
- Retail distribution centers (handling seasonal inventory spikes).
- Cold storage facilities (where space optimization is critical).
2.3 Longevity and Corrosion Resistance
Constructed from hot-rolled steel with protective coatings, Z-beam racking withstands:
- High humidity environments (ideal for food storage).
- Frequent loading/unloading cycles (common in manual storage operations).
- Heavy forklift traffic without warping.
3. Enhancing Manual Storage Operations with Z-Beam Racking
3.1 Ergonomic Design for Worker Safety
Since manual picking remains essential in many warehouses, Z-beam racking enhances operator efficiency by:
- Providing clear visibility of stored cartons.
- Reducing bending and reaching with optimized shelf heights.
- Featuring smooth, rounded edges to prevent injuries.
3.2 Faster Order Fulfillment and Reduced Labor Costs
Studies show that well-organized racking systems can cut picking time by 20%. Z-beam racking contributes by:
- Allowing logical SKU grouping for faster retrieval.
- Supporting bin labeling and barcode integration.
- Minimizing misplaced inventory through structured layouts.
4. Z-Beam Racking vs. Traditional Storage Systems
4.1 Z-Beam vs. Roll-Formed Racking
| Feature | Z-Beam Racking | Roll-Formed Racking |
|---|---|---|
| Load Capacity | Up to 5,000 lbs/beam | 3,000–3,500 lbs/beam |
| Durability | Resists deflection | Prone to bending |
| Lifespan | 20+ years | 10–15 years |
4.2 Z-Beam vs. Structural Racking
While structural racking is robust, it lacks the flexibility of Z-beam racking, which allows:
- Easy reconfiguration as inventory needs change.
- Lower installation costs due to modular assembly.
- Better accessibility for manual operations.
5. Best Practices for Installing and Maintaining Z-Beam Racking
5.1 Proper Installation for Maximum Stability
- Anchor uprights securely to the concrete floor.
- Use laser leveling to ensure perfect alignment.
- Follow manufacturer load guidelines to prevent overloading.
5.2 Routine Maintenance for Long-Term Performance
- Inspect beams monthly for signs of stress.
- Check safety locks to prevent accidental disengagement.
- Clean debris from wire decks to maintain airflow (critical for perishable goods).
6. Industry-Specific Applications of Z-Beam Racking
6.1 E-Commerce & Retail Distribution
- High-density carton storage for fast-moving SKUs.
- Seamless integration with automated picking systems.
6.2 Manufacturing & Industrial Warehousing
- Storing raw materials and finished goods efficiently.
- Supporting heavy machinery parts without deformation.
7. Cost Efficiency and ROI of Z-Beam Racking
7.1 Lower Total Cost of Ownership
Though Z-beam racking has a higher upfront cost than roll-formed alternatives, its extended lifespan and reduced maintenance needs deliver greater long-term savings.
7.2 Productivity Gains Justify Investment
- Faster order processing = higher throughput.
- Fewer product damages = lower replacement costs.
8. Safety and Compliance Considerations
8.1 OSHA and RMI Compliance
- Z-beam racking meets ANSI MH16.1 standards for safety.
- Regular inspections prevent workplace accidents.
8.2 Employee Training for Optimal Use
Workers should be trained on:
- Proper loading techniques to avoid overloading.
- Recognizing signs of racking fatigue.
9. The Future of Warehouse Racking: Where Z-Beam Fits In
9.1 Integration with Automation & Robotics

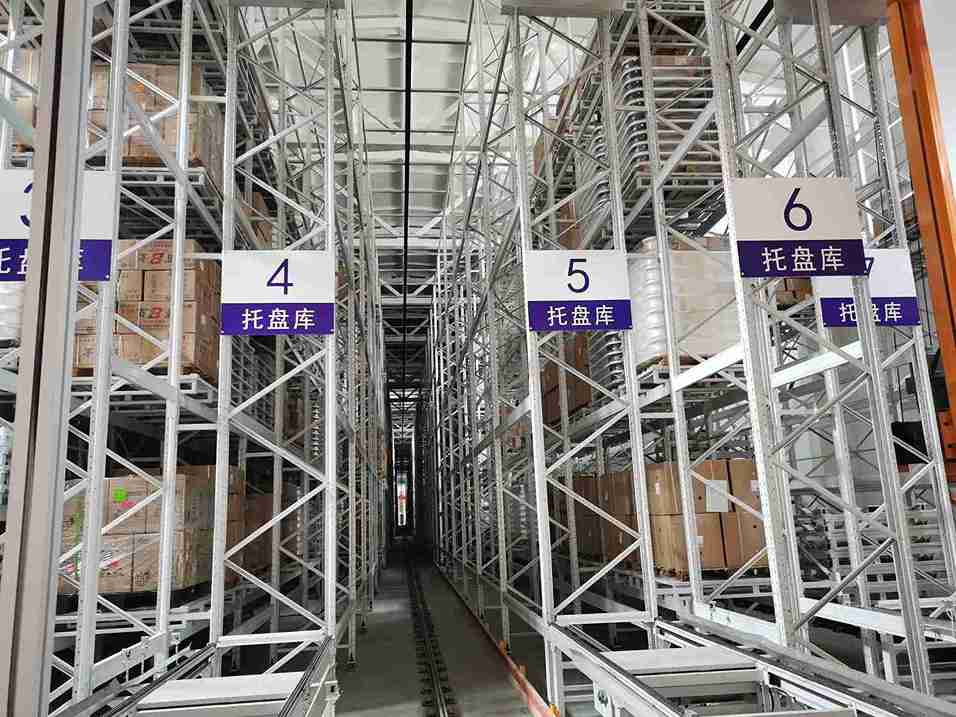

- Z-beam racking works seamlessly with AS/RS (Automated Storage & Retrieval Systems).
- RFID and IoT-enabled tracking enhances inventory visibility.
9.2 Sustainable Innovations in Racking Design
Future advancements may include:
- Recycled steel construction for eco-friendly warehousing.
- Modular designs for easier reconfiguration.
10. Conclusion: Why Z-Beam Racking is the Smart Choice
For businesses seeking durable, flexible, and high-performance storage, Z-beam racking stands out as the ultimate solution. Its superior load capacity, space-saving design, and longevity make it ideal for carton storage, manual handling, and automated warehouses.
By investing in Z-beam racking, companies can boost efficiency, reduce operational costs, and future-proof their storage infrastructure.
Frequently Asked Questions (FAQs)
1. How does Z-beam racking improve picking accuracy?
Its organized layout minimizes errors, ensuring workers quickly locate cartons.
2. Can Z-beam racking support palletized and non-palletized loads?
Yes, it handles both types efficiently, making it versatile for various industries.
3. What’s the maximum height for Z-beam racking systems?
Depending on engineering specs, it can reach up to 40 feet with proper reinforcement.

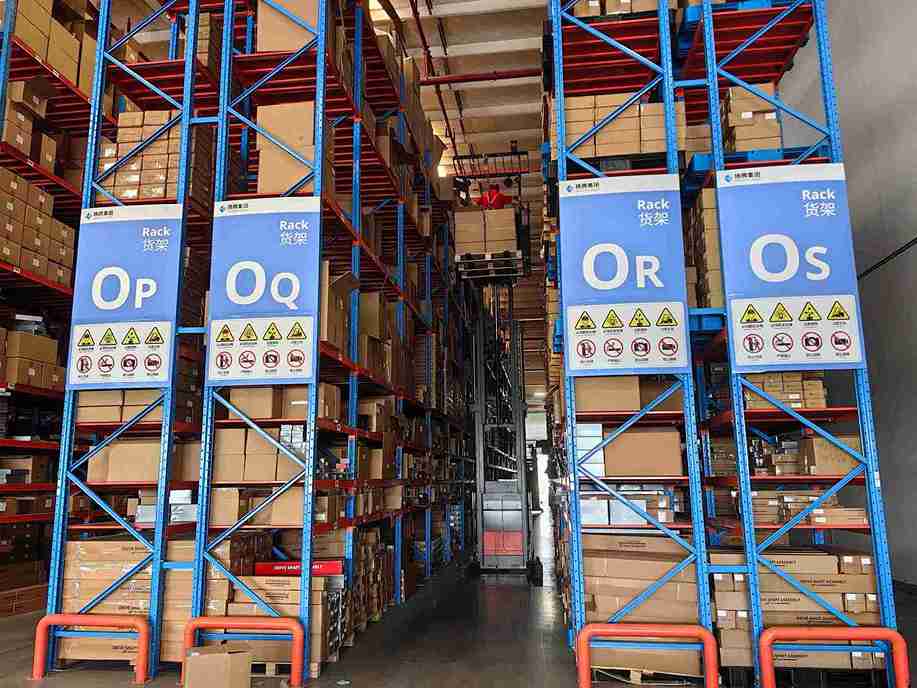

4. Is Z-beam racking compatible with narrow-aisle forklifts?
Absolutely—its durable construction withstands tight maneuvering.
5. How often should Z-beam racking be inspected?
Monthly visual checks and annual professional inspections are recommended.
