Introduction: Why Warehouse Racking Double Deep Setup is a Game-Changer
A warehouse racking double deep setup revolutionizes storage efficiency by allowing pallets to be stored two-deep, significantly increasing storage density. Unlike traditional selective racking, this system minimizes aisle space while maintaining reasonable accessibility—perfect for warehouses handling medium to high-turnover inventory.
This comprehensive guide dives deep into warehouse racking double deep setup, covering planning, installation, safety protocols, and optimization strategies. Whether you’re a warehouse manager, logistics expert, or business owner, this guide ensures you implement a system that maximizes space, reduces costs, and enhances operational efficiency.
1. What is a Warehouse Racking Double Deep Setup?
1.1 Definition and Core Mechanics

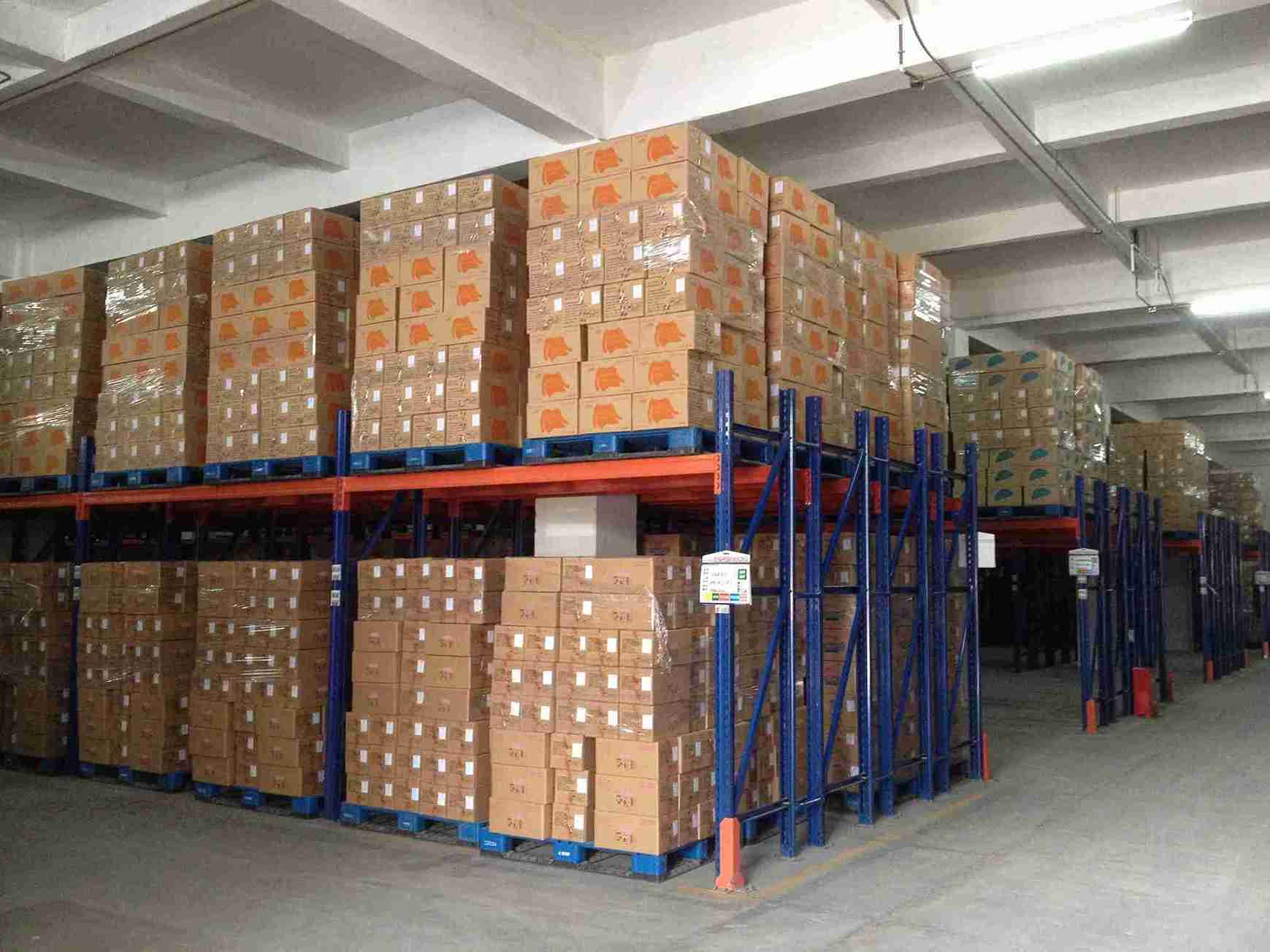

A warehouse racking double deep setup stores pallets in two rows per aisle, requiring specialized forklifts (such as reach trucks) to access the second row. This configuration reduces aisle space by up to 50%, making it ideal for facilities with limited square footage.
1.2 How It Compares to Other Warehouse Racking Systems
- Selective Racking: Single-deep storage with direct pallet access (best for high-turnover SKUs).
- Drive-In Racking: High-density but limited accessibility (LIFO or FIFO).
- Push-Back Racking: Dynamic system where pallets nest on carts.
- Pallet Flow Racking: Gravity-based system for high-throughput operations.
The warehouse racking double deep setup strikes the perfect balance between storage density and accessibility, making it a top choice for mid-sized to large warehouses.
2. Key Benefits of a Warehouse Racking Double Deep Setup
2.1 40% More Storage Capacity
By reducing aisle space, a warehouse racking double deep setup allows more pallet positions per square foot compared to selective racking.
2.2 Lower Operational Costs
- Reduced warehouse construction costs (fewer aisles = less floor space needed).
- Lower energy consumption (fewer aisles mean reduced lighting and HVAC expenses).
2.3 Optimized Inventory Management
- Ideal for SKUs with medium turnover rates.
- Better space utilization without sacrificing accessibility.
2.4 Enhanced Workflow Efficiency
- Faster loading/unloading with reach trucks.
- Reduced forklift travel time due to fewer aisles.
3. Planning Your Warehouse Racking Double Deep Setup
3.1 Assessing Warehouse Space and Requirements
Before installation, conduct a detailed warehouse audit:
- Measure ceiling height, floor space, and column spacing.
- Evaluate pallet dimensions and load weights.
- Determine aisle width based on forklift specifications.
3.2 Selecting the Right Racking Components
Key components for a warehouse racking double deep setup include:
- Heavy-duty upright frames (for stability).
- Double-deep beams (to support two pallet rows).
- Wire decking or pallet supports (for safety).
- Shims and base plates (for floor leveling).
3.3 Choosing the Best Forklift for a Double Deep Setup
- Reach trucks (most common for double deep configurations).
- Double-deep forklifts (specialized for deeper access).
- Narrow-aisle forklifts (for ultra-tight spaces).
4. Step-by-Step Installation of a Warehouse Racking Double Deep Setup
4.1 Preparing the Warehouse Floor
- Ensure the floor is level and reinforced (concrete slab with proper PSI rating).
- Mark aisle locations using CAD software or physical measurements.
4.2 Assembling the Upright Frames
- Anchor frames securely with epoxy or mechanical anchors.
- Install cross braces for added stability.
4.3 Installing Beams and Decking
- Double-check beam levels to prevent misalignment.
- Add wire mesh decking for enhanced safety.
4.4 Final Safety Checks Before Operation
- Inspect bolt tightness and alignment.
- Test forklift access to ensure smooth operation.
5. Safety and Maintenance for a Warehouse Racking Double Deep Setup
5.1 OSHA and RMI Compliance Guidelines
- Follow ANSI MH16.1 standards for rack safety.
- Install column protectors and guard rails to prevent collisions.
5.2 Routine Inspections and Maintenance
- Check for bent beams or damaged uprights.
- Monitor floor anchors for loosening over time.
5.3 Employee Training for Safe Operations
- Train forklift operators on double-deep handling.
- Implement strict pallet placement guidelines.
6. Common Challenges in a Warehouse Racking Double Deep Setup & Solutions
6.1 Limited Accessibility to Rear Pallets
- Use FIFO inventory management for perishable goods.
- Implement a WMS (Warehouse Management System) for real-time tracking.
6.2 Forklift Operator Skill Requirements
- Invest in specialized training programs.
- Consider semi-automated retrieval systems.
7. When to Choose a Warehouse Racking Double Deep Setup vs. Other Systems
| Factor | Double Deep Racking | Selective Racking | Drive-In Racking |
|---|---|---|---|
| Storage Density | High | Medium | Very High |
| Accessibility | Medium | High | Low |
| Cost | Moderate | Low | High |
| Best For | Medium turnover | High turnover | Bulk storage |
8. Future-Proofing Your Warehouse Racking Double Deep Setup
8.1 Integration with Automation
- Automated Storage & Retrieval Systems (AS/RS) can enhance efficiency.
- RFID and barcode scanning for real-time inventory tracking.
8.2 Scalability Considerations
- Modular designs allow for easy expansion.
- Adjustable beam levels accommodate changing pallet sizes.
Conclusion: Is a Warehouse Racking Double Deep Setup Right for You?
A warehouse racking double deep setup is an exceptional solution for businesses looking to maximize storage density without sacrificing accessibility. By following this guide, warehouse managers can design, install, and maintain a system that boosts efficiency, reduces costs, and improves workflow.
For warehouses handling medium to high-turnover SKUs with limited floor space, a warehouse racking double deep setup is a smart, long-term investment.
Frequently Asked Questions (FAQs)
1. What is the maximum height for a warehouse racking double deep setup?
Most systems support up to 40 feet, but this depends on forklift reach capacity and building height.
2. Can I convert my existing selective racking to a warehouse racking double deep setup?
Yes, but you’ll need new beams, deeper uprights, and possibly different forklifts.
3. How much weight can a warehouse racking double deep setup hold?
Typical capacity ranges from 2,000 to 6,000 lbs per pallet position, depending on beam strength.
4. What type of forklift is best for a warehouse racking double deep setup?
Reach trucks are the most common, but double-deep forklifts provide better reach.
5. How do I prevent accidents in a warehouse racking double deep setup?
- Proper operator training.
- Regular rack inspections.
- Use of safety accessories (guard rails, column protectors).
By implementing these best practices, your warehouse racking double deep setup will be safe, efficient, and cost-effective for years to come.
