The Definitive Masterclass in Automated Narrow Aisle Systems: Engineering Unrivaled Warehouse Efficiency

For logistics directors and operations managers steering facilities across Southeast Asia, the Middle East, Africa, and Latin America, the challenges are multidimensional. Soaring real estate premiums, intense competition for skilled labor, and the unyielding demand for next-day or same-day fulfillment create a complex operational puzzle. The solution transcends simple racking installation; it demands a complete re-engineering of the warehouse’s fundamental architecture. This in-depth masterclass articulates why a fully integrated Automated Narrow Aisle System is the most powerful lever for efficiency, focusing on the engineered synergy between high-density narrow aisle storage and intelligent robotics.

The discussion will move beyond generic promises to detail how a properly engineered AGV & forklift-friendly racking infrastructure serves as the cornerstone for systemic transformation, reliably delivering 35% or greater reductions in operational expenditure. We will dissect the physics, the software logic, and the localized adaptations that convert a constrained narrow aisle into the most dynamic and profitable square footage in any facility.

​The Fundamental Calculus: How Narrow Aisles Reclaim Capital and Liberate Capacity

Conventional warehousing is an exercise in spatial inefficiency. A typical wide-aisle layout, designed around the turning radius of a counterbalance forklift, dedicates a staggering 55% to 65% of its total floor area to empty aisle space. This is not a productive asset; it is a costly liability—heated, cooled, lit, and secured void. The strategic shift to a narrow aisle configuration attacks this waste at its source.

By systematically reducing aisle widths from the traditional 3.5-4.0 meters down to a precision range of 1.6 to 2.2 meters, a facility performs an instantaneous act of capital recovery. It converts valueless circulation space into high-density storage volume. The resulting capacity uplift is profound, typically achieving 40% to 100% more pallet positions within the existing building footprint, thereby deferring or eliminating the need for multimillion-dollar expansion projects.

However, establishing a high-performance narrow aisle is a discipline of integrated engineering, not a simple act of spatial compression. It demands a holistic perspective where the substrate, the storage structure, the material handling equipment, and the control software are conceived as a single, cohesive system. The narrow aisle is the central nervous system of this organism; its design dictates the performance, safety, and scalability of the entire operation. When executed with precision, this narrow aisle becomes the engine for unparalleled density, accelerated throughput, enhanced safety, and granular inventory control.

The Engineering Trinity: Principles of AGV-Optimized Narrow Aisle Racking Design

Off-the-shelf pallet racking serves a passive purpose. Racking engineered for an automated narrow aisle environment fulfills an active, dynamic role. This critical distinction is founded on three pillars of engineering excellence that inform every project specification.

1. Uncompromising Dimensional Integrity Under Dynamic and Static Loads.

An autonomous guided vehicle (AGV) or a man-up turret truck operates based on a digital twin of its environment. Its navigation stack, whether reliant on LiDAR point clouds, optical cameras, or inertial guidance, assumes the physical world conforms to this digital model with sub-centimeter fidelity. Any divergence—a rack upright outside plumb tolerances, beam connector play, or inconsistent bay widths—triggers system fault protocols, failed retrieval cycles, or catastrophic collisions.

The manufacturing protocol for a mission-critical narrow aisle system employs CNC laser cutting, automated welding jigs, and statistical process control to guarantee that every structural component, across thousands of positions, serves as a predictable geospatial marker for automation. The standard is not merely industry acceptance but AGV-optimized tolerances that enable flawless machine interaction in the narrow aisle.

2. Proactive Resilience: Engineered Impact Management and Structural Longevity.

The narrow aisle is a high-velocity, high-utilization corridor. Despite sophisticated software, real-world variables—debris on the floor, a manual intervention, a sensor occlusion—mean the racking system must be the resilient backbone. The design incorporates Managed Deflection Zones and Energy Dissipation Pathways. Integral column guards, fabricated from high-grade steel, are engineered not as mere bumpers but as structural elements that absorb kinetic energy and distribute forces away from the critical upright frame. Furthermore, application-specific coatings, including high-visibility and retro-reflective finishes, enhance the detection capabilities of AGV sensors, transforming the narrow aisle racking into a collaborative navigational aid.

3. Interface Excellence: Optimizing the Machine-to-Storage Handshake.

The defining moment in a narrow aisle efficiency cycle is the fork-to-beam engagement. A standard rolled beam profile can induce pallet base hang-up, forcing costly micro-adjustments that waste precious seconds on every single cycle. For an AGV fleet operating across three shifts, these seconds compound into significant annual throughput deficits. Our forklift-friendly racking solution incorporates proprietary beam profiles with optimized lead-in radii, hardened replaceable wear strips, and tailored lock designs. This engineering focus ensures smooth, single-attempt pallet engagement and disengagement, whether executed by the side-shifter of a manned reach truck or the programmed manipulator of an autonomous vehicle. Mastery of this critical interface is what unlocks the full spectrum of efficiency gains within the narrow aisle.

The Cognitive Layer: Enabling Robotics to Master the Narrow Aisle Domain

Deploying automation in an unstructured space is a basic task. Deploying it within the precise, demanding confines of a high-bay narrow aisle warehouse represents advanced systems integration. This environment imposes unique demands on robotic intelligence and offers distinct synergistic advantages.

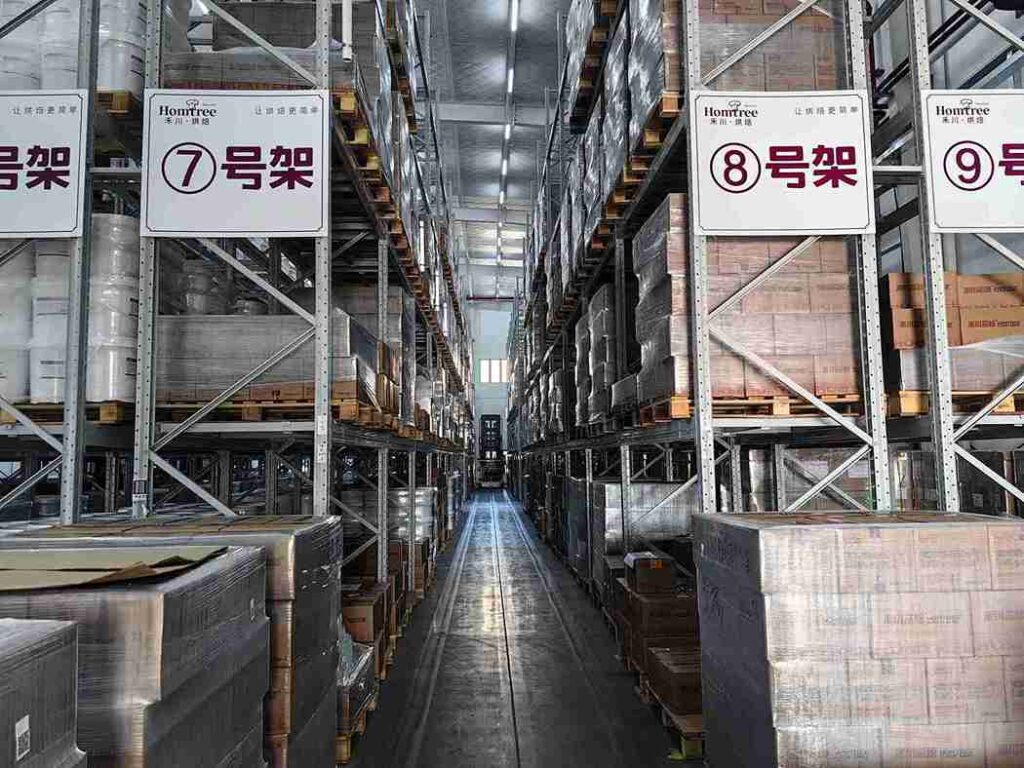

Navigational Symbiosis: The Racking as a Geodetic Framework

Modern AGVs primarily utilize SLAM (Simultaneous Localization and Mapping) algorithms with LiDAR or vision systems. In an open, feature-poor environment, maintaining accurate localization can be computationally intensive. A narrow aisle warehouse presents an ideal solution: the racking forms a permanent, highly regular, and feature-rich framework for sensor correlation. Our layout engineering team collaborates directly with automation controls engineers to design the narrow aisle grid to maximize this inherent advantage.

Parameters such as rack run orientation relative to main travel paths, the strategic placement of vertical bracing, and the surface characteristics of uprights are all optimized to enhance sensor signature clarity and minimize perceptual ambiguity. This co-engineering results in navigational stability and reliability metrics that consistently surpass 99.98%, establishing the foundation for truly unattended operations and the substantial labor optimization that follows.

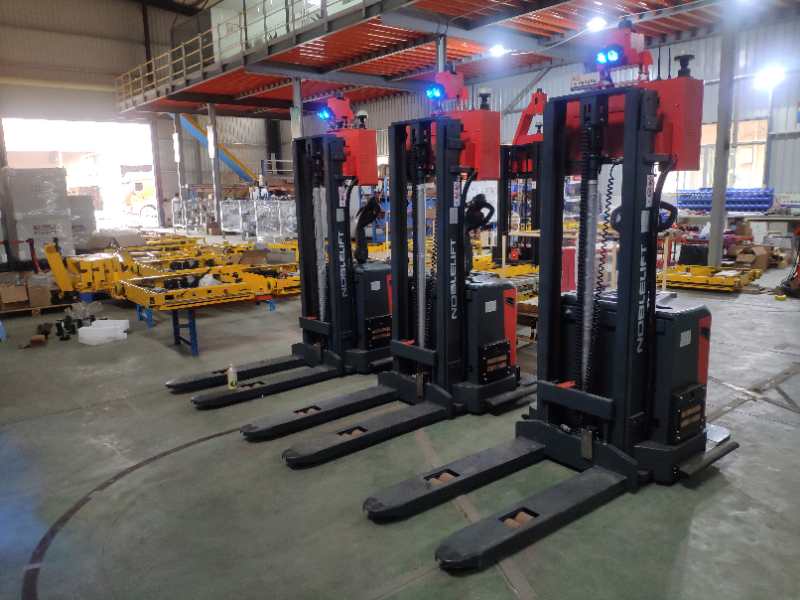

The Vehicle Ecosystem: Selecting the Right Robotic Partner for Your Narrow Aisle Strategy

The AGV landscape comprises a diverse family of vehicles. Selecting the appropriate type is a strategic decision that directly determines the optimal narrow aisle width and the required racking specifications.

• Automated Turret Trucks (for Very Narrow Aisles – VNA): Operating in aisles as constrained as 1.5 meters, these robots employ a rotating fork mechanism to store and retrieve pallets from both sides without vehicle turnaround. They represent the zenith of storage density but require exceptional floor flatness and racking precision. Our VNA-optimized racking is meticulously engineered for the specific fork rotation arc, lift dynamics, and load moment of these machines.

• Automated Narrow Aisle Reach Trucks: Suited for aisles in the 2.0m-2.2m range, these AGVs replicate the function of traditional reach trucks. They are frequently the preferred solution for high-volume, unit-load handling. The racking for these systems is calibrated for the specific reach mechanism kinematics and the vehicle’s stabilized load profile.

• Unit Load Carriers and Integrated Pallet Shuttles: These automated vehicles manage the horizontal transport of loads to and from the narrow aisle entry points. The engineering of the transfer interface—where the open area converges with the narrow aisle—is paramount. We design for seamless integration with flush, graded transitions and unobstructed sensor sightlines to ensure fluid traffic flow at these critical junctions.

The Hybrid Ascent: Leveraging Technology in Semi-Automated Narrow Aisle Operations

The transition to a fully autonomous warehouse is typically a phased evolution. For numerous organizations, particularly in growth economies, the immediate objective is to dramatically enhance the productivity and safety of their current workforce while constructing a scalable path toward greater automation. In this context, the “forklift-friendly” dimension of our narrow aisle design delivers exceptional value within a human-technology collaborative model.

Human-Centric Technology Amplification in the Narrow Aisle

Even prior to full AGV integration, advanced technologies can radically improve performance within the narrow aisle.

• Tactile and Wire-Guided Navigation Systems: Rail or wire-guidance systems for manned narrow aisle trucks provide physical steering, enabling operators to traverse the narrow aisle at higher speeds with virtually eliminated risk of rack contact. This reduces cognitive load, accelerates training, and maximizes safe throughput within the narrow aisle environment.

• Directly Integrated Pick/Put-to-Light Systems: Mounted seamlessly onto the racking structure, these systems guide operators to exact locations via visual cues, dramatically reducing picking errors and search times. The racking is pre-engineered with dedicated mounting points and internal cable raceways for reliable, maintenance-friendly integration.

• Voice-Directed Workflows and Wearable Computing: Driven by the Warehouse Management System (WMS), this technology enables hands-free, eyes-up operation, transforming personnel into highly efficient executors within the narrow aisle. The consistency and predictability of our racking layout are fundamental to the operational success of these digital systems.

​

The Financial Dissection: Mapping the Pathway to 35%+ Operational Cost Reduction

Assertions of significant cost savings must be analytically rigorous, transparent, and empirically defensible. We will meticulously examine where an integrated automated narrow aisle system captures and compounds value, frequently surpassing the 30% benchmark.

1. Labor Transformation and Productivity (12-18% Savings)

As the most substantial and variable operational cost, labor is targeted through multi-vector optimization:

• Direct Labor Compression: A single automated narrow aisle vehicle can displace 2-3 shifts of a manned forklift operator. These systems operate continuously through breaks, shift changes, and holidays, unaffected by fatigue or attrition.

• Workforce Reallocation & Strategic Upskilling: Personnel transition from operational roles to system supervision, exception management, and performance analytics. This elevates job satisfaction, improves retention, and leverages human ingenuity for higher-order problem-solving.

• Mitigation of Safety and Training Liabilities: The controlled, predictable environment of an automated narrow aisle drastically minimizes vehicle-pedestrian interactions and traditional forklift incidents. This results in lower insurance premiums, reduced workers’ compensation claims, and diminished cyclical costs for training new operators on complex narrow aisle equipment.

2. Real Estate Optimization and Asset Yield (8-12% Savings)

By transmuting non-revenue-generating aisle space into productive storage, the need for costly facility expansion is deferred or nullified. In prime industrial zones of metro Manila, Riyadh, or Santiago, where land costs are exorbitant, this represents a direct avoidance of capital expenditure. Moreover, a denser operational footprint reduces the overall building volume requiring climate conditioning, yielding persistent utility savings.

3. Throughput Certainty and Perfect Order Execution (7-10% Savings)

Automation delivers deterministic, consistent cycle times. There is no performance variability from fatigue, breaks, or differential skill levels. This reliability enables guaranteed order fulfillment windows and the capacity to absorb demand volatility seamlessly. Crucially, system-directed workflows achieve picking and placing accuracy exceeding 99.99%. This virtually eradicates the profound hidden costs of errors: product returns, reverse logistics, customer service overhead, and irrevocable customer attrition.

4. Systemic Asset Preservation and Operational Uptime (5-8% Savings)

• Near-Elimination of Inventory and Infrastructure Damage: Automated systems execute tasks with programmed precision, devoid of haste or frustration. Damage from impacts within the narrow aisle is reduced by over 95%, safeguarding both high-value inventory and the storage infrastructure investment.

• Predictive Maintenance and Energy Intelligence: Electric AGVs offer superior energy efficiency. The operational data they generate facilitates predictive maintenance—preemptively replacing a wearing component before it precipitates a failure during a critical operational peak. This maximizes Overall Equipment Effectiveness (OEE) and prevents costly, unplanned interruptions in narrow aisle operations.

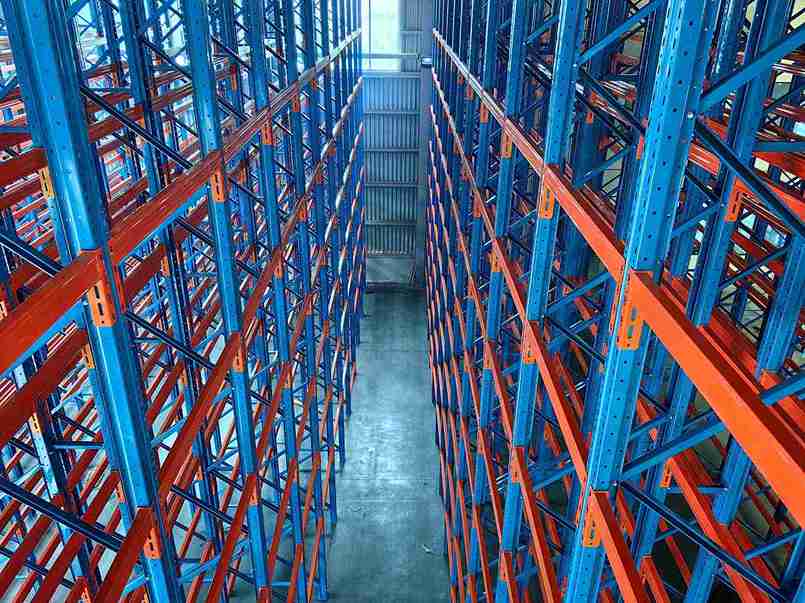

Global Implementation Mastery: Tailoring Automated Narrow Aisles for Diverse Markets

A standardized, one-size-fits-all methodology is a prescription for operational failure. Triumphant implementation in the diverse landscapes of Southeast Asia, Africa, the Middle East, and Latin America necessitates deep localization—a core tenet of our deployment philosophy.

Site-Specific Hardening and Environmental Conditioning

Every project is initiated with a comprehensive Site Readiness Diagnostic, concentrating on:

• Substrate Flatness and Specification (F_F/F_L): VNA operations frequently mandate floor flatness tolerances as stringent as F_F 20 / F_L 40. We provide exacting specifications and partner with certified local contractors to execute laser-guided grinding or superflat topping compounds to achieve these benchmarks, ensuring stable and precise AGV traversal in the narrow aisle.

• Power Integrity and Resilience Architecture: System designs incorporate inherent resilience for unstable grids. This includes phase monitoring, automatic voltage regulation, and structured UPS/generator backup protocols that enable the automated narrow aisle system to complete active cycles and execute safe parking maneuvers during power events.

• Climatic and Particulate Adaptation: For regions with extreme heat, humidity, or dust, we specify components with elevated environmental ratings, engineer for enhanced thermal management and airflow, and implement conditioned charging enclosures to optimize AGV battery lifecycle and sensor performance within the narrow aisle.

Cultivating In-Region Expertise for Sustained System Vitality

Our engagement model prioritizes local capability building over mere equipment delivery.

• Structured Training and Certification Programs: We educate not only the client’s operational and maintenance teams but also establish certified regional service partners. Curricula encompass daily operations, preventive maintenance schedules, and advanced diagnostic procedures specific to the narrow aisle hardware and software suite.

• Strategic Regional Inventory Management: We maintain a network of managed inventory hubs for critical, long-lead-time components. This strategic placement reduces Mean Time To Repair (MTTR) from potential weeks to mere hours, ensuring operational continuity for your narrow aisle systems.

• Integration with Local Operational Protocols: We dedicate effort to align the system’s operational workflows with indigenous work practices, management hierarchies, and regulatory frameworks, ensuring smooth adoption and long-term operational success.

The Phased Deployment Roadmap: A De-Risked Journey to Operational Transformation

We champion a structured, incremental implementation methodology that delivers quantifiable ROI at each stage, capitalizes on generated savings for subsequent phases, and builds organizational competence organically.

1. Phase 1: Foundation of Density. Implement a semi-automated, guided narrow aisle racking system. This phase immediately captures 40%+ additional storage, resolving space constraints and acclimating teams to high-precision narrow aisle protocols.

2. Phase 2: Automation of Horizontal Material Flow. Introduce a fleet of unit-load AGVs for horizontal transport between processes and the narrow aisle fronts. This liberates manual equipment, introduces automation management disciplines, and streamlines material presentation.

3. Phase 3: Vertical Automation within the Aisle. Commission automated storage/retrieval vehicles (e.g., turret or reach AGVs) for 24/7 operation within the narrow aisles. This phase realizes the full labor optimization and maximizes throughput from the high-density storage matrix.

4. Phase 4: Cognitive Optimization and Intelligence Integration. Deploy a Warehouse Execution System (WES) to dynamically orchestrate all assets—AGVs, personnel, narrow aisles—in real-time based on order priorities, inventory positions, and system status. This layer delivers continuous, data-driven refinement.

Conclusion: The Strategic Imperative of the Automated Narrow Aisle

The operational and economic evidence is conclusive and overwhelming. The most effective pathway to warehouse resilience, profitability, and competitive differentiation leads directly to the automated narrow aisle. This technology is no longer a speculative advantage but a foundational standard for market leaders in global logistics. By partnering with an engineering entity that conceptualizes the narrow aisle as an integrated biomechanical system—where structural steel, control software, and robotic actuation are co-engineered into a unified, intelligent entity—organizations secure more than storage density.

They secure a strategic capability: a predictable, scalable, and supremely efficient engine that transmutes logistics from a cost center into a demonstrable and formidable competitive weapon. The future of warehouse excellence is not predicated on geographical expansion, but on the radical, intelligent optimization of interior space. That transformative journey commences with the decision to engineer narrower, smarter, and with integrated automation.

​​FAQs​​

​​1. How do narrow aisles improve picking speed?​​

By ​​reducing travel distances​​ and enabling ​​batch picking strategies​​, warehouses can ​​cut picking time by 30-50%​​.

​​2. What’s the minimum ceiling height for narrow aisle racking?​​

Ideally ​​20 ft or higher​​ to ​​maximize vertical storage​​—common in modern distribution centers.

​​3. Can I use narrow aisles for cold storage warehouses?​​

Yes! ​​Narrow aisle forklifts with cold-rated tires​​ are widely used in ​​refrigerated warehouses​​.

​​4. How much training do operators need for narrow aisle forklifts?​​

Typically ​​8-16 hours of certified training​​, plus ​​ongoing safety refreshers​​.

​​5. Are narrow aisle warehouses suitable for small businesses?​​

Absolutely—​​modular narrow aisle racking​​ allows scalable solutions for ​​SMBs​​.
