Introduction: Why Structural Beam Racking Dominates Industrial Storage
In the world of heavy-duty warehouse storage, few solutions match the strength, stability, and longevity of structural beam racking. Unlike traditional bolt-together racking, which relies on mechanical fasteners, structural beam racking is welded for superior rigidity, making it the go-to choice for warehouses storing steel coils, automotive parts, machinery components, and other ultra-heavy palletized loads.
This in-depth guide explores every critical aspect of structural beam racking, from its engineering advantages to real-world applications, helping warehouse managers, logistics professionals, and industrial facility operators make informed decisions about their storage infrastructure.
Key Takeaways:
- Structural beam racking is welded, not bolted, ensuring maximum load capacity and long-term durability.
- It outperforms bolt-together racking in heavy-load applications, with capacities exceeding 50,000 lbs per bay.
- Customization options allow structural beam racking to adapt to automated storage systems, cold storage, and specialized industrial needs.
- Proper design, installation, and maintenance ensure decades of reliable service with minimal downtime.
By the end of this guide, readers will understand why structural beam racking is the premium choice for heavy-duty storage and how to optimize its use in their operations.
1. What Makes Structural Beam Racking the Strongest Storage System?
Structural beam racking is engineered for extreme weight capacity, making it the top-performing solution for warehouses handling dense, oversized, or irregularly shaped loads.
Core Advantages of Structural Beam Racking
✅ Welded Construction – Unlike bolt-together systems, structural beam racking is fully welded, eliminating weak points where bolts could loosen or fail.
✅ Higher Load Capacity – Supports up to 50,000+ lbs per bay, far exceeding standard bolt-together racking (typically 10,000–30,000 lbs).
✅ Minimal Maintenance – No bolts to tighten or connectors to wear out, reducing long-term upkeep costs.
✅ Longer Lifespan – Structural steel fabrication ensures decades of use even in high-traffic industrial environments.
✅ Seismic & Safety Compliance – Welded frames provide better resistance to earthquakes and forklift impacts compared to bolted alternatives.
Industries That Rely on Structural Beam Racking
- Automotive & Aerospace – Stores heavy engine blocks, transmissions, and aircraft parts.
- Steel & Metal Fabrication – Ideal for coils, sheets, and large metal components.
- Food & Beverage Distribution – Supports high-density palletized goods in cold storage.
- Manufacturing & Machinery – Handles industrial equipment, tooling, and oversized inventory.
2. Structural Beam Racking vs. Bolt-Together Racking: A Head-to-Head Comparison
While both systems serve warehouse storage needs, structural beam racking is the clear winner for heavy-duty applications.
Key Differences at a Glance
| Feature | Structural Beam Racking | Bolt-Together Racking |
|---|---|---|
| Construction | Fully welded steel frames | Bolted connections |
| Load Capacity | 30,000–50,000+ lbs per bay | Typically 10,000–30,000 lbs per bay |
| Durability | No loosening over time | Bolts may require regular tightening |
| Installation | Requires professional welding | Easier bolt-together assembly |
| Lifetime Cost | Higher initial cost, lower maintenance | Lower upfront cost, higher upkeep |
When to Choose Structural Beam Racking
✔ Heavy industrial loads (steel, machinery, automotive parts)
✔ High-impact environments (forklift traffic, seismic zones)
✔ Long-term storage solutions (minimal maintenance needed)
When Bolt-Together Racking May Suffice
✔ Lighter loads (under 10,000 lbs per bay)
✔ Frequent reconfiguration needs (adjustable systems)
✔ Temporary or budget-constrained projects
3. Engineering & Design: How to Optimize Structural Beam Racking for Your Warehouse
To maximize efficiency and safety, structural beam racking must be properly designed based on:
A. Bay Dimensions & Layout
- Standard pallet racks: 96″–120″ width per bay
- Deep-lane storage: Up to 20+ feet deep for high-density configurations
- Vertical clearance: 30+ feet possible with reinforced bracing
B. Beam Strength & Load Distribution
- Heavy-duty beams (up to 12″ depth) for extreme weights
- Uniform vs. uneven loads – Structural beam racking handles both, but proper weight distribution is critical
C. Safety & Compliance Considerations
- OSHA & RMI standards for load capacity and anchoring
- Seismic reinforcement in earthquake-prone regions
- Forklift impact protection with guard rails and column protectors
4. Load Capacities & Safety Standards: What You Need to Know
Typical Load Ratings for Structural Beam Racking
- Light-duty: 5,000–15,000 lbs per bay
- Medium-duty: 15,000–30,000 lbs per bay
- Heavy-duty: 30,000–50,000+ lbs per bay
Critical Safety Measures
- Annual inspections for weld integrity & frame alignment
- Anchoring requirements (minimum 4 anchor bolts per upright)
- Load signage & weight limits to prevent overloading
5. Customization Options: Tailoring Structural Beam Racking to Your Needs
A. Specialized Coatings for Harsh Environments
- Epoxy coatings for corrosion resistance in cold storage & chemical warehouses
- Powder-coated finishes for durability & aesthetics
B. Modular Add-Ons for Enhanced Functionality
- Cantilever arms for long, bulky items (pipes, lumber, steel bars)
- Wire mesh decking for small-item containment

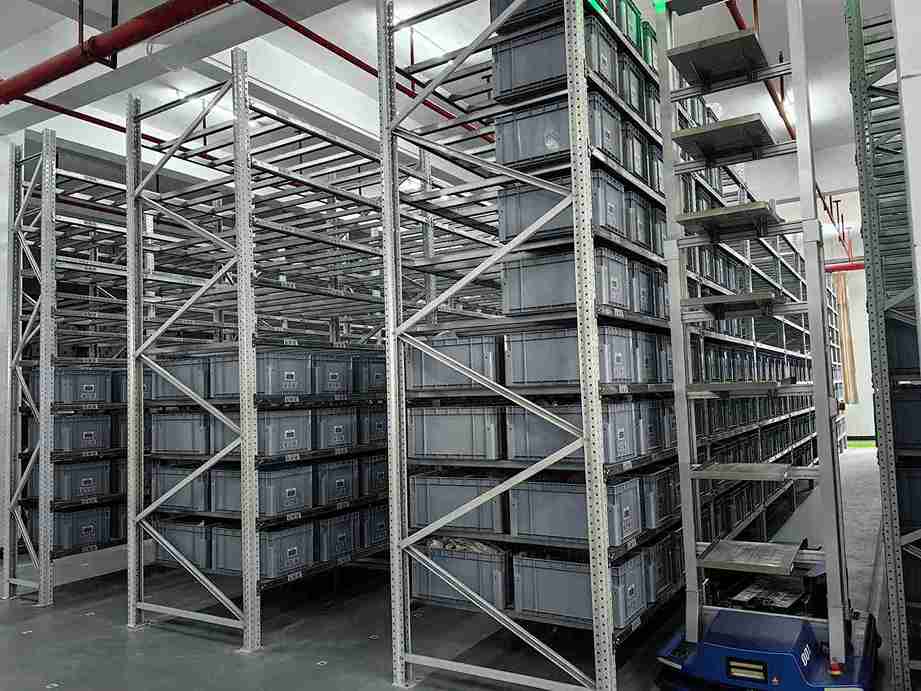

C. Integration with Automation & AS/RS Systems
- Compatible with automated storage & retrieval systems (AS/RS)
- Conveyor-aligned configurations for high-speed distribution centers
6. Installation Best Practices: Ensuring Maximum Stability & Longevity
- Professional welding & alignment for structural integrity
- Laser-leveled anchoring to prevent racking misalignment
- Post-installation inspections to verify safety compliance
7. Maintenance & Longevity: Keeping Your Structural Beam Racking in Peak Condition
- Annual inspections for weld cracks, rust, or frame damage
- Immediate repairs if structural issues are detected
- Cleaning protocols to prevent corrosion in humid environments
8. Conclusion: Why Structural Beam Racking is the Ultimate Industrial Storage Solution
For warehouses handling heavy, dense, or oversized loads, structural beam racking is the most reliable, durable, and cost-effective choice. Its welded construction, superior load capacity, and minimal maintenance make it the premium option for:
✔ Automotive & aerospace storage
✔ Steel & metal fabrication warehouses
✔ High-density food & beverage distribution
✔ Industrial manufacturing facilities
By investing in structural beam racking, businesses ensure decades of trouble-free operation, lower lifetime costs, and maximum storage efficiency.
Frequently Asked Questions (FAQs)
1. Can structural beam racking be modified after installation?
No—because it’s welded, reconfiguration is limited. However, adjustable beam levels allow some flexibility.
2. What’s the maximum height for structural beam racking?
Up to 40+ feet, but taller systems require engineered approvals for safety.
3. How does structural beam racking perform in seismic zones?
It requires additional bracing to meet seismic safety standards, making it more stable than bolt-together racking.
4. Is structural beam racking more expensive than bolt-together racking?
Yes, initially—but its lower maintenance and longer lifespan make it more cost-effective over time.
5. Can structural beam racking support automated storage systems (AS/RS)?
Absolutely—it’s fully compatible with AS/RS when properly integrated.
