Why Shuttle Racking Installation Costs Matter for Modern Warehouses​​

Every warehouse manager facing storage capacity challenges eventually asks the same critical question: “What will shuttle racking installation cost for my facility?”This isn’t just about getting a price quote—it’s about understanding how this innovative storage solution can transform operations while fitting within budget constraints.

Unlike traditional static racking, ​​shuttle racking installation costs​​ encompass far more than just metal beams and uprights. The true investment includes automation technology, specialized labor, and long-term efficiency gains that make this system fundamentally different from conventional alternatives.

This definitive guide breaks down every cost component with real-world examples, helping logistics professionals make data-driven decisions about their ​​shuttle racking installation​​ projects.

---

​​H1: The Complete Breakdown of Shuttle Racking Installation Costs​​

​​H2: Core System Components That Drive Shuttle Racking Installation Costs​​

When budgeting for ​​shuttle racking installation​​, three primary elements determine baseline pricing:

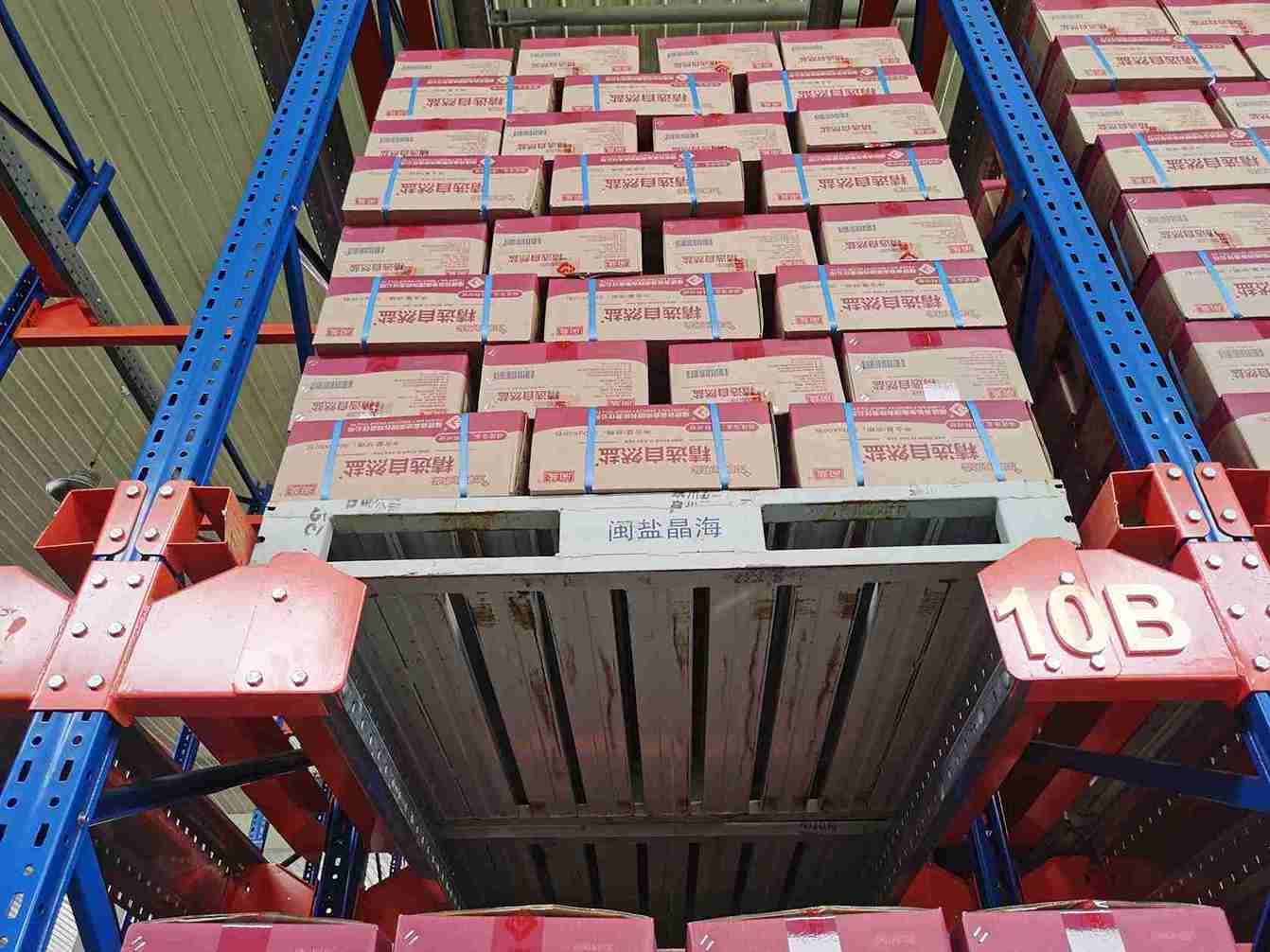

1. ​​The Shuttle Vehicles Themselves​​
   • Entry-level radio-controlled units: $8,000-$12,000 per shuttle
   • Heavy-duty rail-guided models: $15,000-$25,000 each
   • Climate-resistant variants for cold storage: +30% premium
2. ​​Track System and Structural Framework​​
   • Standard galvanized steel rails: $120-$180 per linear meter
   • High-capacity reinforced tracks: $200-$300 per meter
   • Custom curvilinear configurations: +40-60% cost increase
3. ​​Control Infrastructure​​
   • Basic handheld remote systems: Included in shuttle pricing
   • Advanced WMS-integrated controls: $20,000-$75,000 per installation

Industry Insight:A typical mid-sized warehouse requiring 8 shuttles and 300m of track faces ​​base shuttle racking installation costs​​ between $250,000-$400,000 before considering site-specific factors.

---

​​H2: Hidden Factors That Impact Your Final Shuttle Racking Installation Quote​​

​​H3: Site Preparation Requirements​​

• ​​Floor Flatness Tolerance:​​Shuttle systems demand exceptional floor flatness (≤3mm deviation over 3m).

  Corrective grinding costs:$15-$35 per square meter

• ​​Column Clearance Needs:​​Minimum 100mm clearance around all structural obstructions

  Relocation expenses:$5,000-$50,000 depending on building complexity

​​H3: Electrical and Data Infrastructure​​

• Dedicated power circuits for charging stations: $2,500-$7,500 per shuttle bay
• Network cabling for system integration: $8-$15 per linear meter

​​H3: Regulatory Compliance Costs​​

• Seismic bracing in active fault zones: +12-18% to structural costs
• Fire suppression system upgrades: $10,000-$45,000

---

​​H1: Regional Variations in Shuttle Racking Installation Costs​​

​​H2: North American Pricing Landscape​​

• ​​United States:​​
  • Southeast: $185-$240 per pallet position
  • West Coast: $220-$290 per position (higher labor rates)
• ​​Canada:​​
  • Toronto/Vancouver: 15-20% premium over U.S. Midwest prices
  • Remote locations: +25-40% for equipment transport

​​H2: European Market Differences​​

• Germany/Netherlands: €170-€220 per pallet position
• UK: 10-15% less than mainland Europe (post-Brexit material sourcing)
• Eastern Europe: 30% cost savings but longer lead times

​​H2: Asia-Pacific Cost Considerations​​

• China: $110-$160 per position (domestic equipment)
• Australia: AUD $280-$350 (high import duties)
• Southeast Asia: 40-60% savings but varying quality standards

---

​​H1: Smart Strategies to Optimize Shuttle Racking Installation Budgets​​

​​H2: Phased Implementation Approach​​

1. ​​Pilot Zone Installation​​
   • Test 20-30% of total capacity first
   • Typical cost: $80,000-$150,000
   • Identifies operational adjustments before full rollout
2. ​​Modular Expansion Planning​​
   • Design tracks for easy future extension
   • Saves 15-25% versus retrofitting later

​​H2: Creative Financing Options​​

• ​​Equipment Leasing:​​ $3,500-$7,500 monthly for mid-sized systems
• ​​Government Incentives:​​
  • U.S. EPAct tax deductions (up to $1.80/sq.ft for efficiency upgrades)
  • EU Green Warehouse grants covering 20-30% of automation costs

​​H2: Maintenance Cost Projections​​

Pro Tip:Negotiate 3-5 year service contracts during ​​shuttle racking installation​​ for 18-22% savings versus pay-as-you-go maintenance.

---

​​H1: ROI Analysis: When Do Shuttle Systems Pay for Themselves?​​

​​H2: Operational Efficiency Gains​​

• ​​Labor Reduction:​​
  • 1 shuttle replaces 2-3 forklift operators
  • Annual savings: $120,000-$180,000 in wages/benefits
• ​​Throughput Improvements:​​
  • 30-50% faster pallet movements
  • Enables same-day shipping for 40% more orders

​​H2: Space Utilization Metrics​​

• ​​Density Increase:​​
  • 60-80% more pallet positions versus selective racking
  • Eliminates 50% of aisle space
• ​​Vertical Storage Potential:​​
  • 28m systems now possible with new shuttle technologies
  • 3-5x better cube utilization than traditional setups

Case Example:A Midwest e-commerce fulfillment center recouped its ​​$1.2M shuttle racking installation costs​​ in 2.7 years through labor savings and 38% higher inventory turnover.

---

​​H1: Future-Proofing Your Shuttle Racking Investment​​

​​H2: Upgradability Considerations​​

• ​​Battery Technology:​​
  • Current lithium-ion packs last 5-7 years
  • Emerging solid-state batteries may require track modifications
• ​​Automation Integration:​​
  • Ensure compatibility with AMRs/AGVs
  • Future AI optimization modules may need control upgrades

​​H2: Residual Value Protection​​

• ​​Depreciation Rates:​​
  • 15-20% value loss in first 3 years
  • Well-maintained systems retain 50-60% value after 7 years
• ​​Resale Market Dynamics:​​
  • Strong demand for used shuttles in developing markets
  • Online auction prices typically 35-45% of original cost

---

​​H1: Conclusion – Making the Right Shuttle Racking Installation Decision​​

Determining ​​shuttle racking installation costs​​ requires looking beyond initial price tags to evaluate total lifecycle value. While premium systems demand significant capital expenditure, their transformative impact on warehouse productivity often justifies the investment within 3-5 years.

Smart buyers focus on:

✅ ​​Accurate needs assessment​​ before requesting quotes

✅ ​​Total cost of ownership​​ rather than just installation price

✅ ​​Future scalability​​ to protect long-term asset value

For operations needing high-density storage with rapid throughput, ​​shuttle racking installation​​ presents one of the most compelling ROI propositions in modern warehouse automation.

---

​​H1: Frequently Asked Questions (FAQs)​​

​​H2: How does shuttle racking installation cost compare to mobile shelving?​​

While mobile shelving averages $60-$90 per pallet position, ​​shuttle racking installation costs​​ of $110-$160 per position deliver 3-4x the throughput capacity and better ergonomics.

​​H2: What’s the typical warranty on shuttle racking installations?​​

Most manufacturers offer:

• 10-15 years on structural components
• 2-3 years on shuttle vehicles
• 1 year on control systems

​​H2: Can shuttle systems handle non-standard pallet sizes?​​

Custom configurations for EUR pallets, display pallets, or odd-sized loads typically add 12-18% to ​​shuttle racking installation costs​​.

​​H2: How often do shuttle vehicles need replacement?​​

With proper maintenance, quality shuttles last 8-12 years before requiring full replacement, though battery and wheel systems need periodic refurbishment.

​​H2: What’s the minimum warehouse height for shuttle racking?​​

While 8m is ideal, new compact shuttle models now work in 6m clearances, albeit with 15-20% lower storage density.
