Engineered Resilience: The Definitive Guide to Seismic Pallet Racking Design for High-Risk Industrial Storage

In regions where the ground can turn from a foundation into a threat, the storage infrastructure for hazardous, high-value, or mission-critical inventory becomes a paramount concern. This guide delves into the sophisticated discipline of seismic pallet racking design, a field that transcends standard warehousing to become a critical component of operational risk management and business continuity planning.

The focus is not merely on racks that stand still, but on engineered systems that are calculated to move, absorb energy, and remain functional under dynamic seismic loads. The true power of a robust seismic pallet racking design is unlocked through its seamless integration with automated material handling equipment—conveyors, AGVs, and automated forklifts—creating a unified ecosystem where structural resilience and operational safety are inextricably linked.

From the chemical plants of Southeast Asia to the mining logistics hubs in the Andean region, this resource provides plant managers, warehouse engineers, and safety directors with the comprehensive knowledge required to specify, implement, and manage a storage solution that protects both assets and personnel.

The Non-Negotiable Imperative: Why Standard Storage Solutions Are a Catastrophic Gamble in Seismic Zones

For facilities storing hazardous materials—be they flammable liquids, corrosive chemicals, or heavy industrial components—a warehouse collapse is not an operational incident; it is a community-scale disaster. Standard pallet racking, engineered primarily for vertical static loads, possesses a fundamental vulnerability when subjected to the complex, multi-directional forces of an earthquake. These forces introduce shear, torsion, and overturning moments that standard beam-to-column connections, such as common teardrop connectors, are simply not designed to resist.

The failure mode is often progressive and total. As the ground accelerates horizontally, the immense mass of the stored inventory lags due to inertia, creating tremendous shear at the base of uprights. Simultaneously, the upper sections whip, causing connections to disengage. This can trigger a domino-like, pancake collapse. In an environment containing hazardous materials, this pattern is the worst-case scenario, compromising containment integrity across multiple levels and potentially causing uncontrolled mixing, toxic release, or fire.

Therefore, adopting a specialized seismic pallet racking design is not a matter of incremental improvement; it is a fundamental risk mitigation strategy. It is the difference between a manageable emergency and a catastrophic loss event that can shutter a business permanently. Any seismic pallet racking design worth considering begins with this stark recognition of the stakes involved.

Deconstructing the Engineering: The Core Principles of Effective Seismic Pallet Racking Design

A genuine seismic pallet racking design is a feat of applied structural engineering. It is a data-driven process that starts far before the first steel section is fabricated. The cornerstone is a site-specific seismic hazard analysis, which determines the ground acceleration parameters—often defined as Spectral Response Accelerations (Ss and S1)—that the structure must be designed to withstand. These parameters, dictated by local building codes (IBC, Eurocode 8, etc.) and the facility’s location, feed into the calculation of the actual lateral forces that will act upon the racking system.

Fundamental Components of a Robust Seismic Pallet Racking Design

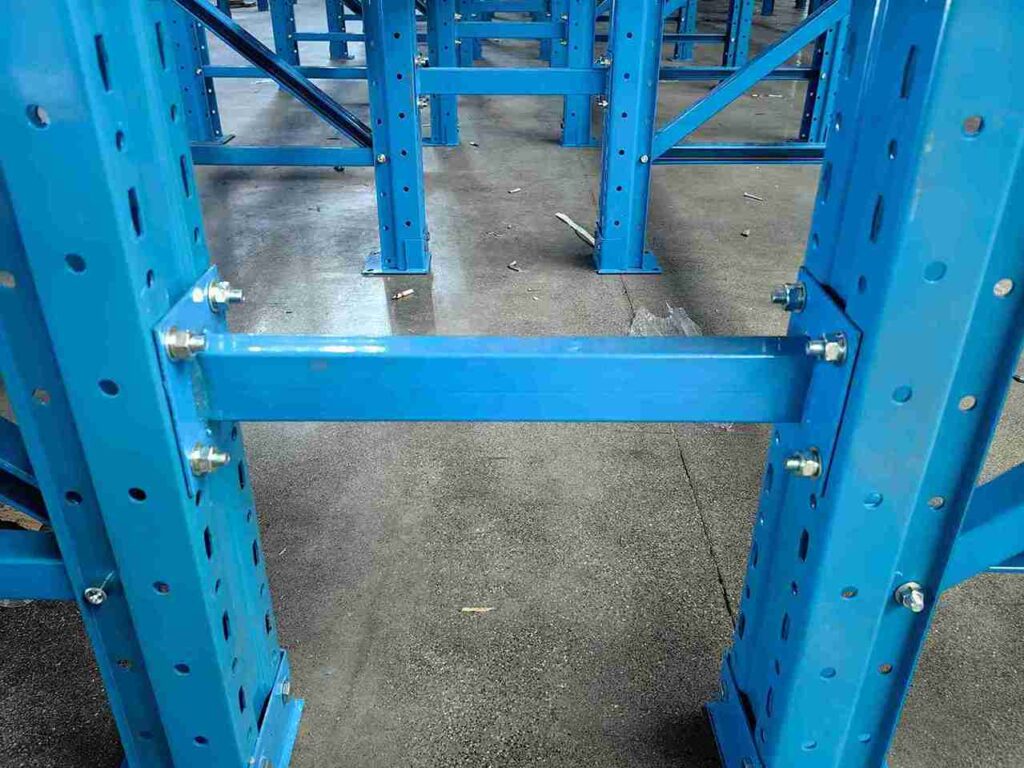

1. Moment-Resistant Frames and Seismic Connections: The heart of any effective seismic pallet racking design lies in its connections. Instead of pin-type connections, engineers specify moment-resistant connections. These are often proprietary, bolted assemblies or seismic locks designed to resist rotation and uplift forces. The upright frames themselves are typically fabricated from higher-grade, thicker steel (commonly 12-gauge and above) with specific perforation patterns that allow for a degree of ductility—a controlled ability to deform and dissipate seismic energy without experiencing brittle fracture. Every connection point in this seismic pallet racking design, from the base to the top tier, is a meticulously calculated component of the load path.

2. Anchorage: The Critical Link to the Foundation: The most robust seismic pallet racking design is only as strong as its connection to the ground. Seismic base plates are larger, thicker, and secured with high-strength chemical anchors or torque-controlled mechanical anchors into sound, high-psi concrete. The pull-out and shear capacities of these anchors are calculated to resist the overturning moments generated during an event. In some high-risk seismic pallet racking design projects, engineers may even specify tie-down rods connecting the top of the rack to the building’s structural frame, but this requires intimate coordination with the building’s civil engineer to ensure compatible movement and load transfer.

3. Load Containment as a Structural Mandate: In a seismic pallet racking design for hazardous environments, the storage medium (pallets, drums, IBCs) is not a passive load; it is a dynamic mass that must be restrained. Therefore, containment features become integral to the structural system. Welded wire mesh decking transforms from a shelf into a horizontal barrier preventing items from falling through. Solid steel or plywood decks provide a similar function. Back panels and end-of-aisle barriers are not optional add-ons but essential elements that prevent pallets from “walking” off the beams during shaking. For drum storage, a seismic pallet racking design will incorporate cantilever arms with integrated lips or chain retainers.

The Role of Material Science and Corrosion Protection

Engineering calculations are void if the material fails from environmental degradation. In chemical processing or coastal environments, the seismic pallet racking design must specify appropriate corrosion protection. While high-quality powder coating suffices for many applications, a seismic pallet racking design for a harsh environment often mandates hot-dip galvanizing. This process creates a metallurgical bond that provides sacrificial anode protection for decades, ensuring the long-term structural integrity of the seismic pallet racking design is not compromised by rust or chemical attack. The choice of finish is a critical, non-negotiable specification in the overall seismic pallet racking design dossier.

The Synergy of Automation: Integrating Seismic Pallet Racking Design with Robotic Material Handling

Modern warehouses are increasingly automated. The introduction of Automated Guided Vehicles (AGVs), automated forklifts, and conveyor systems presents both a challenge and an unparalleled opportunity for enhancing safety within a seismic pallet racking design framework. The integration is multidimensional, encompassing physical, digital, and procedural layers.

Conveyor Systems: Synchronized Flow within a Resilient Structure

Conveyors acting as the arteries of a warehouse must be harmonized with the seismic pallet racking design. This involves more than just placing a conveyor next to a rack.

• Dynamic Load Considerations: The racking supporting or adjacent to a conveyor must be designed within the seismic pallet racking design to handle not only the static pallet weight but also the dynamic forces from moving, accumulating lines of heavy product. This often necessitates dedicated, reinforced support structures that are either independently braced or fully integrated into the seismic load calculations of the main seismic pallet racking design.

• Containment Continuity: The conveyor pathway must feature guardrails, curbs, or guide rails that create a seamless safety channel with the rack’s containment barriers. This prevents any load from accidentally dislodging during the transfer between static storage and dynamic movement, a critical point of vulnerability.

• Safety System Interfacing: In hazardous zones, conveyors may be equipped with fire-rated belts, emergency stop systems, or gas detection modules. The surrounding seismic pallet racking design must be laid out to ensure clear access to these safety features for both maintenance and emergency response.

The AGV Revolution: Precision as the Ultimate Form of Safety

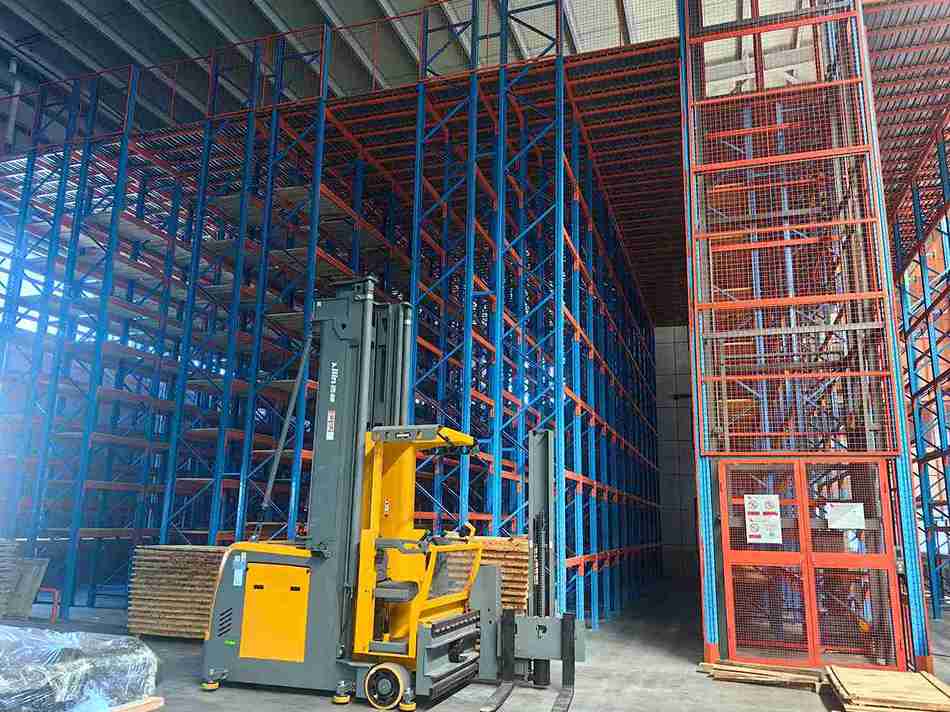

Automated Guided Vehicles bring a new level of predictability to warehouse operations, directly complementing the goals of a seismic pallet racking design.

• Elimination of Impact Risk: The majority of rack damage in manual operations stems from forklift collisions. AGVs, governed by precise programming and equipped with LiDAR, 3D cameras, and safety scanners, virtually eliminate this impact risk. Their presence alone protects the integrity of the seismic pallet racking design from daily operational wear and tear.

• Design for Robotic Interface: A seismic pallet racking design intended for AGV interaction requires specific tolerances. Beam heights must be consistent across an entire aisle within a millimeter-range tolerance to ensure reliable fork entry. Upright frames may be specified in high-visibility colors, and fiducial markers for AGV camera systems can be incorporated into the seismic pallet racking design. Pallet stops and guidance systems at the front of each location ensure the load is perfectly presented for the robot.

• Unified Safety Protocols: The true power of integration emerges during an emergency. A seismic pallet racking design project today should include the digital integration of seismic alarm systems (on-site seismographs) with the Warehouse Management System (WMS). Upon detecting a primary seismic wave (P-wave), the system can automatically send a command to all AGVs and conveyors: AGVs lower their forks, move to designated safe zones (planned within the seismic pallet racking design layout), and park; conveyors execute a controlled stop. This happens seconds before the more destructive shear waves (S-waves) arrive, dramatically reducing the risk of moving equipment becoming projectiles or losing loads during the shaking.

Forklift Safety: Protecting the Seismic Pallet Racking Design from Operational Hazards

In areas where manual forklift operations persist, protecting the engineered seismic pallet racking design from daily impacts is a critical operational discipline. The system is designed to withstand seismic events; it should not be weakened by preventable collisions.

A Multi-Layered Defense Strategy

• Physical Armor: Heavy-duty column guards, upright protectors, and end-of-aisle barriers are mandatory, not optional. The best systems are modular, allowing for easy replacement of damaged sections without compromising the underlying seismic pallet racking design. These protectors act as the first, sacrificial layer of defense.

• Operational Geometry: Clear, high-visibility floor marking defines travel lanes, stop points, and approach angles. This simple measure guides operators and prevents the corner-cutting that frequently leads to impacts. The layout of the seismic pallet racking design should facilitate clear sight lines and intuitive traffic flow.

• Technological Enforcement: Speed management systems using RFID or ultra-wideband (UWB) tags can enforce reduced speeds in racking aisles. Impact monitoring systems—wireless sensors mounted on key uprights—provide objective data. An impact exceeding a pre-set threshold (e.g., a force that could compromise 5% of the rack’s rated capacity) triggers an alert, locking out that storage location in the WMS until a certified inspector from the seismic pallet racking design engineering team can assess it.

A Practical Blueprint: Implementing a Seismic Pallet Racking Design for a Chemical Consolidation Hub

Consider a real-world scenario: A multinational chemical company is establishing a regional consolidation warehouse in a port city in a high-seismic-risk country. The facility will store a diverse range of packaged chemicals, from 1-ton IBCs of acids to palletized bags of polymers.

Phase 1: Collaborative Risk Assessment and Conceptual Design
The project begins with a joint task force including the client’s process safety managers, the seismic pallet racking design engineering team, and automation consultants. Key outcomes:

• Zoning and Classification: The warehouse is divided into zones based on chemical compatibility and storage profile. Each zone’s seismic pallet racking design is tailored to its specific load and containment requirements.

• Seismic Parameter Finalization: Local geotechnical reports and building codes are analyzed to finalize the design spectral accelerations. The seismic pallet racking design for each rack type will be based on these site-specific forces.

• Automation Strategy: It is decided that the IBC handling will be fully automated using pallet-handling AGVs, while the bagged goods area will utilize manually operated forklifts with stringent safety protocols.

Phase 2: Detailed Engineering and Integration Planning

• For the Automated Zone (IBCs): The seismic pallet racking design specifies hot-dip galvanized, drive-in racking for high density. The design includes moment-resistant frames with bolted connections. The AGV path is mapped, and the floor flatness tolerance is specified at ±2mm over 3 meters to ensure AGV stability. The seismic pallet racking design includes integrated guide channels at the rack face to ensure precise IBC placement by the AGV.

• For the Manual Zone (Bagged Goods): The seismic pallet racking design employs selective pallet racking with the same seismic performance criteria. It incorporates bright yellow, high-impact column guards on all lower-level uprights. The WMS is configured to enforce geo-fenced speed limits in these aisles via the forklifts’ onboard telematics.

• Common Safety Systems: Both zones are covered by a centralized impact monitoring system. The seismic early alarm system is integrated with the WMS and building automation system to trigger the automatic shutdown sequence.

Phase 3: Commissioning and Knowledge Transfer
The project delivery includes more than installation. It encompasses:

1. Seismic Performance Certification: A stamped engineering report certifying that the as-built seismic pallet racking design meets all calculated performance criteria.

2. Integrated Safety Manual: A living document detailing operational procedures, emergency shutdown protocols, post-event inspection checklists, and maintenance schedules specific to this integrated seismic pallet racking design and automation system.

3. Operator Training: Specialized training for both AGV technicians and forklift operators on how to interact with and inspect the seismic pallet racking design.

This end-to-end approach ensures the seismic pallet racking design is not just an installed product, but a fully realized, functional safety system.

Navigating the Procurement Process: A Due Diligence Framework

Selecting a partner for a seismic pallet racking design project requires a shift from commodity purchasing to a vetting of engineering capability. Key questions for potential suppliers include:

• Engineering Authority: Does the provider employ in-house, licensed structural engineers who can produce stamped, site-specific seismic pallet racking design calculations? Can they provide peer-reviewed design examples?

• Compliance and Certification: Does their seismic pallet racking design methodology comply with relevant international standards (RMI/ANSI MH16.1, FEM 10.2.08) and demonstrate successful approval under local building codes in your target region?

• Integration Portfolio: Request detailed case studies where their seismic pallet racking design was directly interfaced with automation from major vendors (e.g., Dematic, Jungheinrich, MiR). Ask for details on tolerance management and control system integration.

• Lifecycle Services: Do they offer post-installation inspection services, periodic re-certification, and parts for the specific seismic pallet racking design system? What is the warranty on both materials and engineering performance?

• Digital Deliverables: Can they provide Building Information Modeling (BIM) files (Revit, etc.) of the seismic pallet racking design for clash detection and facility lifecycle management?

Conclusion: The Strategic Advantage of Integrated Seismic Resilience

Ultimately, investing in a comprehensive seismic pallet racking design is an investment in corporate resilience and sustainable operations. It is a tangible demonstration of a commitment to safeguarding human capital, community safety, environmental stewardship, and shareholder value. However, as outlined, the physical rack structure is only one node in a complex network. Its engineered potential is fully realized only through deliberate, forward-thinking integration with automated material handling systems and a culture of operational safety enforced by both protocol and technology.

The most advanced seismic pallet racking design connector can be compromised by a single unmanaged forklift impact. The most precise AGV workflow can be disrupted by a rack beam installed outside of specified tolerance. Therefore, excellence is found in the holistic perspective—viewing the storage facility as an interdependent ecosystem. In this ecosystem, structural engineering, software logic, material science, and human factors converge to create an asset that is not only strong but also intelligent and adaptive. By partnering with experts who champion this integrated philosophy for seismic pallet racking design, organizations secure a foundational pillar for risk mitigation and operational excellence, ensuring readiness for the challenges of today and the uncertainties of tomorrow.

Frequently Asked Questions (FAQs)

1. How does the presence of a mezzanine or multi-tier storage system affect the seismic pallet racking design?

A mezzanine introduces significant complexity to the seismic pallet racking design. The structure must be analyzed as a whole, not as separate rack and deck systems. The added mass and height of the mezzanine dramatically increase the seismic overturning moments and fundamental period of the structure. The seismic pallet racking design must account for the dynamic interaction between the lower support racking, the mezzanine deck system, and the upper-level storage. Connections between these elements are critical and typically require custom, engineered solutions far beyond standard bolt-together components. The design often necessitates deeper foundations or more robust anchorage.

2. For existing facilities, is it possible to conduct a seismic vulnerability assessment on the current racking before deciding on a full replacement?

Yes, and this is a highly recommended first step. A professional engineering firm specializing in seismic pallet racking design can perform a condition assessment and analytical evaluation. This involves measuring as-built conditions, verifying material properties, testing anchorage pull-out strength, and modeling the existing system against current seismic hazard maps. The outcome is a clear, quantified understanding of the existing system’s deficiency (e.g., “The racks have a 40% probability of collapse in a design-level earthquake”). This report provides the objective justification for either targeted retrofit (if feasible) or complete replacement with a new seismic pallet racking design, and is often required for insurance or internal risk management purposes.

3. In the context of seismic pallet racking design, what is “drift” and why is it a critical performance parameter?

Drift, in seismic engineering, refers to the lateral displacement of a structure’s top relative to its base. In a seismic pallet racking design, controlling drift is paramount for several reasons. Excessive drift can cause: a) Beam-to-column connections to disengage if they reach their rotational limit; b) Pallets to slide off or collide with each other; c) Interaction (pounding) with adjacent racks or building columns; and d) Instability in automated systems, as AGVs and conveyor interfaces cannot tolerate large misalignments. A competent seismic pallet racking design will calculate the anticipated drift under design loads and ensure the system’s components (connections, bracing) can accommodate this movement without loss of function or stability.

4. How does climate, particularly high humidity or temperature swings, factor into the long-term performance of a seismic pallet racking design?

Climate directly impacts two key areas: corrosion and material properties. High humidity and saline atmospheres accelerate corrosion, which can thin structural members and weaken connections over time. This underscores the need for appropriate corrosion protection (galvanizing) in the seismic pallet racking design specification. Secondly, large temperature swings can cause thermal expansion and contraction in long runs of racking. The seismic pallet racking design must incorporate expansion joints or sliding connections at certain intervals to prevent the buildup of thermal stress, which could buckle the system or compromise anchorage. These climate-specific considerations are integral to a durable seismic pallet racking design.

5. From a total cost of ownership perspective, what are the hidden cost savings of a properly engineered seismic pallet racking design integrated with automation?

Beyond preventing catastrophic loss, the savings are operational and financial:

• Insurance Premiums: Documented implementation of a certified seismic pallet racking design and safety automation can lead to significant reductions in property and business interruption insurance premiums.

• Reduced Product Damage: Precision AGV handling and protected racking drastically reduce inventory damage from impacts and improper handling.

• Lower Maintenance Costs: Eliminating daily forklift impacts reduces repair costs for racking components and forklifts themselves.

• Enhanced Facility Longevity: A system designed for dynamic loads experiences less fatigue and wear during normal operation, extending its service life.

• Business Continuity: The most significant “saving” is avoided loss. A facility that remains operational after a seismic event can capture market share while competitors are recovering, protecting revenue and customer relationships. This strategic advantage alone can justify the investment in a superior seismic pallet racking design.
