In today’s fast-paced logistics and manufacturing environment, pallet racking systems are more than just static steel structures—they’re strategic assets that directly impact warehouse efficiency, order fulfillment speed, and operational costs. This detailed guide explores how international businesses are unlocking the full potential of their warehouse spaces by investing in customized pallet racking solutions manufactured in China. From heavy-duty structural frames to smart integration with AGVs and AS/RS systems, every aspect of pallet racking is examined through the lens of practicality, cost-effectiveness, and global best practices. With insights drawn from decades of engineering expertise and warehouse optimization, this article empowers procurement officers, logistics managers, and warehouse designers to make informed decisions and maximize ROI.

H1:Table of Contents

1. What Is Heavy Duty Pallet Racking?
2. Why Choose Pallet Racking from a Chinese Manufacturer?
3. Key Components of a Heavy-Duty Pallet Racking System
4. Types of Heavy-Duty Pallet Racking Systems
5. Material Quality and Engineering Standards
6. Customization Options for Global Buyers
7. Automation Integration: AGVs, ASRS, and Smart Warehousing
8. Cost Comparison: Local Distributors vs Direct Factory Pricing
9. How to Ensure Safety & Compliance with International Standards
10. How to Place a Custom Pallet Racking Order from a China-Based Manufacturer

H2:What Is Heavy Duty Pallet Racking?

Heavy-duty pallet racking refers to a category of industrial shelving systems specifically engineered to store palletized goods in large quantities. These systems are constructed using reinforced steel components capable of supporting substantial weight, often reaching several tons per beam level.

Unlike lighter shelving or modular racks used in retail or office settings, pallet racking in a warehouse environment must withstand dynamic forces from forklifts, repetitive loading and unloading, and potential seismic activities. For this reason, heavy-duty pallet racking is a foundational element in industrial facilities such as manufacturing plants, cold chain logistics centers, e-commerce fulfillment hubs, and third-party logistics (3PL) warehouses.

Well-designed pallet racking systems optimize both horizontal and vertical space, reduce travel time for order pickers, and significantly lower inventory holding costs by enabling better stock visibility and accessibility. The structural layout and load-bearing capacity must be tailored precisely to operational needs, product dimensions, and turnover rates, which makes expert design consultation essential.

H3:Why Choose Pallet Racking from a Chinese Manufacturer?

Over the past two decades, China has become a global leader in the manufacturing of pallet racking systems, with thousands of installations exported annually to Europe, North America, Southeast Asia, and the Middle East. The combination of robust engineering, state-of-the-art production facilities, and large-scale economies offers overseas buyers a compelling value proposition.

Key Benefits:

• Cost Efficiency: Due to lower material and labor costs, Chinese pallet racking is often priced 30–50% lower than equivalent systems in Europe or the U.S.—without sacrificing quality.
• Flexible Customization: From powder-coating colors to load specifications and environmental coatings for freezer use, manufacturers in China offer full OEM/ODM support.
• Advanced Manufacturing Capabilities: Modern Chinese racking factories use laser cutting, automated welding lines, and robotic powder coating to ensure precise, repeatable quality.
• Global Logistics Experience: Leading Chinese suppliers have extensive experience exporting pallet racking and complying with documentation, quality control, and customs regulations in over 100 countries.

Choosing a reputable manufacturer in China allows global buyers to benefit from scalability, technical support, and tailored engineering—all at a competitive price point.

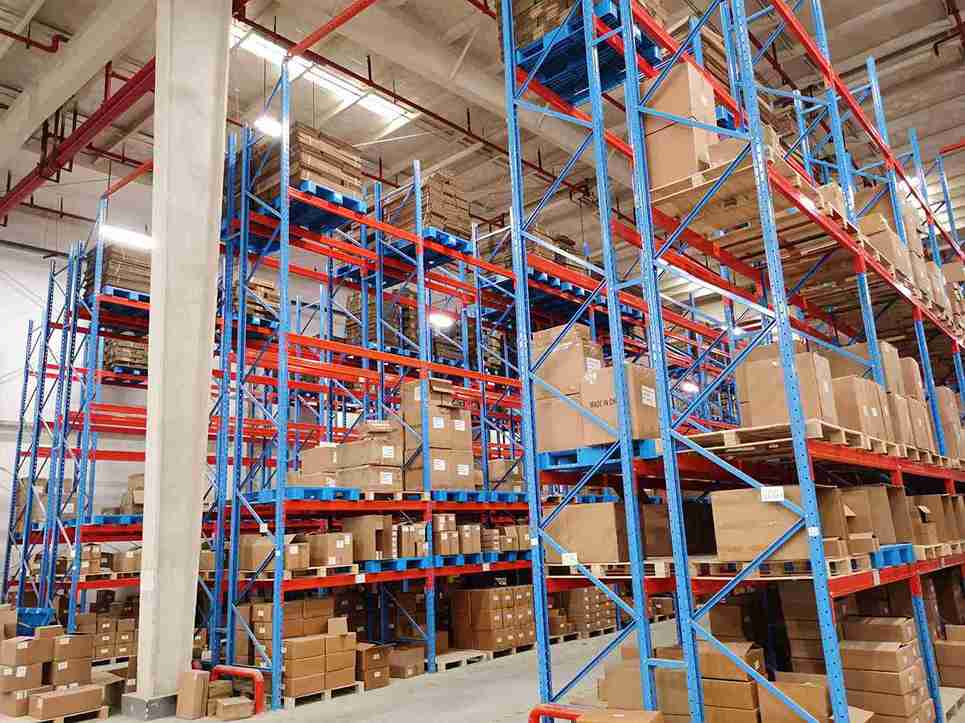

H4:Key Components of a Heavy-Duty Pallet Racking System

Every pallet racking system—regardless of design type—is composed of several integral components. Understanding these elements is crucial for evaluating racking quality and determining suitability for specific warehouse needs.

• Upright Frames: Vertical columns made of high-tensile steel, these frames bear the vertical load and define the racking height.
• Horizontal Beams: The cross members that support the pallets. Beam profiles vary depending on load capacity and bay width.
• Diagonal and Horizontal Bracing: Provide lateral stability and resistance against seismic and forklift-induced forces.
• Base Plates and Anchors: Secure the uprights to the warehouse floor, ensuring the entire pallet racking structure remains stable.
• Locking Pins and Safety Clips: Prevent accidental dislodging of beams, enhancing worker safety.
• Optional Decking: Steel, wire mesh, or wooden panels placed on beams to support smaller goods or irregular pallet types.

The durability and load-bearing ability of a pallet racking system heavily depend on the design and quality of these components.

H5:Types of Heavy-Duty Pallet Racking Systems

Different warehouse operations require different pallet racking systems, depending on storage density, product variety, and picking frequency. Below are the most widely used systems:

Selective Pallet Racking

This is the most commonly used pallet racking system worldwide. It allows for direct access to every pallet, making it suitable for warehouses with a wide range of SKUs and high inventory turnover. Its modularity and ease of installation make it a favorite among businesses upgrading from basic storage.

Drive-In Pallet Racking

Designed for high-density storage, this system allows forklifts to drive directly into the racking lanes. Ideal for storing large volumes of homogeneous products with a Last-In, First-Out (LIFO) inventory system.

Push Back Pallet Racking

Pallets are loaded from the front and slide backward on inclined rails. Each level holds multiple pallets in depth, increasing storage density while maintaining good selectivity.

Pallet Flow Racking

Utilizing gravity and roller conveyors, this system ensures First-In, First-Out (FIFO) inventory control. It’s commonly used in industries where stock rotation is critical, such as food, beverage, and pharmaceuticals.

Shuttle Pallet Racking

This semi-automated system uses shuttle carts to move pallets within the racks. It dramatically improves storage density and reduces forklift travel time. Ideal for large-scale cold storage or high-turnover warehousing.

Each pallet racking type offers specific advantages. The right choice depends on product characteristics, operational goals, and available investment.

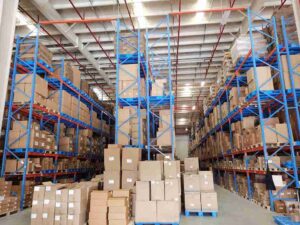

H6:Material Quality and Engineering Standards

The performance and safety of any pallet racking system are closely tied to the quality of materials used and adherence to recognized engineering standards. Reputable Chinese manufacturers typically use structural-grade steel such as Q235 or Q345, depending on load requirements.

Surface Treatments:

• Powder Coating: Ideal for dry indoor environments, offering corrosion resistance and customizable colors.
• Hot-Dip Galvanization: Suitable for cold storage, freezer, or outdoor applications where moisture and temperature variation are critical factors.

Engineering and Compliance:

• ISO 9001 Certification: Ensures the manufacturer has a rigorous quality management system.
• RMI and FEM Standards: Indicate compliance with American and European safety and structural codes.
• Load Testing Reports: Reputable suppliers provide real load test data for beams and frames, demonstrating compliance with expected performance under pressure.

Investing in a high-quality pallet racking system that complies with international standards minimizes downtime, reduces risk, and protects valuable inventory.
