Unlocking Hidden Potential in Your Warehouse

Warehouse managers and business owners constantly face the same pressing challenge: the need for more space. As inventory grows and operations expand, the square footage of your facility remains fixed. But what if we told you that the solution isn’t necessarily moving to a larger building or leasing additional space? Instead, the answer might be right above you—untapped vertical space waiting to be transformed into functional, accessible storage or even new operational areas. This is where the powerful combination of pallet racking mezzanine diy solutions comes into play, especially when approached with a savvy DIY mindset.

We specialize in warehouse storage solutions, and over the years, we’ve seen firsthand how businesses revolutionize their operations by implementing diy pallet racking mezzanine projects. These systems aren’t just about adding shelves; they’re about fundamentally rethinking how every cubic foot of your warehouse can be utilized efficiently. A well-designed mezzanine can double—or even triple—your usable storage area without pouring a single foundation or erecting new walls. And with a pallet racking mezzanine diy approach, the costs can be significantly reduced, making it an accessible option for small to medium-sized businesses that need to scale smartly.

In this comprehensive guide, we’ll dive deep into the world of diy pallet racking mezzanine installations. We’ll explore how you can maximize your warehouse space, the critical considerations for a successful project, and why this solution might be the game-changer your logistics operation needs. We’re not just talking theory; we’re providing actionable insights drawn from decades of industry experience. So, whether you’re looking to create additional storage for slow-moving inventory, a new packing station, or even office space above your warehouse floor, this article will equip you with the knowledge to plan, execute, and benefit from your very own pallet racking mezzanine diy project.

Understanding the Basics: What is a Pallet Racking Mezzanine?

At its core, a pallet racking mezzanine diy is a freestanding intermediate structure installed within a warehouse or industrial building. It creates a second (or sometimes third) level within the existing space, effectively utilizing the vertical air rights that are often wasted in traditional storage setups. The term “mezzanine” itself comes from Italian, meaning “middle,” and in architectural terms, it refers to an intermediate floor between main floors of a building.

But what makes a diy pallet racking mezzanine unique is its integration with your existing or planned storage systems. Unlike standard mezzanines that might use dedicated columns and support structures, a pallet racking mezzanine diy uses the strength and rigidity of the racking system itself to support the new floor. This dual-purpose design is not only cost-effective but also incredibly space-efficient. The racking acts as both storage and structural support, eliminating the need for additional columns that can eat into valuable floor space.

The diy pallet racking mezzanine aspect comes into play when businesses take on the planning, sourcing, and assembly themselves. This doesn’t mean cutting corners on safety or quality; rather, it involves leveraging modular, pre-engineered components that are designed for straightforward assembly with basic tools and machinery. Many manufacturers now offer pallet racking mezzanine diy kits that include all necessary parts—beams, decking, stairways, guardrails—along with detailed instructions. For companies with capable maintenance or operations teams, this can be a highly feasible project that saves on labor costs and allows for customization to specific needs.

The applications for these structures are vast. Commonly, they’re used for:

• Bulky Item Storage: Storing lighter, bulky items that don’t require heavy-duty pallet racking on the main floor

• Office Space: Creating mezzanine office areas that overlook the warehouse floor, improving supervision

• Packing Stations: Adding operational areas for order fulfillment without expanding the building

• Slow-Moving Inventory: Housing products with lower turnover rates, freeing up prime ground-level space

Understanding this basic concept is the first step toward recognizing the potential within your own facility when considering a diy pallet racking mezzanine project.

Why Consider a DIY Approach to Your Mezzanine Project?

The decision to undertake a pallet racking mezzanine diy project is often driven by a combination of cost savings, control, and customization. While hiring a turnkey contractor might seem easier, the hands-on approach offers distinct advantages that can make a significant difference to your bottom line and operational flexibility.

First and foremost, cost efficiency is a major factor when considering a diy pallet racking mezzanine installation. By managing the project internally, you eliminate the contractor’s markup on materials and labor. Pallet racking mezzanine diy kits purchased directly from manufacturers are typically priced with DIY assembly in mind, making them more affordable. The savings can be substantial—often 20% to 40% compared to fully installed solutions. These funds can then be redirected toward higher-quality materials, additional safety features, or other warehouse improvements.

Secondly, a diy pallet racking mezzanine project gives you complete control over the timeline. You’re not waiting for a contractor’s availability or dealing with project scheduling conflicts. Your team can work at its own pace, during shifts that minimize disruption to daily operations. This is particularly valuable in industries with seasonal peaks; you can plan the build during slower periods and have it ready before the rush using your pallet racking mezzanine diy approach.

Customization is another critical benefit of the diy pallet racking mezzanine route. When you’re hands-on with the assembly, you can make real-time adjustments to better suit your specific needs. Perhaps you need an extra access point or want to integrate unique shelving solutions on the mezzanine level. With a pallet racking mezzanine diy approach, these modifications are easier to implement without change orders or additional fees.

However, it’s essential to acknowledge that diy pallet racking mezzanine doesn’t mean going it alone without expertise. Reputable manufacturers provide detailed engineering drawings, load calculations, and step-by-step assembly guides for your pallet racking mezzanine diy project. Many also offer technical support hotlines to assist during the build. The key is having in-house personnel with basic mechanical aptitude and the right equipment—like forklifts and powered tools—to handle the components safely for your diy pallet racking mezzanine installation.

We’ve worked with countless businesses that successfully completed their pallet racking mezzanine diy projects internally. The common thread among them is thorough planning. They invested time in understanding the requirements, preparing the site, and ensuring their team was adequately trained for the assembly process of their diy pallet racking mezzanine. The result isn’t just a new mezzanine; it’s a sense of ownership and pride among employees who built it, and a deeper understanding of the structure that aids in maintenance and future modifications.

Critical Planning Steps Before You Build Your DIY Pallet Racking Mezzanine

Jumping into a pallet racking mezzanine diy project without meticulous planning is a recipe for costly mistakes or, worse, safety hazards. The success of your diy pallet racking mezzanine endeavor hinges on what happens long before the first beam is bolted into place. Here are the essential steps we recommend to every client embarking on this journey.

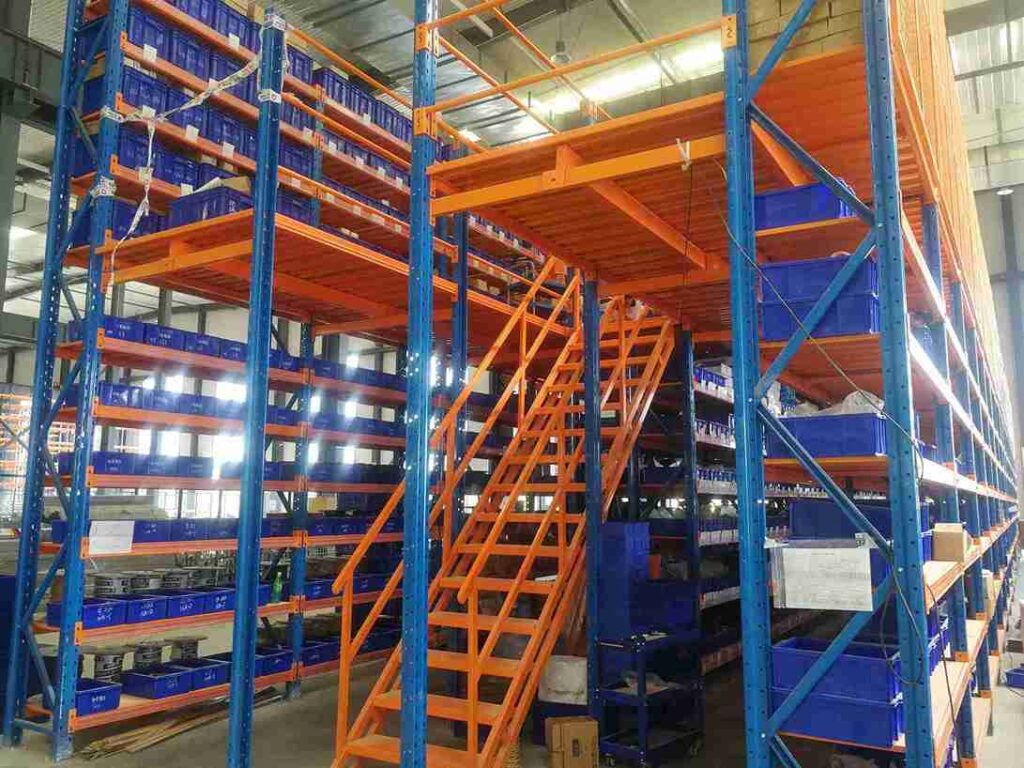

1. Comprehensive Site Assessment: Begin by thoroughly evaluating your current warehouse space for your pallet racking mezzanine diy project. Measure the clear height from floor to ceiling obstruction (like lights or sprinklers). Identify any columns, machinery, or permanent fixtures that might affect placement. Consider traffic flow—where do forklifts and personnel need to move? The goal is to find the optimal location that maximizes space without disrupting operations for your diy pallet racking mezzanine.

2. Load Requirement Analysis: Determine what you intend to store or do on the mezzanine for your pallet racking mezzanine diy installation. This isn’t just about the total weight; it’s about the type of load (uniform or concentrated), how it will be accessed (manually or with equipment), and the dynamic loads from movement. These factors will influence the required capacity of the decking and the structural integrity of the supporting racking for your diy pallet racking mezzanine. Always err on the side of over-engineering; future needs might demand more capacity.

3. Regulatory and Code Compliance: Building codes and occupational safety regulations vary by location when installing a pallet racking mezzanine diy system. Check with local authorities regarding permits for mezzanine installation. In many areas, freestanding structures under a certain size or height might not require a permit, but it’s crucial to confirm. Additionally, ensure your diy pallet racking mezzanine design complies with OSHA standards for guardrail height (typically 42 inches), toe plates, and stairway specifications. Non-compliance can result in fines and invalidate insurance.

4. Material Selection: Choose between open-grid steel decking (which allows light and sprinkler penetration) or solid decking (for smaller items or office use) for your pallet racking mezzanine diy project. Consider the type of pallet racking best suited for support; structural boltless racking is often preferred for its strength and ease of assembly for diy pallet racking mezzanine installations. Don’t forget ancillary components like stairs, gates, and lifting mechanisms if needed.

5. Detailed Layout and Design: Use CAD software or even detailed sketches to plan the layout of your pallet racking mezzanine diy system. Factor in required clearances for sprinkler heads (usually 18 inches below) and lighting. Plan the access points—stairs or ladders—for safety and efficiency. This is also the time to think about future expansion; design the diy pallet racking mezzanine system modularly so it can be extended if necessary.

6. Safety Planning: Develop a safety protocol for the assembly process of your pallet racking mezzanine diy project. This includes securing the area, using personal protective equipment (PPE), and having spotters for forklift operations. Ensure all team members understand the assembly sequence and are trained on handling heavy components for your diy pallet racking mezzanine build.

By investing time in these planning steps for your pallet racking mezzanine diy project, you lay a solid foundation for a smooth build process. Rushing through planning often leads to rework, delays, and compromises on safety or functionality for your diy pallet racking mezzanine installation.

Choosing the Right Components for Your DIY Pallet Racking Mezzanine

The longevity, safety, and functionality of your pallet racking mezzanine diy project depend heavily on the quality and suitability of the components you select. This isn’t an area to cut corners; inferior materials can lead to premature wear, safety risks, and ultimately, higher costs down the line. Let’s break down the key elements you’ll need to source for your diy pallet racking mezzanine.

Pallet Racking Framework: This is the backbone of your entire pallet racking mezzanine diy structure. Opt for heavy-duty, boltless structural racking systems designed for mezzanine applications. Key specifications to consider for your diy pallet racking mezzanine include:

• Upright Frames: Look for frames with high load capacities and reinforced base plates

• Beams: Choose beams with safety locks that prevent dislodgement

• Shoring Legs: In some designs, additional shoring legs are added to reinforce the racking

Decking Material: The choice of decking affects everything from load capacity to light penetration in your pallet racking mezzanine diy project:

• Steel Grating: Ideal for storage areas, it allows air, light, and sprinkler water to pass through

• Plywood or Particle Board: A cost-effective option for light-duty applications

• Steel Plate: Offers the highest durability and load capacity for heavy-duty use

Access Solutions: How will people and goods get to the mezzanine level in your diy pallet racking mezzanine?

• Stairs: Prefabricated steel stairs with anti-slip treads are the safest option

• Ladders: Fixed ladders are space-efficient but less safe for frequent access

• Gates and Hatches: For areas where goods need to be lifted safely

Safety Features: These are non-negotiable for any pallet racking mezzanine diy project:

• Guardrails: Must be installed on all open sides to prevent falls

• Toe Boards: Prevent items from being kicked off the edge

• Column Guards: Protect uprights from impact damage from forklifts

Ancillary Components for your diy pallet racking mezzanine:

• Lifting Systems: For moving goods between levels efficiently

• Lighting: Ensure adequate lighting on the mezzanine level

• Fire Protection: Work with professionals to ensure proper sprinkler coverage

When sourcing components for your pallet racking mezzanine diy project, stick with reputable manufacturers that provide certified load ratings and engineering support. Don’t mix and match systems from different suppliers unless you have explicit engineering approval; compatibility is critical for structural integrity in your diy pallet racking mezzanine.

Step-by-Step Assembly Guide for Your DIY Pallet Racking Mezzanine

Assuming you’ve completed all planning and have your components on site for your pallet racking mezzanine diy project, it’s time to begin the assembly. This process should be methodical and safety-focused. Here’s a generalized step-by-step guide that outlines the typical sequence for your diy pallet racking mezzanine installation.

1. Site Preparation: Clear the area completely for your pallet racking mezzanine diy build. Mark the exact positions of the upright frames on the floor using chalk. Ensure the floor is level; significant unevenness must be corrected with shims or leveling compounds to prevent racking from being unstable in your diy pallet racking mezzanine.

2. Install Upright Frames: Begin by positioning the first upright frame for your pallet racking mezzanine diy project. Use a forklift to hold it steady while you plumb it perfectly vertical using a level. Anchor it to the floor using expansion bolts designed for concrete. Repeat for all uprights, constantly checking alignment with each other. This step is critical for your diy pallet racking mezzanine; misaligned frames will cause problems later.

3. Install Beams for Lower Level: Once all uprights are secured and plumb for your pallet racking mezzanine diy installation, install the first set of beams at the desired height for the lower racking level. Use beam safety locks as per manufacturer instructions. This creates a stable structure to work with for your diy pallet racking mezzanine.

4. Build the Supporting Structure for Mezzanine: Depending on the design of your pallet racking mezzanine diy project, this might involve installing additional beams at the mezzanine support height or adding shoring legs. Double-check all connections for tightness in your diy pallet racking mezzanine.

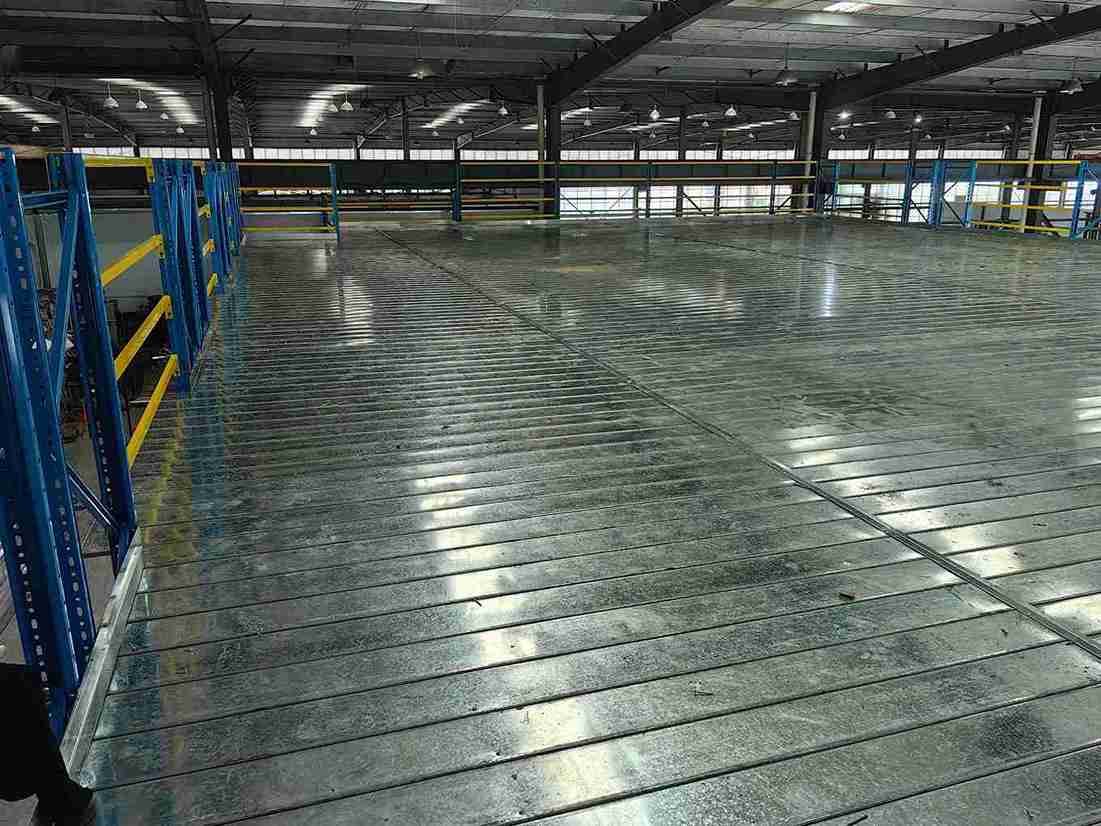

5. Install Decking: Start laying the decking from one side for your pallet racking mezzanine diy installation, securing it to the support beams with clips or bolts. Work across the area, ensuring each panel is firmly attached before moving to the next. Leave appropriate expansion gaps if required by the manufacturer for your diy pallet racking mezzanine.

6. Install Guardrails and Toe Boards: Erect guardrail posts around the perimeter of your pallet racking mezzanine diy structure and attach the rails. This should be done as soon as the decking is in place to prevent falls during the rest of construction of your diy pallet racking mezzanine.

7. Build and Install Stairs: Assemble the staircase separately for your pallet racking mezzanine diy project and then secure it to the mezzanine deck and the main floor. Ensure it’s rigid and doesn’t wobble in your diy pallet racking mezzanine installation.

8. Final Inspection and Load Testing: Before putting your pallet racking mezzanine diy structure into service, conduct a thorough inspection. Check every bolt for tightness. Test the structure by gradually applying weight to ensure there’s no excessive deflection or movement in your diy pallet racking mezzanine.

Throughout this process for your pallet racking mezzanine diy project, prioritize safety. Never work under suspended loads. Use forklift cages for overhead work instead of ladders where possible. Have a dedicated spotter for all forklift movements during your diy pallet racking mezzanine installation. If at any point the team encounters something not covered in the instructions, stop and contact the manufacturer’s technical support for your pallet racking mezzanine diy project.

Integrating Mezzanine Systems with Warehouse Automation

In today’s logistics environment, static storage isn’t enough. The real efficiency gains come from integrating storage solutions with automation. A pallet racking mezzanine diy doesn’t have to be a manual operation; it can be a smart, connected part of your automated workflow when planned properly in your diy pallet racking mezzanine project.

AGV and Forklift Integration: Consider how automated guided vehicles (AGVs) or forklifts will interact with your pallet racking mezzanine diy structure. For instance, you might designate a specific pickup/drop-off point at the base of the structure where AGVs can deliver pallets for manual or automated lifting to the mezzanine level in your diy pallet racking mezzanine setup.

Conveyor Systems: Installing a light-duty conveyor on your pallet racking mezzanine diy level can streamline the movement of items. For example, carton-flow conveyors can be used for order picking, sending items directly to packing stations below in your diy pallet racking mezzanine configuration.

Warehouse Management System (WMS) Compatibility: Ensure your WMS can account for the new storage locations on your pallet racking mezzanine diy level. This might involve updating your storage numbering system and ensuring barcode scanners are available on both levels of your diy pallet racking mezzanine installation.

Automated Lifting Solutions: For heavier loads in your pallet racking mezzanine diy project, consider integrating a scissor lift or vertical reciprocating conveyor (VRC) to move pallets between levels automatically. These can be programmed to operate with minimal human intervention, tying into your broader automation ecosystem with your diy pallet racking mezzanine.

By thinking about automation from the outset of your pallet racking mezzanine diy planning, you future-proof your mezzanine investment. The goal is to create a seamless flow of goods from the receiving dock to the mezzanine and back to shipping without bottlenecks through your well-designed diy pallet racking mezzanine system.

Maintenance and Safety Audits for Long-Term Performance

Your responsibility doesn’t end once the pallet racking mezzanine diy is built. Regular maintenance and safety audits are essential to ensure ongoing performance and prevent accidents with your diy pallet racking mezzanine investment.

Establish a Maintenance Schedule: Inspect your pallet racking mezzanine diy structure quarterly. Look for:

• Loose bolts or connectors in your diy pallet racking mezzanine

• Signs of corrosion, especially in humid environments

• Damage to uprights from forklift impacts

• Wear on decking surfaces or stair treads

Annual Professional Inspection: Once a year, have a certified engineer or the mezzanine manufacturer inspect your pallet racking mezzanine diy structure. They can identify issues that might not be obvious to the untrained eye, such as slight deflections or stress fractures in your diy pallet racking mezzanine.

Load Monitoring: Enforce strict load limits on your pallet racking mezzanine diy installation. Use signage to remind employees of the maximum capacity. Avoid dynamic loads (like dragging heavy items) that can exceed the design parameters of your diy pallet racking mezzanine.

Safety Training: Ensure all employees who work on or around your pallet racking mezzanine diy structure are trained on safe practices. This includes not climbing on guardrails, using stairs properly, and reporting any damage immediately to your diy pallet racking mezzanine system.

A well-maintained pallet racking mezzanine diy installation can last decades, providing continued value and adapting to changing operational needs. The key is establishing regular maintenance routines for your diy pallet racking mezzanine from day one.

Case Study: Transforming a E-Commerce Fulfillment Center with DIY Pallet Racking Mezzanine

To illustrate the power of a pallet racking mezzanine diy project, consider this real-world example (company name withheld for privacy). A mid-sized e-commerce company was experiencing rapid growth. Their 20,000 sq. ft. fulfillment center was bursting at the seams, and moving was cost-prohibitive.

They opted for a diy pallet racking mezzanine solution to create a dedicated packing and returns processing area above their slow-moving inventory aisles. The pallet racking mezzanine diy project involved:

• Installing a 4,000 sq. ft. mezzanine with solid decking for office-like conditions

• Integrating a conveyor chute for sending packed orders down to the shipping area

• Adding staircase access with safety gates to their diy pallet racking mezzanine

The results were dramatic for their pallet racking mezzanine diy investment:

• Space Saved: Freed up 4,000 sq. ft. of prime ground-level space for fast-moving goods

• Cost Avoided: The diy pallet racking mezzanine project cost $85,000 vs. quotes of $140,000+ for turnkey installation

• Efficiency Gains: Packing operations became 30% more efficient due to better organization

This case shows how a strategic pallet racking mezzanine diy investment can directly impact the bottom line and operational scalability when properly planned and executed.

Conclusion: Building Your Path to Greater Efficiency with DIY Pallet Racking Mezzanine

The vertical space in your warehouse is one of the most underutilized assets in logistics. A pallet racking mezzanine diy offers a practical, cost-effective way to unlock this potential, transforming air into actionable square footage. From planning and component selection to assembly and integration, the journey requires careful thought but delivers substantial rewards in storage capacity, operational flexibility, and cost savings through your diy pallet racking mezzanine project.

We’ve guided countless businesses through their pallet racking mezzanine diy process, and the consistent feedback is that the effort is overwhelmingly worth it. The key is to respect the process: plan meticulously, choose quality materials, prioritize safety, and think long-term about your diy pallet racking mezzanine investment. By doing so, you’re not just building a structure; you’re building a more resilient, efficient, and scalable operation with your pallet racking mezzanine diy solution.

Ready to explore how a custom-designed diy pallet racking mezzanine can solve your space challenges? Get Custom Design Quotes from our engineering team today. We provide detailed plans, vetted components, and ongoing support to ensure your pallet racking mezzanine diy project is a resounding success that meets all your operational requirements and safety standards.

Frequently Asked Questions (FAQs)

1. How much weight can a typical DIY pallet racking mezzanine support?
Load capacities for pallet racking mezzanine diy systems vary significantly based on design, but a well-constructed mezzanine using structural racking can typically support 125 to 150 pounds per square foot (PSF) for storage applications. For office space in your diy pallet racking mezzanine, the requirement is often lower (around 60-100 PSF). Always adhere to the engineered specifications for your specific pallet racking mezzanine diy system to ensure safety and compliance.

2. Can I install a mezzanine under sprinkler systems, and does it affect fire safety?
Yes, but it requires careful planning for your pallet racking mezzanine diy project. Building codes often mandate that mezzanines not obstruct sprinkler coverage. Open-grid decking in your diy pallet racking mezzanine is advantageous as it allows water to pass through. You may need to work with a fire safety engineer to adjust sprinkler head positions or add additional heads beneath the mezzanine to ensure complete coverage for your pallet racking mezzanine diy installation.

3. What is the typical height clearance needed for a mezzanine to be practical?
As a rule of thumb, your building should have a clear height (from floor to lowest obstruction) of at least 16-18 feet to accommodate a pallet racking mezzanine diy practically. This allows for 7-8 feet of headroom under the mezzanine (for equipment movement) and 7-8 feet of clearance on the mezzanine level itself in your diy pallet racking mezzanine configuration. These clearances are essential for both safety and functionality in your pallet racking mezzanine diy project.

4. How long does it take to assemble a DIY pallet racking mezzanine?
The timeline for a pallet racking mezzanine diy project depends on the size and complexity of the project, as well as the experience of your team. A small to medium-sized diy pallet racking mezzanine (under 2,000 sq. ft.) might take a team of 3-4 people 5-10 working days to complete, including site prep and safety checks. Larger pallet racking mezzanine diy projects may require additional time and resources to complete properly.

5. Can a mezzanine be disassembled and relocated if we move facilities?
Yes, one of the advantages of modular pallet racking mezzanine diy systems is their relocatability. While disassembly and reassembly require labor, the components can typically be moved to a new location. This protects your diy pallet racking mezzanine investment and adds long-term flexibility to your operations. However, it’s crucial to have professional assessment of both the disassembly process and the new location’s suitability for your pallet racking mezzanine diy system to ensure structural integrity and safety compliance.
