Strategic Integration with Warehouse Management Systems (WMS)

The true intelligence of a modern mobile pallet racking system is unlocked when it ceases to be a passive storage structure and becomes an active, communicative component of the warehouse’s digital ecosystem. This integration is achieved through seamless connection with the Warehouse Management System (WMS). A sophisticated WMS does not merely record what is stored; it dynamically orchestrates where items should be placed based on velocity, expiry dates, and picking patterns.

For a mobile pallet racking system, this means the software can calculate the most space-efficient location for a new pallet, considering the current configuration of the mobile rows. It then commands the specific set of carriages to create the necessary aisle precisely at that location. This level of integration transforms the mobile pallet racking system from a high-density store into a dynamically optimizing asset, constantly rearranging its virtual layout to minimize retrieval times and maximize space use without a single physical relocation of racking.

Operators no longer need to manually track which aisle has been opened; the system guides them via RF terminal or pick-to-light, directing both the movement of the racks and the human or robotic picker in a synchronized ballet of efficiency. This deep WMS integration is what separates a basic installation from a truly future-proof, high-throughput mobile pallet racking system.

Advanced Operational Modes: Beyond Simple Aisle Opening

Leading-edge mobile pallet racking systems offer programmable operational modes that further enhance efficiency and safety. These modes are software-defined, allowing a single physical system to adapt to different operational needs throughout the day or week.

• Sequential Access Mode: This is the standard mode, where only one access aisle is open at any time. It is the safest and most energy-efficient mode, perfect for operations with a single picking station or forklift dedicated to the mobile pallet racking system area.

• Dual or Multiple Aisle Mode: For larger installations or high-volume distribution centers, the system can be programmed to open two or more non-adjacent aisles simultaneously. This allows multiple order pickers or AGVs to operate in the mobile pallet racking system block at the same time, dramatically increasing throughput. The control system’s anti-collision logic ensures these open aisles are always separated by a closed bank of racks for absolute safety.

• Batch Picking Mode: In this mode, the WMS consolidates picks from multiple orders that are located in the same vertical section of the racking. The mobile pallet racking system then opens the aisle once, and the picker or machine retrieves all required items in a single pass, after which the racks close. This minimizes cycle times and wear on the mechanical components.

• Inventory/Stocktake Mode: A critical function involves locking the system in a predetermined pattern, opening every nth aisle to allow auditors safe, illuminated access to conduct physical counts without the constant movement of racks. This planned, systematic approach makes inventory control in a high-density environment not only possible but efficient.

The Critical Role of Professional Site Survey and Load Analysis

The performance and longevity of any mobile pallet racking system are determined long before the first rail is laid. It hinges on a meticulous, expert-led site survey and a forensic analysis of the stored inventory. Reputable providers do not sell from a catalogue; they engineer a solution based on hard data. This process involves certified engineers visiting the facility to capture a comprehensive set of parameters:

• Dimensional Precision: Laser-scanning the building to create a perfect 3D point-cloud model, capturing every column, door, sprinkler head, light fixture, and floor level variation. This ensures the designed mobile pallet racking system fits like a glove, avoiding costly on-site modifications.

• Load Profiling: This goes beyond knowing the average pallet weight. Engineers must understand the maximum load, load dimensions, center of gravity, and the type of pallet (e.g., CHEP, EUR, post pallets). They analyze the SKU mix—fast-moving vs. slow-moving, ambient vs. chilled. This data directly influences the structural design of the racking beams, the torque specification of the carriage motors, and the configuration (selective, drive-in, push-back) of the mobile pallet racking system.

• Throughput Dynamics: How many pallets are put away and retrieved per shift? What are the peak periods? Understanding the duty cycle is crucial for specifying the right drive system. A system designed for an archival store with two movements per day differs fundamentally from one serving a busy e-commerce fulfillment center.

This investigative phase is where expertise proves its worth. It identifies potential showstoppers early, such as insufficient floor strength or low ceiling clearances that could compromise the promised gains of the mobile pallet racking system.

Material and Finish Specifications for Global Deployment

Given the target markets in Southeast Asia, the Middle East, Africa, and Latin America, environmental considerations are paramount. A mobile pallet racking system destined for a humid coastal warehouse in Vietnam faces different challenges than one in a dusty logistics park in Dubai or a high-altitude facility in Colombia.

• Structural Steel and Galvanization: For corrosion protection in humid climates, hot-dip galvanizing (HDG) to international standards (e.g., ISO 1461) is the gold standard for the racking uprights and beams. It provides a durable, sacrificial coating that protects the steel even if scratched. For highly corrosive environments (e.g., cold stores, chemical storage), powder coating over galvanized steel or specialized paint systems may be recommended.

• Carriage and Rail Engineering: The carriage frames are typically fabricated from heavy-duty structural steel, also protected with appropriate finishes. The rails are precision-rolled steel sections, often with a hardened wearing surface. In coastal areas, specifying stainless steel for critical fasteners and hardware prevents seizure and failure.

• Motor and Electrical Component Ratings: Motors and control panels must be specified with ingress protection (IP) ratings suitable for the environment. An IP54 rating protects against dust and water splashes, while IP65 offers full dust-tightness and protection against low-pressure water jets. For cold storage applications, motors must be rated for continuous operation at sub-zero temperatures, with appropriate cold-start capabilities and lubricants.

Lifecycle Cost Analysis and Total Cost of Ownership (TCO)

A prudent financial decision looks beyond the initial purchase price. Evaluating a mobile pallet racking system through a Total Cost of Ownership (TCO) lens over a 15-20 year lifespan reveals its profound economic advantage.

• Capital Investment (Year 0): This includes the system design, hardware (racking, carriages, motors, controls), installation, and any necessary civil works (floor strengthening, drainage modifications). Compared to building expansion, this outlay is typically lower and has a faster deployment timeline, meaning revenue-generating capacity is unlocked sooner.

• Operational Costs (Years 1-20):

  • Energy: The electrical consumption of a well-designed mobile pallet racking system is minimal. Motors operate for seconds per movement. The significant saving comes from lighting and climate control of a much smaller effective footprint.

  • Maintenance: Scheduled preventative maintenance (inspections, lubrication, safety checks) incurs a predictable annual cost. High-quality systems are designed for reliability, keeping these costs low.

  • Labor: This is often where the largest savings are realized. Reduced travel time for pickers, faster put-away and retrieval cycles, and improved inventory accuracy directly lower labor costs per pallet handled.

• Cost Avoidance: This is the most compelling part of the TCO equation. The mobile pallet racking system directly avoids or defers the massive capital outlay for new construction or leasing additional warehouse space. In prime logistics locations where land and construction costs are soaring, this avoidance represents a saving of millions.

• Residual Value: High-quality steel racking and industrial components retain significant value. At end-of-life, the system has substantial scrap value, or components can often be refurbished and redeployed.

When this TCO analysis is modeled, the mobile pallet racking system consistently shows a superior net present value (NPV) and internal rate of return (IRR) compared to the alternative of physical expansion.

Navigating the Procurement Process: Key Questions for Suppliers

Selecting a partner for your mobile pallet racking system is a strategic decision. Beyond price, due diligence should focus on engineering capability, project management, and after-sales support. Here are critical questions to pose to any potential supplier:

1. Engineering Credentials: “Can you provide the sealed engineering calculations for the racking structure and the moving system, certified by a licensed structural engineer in our country? Are your designs compliant with local seismic and building codes?”

2. Project Portfolio: “Show us detailed case studies or site references for completed mobile pallet racking system installations of similar scale and complexity, preferably in our region or industry.”

3. Safety Philosophy: “Beyond basic safety edges, what is your system’s approach to redundancy? Explain the fail-safe braking mechanism and the logic of your anti-collision system. Can you provide the safety integrity level (SIL) assessment for the control system?”

4. Software and Control Ownership: “Who develops and owns the control software? Is it proprietary, closed architecture, or based on open standards? What are the protocols for WMS integration (e.g., API, TCP/IP)? Can we obtain a backup of the control software for disaster recovery?”

5. Long-Term Support: “What is the structure of your after-sales support? Do you have locally stocked spare parts? What is the typical response time for technical support and the guaranteed continued availability of spare parts (e.g., 15+ years)?”

The answers to these questions will quickly separate equipment vendors from true solution partners. A provider of a robust mobile pallet racking system will welcome such detailed inquiry as it reflects a serious, informed client.

The Synergy with Broader Intralogistics Automation

A mobile pallet racking system is rarely an island. Its greatest strategic impact is realized as the high-density foundation within a broader automated material handling ecosystem. This synergy creates a multiplier effect on efficiency.

• Feeding and Egress Conveyors: The single access aisle of the mobile pallet racking system can be directly served by inbound and outbound conveyor spurs. Pallets arriving from production or receiving are conveyed directly to the mouth of the system. Once an aisle opens, a forklift or transfer car places the pallet. For retrieval, the process reverses, seamlessly integrating storage with transport.

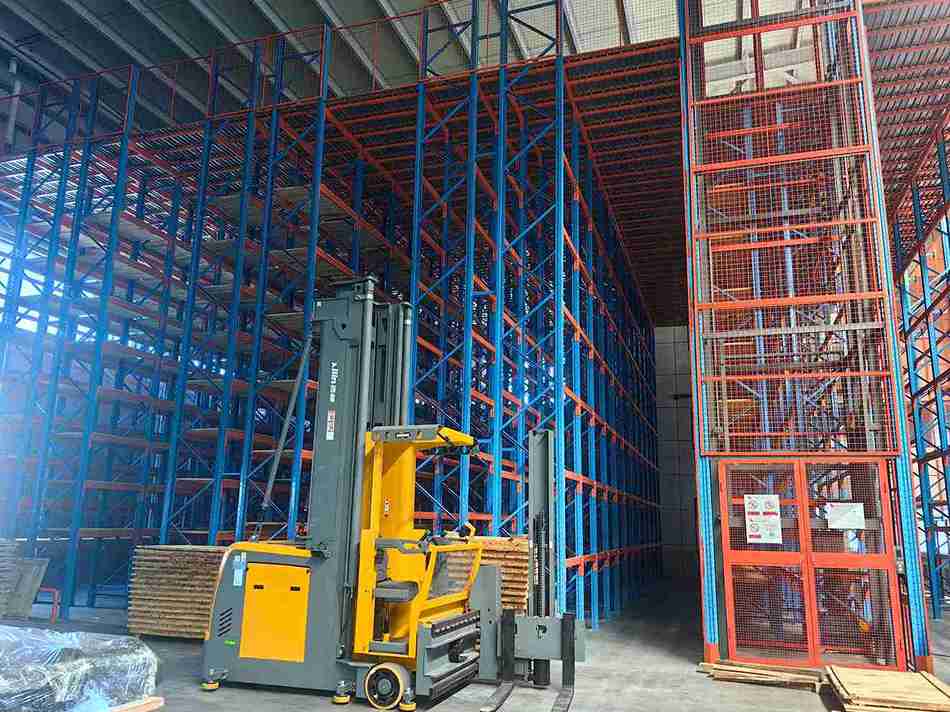

• AGV and AMR Integration: This is where the modern mobile pallet racking system truly shines. Automated Guided Vehicles (AGVs) or Autonomous Mobile Robots (AMRs) can be programmed to interface directly with the system’s control software. An AGV requesting a pallet sends a signal to the Warehouse Control System (WCS), which commands the mobile pallet racking system to open the correct aisle. The AGV then enters, performs the load pickup, and exits, after which the racks close. This creates a lights-out, fully automated storage/retrieval process for defined workflows, operating 24/7 with unparalleled consistency.

• Layer-Picking and Robotic Palletizing: In facilities serving retail or e-commerce, the mobile pallet racking system often acts as the buffer store for full-pallet quantities of fast-moving goods. Downstream, layer-picking robots or automated depalletizers can be fed directly from pallets retrieved by the system, creating a continuous, automated flow from bulk storage to mixed-SKU order pallets ready for dispatch.

This interconnectedness positions the mobile pallet racking system not as an endpoint, but as the critical, high-density core of a scalable automation strategy. It allows businesses to start with a manually operated, high-density store and progressively add layers of automation (conveyors, AGVs, robotics) as volume and ROI justify.

Sustainability and Green Warehousing Contributions

In an era of increasing environmental accountability, a mobile pallet racking system contributes significantly to sustainable “green” warehouse initiatives. Its design principles align perfectly with reducing a facility’s carbon footprint and resource consumption.

• Land Use Efficiency: By maximizing storage on existing land, it combats urban sprawl and preserves greenfield sites. It is the very definition of building up and in rather than out.

• Energy Conservation: The dramatic reduction in the volume of air that requires lighting, heating, or cooling is a direct energy saving. A condensed mobile pallet racking system block may only require localized aisle lighting that activates on movement, compared to illuminating an entire vast static racking area.

• Material Efficiency: By storing more with less steel structure per pallet position (due to eliminated redundant uprights in aisles), the system represents a more efficient use of raw materials. Furthermore, by extending the useful life of an existing building, it avoids the enormous embodied carbon cost of new construction (concrete, steel, transportation).

• Optimized Logistics: Denser, more efficient local storage can support supply chain strategies that reduce total transportation miles, contributing to lower overall emissions from the logistics network.

For companies publishing ESG (Environmental, Social, and Governance) reports, implementing a mobile pallet racking system is a tangible, quantifiable action that demonstrates a commitment to operational sustainability and resource stewardship.

Conclusion: The Imperative of Strategic Density

The global logistics landscape is characterized by volatility, rising costs, and relentless demand for speed. In this environment, static warehouse layouts with their inherent “aisle tax” represent an untenable model of waste. The business case for mobile pallet racking systems has evolved from a niche space-saving technique to a mainstream strategic imperative for any operation serious about resilience, scalability, and cost control.

These systems offer a profound paradigm shift: they replace permanent, wasted access space with dynamic, on-demand access. The result is not a marginal improvement but a transformational leap in storage capacity—routinely 80% or more—within the same four walls. This achievement transcends mere storage; it redefines the warehouse’s potential. When integrated with WMS software, a mobile pallet racking system becomes an intelligent, self-optimizing asset. When coupled with AGVs and conveyors, it forms the beating heart of an automated logistics ecosystem. When evaluated on a Total Cost of Ownership basis, it presents a financially superior alternative to the colossal expense and delay of physical expansion.

For operations across the dynamic growth markets of Southeast Asia, the Middle East, Africa, and Latin America, the message is clear. The path to future-ready logistics does not necessarily lie in pouring new concrete. It lies in intelligently engineering the space you already possess. A professionally engineered, robustly built mobile pallet racking system is the key to unlocking that latent potential, delivering not just more pallet positions, but a foundational platform for efficiency, automation, and sustainable growth. The decision to explore this technology is the first step toward mastering the constraints of space and turning them into a formidable competitive advantage.

Frequently Asked Questions (FAQs)

1. How does the weight of the loaded system affect the building’s foundation, and what floor specifications are non-negotiable for a mobile pallet racking system?

The point loads from a fully laden mobile pallet racking system are significant and concentrated along the rail lines. A comprehensive structural analysis of the existing slab is the first non-negotiable step. Key specifications include a minimum compressive strength (often >40 MPa), excellent flatness (FF50/FL40 or better as per ASTM E1155), and a stable, non-subsiding sub-base. The design load of the mobile pallet racking system, including a safety factor, must be within the slab’s capacity. In many retrofits, targeted slab strengthening or a new reinforced concrete raft slab over the existing floor may be required—a cost that must be factored into the project but is still fractional compared to new construction.

2. We handle a wide variety of pallet types and sizes. Can a single mobile pallet racking system accommodate this inconsistency, or does it require standardized pallets?

While standardization optimizes any storage system, a well-designed mobile pallet racking system can handle variance. The key is in the adjustable beam levels and careful load planning. Beams can be spaced at different heights on adjacent uprights within the same bay to accommodate varying pallet heights. For pallet depth and width, the racking layout is designed around the largest footprint, with smaller pallets stored efficiently using beam-front pallet supports or decking. A detailed pallet analysis during the design phase ensures the mobile pallet racking system is configured for maximum flexibility without compromising density or safety.

3. What happens in a power outage? Are our goods trapped, and is there a manual override to retrieve critical items?

Safety and access are paramount. All quality mobile pallet racking systems incorporate a manual release mechanism. In a power failure, fail-safe mechanical brakes engage automatically to lock the carriages in place. To retrieve a pallet, operators can use a manual hand crank (usually one per carriage) to slowly move the necessary racks apart just enough to create an aisle. This process is designed for emergency access, not daily use. Additionally, systems can be specified with backup battery units or connected to facility UPS systems to allow several emergency operational cycles in a blackout.

4. For a food-grade or pharmaceutical environment, what special hygiene or regulatory features must a mobile pallet racking system have?

In these regulated industries, the mobile pallet racking system must facilitate cleanliness and prevent contamination. Key features include:

• Cleanroom-Compatible Finishes: Electrostatically applied, smooth, FDA-compliant epoxy powder coatings in light colors to spot debris, with no pits or crevices for bacterial growth.

• Hygienic Design: Fully enclosed carriage housings to prevent grease/dirt from above contaminating goods below. Minimal horizontal surfaces where dust can settle.

• Drainage Integration: Rails can be installed within grated channels or with designed floor slopes to allow for effective wash-down drainage without pooling.

• Stainless Steel Options: For high-risk zones, critical components can be specified in austenitic (300-series) stainless steel.
  The design must also support compliance with standards like HACCP, BRCGS, or FDA 21 CFR Part 11 for electronic records if the control system logs access.

5. How does the lead time and installation duration for a large-scale mobile pallet racking system compare to constructing a warehouse extension?

This is a decisive advantage. The lead time for a custom-engineered mobile pallet racking system, from order to site readiness, typically ranges from 12-20 weeks for manufacturing and shipping. On-site installation by a professional crew for a large system may take 4-8 weeks, often phased to minimize operational disruption.

Contrast this with a warehouse extension: 6-12 months for design, permitting, and construction, followed by fit-out. The mobile pallet racking system can be delivering increased capacity in less than half the time, allowing businesses to respond rapidly to market opportunities or seasonal spikes without the long-term commitment and risk of a construction project.
