In the high-stakes, precision-driven world of manufacturing and injection molding, molds are not just tools; they are the crown jewels of the operation. These meticulously engineered assets represent a massive capital investment and are the direct linchpin to production schedules, product quality, and overall profitability. The critical question every operations manager must answer is: does your current storage strategy protect this investment or put it at constant risk? This definitive guide delves into the engineering and strategic logic behind ​​professional mold racks solutions​​.

We will expose the immense hidden costs of inadequate storage, detail the anatomical precision of a true industrial-grade ​​mold storage rack​​ system, and demonstrate how a customized approach is the only way to genuinely ​​protect your high-value molds​​ and ​​radically maximize your storage space​​. This is not about buying shelving; it’s about investing in a integrated ecosystem that enhances workflow efficiency, guarantees safety, and delivers a rapid, quantifiable return on investment. For operations aiming to achieve a competitive edge, transitioning to a purpose-built ​​mold rack​​ system is not an option—it is an operational necessity.

The Immense Hidden Cost of Inadequate Mold Storage​

Many facilities begin with the best of intentions, often starting with simple wood blocks or standard-duty shelving to store their growing inventory of ​​molds​​. This approach, while seemingly economical initially, is a Faustian bargain that introduces staggering hidden costs and catastrophic risks that can bring production to a grinding halt.

Direct and Catastrophic Risks to Precision Mold Assets​

The immediate threats posed by subpar storage are severe and multifaceted. A proper ​​mold rack​​ is designed as the first line of defense against these dangers.

• •​​Devastating Physical Damage:​​ A single incident—a ​​mold​​ slipping from an under-rated shelf or being knocked in a crowded aisle—can result in cracked cavities, sheared guide pins, or ruined core surfaces. The financial blow is twofold: the exorbitant cost of repair, often running into tens of thousands of dollars, and the devastating production downtime that can last for weeks, causing missed order deadlines and eroding customer trust.
• •​​Insidious Contamination and Corrosion:​​ Exposure is a silent killer. Shop floor contaminants like dust, moisture, and chemical aerosols lead to pitting, rust, and corrosion on critical ​​mold​​ surfaces. This degradation directly transfers to finished parts, causing surface defects that lead to high scrap rates, costly secondary finishing, and the need for extensive mold re-polishing. A sealed, organized ​​mold storage rack​​ system acts as a protective barrier.
• •​​Misplacement and Operational Chaos:​​ Without a dedicated, systematic home for every tool, ​​molds​​ inevitably get misplaced. The time production teams spend searching for a specific ​​mold​​ is a massive drain on productivity. This disorganization turns urgent mold changeovers into lengthy, stressful ordeals, directly impacting overall equipment effectiveness (OEE).

The Compounding Drag on Operational Efficiency​

The repercussions of poor ​​mold storage​​ extend far beyond the tools themselves, creating a pervasive drag on efficiency and safety.

• •​​Prolonged and Hazardous Retrieval Times:​​ Employees waste valuable minutes—which compound into hundreds of lost hours annually—maneuvering heavy, awkward ​​molds​​ out of unsuitable storage using improper techniques. This is not an efficient use of skilled labor.
• •​​Unacceptable Safety Hazards:​​ The manual handling of heavy ​​molds​​ from unstable storage is a leading cause of serious injury in manufacturing. The risk of a ​​mold​​ falling or a employee suffering a musculoskeletal injury is dramatically heightened without the right ​​mold racks​​. A safe facility is a productive facility.
• •​​Grossly Inefficient Use of Space:​​ Chaotic storage consumes a premium resource: floor space. Failing to utilize the vertical cube of your facility means you are paying for expensive industrial real estate that you are not fully leveraging. Implementing the right ​​mold racks​​ is a direct strategy for space optimization.

Conclusively, investing in a ​​professional mold racks​​ system is a direct decision to eliminate these severe risks and stop the bleeding of these hidden operational costs.

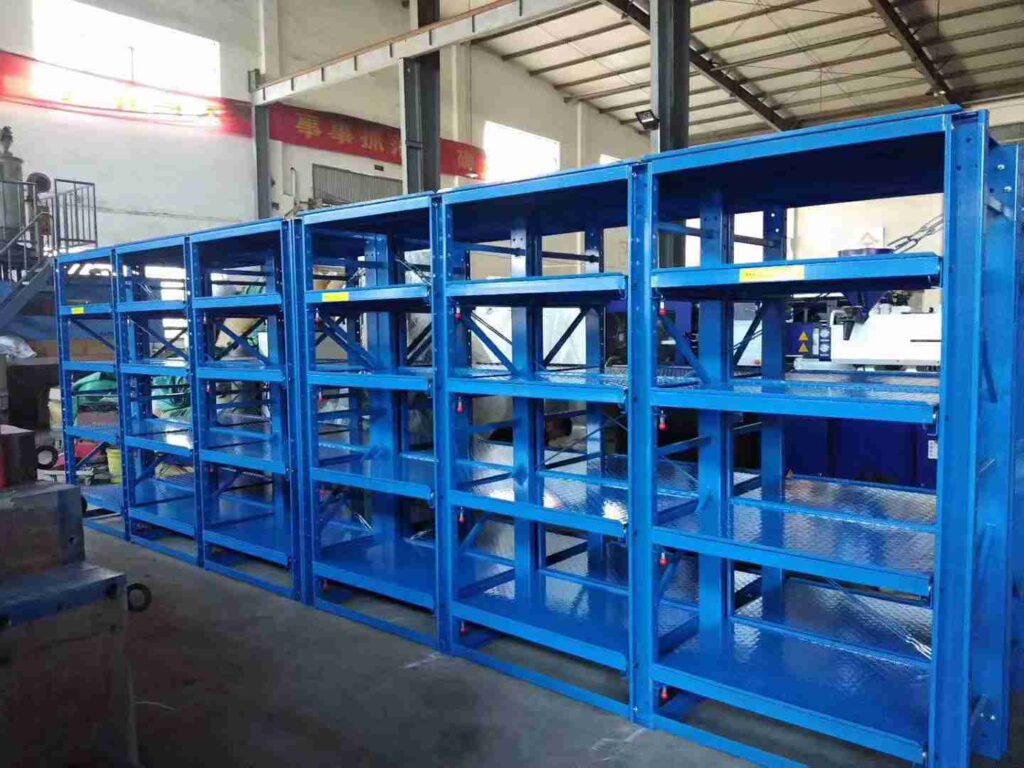

The Anatomy of a True Industrial-Grade Mold Racks System​

A true ​​mold rack​​ is a feat of engineering, a system comprised of specialized components designed to address the unique challenges of storing heavy, sensitive, and valuable tooling. It is fundamentally different from standard warehouse shelving.

Structural Integrity: The Non-Negotiable Foundation​

The framework of any ​​mold storage rack​​ is its backbone. Compromise here is unthinkable.

• •​​High-Capacity Steel Frames:​​ We utilize heavy-duty, cold-rolled steel with a minimum yield strength of 50,000 PSI. Frames are designed with a positive-lock boltless connection system. This design provides exceptional stability and ease of assembly while being capable of supporting immense, concentrated loads that would destroy inferior structures.
• •​​Engineered Load Beam Capacity:​​ Beams are not all created equal. In a true ​​mold rack​​ system, beams are rated for specific capacities, often ranging from 5,000 to 15,000 lbs per pair. The engineering accounts not just for the static weight, but for the dynamic load capacity—the force exerted when a multi-ton ​​mold​​ is placed or removed by a forklift.
• •​​Seismic and Impact Considerations:​​ For facilities in active regions or those with narrow, high-traffic forklift aisles, our designs can include seismic bracing and protective column guards. These features absorb energy from impacts or tremors, preventing structural failure and protecting both the racking and the invaluable ​​molds​​ stored within.

 Specialized Decking: The Critical Interface for Mold Protection​

The surface upon which a ​​mold​​ rests is a critical point of contact. Standard wire decking or particle board is a recipe for damage.

• •​​Solid Steel Decking:​​ The industry-standard workhorse for heavy-duty ​​mold racks​​, often 7-gauge or thicker. It features a folded lip for added strength and a continuous, flat, and stable surface that distributes the immense weight of a ​​mold​​ evenly.
• •​​Laminated Hardwood Decking:​​ For operations where protecting the fine surface finish of the ​​mold​​ is the absolute priority, laminated hardwood decking (typically maple) is superior. It is significantly kinder to the ​​mold’s​​ surface than steel, preventing nicks, scratches, and gouges that could manifest as defects on finished parts.
• •​​Adjustable and Retractable Decking:​​ For ultimate flexibility and ease of handling, advanced ​​mold racks​​ can be fitted with decks that tilt or retract. This facilitates easier loading and unloading of exceptionally heavy or awkwardly shaped ​​molds​​ by overhead crane, significantly reducing the risk of damage during handling.

 Integrated Safety and Accessibility Features​

Safety is engineered into every quality ​​mold rack​​ system, not added as an afterthought.

• •​​Beam Locking Pins:​​ These simple but crucial devices prevent beams from being accidentally dislodged when a ​​mold​​ is slid on or off the shelf, a fundamental safety feature that prevents catastrophic collapses.
• •​​Cantilever Arms:​​ For exceptionally long, bulky, or irregularly shaped ​​molds​​, cantilever racking systems are the ideal solution. They eliminate vertical posts on one side, allowing for completely unobstructed side-loading.
• •​​Stairways and Safety Platforms:​​ For multi-level ​​mold storage racks​​ that truly maximize vertical space, integrated stairways and OSHA-compliant safety caged platforms provide secure access for manual inspection or retrieval without requiring a forklift or mobile lift equipment, enhancing both safety and efficiency.

Maximizing Storage Density: The Vertical Imperative for Mold Racks​

For nearly every manufacturer, floor space is a finite and expensive resource. The most powerful strategy to ​​maximize storage space​​ isn’t expansion; it’s the intelligent and aggressive use of the cubic air space above you. The right ​​mold racks​​ make this possible.

 Selective Pallet Racking: The Accessible Workhorse​

Adapted ​​selective pallet racking​​ forms the core of many high-performing ​​mold storage​​ systems. Its open design provides direct access to every single stored ​​mold​​, which is non-negotiable for high-mix production environments where changeovers are frequent. By building upwards with clear aisle access, you can often double or triple your storage capacity within the exact same floor print. The key is specifying the right beam and frame capacities to handle the unique loads of ​​molds​​, not uniform pallets.

Mezzanine Systems: Creating a Second Level for Mold Storage​

When vertical clearance allows, a ​​structural mezzanine​​ is a transformative solution for ​​mold storage​​. By creating a second operating level, you effectively double your usable space without pouring a single yard of new concrete. We design mezzanines specifically for the intense demands of ​​mold storage​​, accounting for the immense concentrated loads of stored tooling. These systems can include reinforced decks, integrated ​​mold racks​​ on both levels, and safe access points via stairs or even material lifts. This approach is perfect for segregating the ​​mold storage​​ library from the active production floor, enhancing organization, safety, and workflow.

 High-Density Drive-In/Drive-Through Racking​

For operations with a large volume of ​​molds​​ that are accessed on a less frequent basis (e.g., for seasonal products or legacy tooling), ​​drive-in racking​​ offers unparalleled storage density. This system eliminates most access aisles by allowing a forklift to drive directly into the rack structure to store and retrieve loads. It operates on a “last-in, first-out” (LIFO) basis and is the ultimate solution for storing a massive quantity of ​​molds​​ in the most minimal footprint possible, making it a key strategy for space maximization.

Beyond the Structure: Building a Holistic Mold Management Ecosystem​

The physical ​​mold racks​​ are the foundation, but the true value—the transformation from storage to management—is unlocked by integrating smart processes and technologies.

Advanced Mold Identification and Tracking Systems​

• •​​Robust Labeling:​​ Every single location within your ​​mold racks​​ system and every ​​mold​​ itself must have a unique, durable identifier. We recommend anodized aluminum tag holders or engraved metal labels that can withstand the harsh industrial environment.
• •​​Barcoding & RFID Integration:​​ For superior management, integrating barcode or RFID (Radio-Frequency Identification) tags creates a digital twin of your ​​mold​​ inventory. A simple scan with a handheld terminal instantly reveals a ​​mold’s​​ identity, location, last maintenance date, and next scheduled production run. This data can seamlessly integrate with a CMMS or ERP system, creating a live, accurate inventory system.

The Vital Role of Mold Carts and Handling Equipment​

The system does not end at the rack. ​​Mold carts​​ (or trollies) are the indispensable logistical link between the ​​mold storage racks​​ and the molding machine. A ​​mold​​ can be cleaned, prepped, and staged on its dedicated cart within the ​​mold racks​​ area. When needed, the entire cart is transported to the press for a faster, safer changeover. This eliminates the dangerous and inefficient practice of lifting ​​molds​​ directly from rack to machine. Our solutions often include custom-designed carts that interface perfectly with the spacing and heights of our ​​mold racks​​.

 The Customization Imperative: Engineering Your Unique Mold Racks Solution​

We operate on a fundamental principle: an off-the-shelf racking solution is a profound compromise. Your ​​molds​​, your facility layout, your workflow, and your growth plans are unique. Therefore, your ​​mold racks​​ system must be engineered specifically for you.

The In-Depth Design Consultation Process​​

Our process begins with a comprehensive discovery and analysis phase. Our engineers work to intimately understand:

• •​​Your Mold Inventory Profile:​​ The physical dimensions, weight, and center of gravity of every ​​mold​​ (or a representative sample). We need to know your heaviest, most awkward, and most valuable assets.
• •​​Access Frequency and Workflow:​​ How often is each ​​mold​​ used? This data determines its ideal location within the ​​mold racks​​ system (e.g., fast-access “golden zone” vs. high-density deep storage).
• •​​Handling Equipment Capabilities:​​ The specifications of your forklifts, cranes, and other equipment—including capacity, lift height, fork length, and turning radius—dictate critical design parameters like aisle width and beam height.
• •​​Facility Constraints and Opportunities:​​ We conduct a site survey to understand floor condition, ceiling height, column placement, door locations, and traffic flow patterns.

Delivering a Tailored Mold Racks Layout Plan​

From this rich dataset, we develop a comprehensive ​​customized layout design​​. This is far more than a simple diagram; it is a holistic operational plan that includes:

• •​​Aisle Width Optimization:​​ Precisely balancing storage density with the maneuverability requirements of your material handling equipment. Every inch saved in an aisle width, multiplied by its length, adds significant storage capacity.
• •​​Logical Workflow Zoning:​​ Intelligently grouping ​​molds​​ within the ​​mold racks​​ by product family, machine compatibility, or usage frequency to create a logical flow that drastically reduces retrieval and travel time.
• •​​Inherent Future-Proofing:​​ Designing the ​​mold racks​​ system with inherent scalability, using modular components that allow you to add bays, reconfigure sections, or increase height easily as your ​​mold​​ inventory evolves and grows.

This consultative, engineering-led approach is what separates a true storage solution from a simple product transaction. It guarantees the final ​​mold racks​​ system performs with maximum efficiency, safety, and ROI for decades.

The Automation Advantage: Integrating ASRS and AGVs with Mold Racks​

For the pinnacle of efficiency, safety, and space utilization, the conversation logically progresses to automation. Integrating your ​​mold racks​​ with automated systems transforms your storage area from a static cost center into a dynamic, high-throughput, “lights-out” capable asset.

 Automated Storage and Retrieval Systems (ASRS) for Molds​

An ​​ASRS​​ is a computer-controlled system that automatically places and retrieves loads from defined storage locations without human intervention. For ​​mold storage​​, this typically takes the form of a ​​Unit Load ASRS​​. A dedicated robotic shuttle moves within the aisle of high-density ​​mold racks​​, traveling vertically and horizontally to precisely extract a specific ​​mold​​ from its location and deliver it to a pick-up station. The benefits are transformative:

• •​​Ultimate Storage Density:​​ ASRS systems require minimal aisle space, allowing for incredibly narrow or even single-aisle configurations that maximize storage volume by over 80% compared to conventional ​​mold racks​​.
• •​​Unmatched Speed and Accuracy:​​ Retrieval times are slashed from minutes to seconds, and human error in selecting the wrong ​​mold​​ is completely eliminated, ensuring the right tool arrives at the right place at the right time.
• •​​Enhanced Security and Control:​​ Access to expensive tooling is controlled and logged by the system, providing an audit trail. The system’s software maintains perfect, real-time knowledge of every ​​mold’s​​ location and status.

 Utilizing Automated Guided Vehicles (AGVs) for Mold Transport​

While an ASRS automates the storage structure itself, ​​Automated Guided Vehicles (AGVs)​​ or ​​Autonomous Mobile Robots (AMRs)​​ automate the transportation leg. These driverless vehicles can be programmed to:

1. 1.Receive a ​​mold​​ from an ASRS pick-up station or a designated manual ​​mold rack​​ interface point.
2. 2.Transport it safely across the facility, following optimized, predictable paths.
3. 3.Deliver it directly to the molding machine interface for changeover, often interacting with automated mold clamping systems.

This creates a seamless, end-to-end material handling flow, further reducing labor requirements, preventing handling damage, and freeing skilled technicians for higher-value tasks, thereby maximizing the ROI of the entire ​​mold racks​​ ecosystem.

Calculating the Compelling Return on Investment (ROI)

A professional ​​mold racks​​ system is a capital investment, and its justification must be grounded in clear, compelling financial logic. The ROI is calculated through a powerful combination of hard cost savings and strategic, intangible benefits.

Quantifiable and Direct Cost Savings​

• •​​Eliminated Mold Repair/Replacement Costs:​​ Assign a dollar value to preventing just one major ​​mold​​ damage incident. The cost of repairing a complex, multi-cavity ​​mold​​ can easily run between $15,000-$50,000+, often dwarfing the investment in a proper ​​mold racks​​ system.
• •​​Labor Efficiency Gains:​​ Calculate the time saved per shift on ​​mold​​ retrieval and changeovers. If a new system saves 30 minutes per shift across two shifts, that’s 250 hours of reclaimed productive labor annually. Multiply this by your fully burdened labor rate to find significant annual savings.
• •​​Real Estate Savings or Avoidance:​​ By storing vertically and increasing density, you delay or completely avoid the need for a costly facility expansion. Calculate the value of the square footage you reclaim or the millions saved in avoided construction costs.

Powerful Strategic and Intangible Benefits​

• •​​Dramatically Reduced Downtime:​​ Faster, safer changeovers mean more available production hours, increasing overall capacity and allowing you to take on more business without adding presses.
• •​​Improved Product Quality:​​ Protected ​​molds​​ produce higher-quality parts with fewer defects, directly reducing scrap rates, rework costs, and customer quality complaints.
• •​​Enhanced Safety Culture:​​ A safer work environment reduces the risk of catastrophic injury, lowers insurance premiums, improves morale, and protects your most valuable asset—your people.
• •​​Unmatched Competitive Agility:​​ The ability to changeover quickly and manage a vast ​​mold​​ library efficiently allows you to respond with incredible speed to customer demands and market changes, winning business from slower competitors.

For most of our clients, the ROI period for a well-designed ​​mold racks​​ system is remarkably short, typically between 18 to 24 months, after which it generates pure positive cash flow.

Selecting the Right Partner for Your Mold Racks Project​

The success of your ​​mold storage​​ project is inextricably linked to the expertise and reliability of the provider you choose. This demands a partnership with deep industry knowledge, not a simple transaction with a catalog vendor.

 Key Vendor Qualifications and Capabilities​

• •​​In-House Engineering Expertise:​​ This is non-negotiable. The partner must have certified engineers on staff to perform structural calculations and create stamped design drawings that meet all local regulations and RMI (Rack Manufacturers Institute) standards.
• •​​Proven Industry Experience:​​ A demonstrated portfolio of successful ​​mold racks​​ installations specifically for manufacturing and injection molding clients is essential. They must speak your language and understand your unique pressures.
• •​​Comprehensive Solution Portfolio:​​ The ability to provide everything from basic ​​mold racks​​ to mezzanines and full automation (either directly or through vetted, integrated partners) ensures a cohesive, single-source solution and accountability.
• •​​Uncompromising Quality and Compliance:​​ All components should meet or exceed relevant industry standards. Look for ISO 9001 certification and a commitment to using high-grade materials.

Conclusion: An Strategic Investment in Precision, Protection, and Productivity​

Your molds are the lifeblood of your production, the foundational assets upon which your business is built. Storing them on makeshift shelving or leaving them vulnerable on the shop floor is an enormous, unnecessary risk that jeopardizes your physical assets, your operational efficiency, and your team’s fundamental safety. A ​​professional mold racks​​ solution is not a facilities upgrade; it is a strategic imperative for any manufacturer aiming to compete and win in today’s demanding market.

It is a holistic approach that combines ​​heavy-duty industrial mold racks​​, intelligent space-maximizing design, integrated handling equipment, and—for those seeking the ultimate advantage—seamless automation technology. The result is a state of perfect control: your valuable ​​molds​​ are protected, instantly locatable, and efficiently moved, transforming your storage area from a chaotic cost center into a streamlined, high-value, competitive asset.

The journey toward this transformation begins with a detailed conversation and a professional assessment of your specific needs. By partnering with an expert who understands the intricate nuances of ​​mold​​ management, you can design and implement a ​​mold racks​​ system that delivers tangible protection, unparalleled density, and a compelling return on investment for years to come.

​**​*

​​ Frequently Asked Questions (FAQs)​

​​Q1: How do you accurately determine the required weight capacity for our specific mold racks system?​​
Our engineering process is intensely data-driven. We require a detailed inventory of your specific molds, including their weights, dimensions, and center of gravity. We don’t use averages; we design the system to handle your single heaviest mold in its specific stored position. Our calculations account for both the uniformly distributed load (UDL) and the critical point load capacity of the beams and decks, always applying a significant safety factor (often 3:1 or higher) to ensure absolute integrity under dynamic load conditions, such as the impact of a mold being placed by a forklift.

​​Q2: Can your mold racks systems be reconfigured or expanded as our mold inventory changes and grows?​​
Absolutely. A core advantage of our modular, boltless structural design is its inherent flexibility. Beams can be easily unlatched and relocated up and down the upright frames to adjust shelf heights as your mold inventory changes. Entire sections can be added, relocated, or reconfigured to accommodate new aisles or storage zones. This future-proofing is a standard part of our design philosophy, ensuring your investment continues to deliver value as your business evolves.

​​Q3: What specific floor preparation is required for installing a heavy-duty mold racks system?​​
The facility floor must be level and possess a minimum compressive strength to support the immense concentrated loads. We perform a thorough floor evaluation during our initial site survey. While most standard industrial concrete slabs (4-6 inch thickness, 3,500-4,000 PSI strength) are sufficient, for exceptionally heavy loads or mezzanine structures, we may recommend specific reinforcement or footing details. These requirements will be clearly outlined in our engineered design drawings and installation plan.

​​Q4: How does the technical integration between mold racks and AGVs/ASRS work in practice?​​
The integration occurs at the software and control system level, creating a seamless digital thread. Our automated storage systems (ASRS) are managed by a sophisticated Warehouse Management System (WMS) or Warehouse Control System (WCS). This software communicates directly with your broader Manufacturing Execution System (MES) or ERP.

When a production order is scheduled, the MES sends a request to the WMS for a specific mold. The WMS directs the ASRS to retrieve it and deliver it to a designated pick-up station. It can then send a command to an AGV fleet management system to dispatch a vehicle to that station for transport. This seamless, automated data flow is the key to achieving a true “lights-out” material handling operation.

​​Q5: Do you offer specialized protective coatings or treatments for mold racks in environments with high humidity or chemical exposure?​​
Yes, we offer several advanced finish options for harsh environments. Beyond our standard robust powder coating, we can specify powder coats with enhanced chemical-resistant properties to withstand exposure to oils, solvents, and other agents common in molding facilities. For the most extreme conditions, such as certain plastic molding processes or coastal facilities where salt air corrosion is a constant threat, we recommend hot-dip galvanizing. This process provides a thick, sacrificial zinc coating that offers superior, long-term corrosion protection for the entire mold racks structure.
