Why Heavy-Duty Pallet Racking is the Backbone of Modern Warehousing
In today’s fast-moving logistics landscape, heavy-duty pallet racking has become the foundation of efficient warehouse operations. Unlike standard shelving systems, heavy-duty pallet racking is engineered to withstand extreme weights, high-frequency forklift traffic, and demanding storage environments.
For warehouse managers, supply chain directors, and industrial engineers, selecting the right heavy-duty pallet racking system isn’t just about storage—it’s about maximizing space, ensuring safety, and future-proofing operations. This guide dives deep into the engineering, selection, and optimization of heavy-duty pallet racking, providing actionable insights for businesses that demand durability, scalability, and compliance.
1. What Defines True Heavy-Duty Pallet Racking?

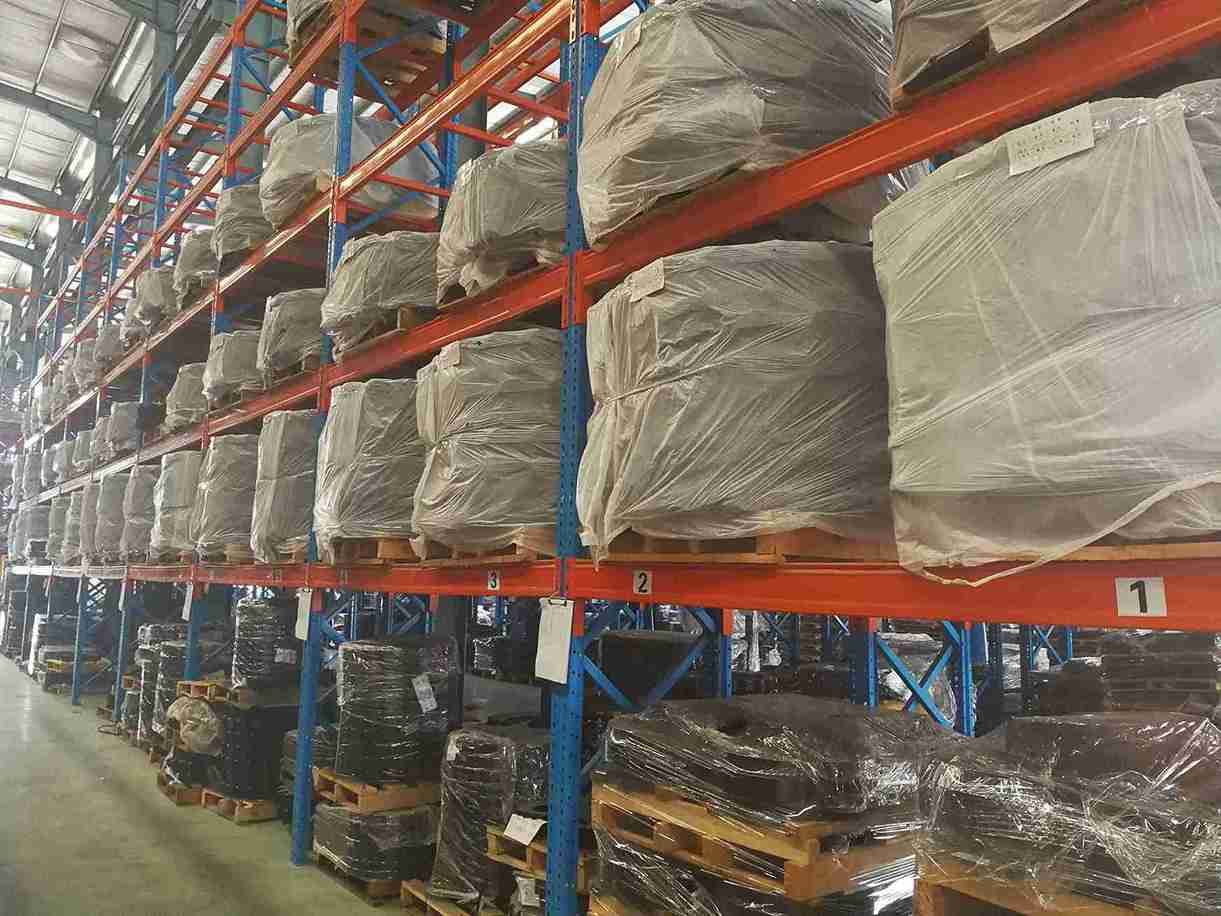

1.1 The Structural Difference Between Standard and Heavy-Duty Systems
Not all pallet racking is created equal. While standard racking may support 2,000–3,000 lbs per shelf, true heavy-duty pallet racking is built for:
- Load capacities exceeding 5,000 lbs per beam
- Seismic and high-wind resistance (RMI-ANSI MH16.1 certified)
- Industrial-grade steel (12-gauge to 3/16″ thickness)
A heavy-duty pallet racking system is designed to endure decades of heavy use without structural fatigue, making it essential for:
✔ Automotive parts warehouses (engine blocks, transmissions)
✔ Beverage distribution centers (full pallets of bottled liquids)
✔ Steel and metal fabrication plants (coils, sheet metal)
1.2 Key Components of Heavy-Duty Pallet Racking
Every heavy-duty pallet racking system relies on three critical structural elements:

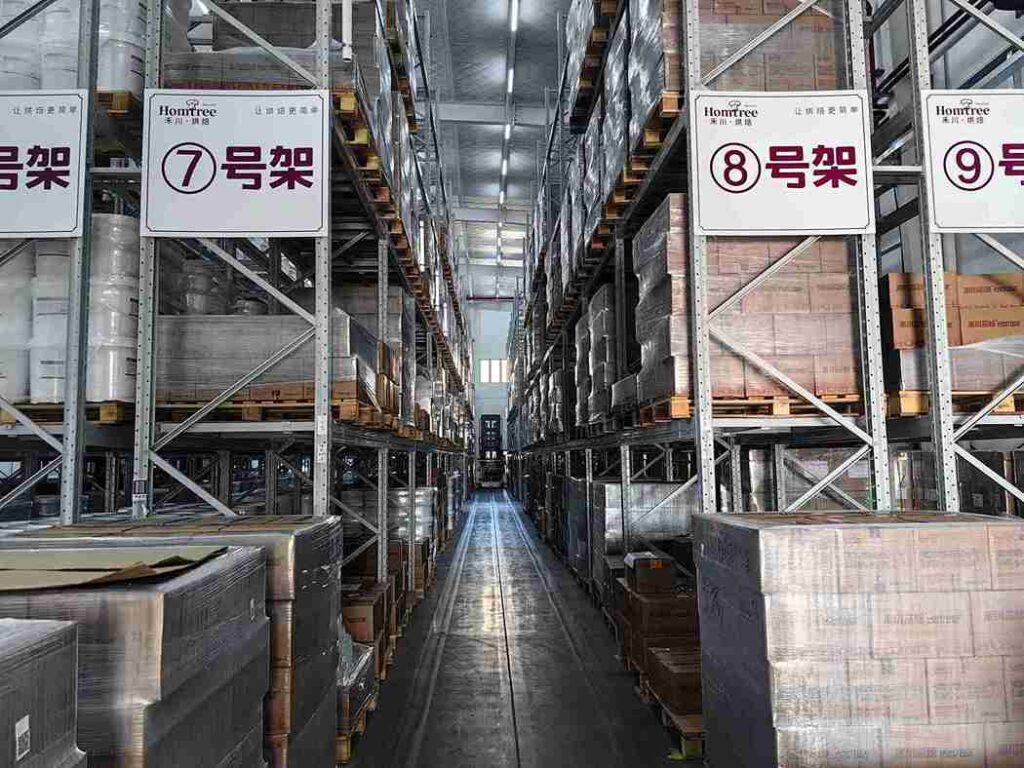

- Upright Frames
- Material: High-tensile steel (minimum 12-gauge)
- Design: Reinforced crossbars for lateral stability
- Safety feature: Laser-cut anchor holes for seismic bracing
- Beam Construction
- Box beams vs. step beams: Box beams offer superior weight distribution
- Load ratings: Standard beams (3,000–5,000 lbs) vs. heavy-duty beams (8,000–12,000 lbs)
- Base Plates & Anchoring
- Minimum requirement: 1/2″ thick steel base plates
- Seismic zones: Epoxy-anchored bolts (per IBC 2018 standards)
2. The 5 Best Heavy-Duty Pallet Racking Systems for Industrial Use

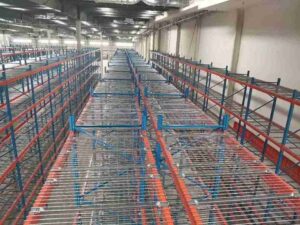

2.1 Selective Pallet Racking (The Workhorse of Heavy-Duty Storage)
Best for: Warehouses with high SKU variety and frequent access needs
- Load capacity: 3,000–10,000 lbs per shelf
- Key advantage: Adjustable beam heights (no tools required)
- Industry case: A Midwest auto parts distributor increased storage efficiency by 27% after switching to heavy-duty selective racking.

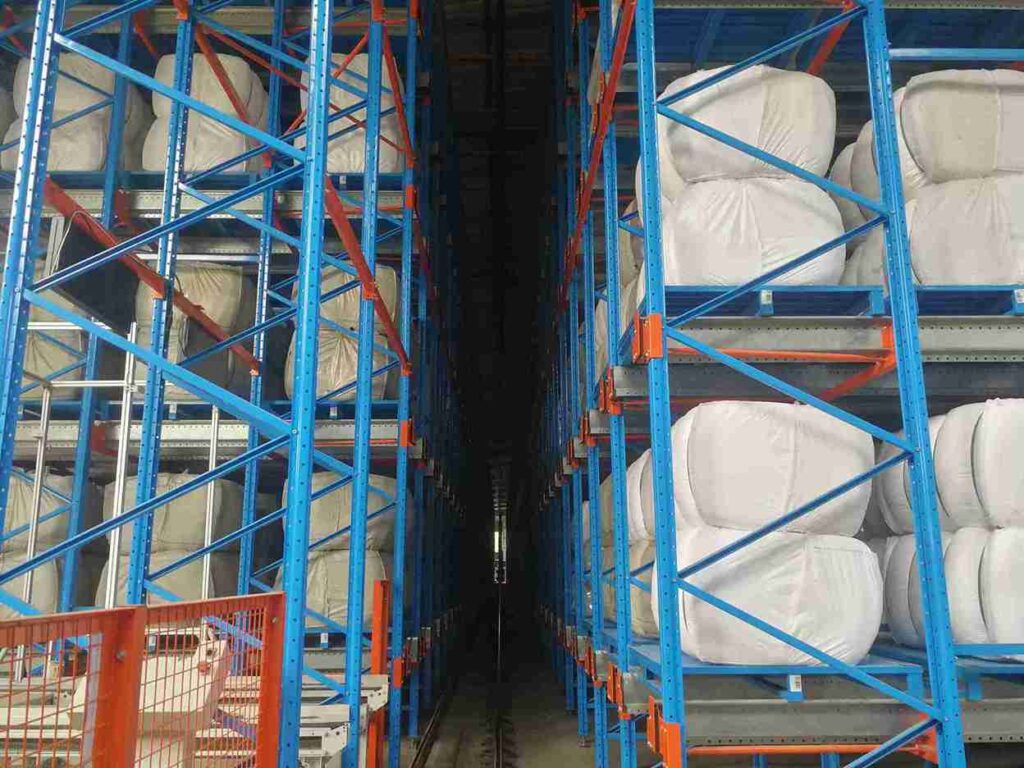

2.2 Drive-In & Drive-Thru Racking (Maximum Storage Density)

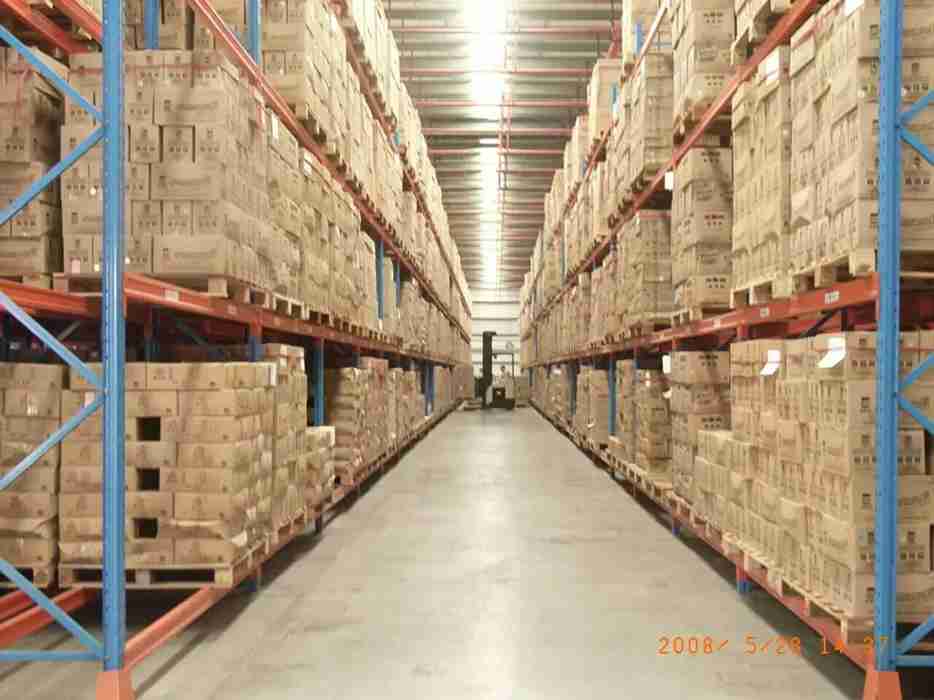

Best for: Cold storage, beverage, and bulk goods warehouses
- Load capacity: 4,500–6,000 lbs per pallet position
- Critical safety note: Requires trained reach truck operators
- Real-world example: A Coca-Cola bottling plant reduced aisle space by 40% using heavy-duty drive-in racking.
2.3 Push-Back Racking (High-Density LIFO System)
Best for: Warehouses with medium-to-high turnover rates
- Dynamic cart system: Holds 2–6 pallets deep
- Weight limits: 4,500–8,000 lbs per lane
- Maintenance tip: Quarterly roller lubrication prevents jams
2.4 Pallet Flow Racking (Automated FIFO Storage)
Best for: Perishable goods, pharmaceuticals, and high-volume fulfillment
- Gravity-fed rollers: Minimize forklift travel time
- Load capacity: 3,000–6,000 lbs per pallet
- Success story: An Amazon fulfillment center cut picking time by 22% with heavy-duty flow racking.
2.5 Cantilever Racking (For Oversized & Irregular Loads)
Best for: Steel coils, lumber, and piping
- Arm extensions: 6 ft to 20 ft lengths
- Weight handling: Up to 12,000 lbs per arm
- Safety must: Always use backstops to prevent roll-through
3. How to Calculate Load Capacity for Heavy-Duty Pallet Racking
3.1 Static vs. Dynamic Load: Why It Matters
- Static load = Weight when stationary (e.g., stored pallets)
- Dynamic load = Weight + forklift impact forces (add 20% buffer)
Example calculation:
If pallets weigh 4,000 lbs each, the heavy-duty pallet racking system must handle:
4,000 lbs × 1.2 (safety factor) = 4,800 lbs per shelf
3.2 Common Load Capacity Mistakes That Lead to Collapses
❌ Assuming “rated capacity” = safe working load (always deduct 15–20%)
❌ Ignoring beam deflection limits (max L/180 deflection ratio)
❌ Mixing beam types (e.g., using lighter beams in lower bays)
4. Warehouse Optimization: Getting the Most from Heavy-Duty Pallet Racking
4.1 Narrow-Aisle Configurations (VNA Racking)
- Aisle width: 5–6 ft (vs. 12 ft conventional)
- Equipment needed: Narrow-aisle forklifts or articulated trucks
- ROI example: A Texas logistics firm saved $140,000/year in labor costs after switching to heavy-duty VNA racking.
4.2 Cross-Docking Integration
- Hybrid layouts: Combine heavy-duty pallet racking with flow-through lanes
- Best practice: Use color-coded beams for inbound/outbound zones

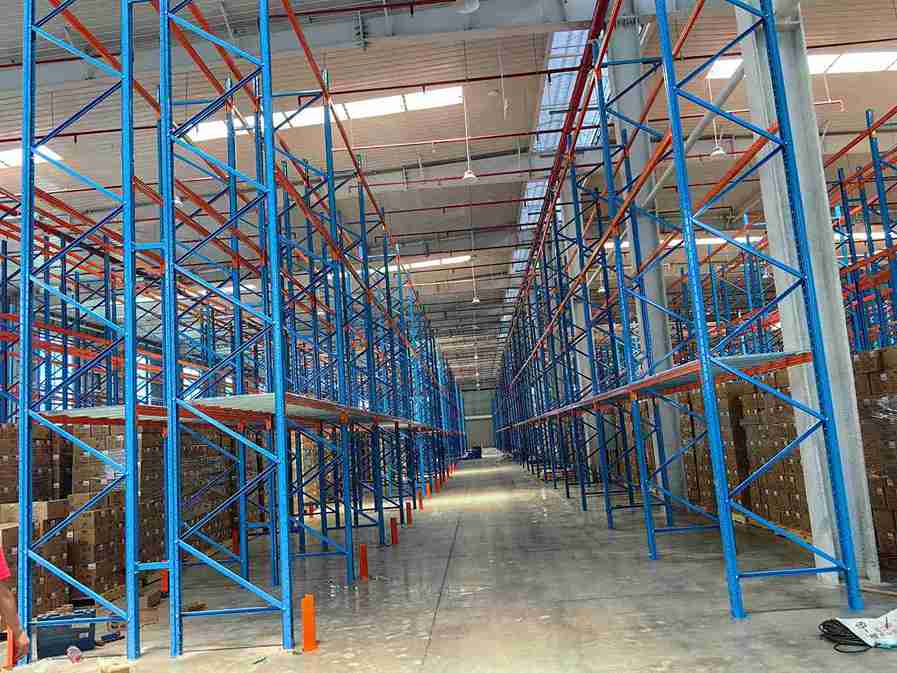

4.3 Automation Compatibility (AS/RS & Robotics)
- Critical specs:
- Beam height tolerance: ±1/8″ for robotic pallet handlers
- Frame alignment: Laser-guided installation required
5. Safety & Compliance: Avoiding Costly Heavy-Duty Racking Failures
5.1 OSHA & RMI Inspection Checklist
✅ Annual professional inspection (RMI-certified auditor)
✅ Check for beam deflection (use a straightedge tool)
✅ Verify anchor bolt torque (per manufacturer specs)
5.2 Seismic Zone Requirements (California, Japan, Chile)
- Zone 4 (High Risk):
- Base plates must resist 0.6g lateral forces
- X-bracing mandatory on all upright frames
6. How to Choose a Heavy-Duty Pallet Racking Supplier
6.1 7 Must-Ask Questions

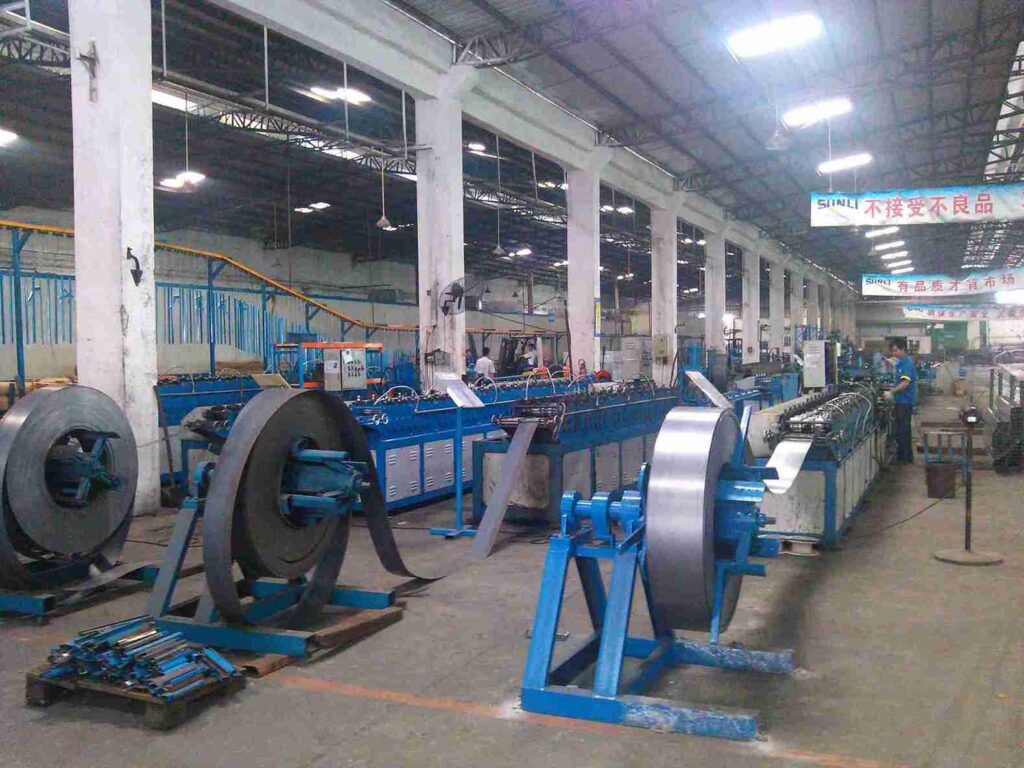

- ”What’s your steel sourcing process?” (Avoid cheap imported steel)
- ”Can you provide third-party load test reports?”
- ”What’s your lead time for emergency replacements?”
6.2 Red Flags in Heavy-Duty Racking Quotes
🚩 No seismic certification
🚩 Vague warranty terms (look for 15+ years)
🚩 Unwillingness to share client references
Conclusion: Why Heavy-Duty Pallet Racking is a Long-Term Investment
For industrial warehouses, heavy-duty pallet racking isn’t an expense—it’s a strategic asset. The right system can:
✔ Boost storage density by 30–50%
✔ Reduce forklift damage and downtime
✔ Ensure compliance with OSHA and seismic codes
Companies that invest in heavy-duty pallet racking see ROI within 2–3 years through improved efficiency and safety.
FAQs
Q1: How long does heavy-duty pallet racking last?
A: With proper maintenance, 20–30 years—far longer than standard racking.
Q2: Can I modify existing racking to be heavy-duty?
A: No. Heavy-duty pallet racking requires engineered frames—retrofitting is unsafe.
Q3: What’s the cost difference vs. standard racking?
A: Expect 25–50% higher upfront cost, but 3–5x longer lifespan.
Q4: How do I know if my floor can support heavy-duty racks?
A: Conduct a concrete core test—minimum 4,000 PSI for heavy loads.
Q5: What’s the #1 cause of heavy-duty racking failures?
A: Forklift collisions—always install column guards in high-traffic areas.
This guide arms warehouse professionals with the technical knowledge to select, optimize, and maintain heavy-duty pallet racking systems. For a custom storage analysis, request a consultation with our engineering team today. 🚀
