In the high-stakes world of manufacturing and tooling, mold management is not just a storage issue—it’s a critical business operation. Inefficient storage leads to lost time, damaged assets, and crippling production delays. This definitive guide is designed for plant managers, warehouse operators, and tooling engineers who are ready to transform their storage from a liability into a competitive advantage. We will delve deep into the engineering, benefits, and selection criteria of the industry’s most efficient storage solution: the ​​heavy-duty drawer type mold rack​​.

This isn’t just about putting molds on a shelf; it’s about implementing a system that ​​maximizes your valuable floor space​​ to its absolute potential and ​​provides unparalleled protection​​ for your high-value molds and dies. By understanding the intricacies of drawer-style storage, you can make an informed decision that boosts productivity, safety, and your bottom line.

The Critical Challenge of Modern Mold Storage

For decades, the standard for mold storage was the traditional shelving unit or simple racking. While functional in a basic sense, these systems present a cascade of operational inefficiencies that cost companies thousands of dollars annually in lost productivity and avoidable damage. The search for a superior method is what leads savvy operations managers to the advanced ​​drawer type mold rack​​ as the definitive solution.

The Hidden Costs of Traditional Shelving

When a mold is stored on a standard shelf, it is immediately exposed to a host of risks. Dust, dirt, and moisture settle directly on the critical surfaces, leading to corrosion and premature wear that can compromise part quality. Furthermore, retrieving a mold from the back of a deep shelf often requires moving other heavy, expensive molds out of the way—a dangerous and time-consuming process that increases the risk of drops and collisions. This “nesting” of molds also makes it incredibly difficult to maintain an accurate inventory, leading to situations where a mold is “lost” in plain sight, bringing a production line to a halt.

The vertical space above each shelf is typically wasted, and the footprint of the shelving unit itself often becomes a sprawling maze that dominates the warehouse floor. This is the exact set of problems a purpose-built ​​drawer type mold rack​​ is engineered to eliminate.

Why Molds Deserve More Than a Shelf

Molds and dies are among the most valuable and precision-engineered assets in a manufacturing operation. Their surface finish, dimensional accuracy, and structural integrity are paramount. They are not simply “stock”; they are the heart of your production process. Treating them as such requires a storage solution designed specifically for their protection and efficient handling. This fundamental understanding is why investing in a high-quality ​​drawer type mold rack​​ is seen not as an expense, but as a strategic investment in protecting core manufacturing capital. The return on this investment is measured in extended mold life, reduced downtime, and flawless production runs.

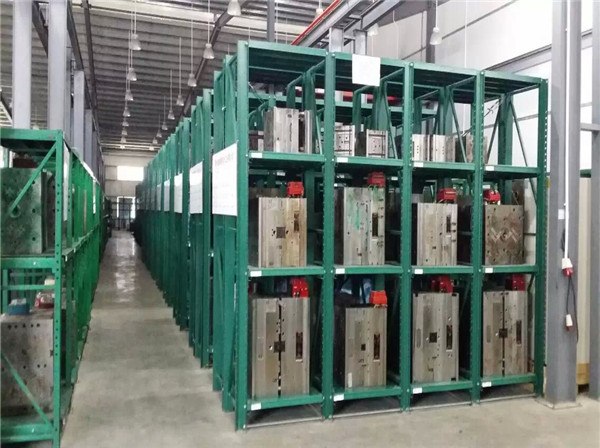

What is a Heavy-Duty Drawer Type Mold Rack?

A ​​heavy-duty drawer type mold rack​​ is a high-capacity, specialized storage system designed to store molds, dies, and other heavy tooling in vertically stacked, fully enclosed drawers. Unlike conventional shelving, each drawer operates independently on a robust roller or bearing system, allowing full access to even the heaviest loads with minimal effort. This unique design philosophy transforms storage from a static activity into a dynamic, efficient process.

Core Components and Engineering

The superiority of a professional-grade ​​drawer type mold rack​​ lies in its meticulous construction and choice of materials. Every component is over-engineered for performance and safety.

• ​​Heavy-Gauge Steel Frame:​​ The backbone of any reliable ​​drawer type mold rack​​ is a frame constructed from reinforced structural steel, typically with a powder-coated finish to resist industrial corrosion, oils, and chemicals. The integrity of this frame dictates the entire system’s safety and load-bearing capacity.

  ​​Individual Drawers:​​ Each drawer in a ​​drawer type mold rack​​ is a self-contained unit with high-weight-capacity sides and base. Drawers can often be configured with dividers, liners, or custom cradles to perfectly accommodate specific mold shapes and sizes, preventing any movement during storage.

  ​​Advanced Load Rollers:​​ The heart of the drawer movement is a system of heavy-duty rollers or ball bearings engineered to carry extreme loads—often up to 4,000 lbs (1,800 kg) or more per drawer—smoothly and safely with minimal effort from the operator. The quality of this mechanism is what separates a premium ​​drawer type mold rack​​ from an inferior imitator.

  ​​Integrated Safety Systems:​​ Features like automatic sequential drawer locks (preventing multiple drawers from being opened simultaneously and tipping the unit), safety stops, and reinforced structures are non-negotiable, standard features on any quality ​​drawer type mold rack​​ unit.

How It Works: A Revolution in Accessibility

The operational principle of a ​​drawer type mold rack​​ is simple yet revolutionary. Instead of needing overhead cranes or forklifts to dig through a stacked shelf, an operator simply pulls open a single drawer at waist level. The mold is presented safely within its enclosed space, ready for easy, secure lifting via a bridge crane or hoist. Once the mold is removed, the drawer is closed, and the space is consolidated. This “shopping cart” style of storage, inherent to a well-designed ​​drawer type mold rack​​, maximizes both density and accessibility, a combination traditional shelving cannot achieve.

Unlocking Efficiency: How Drawer Racks Maximize Your Space

The ability to ​​maximize space​​ is the most immediately quantifiable benefit of implementing a ​​drawer type mold rack​​ system. This is achieved through two primary means: vertical density and footprint consolidation, fundamentally changing the storage economics of a facility.

Vertical Storage Density

Traditional shelving is limited by the reach of an operator. A ​​drawer type mold rack​​, however, utilizes the full cubic volume of your facility from floor to ceiling. By stacking drawers vertically—often six, eight, or even ten high—you can store the same number of molds in a fraction of the floor space. This effectively doubles or triples your storage capacity within the same square footage, freeing up valuable real estate for other production activities or future expansion. The vertical design of a ​​drawer type mold rack​​ is a direct answer to the problem of sprawling, inefficient horizontal storage.

Eliminating Aisles and Wasted Space

With traditional racking, wide aisles are necessary to allow for forklift access to reach molds stored deep within a bay. A ​​drawer type mold rack​​ requires only a single operator’s aisle, as every mold is brought to the front of the unit when its drawer is opened. This drastic reduction in aisle space translates directly into a denser, more efficient storage layout. The space savings realized by adopting a ​​drawer type mold rack​​ are often so significant that they can delay or even eliminate the need for costly facility expansions.

Case Study: From Chaos to Control with a Drawer Type Mold Rack

Consider a mid-sized injection molder that stored 50 molds on traditional shelving spread across 600 square feet of floor space. By switching to a single, multi-level ​​drawer type mold rack​​, they consolidated that storage into a system with a footprint of just 150 square feet—a 75% reduction in floor space usage. This reclaimed 450 square feet was then repurposed for a new quality control station, directly contributing to increased throughput and product quality. The ​​drawer type mold rack​​ didn’t just store tools; it created new productive space.

The Ultimate Protection for Your Valuable Tooling

Beyond space savings, the paramount function of a ​​drawer type mold rack​​ is to ​​protect molds​​. The enclosed nature of the drawers provides a comprehensive shield against the most common sources of mold damage, preserving their value and ensuring consistent production quality.

Shielding from Environmental Contaminants

Each drawer in a ​​drawer type mold rack​​ acts as a dedicated protective barrier. When closed, the mold is sealed away from airborne dust, dirt, grinding particulates, and humidity. This dramatic reduction in exposure lowers the need for frequent cleaning and repolishing, preserves critical tolerances, and extends the service life of the mold significantly. For companies in particularly harsh environments, optional seal kits can be added to a ​​drawer type mold rack​​ to create a near-hermetic seal, offering protection that open shelving could never provide.

Preventing Physical Damage and Accidents

The “one drawer open at a time” safety feature, standard on any reputable ​​drawer type mold rack​​, is a game-changer for asset protection. It eliminates the risk of molds being knocked off a shelf or colliding with each other during retrieval. Molds are stored securely within the drawer, often on custom non-slip liners or padding, preventing surface scratches and dings that can lead to flawed finished parts. This reduction in handling damage directly lowers maintenance costs and mold refurbishment expenses, making the ​​drawer type mold rack​​ a key component in reducing the total cost of ownership for your tooling.

Organized Inventory for Enhanced Longevity

A ​​drawer type mold rack​​ provides a dedicated, labeled space for each mold, which prevents the dangerous and damaging practice of stacking or nesting. Proper support points are maintained within each drawer of the ​​drawer type mold rack​​, preventing stress fractures and deformation in the mold base over time. This level of organization, which is simply impossible to achieve reliably with open shelving, ensures that every mold is always stored correctly, ready for its next production run without any preparatory maintenance or repair.

Key Considerations When Choosing Your Heavy-Duty Drawer Rack

Selecting the right ​​drawer type mold rack​​ is not a one-size-fits-all process. It requires a careful analysis of your specific operational needs, mold portfolio, and facility constraints to ensure the system delivers maximum value.

Assessing Your Load Requirements

The first and most critical step is to understand the weight of your heaviest mold. ​​Heavy-duty drawer type mold rack​​ systems are rated for drawer capacities that can range from 1,000 lbs to 10,000 lbs or more. You must choose a unit whose per-drawer capacity exceeds the weight of your single heaviest item. Remember to factor in the weight of any custom cradles or trolleys that will reside in the drawer. Underestimating this requirement is the single biggest mistake when specifying a ​​drawer type mold rack​​. Reputable suppliers will insist on a thorough weight audit before recommending a specific model.

Configuring Drawer Layout and Size

The physical dimensions of your molds will dictate the size and configuration of the drawers you need in your ​​drawer type mold rack​​. Consider the length, width, and height of your largest mold. Do you have many small, delicate inserts? A system with numerous smaller drawers might be ideal. Do you have long, cylindrical molds? A system with extra-deep, full-extension drawers would be necessary. The most flexible systems offer adjustable drawer heights, allowing you to customize the interior space of your ​​drawer type mold rack​​ as your inventory changes over time, providing long-term adaptability.

Prioritizing Safety and Ergonomic Features

Never compromise on safety when evaluating a ​​drawer type mold rack​​. Ensure the system includes:

• ​​Automatic Sequential Locking:​​ A non-negotiable feature that prevents more than one drawer from being opened at a time, maintaining the center of gravity and preventing tip-overs.

  ​​Full Extension Drawer Slides:​​ Allows the entire drawer to be accessed, not just the front half, ensuring safe and easy lifting from the center of the load.

  ​​Integrated Labeling Systems:​​ Tags, clipboards, or RFID options for flawless inventory tracking directly on the ​​drawer type mold rack​​.

  ​​Protective Drawer Liners:​​ Non-slip, resilient surfaces to cushion molds and prevent shifting and surface damage during storage.

Beyond the Rack: Integrating with Your Material Handling Systems

A ​​drawer type mold rack​​ does not exist in a vacuum. Its effectiveness is multiplied when integrated seamlessly with your existing material handling equipment, creating a cohesive and highly efficient workflow.

Working with Overhead Cranes and Hoists

The ideal workflow involves strategically positioning your ​​drawer type mold rack​​ within the coverage area of a bridge or gantry crane. This allows an operator to open a drawer, use the crane to lift the mold effortlessly from the waist-level presentation, and transport it directly to the press. This eliminates manual lifting, reduces the risk of injury, and speeds up changeover times dramatically. The design of a ​​drawer type mold rack​​ is perfectly complementary to overhead crane systems, making them a natural pairing in any serious tooling operation.

The Role of AGVs and Forklifts

For facilities using Automated Guided Vehicles (AGVs) or certain types of forklifts, the ​​drawer type mold rack​​ system can be designed with appropriate clearances. While the primary retrieval is manual, the overall movement of molds from the ​​drawer type mold rack​​ storage area to production can still be automated, creating a seamless flow that reduces manual labor and streamlines the logistics chain.

The Total Cost of Ownership: Investment vs. Return

A high-quality ​​heavy-duty drawer type mold rack​​ system is a significant capital investment. However, the ROI is calculated not just on the price of the unit, but on the total cost of ownership (TCO) of your current storage method. The ​​drawer type mold rack​​ should be viewed as a cost-saving asset, not just a storage container.

Quantifying the Savings

Justify the investment by calculating the cost of:

• ​​Floor Space:​​ What is the value of the square footage you will reclaim? (e.g., cost per sq ft/ meter of industrial space).

  ​​Labor:​​ How many man-hours are wasted weekly searching for and retrieving molds? (Calculate fully burdened labor rates).

  ​​Mold Damage:​​ What is your annual budget for mold repair, refurbishment, and premature replacement due to handling damage?

  ​​Downtime:​​ What is the cost per hour of a production line sitting idle because a mold is lost or damaged?

When these factors are tallied, the payback period for a ​​drawer type mold rack​​ system is often surprisingly short, typically measurable in just a few years, after which it becomes a continuous source of savings and profit protection. The ​​drawer type mold rack​​ pays for itself by eliminating costs you already have.

Implementing Your New Storage System: A Step-by-Step Plan

A successful implementation of a ​​drawer type mold rack​​ requires careful planning and execution. Rushing this process can lead to suboptimal results.

1. 1.​​Inventory Audit:​​ Meticulously catalog every mold—its dimensions, weight, and frequency of use. This data is essential for configuring your new ​​drawer type mold rack​​.
2. 2.Floor Plan Design:​​ Work closely with your vendor’s engineering team to design the optimal layout, ensuring proper crane access, workflow efficiency, and compliance with all safety clearances around the ​​drawer type mold rack​​.
3. 3.​​Site Preparation:​​ Ensure your facility’s concrete slab is of sufficient thickness and compressive strength to support the concentrated load of a fully loaded ​​drawer type mold rack​​ system. This may require a professional assessment.
4. 4.​​Professional Installation:​​ Have the system installed by certified professionals to ensure it is level, plumb, and secure. Proper installation is critical to the safety and performance of your ​​drawer type mold rack​​.
5. 5.​​Training and Rollout:​​ Train your team on the new safety protocols, retrieval procedures, and inventory management practices associated with the new ​​drawer type mold rack​​ system.

Conclusion: Transforming Storage into a Strategic Advantage

Upgrading to a ​​heavy-duty drawer type mold rack​​ is more than a purchase; it’s a strategic decision to optimize a fundamental part of your manufacturing operation. It is the definitive solution for any business serious about protecting its valuable capital assets, maximizing the efficiency of its facility, and empowering its workforce with a safer, more ergonomic environment.

The move from chaotic, inefficient shelving to an organized, high-density ​​drawer type mold rack​​ system represents a leap in professionalism, productivity, and operational control. It is an investment that pays dividends every single day in found time, saved space, and preserved tooling. The ​​drawer type mold rack​​ is not just a place to put things; it is a platform for greater efficiency and profitability.

Frequently Asked Questions (FAQs)

​​Q1: Can drawer type mold racks be customized for unusually shaped or exceptionally long molds?​​

Absolutely. Reputable manufacturers offer extensive customization for a ​​drawer type mold rack​​. This can include creating extra-deep drawers, designing drawers with open ends for long molds, or fabricating custom internal cradles and supports to hold specific, irregularly shaped tooling securely and safely. A standard ​​drawer type mold rack​​ offers great flexibility, but a custom-configured ​​drawer type mold rack​​ can solve virtually any unique storage challenge.

​​Q2: How does the weight capacity work? If one drawer is rated for 4,000 lbs, is the entire unit rated for that times the number of drawers?​​

No, this is a critical distinction. The per-drawer capacity (e.g., 4,000 lbs) is the maximum weight each individual drawer in the ​​drawer type mold rack​​ can hold. The overall unit capacity is a separate figure, calculated by the manufacturer based on the structure’s design. A six-drawer ​​drawer type mold rack​​, each rated for 4,000 lbs, will have an overall capacity significantly higher than 24,000 lbs, as the structure is engineered to handle a fully loaded condition. The manufacturer’s specifications for the complete ​​drawer type mold rack​​ are the ultimate authority.

​​Q3: Are there any specific foundation or floor requirements for installing these heavy drawer type mold racks?​​

Yes. A ​​drawer type mold rack​​ is an extremely dense load system. It is imperative to ensure your facility’s concrete slab is of sufficient thickness and compressive strength to support the point loads of the rack’s legs, especially when the ​​drawer type mold rack​​ is fully loaded. A professional installer or structural engineer should always evaluate this beforehand. Most manufacturers of a ​​drawer type mold rack​​ provide load concentration data for this purpose.

​​Q4: We use RFID for asset tracking. Can these drawer type mold rack systems be integrated?​​

Yes, integration is highly recommended and a common upgrade for a modern ​​drawer type mold rack​​. RFID tags can be mounted on the molds, and readers can be installed on the rack itself or used with a handheld scanner. This allows for instant inventory checks, logging of mold movement from the ​​drawer type mold rack​​, and seamless integration into a broader Manufacturing Execution System (MES) for ultimate traceability and control.

​​Q5: What kind of maintenance do heavy-duty drawer type mold racks require?​​

Maintenance for a ​​drawer type mold rack​​ is minimal but important. It primarily consists of periodic visual inspections of the structural integrity and the drawer movement mechanisms. The roller or bearing systems on the ​​drawer type mold rack​​ should be kept clean and free of debris and may occasionally require lubrication as specified by the manufacturer. An annual check of all safety locks and bolts on your ​​drawer type mold rack​​ is also advised to ensure long-term reliability and safety.
