The New Paradigm in Industrial Logistics

The landscape of global commerce is shifting at a breathtaking pace, placing unprecedented pressure on the very heart of the supply chain: the warehouse. For decades, these facilities operated on principles of manual labor and mechanical handling, but a convergence of challenges—skyrocketing real estate costs, a volatile labor pool, and the insatiable consumer demand for speed and accuracy—has rendered these traditional models obsolete. The solution is no longer a matter of working harder or adding more staff; it requires a fundamental re-engineering of the storage and retrieval process itself.

This definitive guide explores the transformative potential of the modern fully automated storage system, a sophisticated synergy of robotics, software, and high-density infrastructure designed to deliver quantifiable, monumental gains. We will dissect how a strategically implemented fully automated storage system is engineered to achieve a 200% increase in storage density and a 200% improvement in order accuracy, translating directly to a dominant competitive advantage, radical cost reduction, and a future-proof operational model.

1、The Breaking Point: Why Traditional Warehousing Models Are Failing

To understand the necessity of a fully automated storage system, one must first appreciate the critical inefficiencies plaguing conventional warehouses. The old model is a complex dance of forklifts, pickers, and paper lists, a dance fraught with inherent limitations. The physical footprint is used inefficiently, with wide aisles necessary for forklift navigation consuming valuable square footage. Productivity is capped by human endurance and the sheer time spent traversing vast distances. Most critically, accuracy is perpetually at the mercy of human fallibility, where a moment’s distraction can lead to a costly mis-pick.

The financial implications are staggering. The true cost of a picking error extends far beyond the product itself; it encompasses return shipping, restocking labor, lost shipment costs, and the irreversible erosion of customer trust and brand reputation. Similarly, the cost of unused vertical space is a silent profit killer. In an era where industrial real estate is a premium asset, utilizing only 25-30% of a facility’s available cubic volume is an unsustainable luxury. This operational crisis creates a clear imperative: evolve or be left behind. The transition to a fully automated storage system is not merely an upgrade; it is the essential evolution for survival and growth in the modern market.

2、Beyond the Hype: The Tangible Mechanics of a 200% Performance Surge

The promise of a 200% improvement is a compelling headline, but it is grounded in concrete engineering and data-driven outcomes. This level of performance is the direct result of designing a fully automated storage system to eliminate the core constraints of manual operation.

Achieving a 200% increase in storage density is a function of physics and precision. A traditional warehouse requires aisles that are 10-12 feet wide to accommodate a forklift’s turning radius. A fully automated storage system utilizes retrieval machines—such as automated cranes or shuttles—that operate on tracks within aisles as narrow as 5-6 feet. Some advanced systems are entirely aisle-free, using rotating cabinets or vertical lift modules (VLMs) that present items directly to an operator. This engineering approach alone can instantly double or triple the available storage positions within the same square footage. The system leverages the entire vertical cube of the building, safely storing goods up to the ceiling, a space that is typically wasted in a manual environment.

A 200% improvement in order accuracy is achieved by systematically removing human error from the fulfillment equation. In a fully automated storage system, the process is dictated by a central brain—the Warehouse Execution System (WES). The WES sends a digital command to a robotic retriever, directing it to a specific, millimeter-precise location. Integrated scanners confirm the identity of the bin or tote before retrieval. The item is then transported, often via autonomous mobile robots (AMRs), to a workstation where guided light systems or robotic arms assist or complete the pick.

At no point does a human have to read a paper, guess a location, or identify a product by sight. The result is a shift from a 97-98% accuracy rate to a consistent, auditable 99.99%+ accuracy, effectively eliminating the six-figure costs associated with returns and shipping errors.

3、The Architectural Marvel: Deconstructing a Fully Automated Storage System

A best-in-class fully automated storage system is not a single product but a seamlessly integrated ecosystem. Each component plays a critical role in achieving the system’s overall performance objectives. Understanding these components is key to appreciating the sophistication of the entire operation.

3.1、The Physical Framework: High-Density Storage Solutions

The foundation of any fully automated storage system is its physical structure, which is radically different from standard pallet racking.

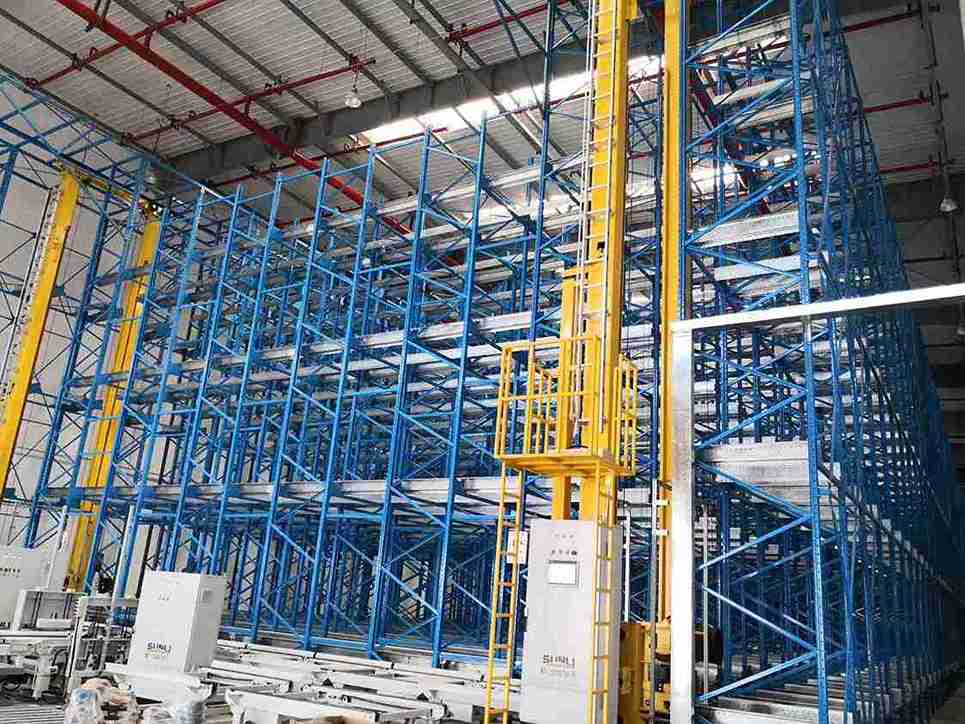

• Automated Storage and Retrieval Systems (AS/RS): This is the cornerstone of density. Pallet AS/RS machines are high-bay cranes that operate within a fixed aisle, storing and retrieving loads at heights exceeding 100 feet. Mini-load AS/RS systems handle smaller loads in bins or totes, making them ideal for e-commerce and parts handling. The design of an ASRS-based fully automated storage system is predicated on eliminating wasted aisle space.

• Vertical Lift Modules (VLMs) and Vertical Carousels: These are the ultimate space-savers for smaller, high-SKU-count inventory. These enclosed systems consist of vertically arranged trays that rotate to bring items directly to an operator at an ergonomic “pick-to-light” window. This technology is a powerhouse for increasing pick rates and accuracy within a tiny footprint, a key feature of a versatile fully automated storage system.

• 3D Shuttle Systems: Representing the cutting edge, these systems use independent robotic shuttles that run on rails at different levels within a storage grid. They can move horizontally and vertically, accessing any storage location with incredible speed and flexibility, making them one of the most dynamic forms of a fully automated storage system.

3.2、The Robotic Workforce: Mobility and Manipulation

The movement of goods within the fully automated storage system is handled by a fleet of robotic vehicles.

• Autonomous Mobile Robots (AMRs): These are the intelligent, flexible transporters of the modern warehouse. Unlike their predecessors (AGVs), which follow fixed paths, AMRs use onboard sensors, cameras, and sophisticated mapping software to navigate dynamically. They can avoid obstacles, replan routes on the fly, and integrate safely with human workers, providing unparalleled flexibility in a fully automated storage system.

• Automated Guided Vehicles (AGVs): For predictable, high-volume, point-to-point transport of heavy loads (like full pallets), AGVs remain a robust and reliable solution. They are often integrated into the fully automated storage system for specific tasks like moving received pallets to the AS/RS induction point.

• Robotic Palletizers and Piece-Picking Robots: Robotic arms equipped with advanced vision systems and adaptive grippers can now handle the complex task of identifying, grasping, and placing individual items. This technology is rapidly evolving to manage a vast array of product shapes and sizes, further automating the final mile of the order fulfillment process within the fully automated storage system.

3.3、The Intelligent Core: Warehouse Execution System (WES)

The hardware is powerful, but it is nothing without its intelligence. The WES is the central nervous system of the entire fully automated storage system. It is a sophisticated software platform that goes far beyond a traditional Warehouse Management System (WMS) by directly commanding and orchestrating the automated equipment in real-time.

The WES receives orders from the host ERP or WMS. It then makes intelligent, micro-second decisions: Which robot is closest? Which has the most battery? What is the most efficient sequence to batch these orders? It optimizes the travel paths of hundreds of devices simultaneously to prevent traffic jams and minimize cycle times. It provides a real-time, holistic view of the entire operation, offering data and analytics that drive continuous improvement. The selection and configuration of the WES are arguably the most critical step in designing an effective fully automated storage system.

4、The Engine of Perfection: How Automation Guarantes Near-Zero Error Rates

The journey to 99.99% accuracy in a fully automated storage system is a meticulously engineered process. Every step is designed to verify and validate, creating a fault-tolerant workflow.

1. Digital Command, Not Paper Instruction: The process begins with a digital work order in the WES, eliminating misread paper lists or screen errors.

2. Location Verification: When a robotic retrieval device is sent to a location, it uses integrated barcode or RFID scanners to confirm the identity of the storage bin before it is ever moved. This ensures the right product is accessed from the start.

3. Guided Picking: At goods-to-person workstations, pick-to-light or put-to-light systems visually guide the operator to the exact item and quantity to be handled, removing any guesswork.

4. Final Validation: Advanced systems often include integrated scales at packing stations. The weight of the completed order is checked against the expected weight, flagging any potential missing or incorrect items before the box is ever sealed.

This multi-layered approach to verification is what makes a modern fully automated storage system so remarkably accurate and reliable.

5、Mastering the Cube: The Engineering Principles of Ultra-High-Density Storage

The design philosophy behind the density gains in a fully automated storage system is simple: maximize the use of the available cubic space, from the floor to the ceiling. This is achieved through several key principles:

• Aisle Reduction and Elimination: The single biggest gain comes from slashing aisle width. Automated cranes and shuttles require only the space necessary for their own structure, not for a human operator. This can reduce aisle width by over 50%. Technologies like VLMs and carousels eliminate aisles altogether.

• Dynamic Slotting Optimization: The WES software uses machine learning to constantly analyze SKU velocity, dimensions, and weight. It automatically re-slots inventory, placing fast-moving “A” items in the most accessible “golden zone” and slower-moving “C” items in higher or denser storage areas. This continuous re-optimization ensures the fully automated storage system becomes more efficient over time.

• Structural Engineering for Height: A fully automated storage system is built to incredible engineering standards, allowing it to safely support immense weights at great heights. This allows businesses to confidently build upwards, turning previously unused air space into profitable storage capacity.

6、Symphony of Machines: The Integrated Dance of AS/RS and Robotic Mobility

A common question is how the different components of a fully automated storage system interact. The beauty lies in the seamless integration orchestrated by the WES. Consider a typical e-commerce order:

1. The order for multiple items is received by the WES.

2. The WES identifies the storage locations: one item is in the mini-load AS/RS, another in a vertical lift module (VLM).

3. It simultaneously dispatches commands: the AS/RS retrieves a specific tote, and the VLM rotates to present the required tray.

4. An Autonomous Mobile Robot (AMR) is assigned the task. It first navigates to the AS/RS pickup point, where the tote is automatically placed on its deck.

5. The AMR then calculates the most efficient path to the VLM station, where an operator, guided by lights, transfers the second item into the robot’s tote.

6. The AMR finally delivers the complete order to the packing station.
   Throughout this entire process, the WES tracks the location, battery level, and task status of every device, managing a symphony of hundreds of such simultaneous operations without conflict or delay. This is the power of a truly integrated fully automated storage system.

7、The Ripple Effect: Holistic Benefits Beyond Density and Accuracy

While the headline metrics are transformative, the benefits of implementing a fully automated storage system extend into every facet of the operation, creating a more resilient and advanced business.

• Labor Transformation and Upskilling: Automation alleviates the burden of repetitive, physically taxing, and error-prone tasks. This allows the existing workforce to be upskilled to more valuable, engaging roles such as system supervision, maintenance, quality control, data analysis, and customer service. This improves employee satisfaction and retention while making the operation less vulnerable to labor shortages.

• Unprecedented Scalability and Flexibility: A well-designed fully automated storage system is inherently modular. A company can start by automating a specific product line or process and then seamlessly scale the system by adding more robots, storage modules, or shuttles as business grows. The software is designed to manage this expansion effortlessly.

• A Quantum Leap in Workplace Safety: By removing humans from the tasks of operating heavy machinery in narrow aisles, lifting heavy loads, and working at height, the fully automated storage system creates a dramatically safer work environment. This leads to a reduction in workplace accidents, associated costs, and downtime.

• Real-Time Data and Unmatched Traceability: A fully automated storage system provides complete, real-time visibility into inventory. Managers know the exact location and status of every single SKU at every moment. This data is invaluable for accurate forecasting, streamlined auditing, and providing customers with precise delivery timelines, enhancing overall service quality.

8、Strategic Fit: Is Your Operation Ready for a Fully Automated Storage System?

While powerful, a fully automated storage system is a strategic investment that aligns with specific operational profiles. Ideal candidates often exhibit several of the following characteristics:

• Labor costs that are escalating and unpredictable.

• Extremely high costs for industrial real estate or a physically constrained existing facility.

• A SKU count in the thousands or tens of thousands, typical in e-commerce and parts distribution.

• Industries where accuracy is non-negotiable (e.g., pharmaceuticals, aerospace, medical devices, high-value retail).

• High daily order volumes with shrinking delivery lead times.

• A growth trajectory that will soon outpace the capacity of manual processes.

A thorough feasibility analysis, involving a deep dive into current operational data, is the essential first step to building a compelling business case and ROI model for a fully automated storage system.

9、The Implementation Roadmap: A Phased Journey to Transformation

The path to a fully operational fully automated storage system is a methodical partnership designed to ensure success and minimize operational disruption.

1. Deep-Dive Discovery and Data Harvesting: The process begins with a comprehensive analysis of your SKU data, order history, flow rates, and growth projections. This data is the fuel for the design process.

2. Solution Design and Digital Twin Simulation: Engineers use your data to create a digital twin—a virtual model of your proposed fully automated storage system. This model is used to run simulations with your real order data, stress-testing the design and optimizing it for performance before any installation begins.

3. Phased Installation and Meticulous Commissioning: The physical installation is carefully planned in phases, often allowing parts of the existing warehouse to remain operational while the new fully automated storage system is built around it.

4. Rigorous Testing and Comprehensive Training: Every component and the entire integrated system undergoes exhaustive testing. Concurrently, your team receives extensive hands-on training, from operators to IT staff, ensuring confidence and competence from day one.

5. Go-Live and Continuous Optimization Support: Go-live is supported by a dedicated team. The partnership continues long after with support and maintenance agreements designed to keep the fully automated storage system performing at peak efficiency for its entire lifecycle.

10、Conclusion: Forging a Sustainable Competitive Advantage

In the final analysis, the decision to invest in a fully automated storage system transcends a simple equipment purchase. It is a strategic commitment to operational excellence, resilience, and market leadership. It is about replacing variable costs with predictable, manageable ones and transforming logistics from a cost center into a powerful, customer-centric weapon. The dramatic gains in storage density and order accuracy are the immediate rewards, but the long-term value lies in the agility, intelligence, and scalability it provides. In an economic climate defined by volatility and competition, the question for forward-thinking executives is not if they can afford to implement a fully automated storage system, but how they can afford to wait.

---

11、Frequently Asked Questions (FAQs)

Q1: How does the system handle power outages or system failures? Does the entire warehouse just stop?
A: This is a critical design consideration. Our systems are built with redundancy and fail-safes. The WES software includes a built-in queue management system. If a single component fails, tasks are automatically rerouted to other available machines. Furthermore, most systems have manual backup modes. For instance, in an AS/RS, a maintenance crane can be used to retrieve critical items. For AMRs, they can be manually directed. While peak efficiency requires the full system, operations do not come to a complete and total halt.

Q2: What kind of maintenance do these automated systems require, and is there significant downtime?
A: Automated systems require disciplined preventive maintenance (PM), much like any other critical industrial equipment. However, the PM schedules are highly predictable and can be performed during off-hours to avoid impacting productivity. Our systems come with remote monitoring capabilities, allowing our support team to often identify potential issues before they cause unplanned downtime. The overall maintenance burden is typically far lower and more predictable than managing a large fleet of forklifts and their associated repairs.

Q3: Can the system adapt to new or unexpectedly shaped products that weren’t in the original design parameters?
A: Yes, to a significant degree. The flexibility lies in the software and the use of adaptable hardware like AMRs and robotic arms with vision systems. The WES can be taught new SKU dimensions and weights. AMRs can transport any item that fits on their deck or in a standard tote. For robotic picking, advanced vision systems allow the arm to identify and grip new shapes it has been trained on. The system’s design always includes a buffer for variability and future growth.

Q4: We have an existing Warehouse Management System (WMS). Would we have to rip and replace it to work with your automation?
A: Almost certainly not. A key strength of our fully automated storage system is its ability to integrate. Our Warehouse Execution System (WES) is designed to act as a middleware layer. It seamlessly communicates with your existing WMS (or ERP), receiving orders and sending back confirmation and inventory data. This allows you to preserve your investment in current software while adding a powerful layer of executional intelligence.

Q5: What is the typical lifespan of a fully automated storage system, and how does technology obsolescence factor in?
A: The physical infrastructure—the steel racking, the cranes—has a very long lifespan, often 20+ years. The technology components (robots, servers, software) have a shorter refresh cycle, typically around 7-10 years. The system is designed with this in mind. Software updates are provided regularly, and hardware components are modular and can be upgraded without replacing the entire system. This allows you to benefit from new technological advancements without a complete system overhaul, protecting your long-term investment.
