Introduction: Why Proper Forklift Clearance in Double Deep Racks is Non-Negotiable
forklift clearance double deep racks,In warehouse operations, forklift clearance in double deep racks isn’t just about convenience—it’s a critical safety and efficiency factor. When clearance is miscalculated, the consequences can be severe: damaged inventory, rack collapses, forklift accidents, and costly OSHA violations.
This definitive guide dives deep into forklift clearance requirements for double deep racks, providing warehouse managers, safety officers, and forklift operators with actionable insights to optimize storage density while maintaining 100% compliance.
Key Topics Covered:
✅ Minimum aisle width standards for different forklift types
✅ How load dimensions and weight impact forklift clearance in double deep racks
✅ OSHA & ANSI compliance—avoiding fines and accidents
✅ Real-world case studies of clearance failures (and how to prevent them)
✅ Pro tips from warehouse engineers on maximizing space safely
By the end, readers will know exactly how to configure their double deep racking system to boost storage capacity without sacrificing safety.
H1: What Makes Forklift Clearance in Double Deep Racks Unique?

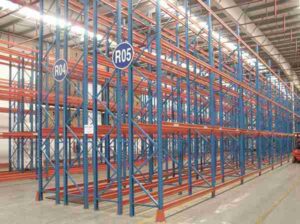

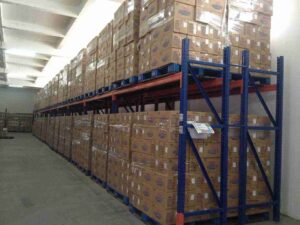

Unlike selective racking, where pallets are stored in a single row, double deep racks store pallets two-deep, requiring specialized forklifts and precise clearance calculations.
H2: The Physics of Forklift Operations in Double Deep Racks
- Double the depth = double the complexity – Forklifts must navigate tighter spaces while handling heavier loads.
- Blind spots increase – Retrieving the second pallet requires perfect alignment to avoid collisions.
- Lateral stability matters more – Aisle width must account for forklift sway, especially with uneven loads.
H3: Real-World Example: A Costly Clearance Mistake
A Midwest distribution center reduced aisle width by 6 inches to fit more pallets. Within three months:
🔴 2 rack collapses due to forklift impacts
🔴 15,000 for non-compliant aisles
Lesson learned: Even a small clearance reduction can lead to major consequences.
H1: Forklift Clearance Standards for Double Deep Racks (By Forklift Type)
Not all forklifts operate the same way in double deep racks. Here’s a breakdown of clearance requirements based on equipment.
H2: Standard Reach Trucks – The Most Common Choice
- Minimum aisle width: 9-10 feet
- Best for: Medium-duty loads (up to 3,000 lbs per pallet)
- Clearance tip: Always add 6-12 inches for turning adjustments
H2: Narrow-Aisle Reach Trucks – Maximizing Space
- Minimum aisle width: 8-9 feet
- Best for: High-density warehouses with uniform pallet sizes
- Clearance tip: Requires laser-guided systems for precision
H2: Double Deep Forklifts – Built for the Job
- Minimum aisle width: 10-11 feet
- Best for: Heavy loads (4,000+ lbs)
- Clearance tip: Operators need additional training due to extended fork reach
H3: Forklift Clearance Comparison Table
| Forklift Type | Aisle Width | Max Load Capacity | Training Required |
|---|---|---|---|
| Standard Reach Truck | 9-10 ft | 3,000 lbs | Basic |
| Narrow-Aisle Reach Truck | 8-9 ft | 2,500 lbs | Intermediate |
| Double Deep Forklift | 10-11 ft | 5,000 lbs | Advanced |
H1: How Load Size & Weight Affect Forklift Clearance in Double Deep Racks
Ignoring load dimensions is the #1 cause of clearance failures.
H2: The Impact of Overhanging Pallets
- Problem: Pallets extending beyond beams reduce effective aisle width
- Solution: Always maintain 3-6 inches of buffer space on each side
H2: Heavy Loads Require More Maneuvering Space
- Why? Heavier pallets increase forklift momentum, requiring wider turns
- Rule of thumb: Add 1 inch of aisle width per 500 lbs over 3,000 lbs
H3: Case Study – When Load Weight Caused a Rack Collapse
A California warehouse loaded 4,500-lb pallets into a system designed for 3,000 lbs. The result?
🔴 Forklift tipped during retrieval
🔴 Two upright frames bent
🔴 $42,000 in damages
Key takeaway: Always verify racking capacity before increasing load weight.
H1: OSHA & ANSI Compliance – Avoiding Costly Violations
Forklift clearance in double deep racks isn’t just about efficiency—it’s a legal requirement.
H2: OSHA’s Forklift Clearance Rules (1910.178)
- Aisle width must allow safe operation (no “tight squeeze” zones)
- Overhead clearance ≥ 6 inches above the highest load
- No storage within 3 feet of sprinkler heads
H2: ANSI/ITSDF B56.1 Standards
- Pedestrian walkways must be clearly marked
- Emergency exits must remain unobstructed
- Forklifts must have working horns & lights
H3: Recent OSHA Penalties for Improper Clearance
- $12,934 fine for blocked aisles (Ohio, 2023)
- $18,000 fine for inadequate turning space (Texas, 2024)
Compliance tip: Conduct monthly clearance audits to avoid violations.
H1: Advanced Strategies for Optimizing Forklift Clearance in Double Deep Racks
Want to maximize storage without compromising safety? Try these proven tactics.
H2: Use Laser-Guided Forklifts for Precision
- Reduces human error in tight spaces
- Cuts retrieval time by 20%
H2: Implement Dynamic Racking Adjustments
- Adjustable beam levels accommodate varying pallet heights
- Sliding wire partitions prevent overloading
H2: Train Operators on “Clearance Zones”
- Green zone: Safe maneuvering area
- Yellow zone: Caution (slow movements)
- Red zone: No-entry (maintenance only)
H1: 5 Deadly Mistakes in Forklift Clearance for Double Deep Racks
🚫 Ignoring manufacturer specs
🚫 Assuming all forklifts need the same clearance
🚫 Overlooking pallet overhang risks
🚫 Skipping regular rack inspections
🚫 Cutting corners to fit “just one more pallet”
Conclusion: Safe Forklift Clearance in Double Deep Racks = Higher Profits & Fewer Accidents
Optimizing forklift clearance in double deep racks isn’t optional—it’s a competitive advantage. Warehouses that follow these guidelines:
✔ Reduce damage costs by up to 35%
✔ Avoid OSHA fines
✔ Boost storage density safely
Need a racking safety audit? Contact our warehouse engineering team today for a free clearance assessment.
FAQs: Forklift Clearance in Double Deep Racks
1. Can I use a standard counterbalance forklift in double deep racks?
No—reach trucks or double-deep forklifts are required for safe operation.
2. What’s the smallest possible aisle width for double deep racks?
With narrow-aisle reach trucks, some systems work in 8-foot aisles, but 9-11 feet is safer.
3. How does pallet overhang impact forklift clearance?
Overhang reduces effective aisle width—always account for extra space.
4. What’s the #1 cause of forklift accidents in double deep racks?
Insufficient turning clearance leads to collisions and tip-overs.
5. How often should we inspect racking for clearance issues?
Monthly inspections are mandatory, with immediate checks after any impact.
