Introduction: Why Forklift Aisle Width in Double Deep Racking Matters
In high-density warehousing, forklift aisle width double deep racking configurations play a pivotal role in balancing storage capacity and operational efficiency. A poorly designed aisle can lead to:
- Forklift collisions with racking systems
- Slow load retrieval times, reducing productivity
- Excessive wasted space, increasing storage costs
This guide dives deep into forklift aisle width double deep racking best practices, ensuring warehouses maximize storage while maintaining smooth, safe operations.

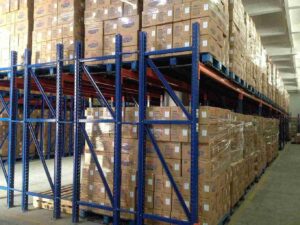

1. Understanding Double Deep Racking and Its Impact on Forklift Aisle Width
Double deep racking is a high-density storage solution where pallets are stored two rows deep, effectively doubling storage capacity compared to selective racking. However, this setup demands precise forklift aisle width double deep racking planning because:
- Standard forklifts cannot operate efficiently in tight spaces
- Specialized narrow-aisle forklifts (reach trucks, turret trucks, or articulated forklifts) are required
- Aisle width directly affects accessibility to the second pallet position
Key Factors Influencing Forklift Aisle Width in Double Deep Racking
- Forklift type (counterbalance vs. reach vs. turret)
- Pallet dimensions (standard 48×40″ vs. oversized loads)
- Racking configuration (beam length, upright spacing)
- Operator skill level (narrow-aisle maneuvering expertise)

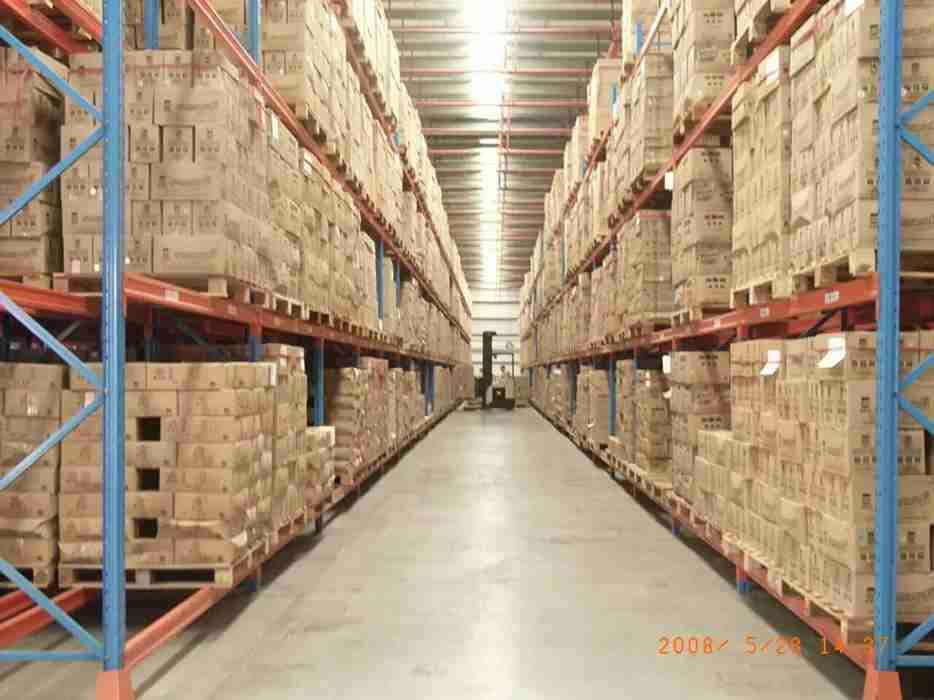

2. The Ideal Forklift Aisle Width for Double Deep Racking Systems
Determining the correct forklift aisle width double deep racking setup depends on multiple variables. Below are industry-standard measurements:
Minimum Aisle Width Based on Forklift Type
| Forklift Type | Minimum Aisle Width | Best For |
|---|---|---|
| Standard Counterbalance Forklift | 12+ feet | Low-density warehouses |
| Reach Truck | 8-10 feet | Most double deep racking setups |
| Turret Truck | 6-8 feet | Very narrow aisles (VNA) |
| Articulated Forklift | 5-6 feet | Ultra-narrow aisles |
How Pallet Size Affects Forklift Aisle Width in Double Deep Racking
- Standard pallets (48×40″) require 8-10 feet with reach trucks
- Oversized pallets (48×48″ or larger) may need 10-12 feet
- Unevenly stacked loads demand additional clearance
3. Calculating the Perfect Forklift Aisle Width for Double Deep Racking
To ensure optimal forklift aisle width double deep racking, warehouses should use this formula:
Aisle Width = (Forklift Turning Radius) + (Pallet Depth x 2) + (Safety Buffer)
Real-World Example Calculation
- Forklift turning radius: 84 inches
- Pallet depth: 48 inches
- Safety buffer: 12 inches
- Total aisle width needed: 84 + (48×2) + 12 = 192 inches (16 feet)
However, using a turret truck (with a 60-inch turning radius) reduces this to 156 inches (13 feet)—demonstrating how forklift selection drastically impacts aisle width.
4. Best Forklifts for Double Deep Racking: Maximizing Space & Efficiency
Not all forklifts are suitable for double deep racking. The most efficient options include:

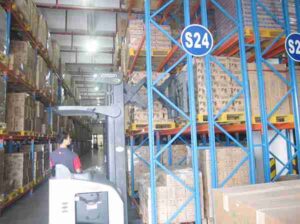

1. Reach Trucks (Best for Most Double Deep Racking Setups)
- Optimal forklift aisle width double deep racking: 8-10 feet
- Advantages:
- Better visibility than counterbalance forklifts
- Excellent stability for high stacking
- Faster load retrieval than drive-in systems
2. Turret Trucks (For Very Narrow Aisles)
- Optimal forklift aisle width double deep racking: 6-8 feet
- Advantages:
- 360-degree rotation for precise maneuvering
- Ideal for high-bay warehouses (up to 40 feet)
3. Articulated Forklifts (Ultra-Narrow Aisle Solutions)
- Optimal forklift aisle width double deep racking: 5-6 feet
- Advantages:
- Unmatched maneuverability in tight spaces
- Reduced floor space requirements
5. Safety Considerations for Narrow Aisle Forklift Operations
Operating in tight forklift aisle width double deep racking environments increases risks. Essential safety measures include:
Critical Safety Protocols
✔ Laser-guided forklift systems to prevent collisions
✔ Strict operator training programs for narrow-aisle maneuvering
✔ Anti-slip flooring & clear aisle markings
✔ Regular rack inspections to prevent beam deflection
Common Forklift Accidents in Double Deep Racking & How to Prevent Them
| Accident Type | Cause | Prevention Method |
|---|---|---|
| Racking Collisions | Insufficient turning space | Use laser-guided forklifts |
| Load Spillage | Overextended forks | Enforce proper load centering |
| Forklift Tip-Overs | Sharp turns at high speeds | Train operators on slow, controlled movements |
6. Double Deep Racking vs. Other Storage Systems: Aisle Width Comparison
How does forklift aisle width double deep racking compare to other systems?
| Storage System | Aisle Width Required | Storage Density | Accessibility |
|---|---|---|---|
| Selective Racking | 11-13 feet | Low | Instant (any pallet) |
| Double Deep Racking | 8-10 feet | Medium-High | Slightly delayed (2-deep access) |
| Drive-In Racking | 10-12 feet | High | Low (LIFO access only) |
| Push-Back Racking | 8-9 feet | High | Medium (LIFO with better selectivity) |
Key Takeaway: Double deep racking offers a balance between density and accessibility, making it ideal for medium-turnover inventory.
7. Case Study: Reducing Aisle Width & Boosting Storage by 40%
A 3PL logistics company transitioned from selective racking (12-foot aisles) to double deep racking (9-foot aisles) with reach trucks. Results:
✅ 40% increase in pallet positions
✅ 15% faster order picking due to optimized forklift aisle width double deep racking
✅ Reduced forklift damage incidents by implementing AI-based collision avoidance
8. Common Mistakes in Forklift Aisle Width Planning for Double Deep Racking
Avoid these costly errors:
Mistake #1: Underestimating Forklift Turning Radius
- Solution: Always test forklift maneuverability before finalizing aisle width.
Mistake #2: Ignoring Pallet Overhang
- Solution: Account for load protrusion when calculating forklift aisle width double deep racking.
Mistake #3: Skipping Operator Training
- Solution: Invest in narrow-aisle forklift certification programs.
9. Future Trends in Forklift Aisle Width Optimization
Emerging technologies reshaping forklift aisle width double deep racking:
- Autonomous Mobile Robots (AMRs) for ultra-narrow aisles
- AI-Powered Warehouse Management Systems (WMS) optimizing aisle layouts dynamically
- Modular Racking Designs allowing adjustable forklift aisle width double deep racking
Conclusion: Mastering Forklift Aisle Width for Double Deep Racking
Optimizing forklift aisle width double deep racking is essential for maximizing storage, improving safety, and reducing operational costs. By selecting the right forklift type, calculating precise aisle dimensions, and implementing best safety practices, warehouses can achieve peak efficiency.
Need a Custom Warehouse Layout?
📞 Contact our experts for a free forklift aisle width assessment!
FAQs on Forklift Aisle Width for Double Deep Racking
1. Can I use a standard forklift in double deep racking?
No—standard forklifts require 12+ feet, while double deep racking works best with reach trucks (8-10 feet) or turret trucks (6-8 feet).
2. What’s the smallest possible aisle width for double deep racking?
With articulated forklifts, aisles can be as narrow as 5-6 feet.
3. How does pallet size affect forklift aisle width?
Larger pallets (e.g., 48×48″) require wider aisles to prevent collisions with racking uprights.
4. Is double deep racking good for fast-moving inventory?
It’s best for medium-turnover stock since accessing the second pallet adds slight retrieval delays.
5. Can automated forklifts work in double deep racking?
Yes—AGVs and robotic reach trucks are increasingly used in narrow-aisle double deep setups.
