The Power of Double Deep Racking Systems

In the competitive world of warehousing and logistics, space optimization is everything. For businesses struggling with limited square footage, double deep racking images reveal a game-changing solution—high-density storage that nearly doubles capacity without costly expansions.

This in-depth guide explores double deep racking systems through real-world examples, expert insights, and detailed double deep racking images that showcase their efficiency. Warehouse managers, logistics planners, and supply chain professionals will discover:

• How double deep racking images prove its space-saving advantages

• The best applications for this storage system

• Key comparisons with other racking types

• How to get a free custom warehouse layout plan

By the end, readers will understand why double deep racking images dominate modern warehouse design—and how to implement them effectively.

---

What Is Double Deep Racking? (With Real-World Images)

Double deep racking is a high-density pallet storage system where two pallets are stored back-to-back, reducing aisle space while increasing storage capacity. Unlike selective racking, which allows direct access to every pallet, double deep racking images show how this system uses deeper lanes—requiring specialized forklifts for retrieval.

How Double Deep Racking Works (Visual Breakdown)

Examining double deep racking images, several key features stand out:

• Two-deep pallet storage – Pallets are stored in two rows, maximizing vertical and horizontal space.

• Narrower aisles – Aisles are just wide enough for reach trucks or double-deep forklifts, reducing wasted floor space.

• LIFO inventory management – Last-In, First-Out (LIFO) flow suits high-turnover stock with similar SKUs.

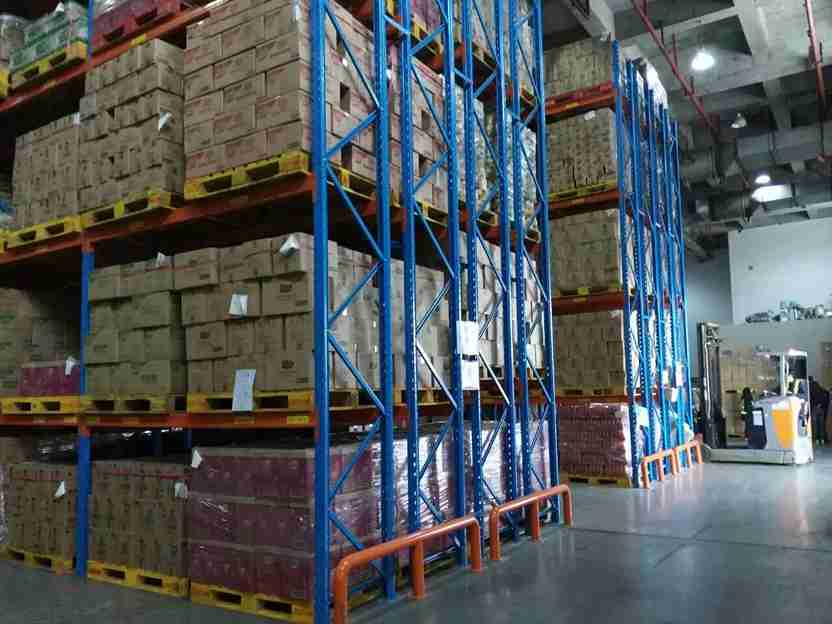

Double deep racking images from real warehouses demonstrate how this system outperforms traditional setups in space efficiency.

---

Key Benefits of Double Deep Racking (Proven with Images)

1. Doubles Storage Capacity Without Expansion

Double deep racking images from industrial case studies reveal how warehouses increase storage by 80-90% compared to selective racking. This is ideal for:

• Urban warehouses with high real estate costs

• Growing businesses needing scalable storage

2. Reduces Aisle Space by Up to 40%

By minimizing aisle width, double deep racking images prove how facilities reclaim valuable floor space—critical for operations with limited square footage.

3. More Affordable Than Automated Alternatives

Unlike AS/RS (Automated Storage and Retrieval Systems), double deep racking images highlight a cost-effective high-density solution with lower installation and maintenance costs.

4. Seamless Integration with Warehouse Tech

Modern double deep racking systems work with:

• WMS (Warehouse Management Software) for real-time tracking

• RFID and barcode scanning for efficient inventory control

Double deep racking images from automated warehouses show how this system enhances efficiency.

5. Long-Term Durability & Customization

High-quality double deep racking images display heavy-duty steel frames, adjustable beams, and seismic-resistant designs for long-term reliability.

---

Double Deep Racking vs. Other Systems (With Comparison Images)

Double Deep vs. Selective Racking

Double Deep vs. Drive-In Racking

• Double deep racking images show better selectivity than drive-in systems.

• Drive-in racking suits bulk identical products but has slower retrieval times.

Double Deep vs. Push Back Racking

• Push back racking offers higher density but at a higher cost.

• Double deep racking images highlight a balanced solution between cost and efficiency.

---

Who Should Use Double Deep Racking? (Real Case Studies)

Best Applications for Double Deep Racking

✔ E-commerce fulfillment centers storing large quantities of similar products.
✔ Beverage distributors with high pallet turnover.
✔ Manufacturing warehouses needing scalable storage.

When to Avoid Double Deep Racking

✖ Cold storage facilities needing FIFO access (unless modified).
✖ Warehouses with highly diverse SKUs requiring frequent picking.

Double deep racking images from successful installations help businesses visualize the best fit.

---

Free Custom Warehouse Layout Plan (Optimized for Double Deep Racking)

To help businesses transition smoothly, we offer a free 3D warehouse layout plan based on:

• Your warehouse dimensions (length, width, ceiling height)

• Forklift specifications (reach trucks, double-deep forklifts)

• Inventory flow requirements

[Get Your Free Double Deep Racking Layout Plan]

---

7 Common Questions About Double Deep Racking

1. What forklifts are needed for double deep racking?

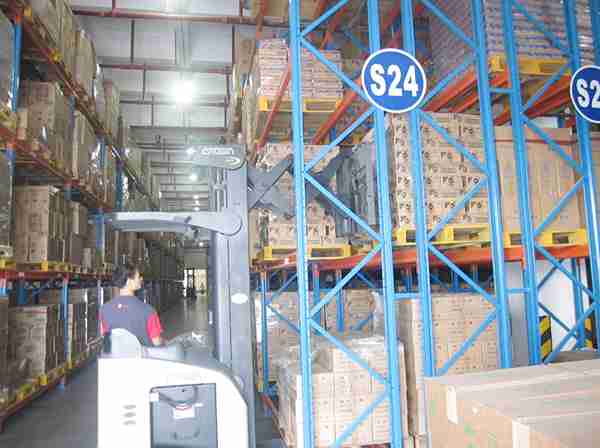

Reach trucks or double-deep forklifts (visible in double deep racking images) are essential.

2. Can existing selective racking be converted?

Yes, but structural adjustments are required—consult an expert.

3. What’s the maximum weight capacity?

Typically 2,000–6,000 kg per level, depending on beam strength.

4. How does safety compare to other systems?

Double deep racking images show safety guards and load beams ensuring stability.

5. What’s the cost difference vs. push back racking?

Double deep racking is 20-30% more affordable than push back systems.

6. Can it be used with very narrow aisles (VNA)?

Yes, but specialized VNA forklifts are required.

7. How long does installation take?

Typically 1-3 weeks, depending on warehouse size.

---

Conclusion: Why Double Deep Racking Dominates Modern Warehousing

Double deep racking images prove this system’s superiority in space optimization, cost efficiency, and scalability. For businesses needing high-density storage without automation costs, it’s the ideal solution.

Want to see how it works in your facility?
📌 [Get Your Free Custom Double Deep Racking Layout Plan]



Welcome to contact us, if you need warehouse rack CAD drawings. We can provide you with warehouse rack planning and design for free. Our email address is: jili@geelyracks.com
