For distribution center managers, warehouse operators, and logistics directors, achieving true FIFO (First-In, First-Out) inventory management is a perpetual operational hurdle that directly impacts profitability and efficiency. Relying on manual processes and static shelving inevitably leads to product obsolescence, excessive labor costs, and picking inaccuracies. The solution to these persistent challenges lies not in working harder but in deploying intelligently engineered gravity-fed storage systems. A carton flow racking system represents a fundamental leap in storage technology, designed explicitly to automate product rotation, maximize cube utilization, and dramatically accelerate order picking rates.

This comprehensive analysis delves into the intricacies of the carton flow racking system, exploring how it serves as the definitive answer to inventory management challenges, transforming chaotic storage areas into models of precision and reliability. The implementation of a robust carton flow racking system is a strategic decision that yields measurable returns on investment, making it an indispensable component of modern logistics operations.

Beyond Basic Storage: What is a Carton Flow Racking System?

A carton flow racking system is a high-density, dynamic storage solution that utilizes the principle of gravity to automatically move inventory from the loading point to the picking face. Unlike static shelving or pallet racking where items remain stationary, this system is engineered for continuous motion, ensuring seamless product flow. The core philosophy behind the carton flow racking system is to create an automated, “first-in, first-out” process that eliminates human error and manual intervention in stock rotation.

The system’s architecture is comprised of several precision-engineered components, each critical to its overall performance and reliability. Understanding these components is essential for appreciating the sophistication of a modern carton flow racking system.

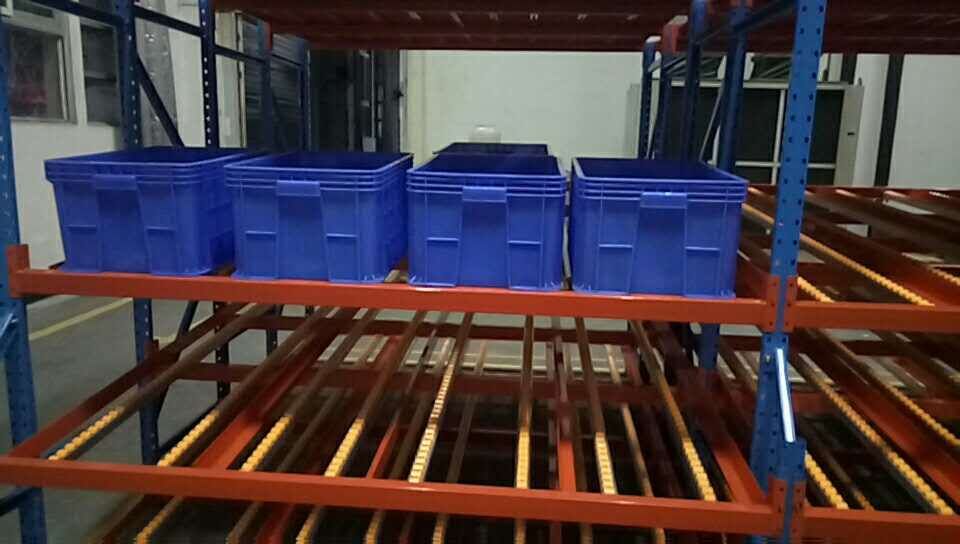

• Roller Tracks: These form the very heart of the carton flow racking system. The tracks are inclined steel rails mounted within the racking structure, and their design is paramount. Engineers specify the roller diameter, spacing between rollers, and surface coating based on a detailed analysis of the client’s specific carton sizes, weights, and bottom surface composition. This meticulous customization ensures a smooth, consistent, and controlled flow without jamming or product damage, which is a hallmark of a high-quality carton flow racking system.

• Structural Frame: Acting as the robust skeleton, the frame of a carton flow racking system is typically constructed from heavy-duty, cold-rolled steel. This framework is not merely supportive; it is engineered to bear the significant weight of fully loaded lanes across expansive spans without deflection or risk of failure. The structural integrity of the frame is non-negotiable for the safe and long-term operation of the carton flow racking system.

• Wheel Rails (Alternative): In specific applications, particularly those involving lighter loads or products with soft plastic bottoms (such as totes), a wheel-based configuration within the carton flow racking system may be optimal. Wheels offer even less rolling resistance than rollers and are ideal for applications requiring exceptionally gentle handling of slow-moving, delicate items.

• Flow Management Accessories: The efficiency of a carton flow racking system is greatly enhanced by a suite of intelligent accessories. Lane dividers maintain SKU separation, preventing product mixing. Hydraulic or mechanical speed controllers are installed to dampen the momentum of loaded lanes, preventing front-end impact that could damage both product and the carton flow racking system itself. End stops and pick-up rails securely contain products at the picking face, completing the system’s functionality.

The operational principle of the carton flow racking system is elegantly simple yet profoundly effective. Warehouse staff replenish inventory from the rear (a higher elevation) of the carton flow racking system. Gravity then takes over, gently pulling the cartons down the inclined track toward the front picking face. Each time a picker removes the front carton, every subsequent unit in that lane advances one position, bringing the next oldest item to the front. This creates a perfect, self-regulating loop of inventory rotation, which is the ultimate goal of any carton flow racking system.

The High Cost of FIFO Failure: Why Your Current System Is Holding You Back

Many operations unknowingly incur significant hidden costs by persisting with outdated storage methods that fail to enforce true FIFO. The financial implications of not implementing a carton flow racking system are multifaceted and severe.

• Product Spoilage and Obsolescence: This constitutes the most direct and painful financial loss. In industries with perishable goods or strict shelf-life concerns—such as food and beverage, pharmaceuticals, cosmetics, and certain chemicals—older stock buried behind new arrivals will eventually expire. This results in total write-offs, wasted procurement costs, and potential regulatory compliance issues. A carton flow racking system is specifically designed to eradicate this source of loss.

• Labor Inefficiency and Fatigue: Enforcing manual FIFO in a traditional shelving environment is a relentless and physically taxing endeavor. It requires order pickers to constantly dig through shelves, reach into deep pallets, and manually rotate stock. This labor-intensive process is not only slow but also contributes to worker fatigue and an increased risk of musculoskeletal injuries. A carton flow racking system automates this rotation, freeing up labor for more value-added tasks.

• Picking and Shipping Errors: The pressure to work quickly in a disorganized, non-flow environment is a primary catalyst for errors. A picker inadvertently grabbing a newer item from the back of a shelf instead of the oldest item at the front is a common and costly mistake. These errors lead to shipping the wrong product rotation, resulting in customer dissatisfaction, costly returns, and damage to brand reputation. The carton flow racking system eliminates this ambiguity by always presenting the oldest item at the point of pick.

• Wasted Warehouse Space: Static shelving often leads to a phenomenon known as “honeycombing”—inefficient use of space where empty slots are trapped behind other products and cannot be utilized. This poor cube utilization means a company is paying for expensive warehouse square footage it cannot effectively use, often leading to premature capital expenditure on additional space. A carton flow racking system, by its high-density, live storage design, maximizes every cubic foot of available space.

The decision to invest in a carton flow racking system is, therefore, a direct investment in mitigating these costly inefficiencies and protecting the organization’s bottom line.

Industries That Benefit Most from Gravity Flow Rack

While the carton flow racking system delivers value across numerous sectors, its return on investment is particularly dramatic and immediate in certain industries where its core strengths are non-negotiable requirements.

• Food & Beverage: The imperative for strict shelf-life management makes the carton flow racking system an indispensable asset in both cold storage and dry grocery warehouses. It ensures that every shipment complies with FIFO principles, drastically reducing spoilage and ensuring product freshness.

• Pharmaceuticals & Healthcare: Precision in lot tracking and expiration date control is critical for patient safety and stringent regulatory compliance. A carton flow racking system provides an unforgiving, physical guarantee of FIFO, creating a verifiable and audit-trail-friendly storage environment.

• Cosmetics & Chemicals: Similar to pharmaceuticals, these products often have finite shelf lives and are subject to batch tracking regulations. The carton flow racking system provides the necessary control to manage inventory effectively and avoid costly waste.

• Third-Party Logistics (3PL): 3PLs operate on thin margins and handle a diverse, ever-changing mix of products for multiple clients. A flexible and reliable carton flow racking system allows them to offer superior, error-free fulfillment services as a key competitive advantage, ensuring they meet the specific FIFO requirements of each client.

• E-commerce Fulfillment: The high-velocity, high-SKU nature of e-commerce demands unparalleled picking speed and accuracy. A carton flow racking system is perfectly suited for housing fast-moving SKUs in piece-pick or case-pick environments, directly contributing to faster order cycle times and higher customer satisfaction.

Engineering Excellence: Key Components of a Superior Flow Rack System

The performance, durability, and safety of a carton flow racking system are entirely dependent on the quality of its components and the expertise behind its design. Not all systems on the market are created equal.

The Science of the Roller: Choosing the Right Track

The selection between rollers and wheels is a fundamental engineering decision that dictates the performance of the carton flow racking system.

• Roller Tracks: These are the preferred choice for the vast majority of applications within a carton flow racking system. They provide superior control, stability, and weight distribution for a wide range of carton sizes and weights. Their continuous surface makes them less susceptible to jamming from minor imperfections in carton bottoms. Engineering specifications focus on load weight per wheel and the calculated flow speed required for the application.

• Wheel Tracks: This configuration is ideal for very light loads and products with ultra-smooth bottom surfaces, such as plastic totes. They require minimal starting force to initiate movement. However, they can be more susceptible to jamming if a carton corner catches between the wheels, a risk that is mitigated in a well-designed carton flow racking system.

The incline angle of the tracks is not arbitrary; it is meticulously calculated by engineers. An angle that is too steep causes products to accelerate too quickly, leading to damaging impacts at the end stop. An angle that is too shallow results in products failing to flow reliably, forcing pickers to manually pull items out and nullifying the automation benefits of the carton flow racking system.

Structural Integrity: The Framework of Efficiency

The framework of a carton flow racking system must be designed to do more than simply hold the tracks; it must ensure long-term integrity and adaptability.

• Maximum Load Capacity: The structure is engineered to support fully loaded lanes across the entire beam span without any significant deflection, ensuring safety and consistent performance throughout the carton flow racking system.

• Configurability and Flexibility: A high-quality carton flow racking system is designed with standardized components that allow for easy future reconfiguration. Lane widths can be adjusted, and shelf levels can be relocated without the need for entirely new structures, allowing the carton flow racking system to evolve with changing inventory profiles.

• Safety and Compliance: All designs and installations comply with rigorous industrial storage standards. Integral safety features, such as column protectors, safety locks, and robust end stops, are standard in a professionally installed carton flow racking system.

Intelligent Accessories for Optimal Performance

The base functionality of a carton flow racking system is enhanced by a range of intelligent accessories that optimize performance and protect inventory.

• Speed Controllers: These are critical damping devices installed on the rails. They prevent fast-moving loads from impacting the end stop at high speed, which protects both the product from damage and the structural integrity of the carton flow racking system itself.

• Lane Dividers: These ensure that products in adjacent lanes never interfere with each other, preventing jams and cross-contamination of different SKUs within the carton flow racking system.

• Pick Faces and Order Picking Belts: To further enhance ergonomics and efficiency, the carton flow racking system can be integrated with ergonomic picking shelves and conveyor belts at the pick face. This creates a seamless “goods-to-person” workflow, where the system presents the product optimally for the order picker.

The Tangible ROI: Quantifying the Benefits of Carton Flow Racking

The implementation of a carton flow racking system delivers measurable, quantifiable returns across all key operational metrics, providing a clear and compelling business case.

• Labor Cost Reduction: By eliminating the need for manual stock rotation and creating ergonomic, waist-level pick faces, companies typically achieve a 30-60% increase in picking productivity after installing a carton flow racking system. This allows businesses to handle greater volume with the same team or reallocate valuable labor to more strategic, value-added tasks.

• Space Utilization Increase: By eliminating the multiple access aisles required for static shelving and utilizing depth for storage, a carton flow racking system can increase storage density by over 40% compared to traditional methods. This enables companies to store more inventory within the same existing footprint, thereby delaying or avoiding costly expansion projects or facility relocations.

• 100% FIFO Compliance: The carton flow racking system operates on an unbreakable physical principle of gravity-fed flow. This guarantees perfect inventory rotation,彻底 eliminating spoilage and the financial write-offs associated with expired products. This alone often provides a rapid return on investment for the carton flow racking system.

• Dramatic Reduction in Picking Errors: With one SKU per lane and the oldest product always presented at the face, the cognitive load on pickers is drastically reduced. Error rates often plummet to near zero after the implementation of a carton flow racking system, saving thousands of dollars in return processing, shipping corrections, and lost customer goodwill.

• Improved Safety & Ergonomics: Picking from a carton flow racking system occurs primarily in the “golden zone” (between knee and shoulder height), which significantly reduces bending, stretching, and reaching. This minimizes worker fatigue and the risk of work-related musculoskeletal disorders, contributing to a safer and more positive work environment.

Is Carton Flow Racking Right for Your Operation? A Criteria Checklist

While a powerful solution, a carton flow racking system is not a universal panacea for every storage challenge. It is ideally suited for operations that align with the following criteria:

• High to Medium Product Turnover: The carton flow racking system thrives on product velocity. It is most effective for SKUs with a regular and predictable movement pattern. Very slow-moving items may stagnate in the system.

• Uniform Carton Sizes and Weights: A single lane within a carton flow racking system must be dedicated to a single SKU with consistent packaging dimensions and weight. Significant variation within a lane is a primary cause of jams and flow issues.

• A Clear and Present Need for FIFO: If an operation’s inventory is purely LIFO (Last-In, First-Out) or has no shelf-life concerns, other high-density systems like push-back racking might be a more appropriate choice than a carton flow racking system.

• Adequate Aisle Space for Replenishment: While the pick face of a carton flow racking system requires minimal aisle space, the rear (replenishment) side requires sufficient clearance for a forklift, pallet jack, or automated guided vehicle (AGV) to safely load product. This is a critical layout consideration during the planning phase of a carton flow racking system installation.

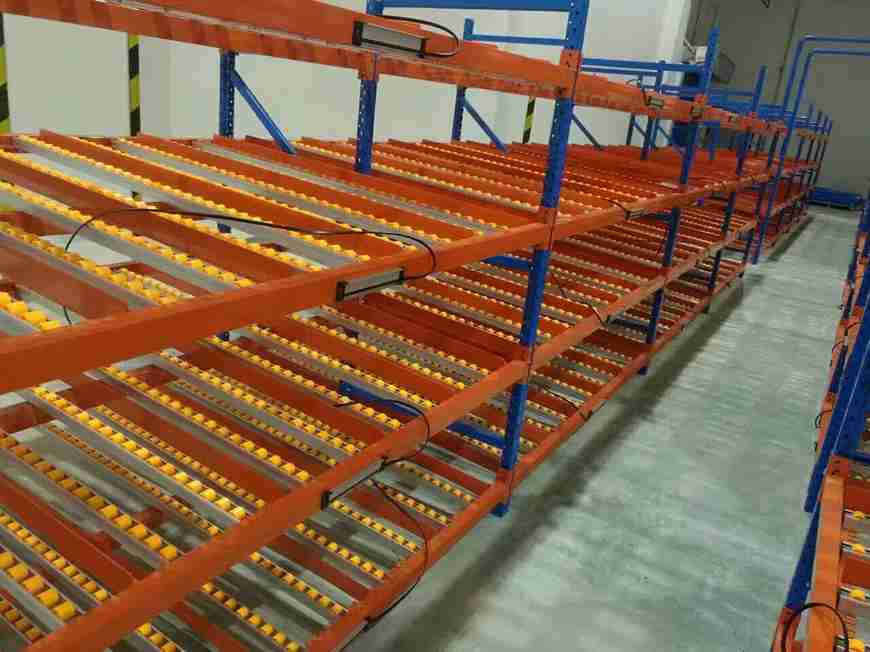

Integration with Warehouse Automation: The Future-Proof Choice

A carton flow racking system is not a standalone solution; it often serves as the perfect bridge between manual processes and a fully automated warehouse ecosystem. Its design lends itself seamlessly to integration with broader automation technologies.

• AGVs and Autonomous Mobile Robots (AMRs): These robots can be programmed to autonomously handle the replenishment function for the carton flow racking system. They can transport incoming inventory from receiving docks to the rear of the racks and automatically load the lanes, creating a “lights-out” or minimally staffed replenishment process.

• Conveyor Systems: The pick face of the carton flow racking system can be directly integrated with a sortation conveyor system or picking belts. As order pickers select items from the carton flow racking system, they place them directly onto a conveyor that transports them to the packing and shipping zones, creating a continuous, high-volume flow of goods.

• Warehouse Management System (WMS) Integration: The physical FIFO enforced by the carton flow racking system aligns perfectly with the digital FIFO directives of a modern WMS. The software system can intelligently direct put-away and replenishment tasks based on real-time inventory data within the lanes of the carton flow racking system, creating a perfectly synchronized digital and physical inventory flow.

The Installation and Implementation Process: A Partnership Approach

The successful deployment of a carton flow racking system is a collaborative process that extends far beyond the simple delivery of hardware. It requires a partnership approach to ensure the system delivers maximum value from its first day of operation.

1. In-Depth Consultation and Data Analysis: The process begins with a thorough analysis of the client’s SKU data, order velocity profiles, current floor plan, and operational workflows. This data-driven approach ensures that the proposed carton flow racking system is not an off-the-shelf product but a custom-engineered solution tailored to specific product dimensions, weights, and flow rates.

2. Custom Engineering and Design: Using advanced CAD and simulation software, engineers create a detailed layout plan. This plan optimizes every aspect of the carton flow racking system, including lane depth, overall rack height, aisle widths, and integration points with other material handling equipment, providing a clear and precise blueprint for success.

3. Professional Installation: Certified installation teams execute the plan with precision. Correct installation is critical for achieving the proper flow gradient, ensuring structural safety, and guaranteeing the long-term reliability of the carton flow racking system. This phase is managed to minimize disruption to ongoing operations.

4. Comprehensive Training and Ongoing Support: The client’s operational staff receives thorough training on optimal replenishment and picking procedures specific to their new carton flow racking system. This ensures they can leverage the full capabilities of the system. Furthermore, reliable support continues long after installation to address any operational questions and provide preventative maintenance advice.

Beyond Carton Flow: Complementary Storage Solutions

A carton flow racking system is a powerful tool in the material handling arsenal, but it is most effective when deployed as part of a broader, holistic storage strategy. A full-service provider will offer a spectrum of solutions to meet diverse needs.

• Selective Pallet Racking: The ideal solution for storing slow-moving palletized inventory that requires direct access to every single pallet location.

• Push Back Racking: A high-density pallet storage system that operates on a LIFO principle, ideal for storing multiple SKUs of palletized goods with good turnover.

• Drive-In/Drive-Thru Racking: A very high-density storage solution for homogeneous products, sacrificing selectivity for immense storage capacity within a small footprint.

• Mezzanine Systems: A strategic solution to add vertical storage space and create multi-level workflows within an existing warehouse building, effectively multiplying the usable square footage available for a carton flow racking system or other storage.

• Automated Storage and Retrieval Systems (AS/RS): The pinnacle of hands-free storage and retrieval technology, suitable for ultra-high-volume operations where speed, accuracy, and density are paramount. A carton flow racking system can often be effectively used in conjunction with AS/RS for different product segments.

Conclusion: Transform Your Inventory Management from a Challenge into a Competitive Advantage

The challenge of achieving efficient, accurate, and cost-effective FIFO inventory management is not insurmountable. Persisting with manual, error-prone processes is a conscious choice—a choice that continues to incur unnecessary costs, waste valuable space, and jeopardize customer satisfaction. A professionally designed and implemented carton flow racking system is far more than just shelving; it is a fundamental re-engineering of the storage workflow. It automates one of the toughest operational constraints, unlocks hidden capacity within the existing facility footprint, and provides a scalable, future-proof platform for further automation integration.

The question for logistics leaders is no longer whether they can afford to invest in a carton flow racking system, but whether they can afford the escalating and hidden costs of not having one. The evidence is clear: implementing a robust carton flow racking system is a transformative strategy that turns inventory challenges into a durable competitive advantage.

---

Frequently Asked Questions (FAQs)

Q1: What is the maximum weight capacity per lane for a typical carton flow system?
Weight capacity is not a single number but a function of the roller specification, rail length, and structural beam capacity. Standard systems can comfortably handle between 800 lbs to 1,500 lbs per lane. However, we engineer heavy-duty systems that can manage loads exceeding 2,500 lbs per lane for dense products like automotive parts or canned goods. A proper engineering assessment is required for final specification.

Q2: Can carton flow racks be used for picking individual items (each picking), or are they only for full cases?
Absolutely. While ideal for full-case picking, they are highly effective for each picking. The system ensures the oldest carton is always presented first. A picker can open that carton, retrieve the required number of items, and then return to their task. The carton remains in place until empty, at which point it is removed (often flat-packed for recycling), allowing the next full carton to advance. This maintains perfect FIFO even at the item level.

Q3: How do you prevent lighter or irregularly shaped cartons from jamming in the lanes?
Jamming is prevented through proper engineering and component selection. For lighter cartons, we specify rollers or wheels with very low starting resistance. For cartons with irregular bases, roller tracks are almost always superior as they provide a more continuous surface of support. The key is a professional analysis of your specific product mix to choose the right track type, incline, and lane width.

Q4: We have a very cold environment (cold storage). Are these systems suitable?
Yes, carton flow racking is exceptionally well-suited for cold storage environments. In fact, the need for FIFO is even more critical due to perishability. We specify components—including rollers, bearings, and structural steel—that are treated or manufactured to perform reliably at sub-zero temperatures, preventing brittleness and ensuring smooth operation. The efficiency gains in a cold environment, where worker time is most limited, are tremendous.

Q5: What is the typical lead time from design to installation for a large-scale flow rack project?
Lead time varies based on the project’s scale and customization. Generally, the process takes 8-14 weeks. This includes 1-2 weeks for final design and approval, 6-10 weeks for manufacturing and shipping of the custom-configured components, and 1-2 weeks for onsite installation by our professional crew. We work with you to create a project plan that minimizes disruption to your ongoing operations.
