For logistics managers, warehouse operators, and business owners dealing with long, bulky, or awkwardly shaped inventory, the search for efficient storage leads directly to one solution: ​​cantilever racking​​. This specialized system is the undisputed champion of storing items like lumber, steel pipes, plastic extrusions, and furniture, offering unmatched accessibility and density. However, navigating the market for ​​cantilever racking​​ can be a complex endeavor. The differences between a mediocre system and an exceptional one are found in the nuances of engineering, quality, and service.

This comprehensive guide is designed to be the most authoritative resource available. We will dissect every aspect of ​​cantilever racking​​, from its fundamental principles to the advanced considerations that separate a safe, productive investment from a costly mistake. Our goal is to provide the depth of knowledge necessary to evaluate ​​cantilever racking types​​, understand the true ​​cost of cantilever racking​​, and confidently select the best ​​cantilever racking suppliers​​ for your specific needs.

What is Cantilever Racking? Defining the Gold Standard for Long-Item Storage

At its essence, ​​cantilever racking​​ is a structural storage system characterized by its vertical columns and horizontally projecting arms. This design creates a completely open front, devoid of the horizontal beams found in pallet racking, which allows for the seamless side-loading of lengthy items. The term “cantilever” refers to the engineering principle where a beam—the arm—is supported at only one end by the column, creating a strong, overhanging support structure.

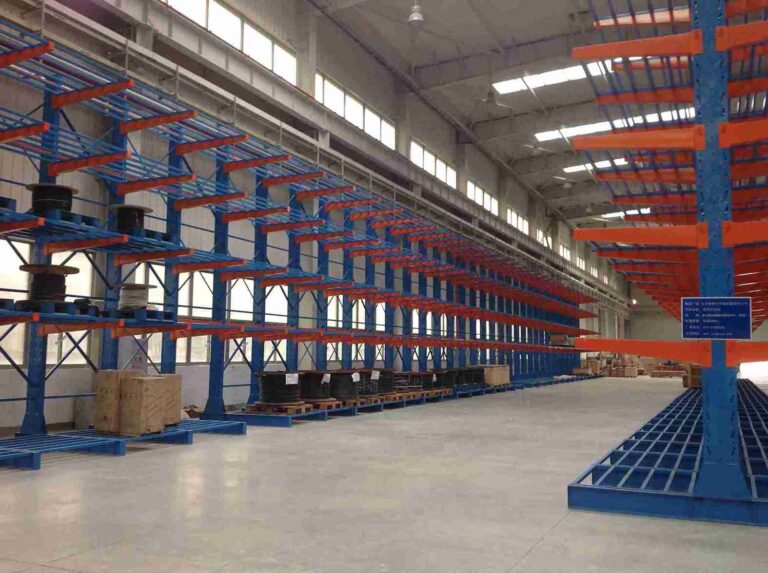

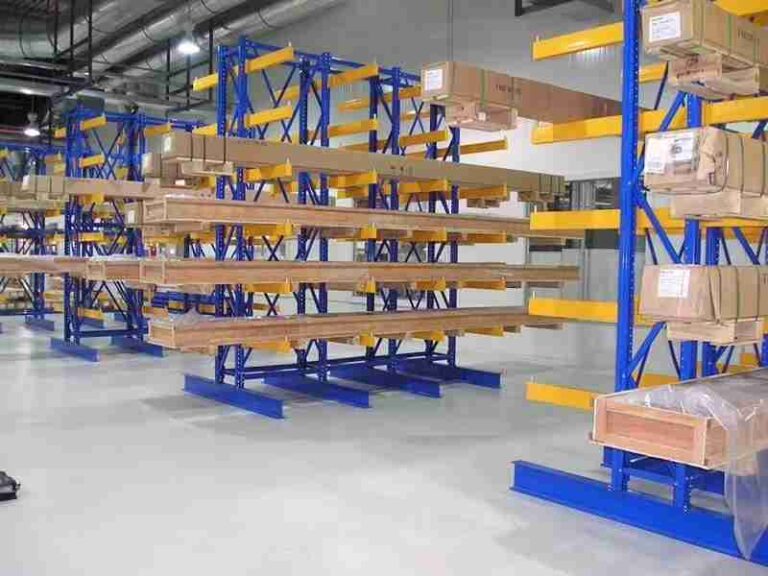

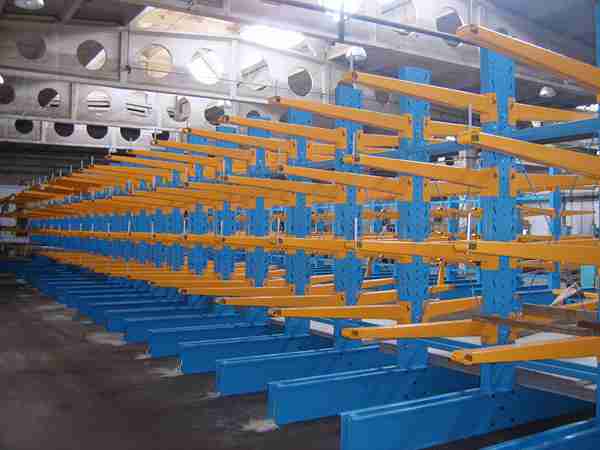

The superiority of a well-designed ​​cantilever racking system​​ lies in its components:

• •​​Uprights/Columns:​​ These are the backbone of any ​​cantilever racking​​ setup. Typically constructed from heavy-duty structural steel tubing or rolled steel sections, they are engineered to handle immense compressive and torsional forces. The quality of the steel and the integrity of the column’s design are the first indicators of a rack’s overall capability and longevity.
• •​​Arms:​​ The workhorses of the system, these beams are inserted into brackets on the column. High-quality ​​cantilever racking​​ arms are designed with a specific load capacity and, crucially, a defined maximum deflection limit (how much they bend under full load) to ensure safety and stability.
• •​​Baseplates and Anchoring:​​ The critical link between the ​​cantilever racking​​ and the building itself. Baseplates are welded to the bottom of the columns and are secured to the concrete floor using high-strength anchor bolts. This is not a mere suggestion; it is a non-negotiable safety requirement for any freestanding ​​cantilever racking​​ installation.
• •​​Bracing:​​ Diagonal or horizontal braces connect the columns, transforming individual posts into a unified, rigid frame. This bracing is essential for absorbing the lateral forces exerted during loading and unloading, preventing sway, and ensuring the entire ​​cantilever racking​​ structure remains plumb and secure.

<h3><b>The Unmatched Advantages of Implementing Cantilever Racking</b></h3>

Why does ​​cantilever racking​​ remain the preferred choice across countless industries? The benefits are tangible and directly impact the bottom line.

• •​​Unobstructed Access:​​ The single most significant advantage. Without front-facing beams, forklifts and cranes can approach the load from the side, simplifying the storage and retrieval process for even the most cumbersome items.
• •​​Exceptional Flexibility:​​ The arms on most ​​cantilever racking​​ systems are vertically adjustable, often at intervals of 3 inches or less. This allows managers to perfectly customize the storage layout to match their specific inventory profile, eliminating wasted vertical space and maximizing cube utilization.
• •​​High-Density Storage:​​ By storing long items vertically, ​​cantilever racking​​ makes efficient use of a warehouse’s most valuable asset: its air space. A well-planned ​​cantilever racking​​ bay can store a staggering volume of material in a relatively small footprint.
• •​​Durability and Longevity:​​ Manufactured from high-grade steel and protected by durable powder-coated or galvanized finishes, a quality ​​cantilever racking​​ system is a capital investment designed to last for decades with proper care.

<h2><b>A Detailed Examination of Cantilever Racking Types and Configurations</b></h2>

Selecting the right type of ​​cantilever racking​​ is paramount to the success of your storage project. The choice is dictated by the nature of your inventory, your available space, and your material handling flow.

<h3><b>Single-Sided vs. Double-Sided Cantilever Racking</b></h3>

This is the primary configuration decision.

• •​​Single-Sided Cantilever Racking:​​ Features arms that project from only one side of the column. This type of ​​cantilever racking​​ is ideally suited for placement against a warehouse wall, creating a highly efficient perimeter storage solution. It is perfect for operations with space constraints or where inventory is only accessed from one direction.
• •​​Double-Sided Cantilever Racking:​​ The most common configuration for open floor plans. Columns have arms projecting from both sides, allowing access from two aisles. This ​​cantilever racking​​ design effectively doubles the storage capacity of a single column line and is the default choice for the bulk storage of long items in a dedicated area.

<h3><b>Structural Cantilever Racking: The Heavy-Duty Powerhouse</b></h3>

When the application involves extreme weights, ​​structural cantilever racking​​ is the only choice. This variant is characterized by its use of heavy structural steel columns, often made from wide-flange beams or robust tubular sections that are welded or bolted together. The arms are similarly massive, engineered to handle capacities that can exceed 20,000 lbs. per arm. This type of ​​cantilever racking​​ is common in steel service centers, heavy machinery storage, and any environment where the loads are immense and the margin for error is zero.

<h3><b>Tubular Cantilever Racking: The Adjustable and Aesthetic Option</b></h3>

In this design, the upright columns are constructed from large-diameter, high-strength steel tubing. The arms are inserted directly into precisely drilled holes in the tube. ​​Tubular cantilever racking​​ often offers a cleaner, more streamlined appearance and allows for very fine vertical adjustments of the arms. This makes it a popular choice for showrooms, furniture storage, and warehouses where aesthetics matter alongside functionality.

Beyond the Basics: Critical Engineering Considerations for Cantilever Racking

The brochure specifications only tell part of the story. The true quality of a ​​cantilever racking​​ system is revealed in its engineering details.

Load Capacity and the Critical Issue of Beam Deflection

Every component of a ​​cantilever racking​​ system will have a rated load capacity. However, an informed buyer looks deeper. ​​Beam deflection​​—the amount an arm will sag under its maximum load—is a critical safety and performance metric. A high-quality ​​cantilever racking​​ arm is engineered to have minimal, calculated deflection (e.g., L/200 or L/250 of its length). Visible sagging is a sign of an under-engineered product that poses a significant risk. Reputable suppliers will provide deflection data and ensure their designs keep loads stable and secure.

Column Design and System Height

The ability to maximize vertical storage is a key reason for choosing ​​cantilever racking​​. Columns can be manufactured to reach heights of 30 feet or more, allowing businesses to fully utilize their building’s clear height. The design of the column itself—its cross-section, steel thickness, and bracing pattern—must be meticulously calculated to handle not only the vertical load but also the moment forces (the bending force) induced by the loaded arms.

The Non-Negotiable Importance of Anchoring

A ​​cantilever racking​​ system is a gravity-defying structure. The tremendous leverage exerted by the loaded arms creates an overturning force that must be resisted by the floor anchors. The selection, installation, and torqueing of these anchors are perhaps the most critical aspect of a safe installation. Engineers specify the exact type, size, embedment depth, and torque specification for each anchor based on the rack’s design loads and the concrete’s strength. This is why professional installation is mandatory.

Demystifying the True Cost of a Cantilever Racking System

The price of ​​cantilever racking​​ is not a simple number; it is a function of multiple variables that directly influence the system’s safety, durability, and performance.

Key Factors Influencing Cantilever Racking Cost

• •​​Material Quality and Steel Grade:​​ The grade and thickness of the steel used are the primary cost drivers. A system built from ASTM A500 Grade C steel will have a higher upfront cost than one made from lighter, lower-grade material but will offer superior strength and longevity.
• •​​Load Capacity and System Size:​​ A ​​cantilever racking​​ system rated for 2,000 lbs. per arm will cost significantly less per bay than one rated for 10,000 lbs. per arm. Similarly, the total number of bays and overall height directly impact the final price.
• •​​Protective Finishes:​​ A standard powder-coated finish provides excellent corrosion resistance for most indoor environments. For facilities with high humidity, temperature fluctuations, or exposure to chemicals (e.g., cold storage, chemical plants), a hot-dip galvanized finish is essential and adds a substantial premium to the ​​cantilever racking​​ cost.
• •​​Engineering and Design Complexity:​​ A straightforward, rectangular layout will be less expensive to engineer and install than a complex layout with multiple angles, mezzanine integrations, or custom seismic bracing requirements.
• •​​Professional Installation:​​ The cost of having certified professionals assemble and install the ​​cantilever racking​​ is a necessary part of the investment. It ensures the system is plumb, level, and, most importantly, anchored correctly for ultimate safety.
• •​​Permits and Certifications:​​ Some local jurisdictions require building permits for storage rack installations, which may involve plan review fees. The cost of having a professional engineer (P.E.) stamp the design drawings should also be considered.

Understanding Price Ranges and Investment Value

While online price lists are often unreliable, understanding general investment ranges is helpful. A small, single-sided ​​cantilever racking​​ system for a workshop may start in the low thousands. A robust, multi-bay, double-sided ​​cantilever racking​​ system for an industrial warehouse can represent an investment of $20,000to$75,000 or more. Heavy-duty structural ​​cantilever racking​​ for extreme loads can easily reach into the hundreds of thousands. The most accurate method is to obtain a detailed quote based on a professional site survey.

The Definitive Guide to Vetting and Choosing Cantilever Racking Suppliers

The supplier you choose will determine the success of your ​​cantilever racking​​ project. Price is a factor, but it should never be the sole deciding criterion. Evaluating ​​cantilever racking suppliers​​ requires a focus on expertise and quality.

1. Engineering Credentials and Compliance

This is the most critical differentiator. The best ​​cantilever racking suppliers​​ employ in-house structural engineers. They design their systems to meet or exceed the standards set by the Rack Manufacturers Institute (RMI). They should readily provide calculations and sealed drawings for permit applications. Ask potential suppliers about their engineering process and compliance certifications.

2. Proven Experience and Project Portfolio

A supplier with a long history of successful ​​cantilever racking​​ installations in your industry is invaluable. They will understand your unique challenges and opportunities. Request case studies and references from projects similar in scale and scope to yours. A portfolio filled with diverse and complex ​​cantilever racking​​ projects is a strong indicator of capability.

3. Manufacturing Quality and Material Sourcing

Inquire about the source and specifications of their steel. Do they use consistent, high-quality materials? Do they control their manufacturing process, including welding and finishing? High-quality ​​cantilever racking​​ is characterized by clean welds, consistent powder-coating thickness, and precise component fabrication.

4. Comprehensive Service Offerings

The most reliable ​​cantilever racking suppliers​​ offer a true turnkey service. This includes initial consultation, site measurement, custom design, engineering, manufacturing, professional installation, and final inspection/certification. A single source of accountability simplifies the process and ensures a seamless result.

5. An Unwavering Commitment to Safety

A reputable supplier will be a partner in safety. They will ask detailed questions about your loads, your equipment, and your environment. They will never recommend exceeding safe load limits and will insist on proper installation and anchoring protocols. Their documentation will include clear load signs and safety inspection guidelines.

The Imperative of Professional Cantilever Racking Installation

Attempting a self-installation of ​​cantilever racking​​ is one of the most significant risks a warehouse can take. Professional installation is not a luxury; it is a necessity. Certified installers ensure that every component is assembled correctly and that every anchor bolt is drilled, epoxied, and torqued to the exact specifications of the engineering drawings. They ensure the entire ​​cantilever racking​​ structure is perfectly plumb and level, which is essential for even load distribution and structural integrity. Upon completion, a professional installer will provide a certificate of installation, confirming that the ​​cantilever racking​​ system has been erected to the approved design and is safe for use.

Optimizing Safety and Workflow with Your New Cantilever Racking

Once your ​​cantilever racking​​ system is installed, ongoing safety and efficiency depend on proper operational protocols.

• •​​Comprehensive Operator Training:​​ All forklift and crane operators must be trained on how to properly load and unload the ​​cantilever racking​​. Loads must be placed evenly across two arms and centered to prevent tipping. Operators should never use the arms to push or pull other items.
• •​​Scheduled Inspection Regime:​​ Implement a formal inspection schedule. This should include daily visual checks by operators for obvious damage and more thorough documented inspections by a designated supervisor on a weekly or monthly basis. Annual inspections by a qualified professional are highly recommended.
• •​​Clear Load Signage:​​ Every bay of the ​​cantilever racking​​ must be clearly labeled with its maximum allowable load capacity. This is a simple but critical step in preventing dangerous overloads.
• •​​Maintain Clear Aisles:​​ Housekeeping is vital. Aisles must be kept clear of debris and obstructions to allow safe access for material handling equipment.

The Future-Proof Warehouse: Integrating Cantilever Racking with Automation

While traditionally a manual storage system, modern ​​cantilever racking​​ can be integrated into semi-automated workflows. Forklifts equipped with guided path technology can navigate narrow aisles between ​​cantilever racking​​ systems with precision, increasing density and efficiency. Furthermore, by tagging arms with barcodes or RFID chips, inventory stored on ​​cantilever racking​​ can be seamlessly tracked within a Warehouse Management System (WMS), providing real-time visibility into stock levels and locations. This integration represents the next evolution in managing long-item storage.

Conclusion: Making a Confident Investment in Cantilever Racking

Selecting and implementing a ​​cantilever racking​​ system is a significant strategic decision that impacts safety, efficiency, and scalability for years to come. It requires a methodical approach that prioritizes engineering integrity and quality over short-term cost savings. By understanding the different ​​cantilever racking types​​, the factors that influence the true ​​cost of cantilever racking​​, and the rigorous process for evaluating ​​cantilever racking suppliers​​, you are equipped to make an informed choice.

The right ​​cantilever racking​​ system, chosen and installed correctly, is not an expense but a transformative capital investment. It will solve immediate storage challenges, create a safer work environment, and provide a durable, flexible foundation that supports your business’s growth and operational excellence for decades.

---

Frequently Asked Questions (FAQs)

​​Q1: How often should cantilever racking be professionally inspected?​​

While operational staff should perform visual checks before each use, a formal, documented inspection by a qualified engineer or certified inspector is recommended at least annually. This ensures that any issues with anchors, deflection, or component damage are identified and addressed by a professional, maintaining the safety and integrity of the ​​cantilever racking​​ system.

​​Q2: Can cantilever racks be relocated or reconfigured after initial installation?​​

Yes, one of the advantages of quality ​​cantilever racking​​ is its adjustability and potential for relocation. Arms can be easily moved to new heights. Entire systems can be disassembled and reinstalled in a new location. However, this process must be managed by professionals. Crucially, the original anchor bolts cannot be reused; new anchors must be installed in the new concrete location according to the original engineering specifications.

​​Q3: What is the typical lead time for a custom cantilever racking system?​​

Lead time is highly variable. For standard, powder-coated ​​cantilever racking​​ systems, expect a lead time of 4-8 weeks from final sign-off on drawings to delivery. For systems requiring heavy-duty structural ​​cantilever racking​​, custom heights, or hot-dip galvanizing, lead times can extend to 10-16 weeks or longer due to the more complex engineering and manufacturing processes involved.

​​Q4: Are specific forklift attachments required for loading cantilever racks?​​

Standard forks are usually sufficient for most applications. However, for specific loads like large paper rolls or extremely long bundles, specialized attachments like rotating paper roll clamps or longer forks can significantly enhance safety and efficiency. The primary requirement is thorough operator training on the unique dynamics of loading and unloading a ​​cantilever racking​​ system.

​​Q5: How does cantilever racking compare to mobile shelving for long items?​​

This is a common comparison, but the two systems serve different masters. Mobile shelving is superb for high-density storage of smaller, lighter items that are manually picked. ​​Cantilever racking​​ is specifically engineered for the side-loading of heavy, bulky, long items using forklifts or cranes. The choice between them is dictated by the weight, size, and material handling flow of the inventory, not just its length.



Welcome to contact us, if you need warehouse rack CAD drawings. We can provide you with warehouse rack planning and design for free. Our email address is: jili@geelyracks.com
