The Strategic Imperative of Cant Pallet Racking in Modern Warehousing

In the relentless pursuit of operational excellence, businesses face a universal logistic conundrum: how to store what doesn’t fit. For growing enterprises worldwide, the limitation often isn’t ambition or demand, but the physical infrastructure to support inventory that defies conventional shelving—long, cumbersome, and irregularly shaped items that plague warehouses with inefficiency. The solution, increasingly recognized as a cornerstone of scalable logistics, is the strategic implementation of cantilever pallet racking.

This system is not merely a storage tool; it is a transformative framework that redefines space utilization, asset protection, and workflow fluidity. For operations spanning from the humid industrial zones of Vietnam to the vast mineral-rich landscapes of West Africa and the burgeoning manufacturing corridors of Latin America, mastering the application of cantilever pallet racking is synonymous with mastering growth itself.

This definitive exploration delves beyond catalog specifications into the operational philosophy of cantilever pallet racking. It dissects how this engineering marvel converts wasted vertical airspace into high-density, accessible storage, turning a capital expenditure into a rapid-return investment. The discussion will navigate the critical nuances of load dynamics, climatic adaptability, and seamless integration with automated systems, providing a comprehensive blueprint for decision-makers.

The objective is clear: to equip businesses with the knowledge to leverage cantilever pallet racking not as a cost, but as a competitive engine, driving down handling expenses, minimizing product damage, and creating a warehouse environment that scales in lockstep with commercial ambition. Herein lies the detailed roadmap to transforming storage from a bottleneck into a beacon of efficiency.

Deconstructing the Cantilever Advantage: An Engineering Perspective

At its core, cantilever pallet racking is an exercise in elegant, load-bearing simplicity. Its design directly confronts the primary weakness of traditional pallet racking—the obstructive front and rear vertical frames—by eliminating them entirely. The system’s architecture relies on robust vertical columns, or uprights, which act as the foundational spine. From these columns, heavy-duty steel arms project horizontally, creating a series of open shelves supported from one side only. This cantilevered principle is what grants the system its unique character and utility.

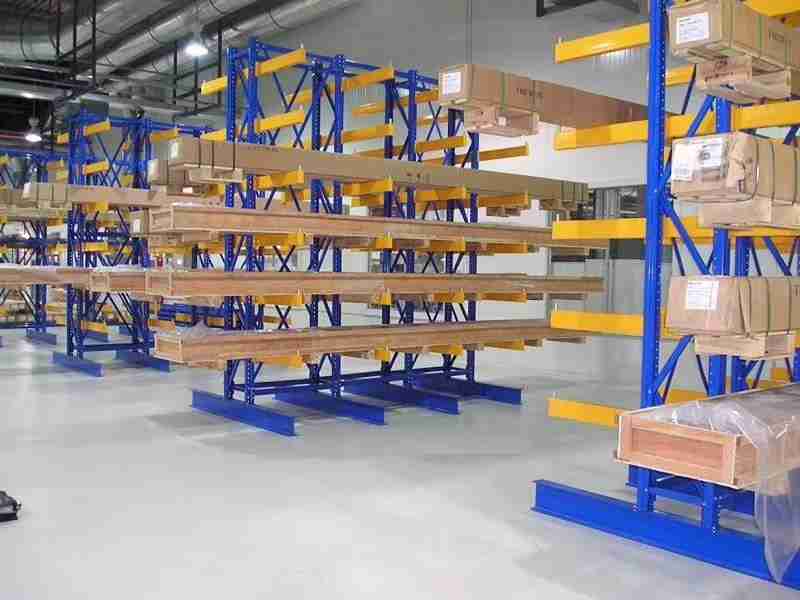

The genius of cantilever pallet racking lies in this open-access design. It allows for the side-loading and unloading of materials using forklifts or automated guided vehicles (AGVs) without any frontal obstruction. Whether storing sixteen-foot lengths of structural steel, bundles of PVC piping, or oversized rolls of textiles, each item rests securely on parallel arms, fully supported along its length and completely visible for instant identification and retrieval.

This configuration makes cantilever pallet racking the undisputed champion for inventory categories that are long, bulky, or non-palletized. The system’s inherent flexibility is further amplified by the vertical adjustability of its arms, typically on three-inch centers, allowing the storage profile to be reconfigured in minutes to accommodate inventory of varying heights, thereby eliminating wasted vertical space.

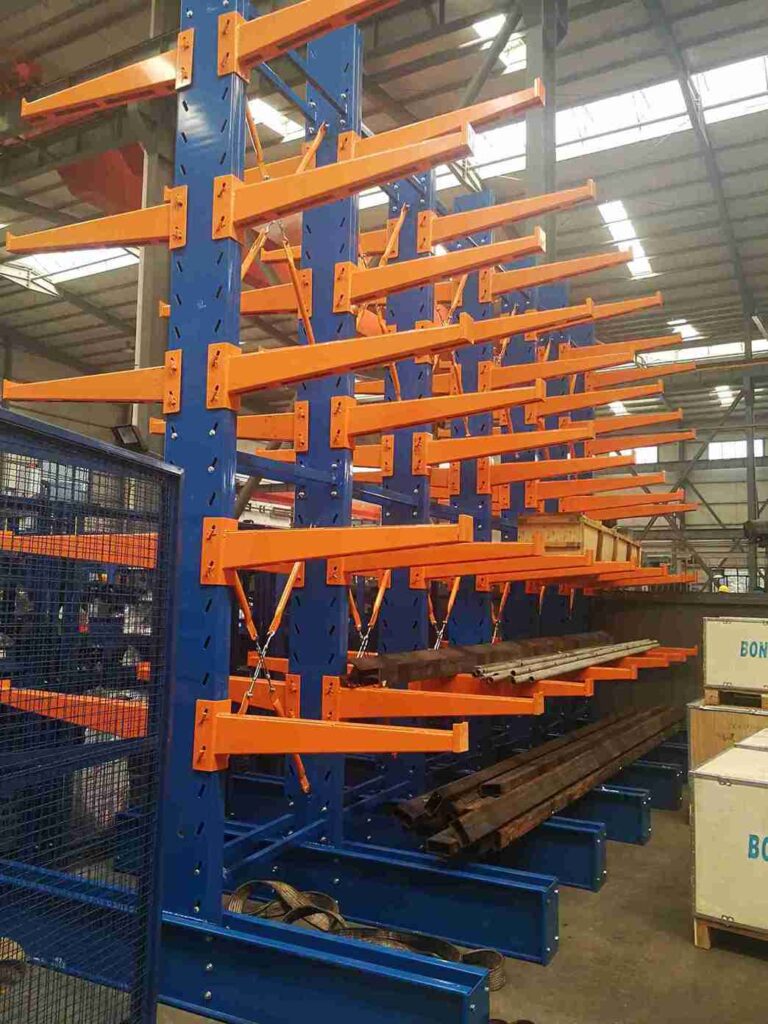

The Anatomy of Performance: Components Defining Quality

To specify a cantilever pallet racking system intelligently, one must understand the role and requisite quality of each component. The difference between a mediocre and a superior system lies in the details of its construction.

The Upright Column: This is the bedrock. High-quality cantilever pallet racking features uprights fabricated from structural-grade steel with a high yield strength. The column’s profile—whether a wide “C” or a box-like “L” shape—is engineered to resist the powerful twisting forces (torsion) imparted by loaded arms. The base plate, welded to the column’s foot, must be substantial, as it disperses the immense load into the concrete floor. For systems in seismically active regions or those subject to frequent impacts from material handling equipment, the integrity of this component is non-negotiable.

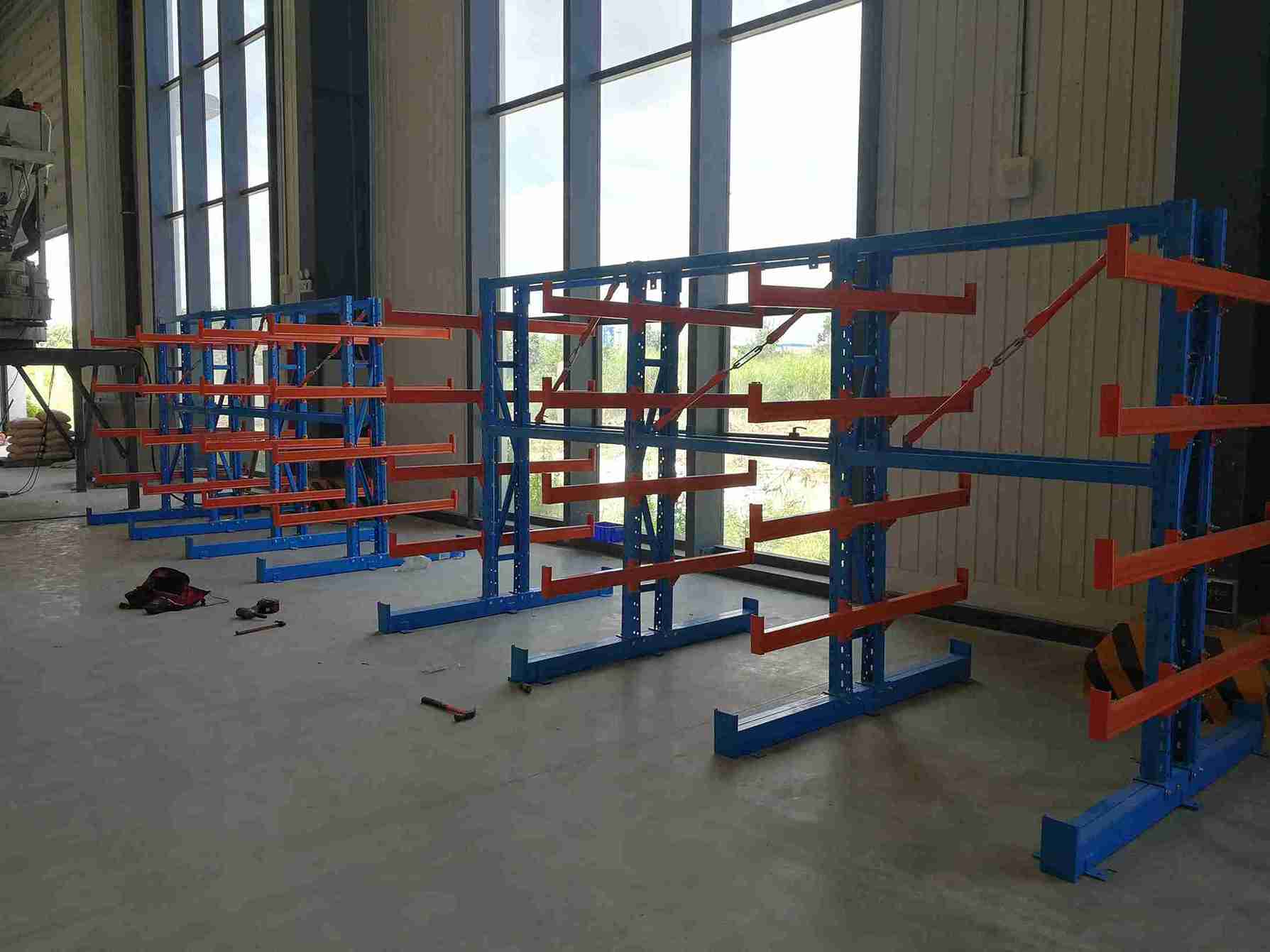

The Load Arm: The defining element of any cantilever pallet racking system. Arms are rated for specific dynamic (during loading) and static (at rest) capacities. They attach to the upright via a secure mechanical interface, such as a drop-in hook with a safety lock or a bolted connection. The arm’s length and depth are critical; they must provide adequate support (typically 75% of the stored item’s length) without deflecting under maximum load. For operations storing finished goods with sensitive surfaces, arms can be fitted with protective PVC or rubber sleeves.

Stabilizing Elements: The silent guardians of safety. Diagonal braces between uprights counteract lateral forces, while horizontal struts enhance front-to-back rigidity. In back-to-back configurations, where two rows of cantilever pallet racking share a central column, robust row spacers and tie-backs are essential to unite the structure, creating a monolithic and exceptionally stable storage block. Ignoring these components compromises the entire system’s structural integrity.

The Global Case for Cantilever: Addressing Regional Storage Challenges

The universal principles of cantilever pallet racking adapt powerfully to local challenges. A one-size-fits-all approach fails in the face of diverse climatic, economic, and operational realities across target markets.

In Southeast Asia’s high-humidity environment, where monsoons and consistent moisture accelerate corrosion, the specification of a cantilever pallet racking system must begin with finish. A powder-coated paint finish may suffice indoors, but for long-term durability, a hot-dip galvanized (HDG) coating is the prudent investment. The zinc layer provides sacrificial anode protection, ensuring the steel beneath remains intact for decades, making the cantilever pallet racking system a permanent asset rather than a recurring expense.

Across the Middle East and North Africa, operations often contend with abrasive sand and corrosive salt air, particularly near coastal logistics hubs. Here, cantilever pallet racking must be engineered for more than just load capacity; it must be designed for environmental resistance. Furthermore, the region’s focus on large-scale construction and infrastructure projects creates a perfect use-case for cantilever pallet racking to store rebar, piping, and glass panels, where its ability to handle extreme lengths and weights maximizes yard and warehouse utility.

For growing businesses in Africa and Latin America, budget sensitivity is frequently paired with a need for rapid scalability. The most affordable cantilever pallet racking solution is one that can be expanded modularly. A business can start with a single row of cantilever pallet racking and, as volume grows, add additional uprights, arms, and even height extensions. This modularity protects capital, allowing storage capacity to scale precisely with demand, a critical advantage for businesses navigating volatile growth phases. The system’s efficiency also reduces the need for expansive warehouse footprints, a significant cost saving in areas where construction or rental costs are high.

Financial Calculus: Unpacking the True Affordability of Cantilever Systems

The term “affordable” in the context of cantilever pallet racking demands a long-term, holistic interpretation. The lowest upfront price can conceal the highest total cost of ownership. A truly affordable cantilever pallet racking system is one that delivers the lowest cost per stored item per year over its operational lifespan. This calculation incorporates several key factors:

1. Density-Driven Real Estate Savings: The primary economic benefit of cantilever pallet racking is its exceptional space efficiency. By enabling safe, vertical storage up to heights of 10 meters or more, it dramatically increases a warehouse’s storage capacity without expanding its footprint. In markets where industrial land is at a premium, this density directly defers or eliminates the need for expensive facility expansion, offering a staggering return on investment.

2. Damage Mitigation and Inventory Preservation: Traditional storage methods for long items—leaning against walls or stacked on the floor—invite damage through bending, scratching, and exposure. A properly designed cantilever pallet racking system supports items evenly along their length, preventing warping and protecting sensitive surfaces. The reduction in waste and customer returns directly boosts the bottom line, often paying for the system itself within a short period.

3. Labor Productivity and Workflow Acceleration: The side-loading design of cantilever pallet racking streamulates material handling. Forklift operators can store and retrieve items in a single, fluid motion without complex maneuvers. This reduces cycle times, minimizes aisle congestion, and allows existing staff to handle greater throughput. The time saved on every transaction compounds into significant annual labor cost savings.

4. Flexibility as an Economic Shield: Market demands shift. A cantilever pallet racking system with easily adjustable arms allows a warehouse to pivot from storing plumbing supplies to automotive parts without costly structural changes. This adaptability safeguards the initial investment against obsolescence, ensuring the cantilever pallet racking infrastructure remains a valuable asset through multiple business evolutions.

Integration with the Automated Warehouse: The Next Evolutionary Step

For the forward-thinking enterprise, cantilever pallet racking is not an endpoint but a foundational component of an intelligent logistics ecosystem. Its clean, open geometry makes it inherently compatible with warehouse automation, serving as the perfect physical interface for robotic systems.

The synergy between cantilever pallet racking and Automated Guided Vehicles (AGVs) is particularly potent. Specialized side-loading AGVs can be programmed to navigate to specific coordinates within the cantilever pallet racking grid, retrieve a load, and deliver it to a picking or shipping station with minimal human intervention. This integration is transformative for handling heavy, long, or hazardous materials, enhancing both safety and efficiency. Planning for this integration requires foresight; the cantilever pallet racking installation must be engineered with precise alignment and tolerances to ensure flawless robotic interaction.

Similarly, data from a Warehouse Management System (WMS) can turn cantilever pallet racking into a smart storage network. Each bay and level can be digitally mapped, allowing for optimized put-away logic, real-time inventory visibility, and dynamic picking paths. This marriage of physical and digital logistics transforms the cantilever pallet racking from a passive storage unit into an active, data-driven component of the supply chain.

Specification and Procurement: A Due Diligence Framework

Selecting a supplier for cantilever pallet racking is a technical procurement exercise. The following checklist is essential for ensuring quality, safety, and value:

• Certification and Compliance: Demand evidence that the cantilever pallet racking design complies with recognized international standards (e.g., FEM, RMI) and local seismic codes. Reputable suppliers provide structural calculation reports sealed by an engineer.

• Material Transparency: Request mill certificates for the steel, verifying its yield strength and composition. Specify a minimum finish standard—hot-dip galvanizing for harsh environments—and confirm the process meets ASTM or ISO standards.

• Load Rating Integrity: Understand the difference between advertised and certified capacities. Dynamic load ratings are crucial. Ensure the supplier provides clear, per-arm and per-upright load charts for your specific configuration.

• Total Project Capability: For international clients, the supplier must manage the entire chain: design, manufacturing, export documentation, shipping, and often, supervision of local installation. A partner with a proven track record in your region is invaluable.

• Lifecycle Support: Inquire about after-sales service, availability of spare parts, and the potential for future system audits or reconfiguration support. A reliable partner supports the cantilever pallet racking system for its entire lifespan.

Conclusion: Elevating Storage to a Strategic Function

In the final analysis, the decision to invest in a high-quality cantilever pallet racking system is a decision to prioritize operational maturity and strategic growth. It is an acknowledgment that storage is not a passive, overhead activity but an active, value-creating function. A well-planned cantilever pallet racking installation directly contributes to leaner operations, preserved capital, enhanced safety, and scalable capacity.

From the factory floor in Indonesia to the distribution center in Colombia, businesses that have migrated to optimized cantilever pallet racking solutions report a common outcome: a transformation of their warehouse from a cost center into a model of efficiency and a catalyst for expansion. The initial investment is swiftly offset by the tangible, recurring savings in space, labor, and inventory loss. In today’s competitive landscape, where agility and efficiency are paramount, implementing a robust cantilever pallet racking system is not just an equipment upgrade—it is a declaration of intent to compete and win on the global stage, building a logistics foundation that is as ambitious as the business it supports.

Frequently Asked Questions (FAQs)

1: Can cantilever pallet racking be safely used in a warehouse with uneven or older concrete flooring?

Yes, but it requires professional assessment and mitigation. While a perfectly level floor is ideal, adjustable base plates (leveling feet) can compensate for minor irregularities. For significant slopes or damaged concrete, a structural steel sub-frame can be installed to create a level platform for the cantilever pallet racking. Crucially, the concrete must be tested for its compressive strength to ensure it can handle the point loads from the rack uprights. A qualified installer will always conduct a floor survey prior to finalizing the cantilever pallet racking design.

2: What is the realistic lifespan of a cantilever pallet racking system, and how does maintenance affect it?

With proper specification and care, a high-quality cantilever pallet racking system can have a functional lifespan exceeding 25 years. The single greatest factor is corrosion protection; a hot-dip galvanized system in a dry warehouse will far outlast a painted system in a humid one. Proactive maintenance is essential: annual professional inspections for plumb, anchor integrity, and damage, combined with immediate repair of any bent components or impact damage, will maximize the safe service life of the cantilever pallet racking. Neglect can reduce lifespan dramatically and create serious safety hazards.

3: How does the cost of cantilever pallet racking compare to alternatives like stacking frames or mezzanines for long items?

Cantilever pallet racking often presents a superior long-term value proposition. Stacking frames offer low upfront cost but poor accessibility, high damage risk, and significant manual handling inefficiency. Mezzanines create a second floor but are a major capital project with fixed dimensions; they cannot be easily reconfigured and often waste the high-bay cube above them. Cantilever pallet racking provides direct, selective access to every item, optimizes the entire vertical cube, and can be reconfigured or relocated as needs change, offering a more flexible and operationally efficient return on investment.

4: For a business new to this system, what is the best way to pilot a cantilever pallet racking installation?

A phased approach is highly effective. Start by identifying the product category causing the greatest inefficiency or damage (e.g., steel tubing, paneling). Design a dedicated zone with a single or double-row cantilever pallet racking configuration for that specific inventory. Train a core team of forklift operators on its proper use. Measure the pilot’s performance over 3-6 months—tracking space recovered, time saved, and damage reduction. The quantifiable results from this pilot zone will build the internal business case for a broader rollout of cantilever pallet racking across the facility.

5: Are there specific forklift attachments required for operating with cantilever pallet racking?

While standard forks can be used, specialized attachments can dramatically enhance safety and efficiency when working with cantilever pallet racking. Pipe booms or crane jibs are ideal for very long, single items. Carton clamps or sheet lifters are perfect for bundled materials like plywood or gypsum board. Using the correct attachment ensures stable load handling, prevents damage to the cantilever pallet racking arms, and protects the integrity of the stored goods. Consultation with a material handling expert is recommended when setting up a new cantilever pallet racking area.
