Drive In Racking Dimensions vs. Drive-Thru Racking Dimensions : A Dimension-Based Comparison for Your Warehouse

​​Selecting the right high-density storage system is a pivotal decision that directly impacts your warehouse’s efficiency, storage capacity, and bottom line.​​ Among the most effective solutions are drive-in and drive-thru pallet racking systems.

While they look strikingly similar at a glance, the subtle difference in their operational design—one being a dead-end system and the other a throughput system—creates a significant divergence in their application, dimensions, and suitability for your specific inventory profile. A misunderstanding of these nuances can lead to a costly mismatch, resulting in inefficiencies, safety hazards, and wasted cubic space. In this exhaustive guide, we will dissect drive-in and drive-thru racking from the ground up, focusing on the critical role of dimensions, structural design, and operational workflow.

Our goal is to provide you with the detailed, professional insights necessary to make an informed choice that aligns perfectly with your logistics strategy, ensuring you maximize your ROI on this crucial infrastructure investment.

Understanding the Fundamental Design Philosophy drive in racking dimensions

Before we delve into tape measures and blueprints, it’s essential to grasp the core operational concept that defines and differentiates these two systems. Both are variations of ​​cantilevered racking​​, where pallets are supported by rails mounted to the upright frames, eliminating the need for front-to-back beams. This design allows for incredibly deep storage lanes.

What is Drive In Racking Dinensions?

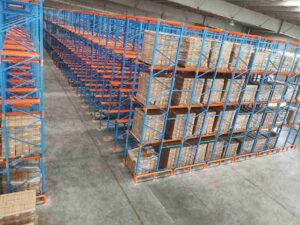

​​Drive-in racking​​ is a ​​last-in, first-out (LIFO)​​ storage system. It is characterized by a single entrance point for each lane. Forklifts literally “drive in” to the rack structure to place or retrieve pallets. This design creates a solid, high-bay block of storage, ideal for housing large quantities of similar products with long-term storage needs. The lanes are dead ends; to access a pallet at the very back, every pallet in front of it must be removed first.

The specific ​​drive in racking dimensions​​ are paramount to its functionality, dictating everything from overall capacity to the type of forklift that can operate within it. When planning a new installation, the primary focus must be on calculating the precise ​​drive in racking dimensions​​ to avoid any operational bottlenecks or safety issues.

What is Drive-Thru Racking?

​​Drive-thru racking​​ is its more flexible counterpart, operating on a ​​first-in, first-out (FIFO)​​ principle. As the name implies, lanes are open at both ends, allowing a forklift to “drive through” the entire structure. This facilitates direct access to any pallet from either end without needing to move others. It’s the logistics equivalent of a two-way street compared to the one-way cul-de-sac of drive-in systems.

While the ​​drive in racking dimensions​​ for a similar system would be identical in terms of lane depth and height, the through-and-through design introduces subtle but critical differences in the required aisle widths and overall layout flow that must be accounted for in the initial planning stages.

The Critical Role of Dimensions in System Selection

The physical ​​dimensions​​ of your racking are not arbitrary numbers; they are the DNA of your storage system’s efficiency and capacity. They are dictated by a complex interplay of your building’s constraints, your forklift’s capabilities, and your pallet sizes. Choosing incorrectly can render a system unusable or dangerously unstable.

A comprehensive understanding of ​​drive in racking dimensions​​ is not a luxury; it is an absolute necessity for any warehouse manager or logistics planner looking to optimize their space. The wrong ​​drive in racking dimensions​​ can lead to pallets that don’t fit, forklifts that can’t maneuver, and a system that fails to deliver the promised storage density. Every millimeter of the ​​drive in racking dimensions​​ must be meticulously planned and calculated.

Key Dimension Variables for Both Systems

These foundational measurements apply universally to both drive-in and drive-thru configurations and must be calculated with precision. They form the bedrock of all ​​drive in racking dimensions​​ calculations and cannot be overlooked.

1. Pallet Size (P)

This is your starting point. The ​​pallet dimensions​​ (length, width, and height) and its load weight dictate almost every other measurement. North American standard pallets (48″ x 40″) and Euro pallets (800mm x 1200mm) are common, but many warehouses use custom sizes. The depth of the pallet (the length of the forks entering it) is the single most important number for determining the lane depth in your ​​drive in racking dimensions​​. A miscalculation of even an inch here can throw off the entire ​​drive in racking dimensions​​ plan, leading to costly adjustments down the line.

2. Upright Frame Height (H)

This is determined by your clear ceiling height minus necessary safety clearances for sprinklers, lighting, and ventilation. Modern warehouses often leverage very high ​​upright frames​​ to maximize cubic storage, sometimes requiring specialized ​​narrow aisle forklifts​​ or ​​turret trucks​​. The height component of your ​​drive in racking dimensions​​ is a direct function of your building’s cube. Maximizing this vertical space is key to achieving a strong return on investment, but it must be balanced against the capabilities of your material handling equipment. The vertical ​​drive in racking dimensions​​ must allow for safe clearance above the highest stored load.

3. Lane Depth (L) and Number of Pallets

This is the heart of the high-density advantage. ​​Lane depth​​ is the total length of a single storage lane, measured from the face of the first pallet position to the back of the last one. It is the core of the ​​drive in racking dimensions​​ blueprint. It is calculated as:

L = (N * P) + C + S

Where:

N= Number of pallets dee

P= Pallet depth (length

C= Clearance between pallets (typically 4-6 inches)

S= Safety clearance at the lane’s end (typically 6-12 inches)

Getting this formula right is what defines successful ​​drive in racking dimensions​​. The clearance values (Cand S) are critical for allowing forklift forks to angle correctly and for preventing damage to the racking and loads. An error in calculating the ​​drive in racking dimensions​​ for lane depth will either waste space or make the system impossible to use efficiently.

4. Forklift Operating Dimensions: The Turning Radius

This is the most frequently overlooked yet critical factor. The ​​forklift turning radius​​ determines the minimum aisle width required for the machine to enter, maneuver inside, and exit the racking lane safely. A standard counterbalance forklift requires a much wider approach aisle than a ​​narrow aisle reach truck​​. Using the wrong truck can make a system completely inaccessible.

The ​​drive in racking dimensions​​ are not just about the static structure; they are about the dynamic interaction between the rack and the vehicle. The aisle width, a key part of the overall ​​drive in racking dimensions​​ layout, is a direct derivative of the forklift’s specs. You cannot finalize your ​​drive in racking dimensions​​ without knowing exactly which forklifts will be servicing the lanes.

Head-to-Head: A Detailed Dimensional Breakdown

Now, let’s juxtapose the two systems across key dimensional and operational criteria. This comparison will highlight where they differ and where they share common ground. Understanding the differences in the required ​​drive in racking dimensions​​ for each type is the first step toward making an informed decision.

Criteria

Drive-In Racking (LIFO)

Drive-Thru Racking (FIFO)

<strong>Operational Method</strong>

Single entry/exit point. LIFO inventory access.

Dual entry/exit points. FIFO inventory access.

<strong>Ideal Inventory Profile</strong>

High-volume, slow-moving, homogeneous SKUs (e.g., bulk raw materials, seasonal overflow, archived records).

High-volume products with date sensitivity or multiple SKUs per lane (e.g., perishable goods, production line feeding, bonded warehouse stock).

<strong>Aisle Width Requirement</strong>

Wider approach aisle needed for the forklift to align at a 90-degree angle to enter the lane. Typically equal to the forklift’s turning radius. This is a major factor in the overall footprint of the <strong>drive in racking dimensions</strong>.

Can sometimes have a slightly narrower approach aisle as the forklift doesn’t always need a perfect 90-degree alignment for a throughput lane. This can slightly alter the overall layout compared to standard <strong>drive in racking dimensions</strong>.

<strong>Storage Density</strong>

Extremely high. Aisles are virtually eliminated, creating a solid storage block. The <strong>drive in racking dimensions</strong> are optimized for pure, uncompromised density.

Very high, but marginally less than drive-in due to the need for a second access point at the rear. The <strong>drive in racking dimensions</strong> are traded for a sliver of accessibility.

<strong>Accessibility & Speed</strong>

Lower. Retrieval can be slow and requires reshuffling if a specific pallet is buried. The <strong>drive in racking dimensions</strong> prioritize space over speed.

Higher. Direct access to any pallet from either end enables faster put-away and retrieval cycles. The <strong>drive in racking dimensions</strong> here support a more dynamic workflow.

<strong>Safety Considerations</strong>

Higher risk. Operators work inside the rack structure; requires guarded columns, protective barriers, and highly trained operators. The confined <strong>drive in racking dimensions</strong> demand heightened safety protocols.

Moderate risk. While operators still enter the lane, the through-traffic design can feel less confined. Safety protocols are still paramount, but the <strong>drive in racking dimensions</strong> allow for easier egress in an emergency.

Calculating Your Specific System Dimensions: A Step-by-Step Guide

Let’s move from theory to practical application. Here’s how our engineering team approaches the dimensioning process for a client. This process ensures that the final ​​drive in racking dimensions​​ are perfectly tailored to your operation.

Step 1: Data Collection

We start by gathering:

​​Pallet Data:​​ Exact dimensions (LxWxH) and maximum gross weight. This is the non-negotiable foundation for all ​​drive in racking dimensions​​

​​Forklift Specs:​​ Truck model, overall width, mast width, lifting height, and, most crucially, the ​​outside turning radius​​. You cannot define the aisle width in your ​​drive in racking dimensions​​ without this data

​​Building Envelope:​​ Clear ceiling height, column locations, floor condition, and door placements. These constraints will dictate the maximum possible ​​drive in racking dimensions​​ for height and overall layout.

Step 2: Determining Lane Depth

Using the formula L = (N * P) + C + S, we determine how deep a lane can be. For example, for 5 standard pallets (48″ deep each) with 4″ clearance between them and an 8″ end clearance:

L = (5 * 48") + 4" + 8" = 252 inches (21 feet) deep per lane.

This calculation is repeated for various scenarios to find the optimal ​​drive in racking dimensions​​ that balance depth with accessibility. The number of pallets deep (N) is a key variable that directly impacts the overall ​​drive in racking dimensions​​ and storage capacity.

Step 3: Determining Aisle Width

The aisle width (A) is primarily a function of the forklift’s turning radius (R). A common calculation is: A = R + O

Where Ois an operational clearance (usually 12″). If a forklift has a 96″ turning radius, the minimum aisle width would be 108″. This aisle width is a critical component of the overall ​​drive in racking dimensions​​ layout, as it represents the “lost” space between storage blocks. Optimizing this value is key to maximizing density.

Step 4: Configuring the Overall Layout

We then use these component ​​drive in racking dimensions​​ to lay out the entire system within your building footprint, optimizing for total storage positions while maintaining clear fire paths and operational flow. Advanced CAD software is used to model the ​​drive in racking dimensions​​ in 3D, ensuring there are no conflicts with building features and that the flow of traffic is logical and efficient. This final step transforms the individual calculations for ​​drive in racking dimensions​​ into a coherent, high-performance storage solution.

Beyond Dimensions: Integrating with Automation

The evolution of ​​warehouse automation​​ has profoundly impacted these traditional systems. While a forklift operator remains common, many modern high-density installations are now integrated with advanced technology. The precise and unforgiving nature of ​​drive in racking dimensions​​ makes them an ideal candidate for automation.

​​Automated Guided Vehicles (AGVs)​​ and ​​autonomous mobile robots (AMRs)​​ can be programmed to operate within drive-in and drive-thru systems with incredible precision, reducing labor costs and minimizing the risk of damage from human error. Furthermore, a ​​drive-in racking​​ system often serves as the live storage module within a larger ​​Automated Storage and Retrieval System (AS/RS)​​, where a robotic shuttle runs on rails within the rack structure to automatically deposit and retrieve pallets.

This merges the incredible density of drive-in with the speed and accuracy of automation. In these automated contexts, the ​​drive in racking dimensions​​ must be even more precise, with tolerances measured in millimeters to ensure the robotic systems can interface flawlessly with the storage structure. The ​​drive in racking dimensions​​ become a digital blueprint that governs the entire automated workflow.

Making the Final Choice: Which System is Right for You?

The decision tree is ultimately guided by your inventory turnover ratio. The correct ​​drive in racking dimensions​​ will follow once this strategic choice is made.

​​Choose DRIVE-IN Racking if:​​

Your inventory is uniform and you have a high number of the same SKU

You practice bulk storage with long-term holding (weeks or months)

Your product is not date-sensitive.

Your primary goal is to achieve the absolute maximum storage density within a fixed space. The ​​drive in racking dimensions​​ will be configured for pure space utilization

You have a lower budget, as drive-in systems can be slightly less expensive due to needing slightly fewer components at the rear.

​​Choose DRIVE-THRU Racking if:​​

Your inventory is perishable or date-code sensitive (e.g., food, beverage, pharmaceuticals)

You require strict FIFO rotation to manage stock

You have multiple SKUs stored in the same lane but need direct access to each one

Your throughput velocity is high, requiring frequent and fast access to all pallets. The ​​drive in racking dimensions​​ will be similar, but the operational philosophy is different

Safety is a supreme concern and the through-lane design is deemed a lower risk for your operators.

Conclusion

The choice between drive-in and drive-thru racking is a strategic one, with ​​dimensions​​ serving as the critical linchpin. There is no universally superior system; only the system that is superior for your specific operational requirements, inventory profile, and physical constraints. Drive-in offers unparalleled density for static, homogeneous goods, while drive-thru provides essential accessibility for dynamic, time-sensitive inventory.

Overlooking the intricate details of pallet size, forklift kinematics, and lane configuration can lead to a profound mismatch, crippling warehouse efficiency and creating safety risks. We strongly recommend a consultative approach with a seasoned storage systems integrator who can analyze your entire operation, model different scenarios in advanced layout software, and provide a dimensioned solution that not only fits your space but propels your productivity forward for years to come. The journey to optimizing your warehouse begins with a single, precise calculation of your required ​​drive in racking dimensions​​.

Frequently Asked Questions (FAQs)

1. What is the maximum recommended height for a drive-in/drive-thru racking system?

There is no universal maximum, but it is strictly governed by your forklift’s maximum lift height and the building’s clear ceiling height. Systems regularly exceed 30 feet, and with specialized equipment, can go up to 100 feet or more. Structural engineering and seismic considerations become paramount at these heights. The vertical ​​drive in racking dimensions​​ must be certified by a professional engineer to ensure stability and safety.

2. Can these systems be reconfigured or relocated easily?

While not as modular as selective pallet racking, both drive-in and drive-thru systems can be disassembled and reconfigured to a certain degree. However, changing the lane depth often requires new rails and structural components, making it a significant project. It’s best to plan the initial layout and ​​drive in racking dimensions​​ meticulously from the outset to avoid the need for costly reconfiguration.

3. How does the weight capacity of these systems compare to selective racking?

Per-bay capacity can be very high, as the load is distributed across multiple upright frames. However, the capacity per individual rail beam must be carefully calculated based on the number of supported pallets. Our engineers perform specific load calculations to ensure each component is rated for your specific application. The ​​drive in racking dimensions​​ must account for not just size, but also the dynamic and static load requirements.

4. Are there any specific fire safety codes for these high-density systems?

Yes, absolutely. High-density storage presents unique challenges for fire suppression systems. Codes often require in-rack sprinkler heads to be installed at various levels within the rack structure to ensure water can penetrate the dense storage block. Compliance with local building and fire codes is non-negotiable and will influence the final ​​drive in racking dimensions​​ and layout.

5. We have a very uneven warehouse floor. Can we still install this type of racking?

A level floor is crucial for the stability and alignment of any pallet racking system, especially deep-lane systems where forklifts operate inside them. Significant floor unevenness can lead to rack misalignment, premature wear, and safety issues. We always recommend a floor survey and may advise shimming or leveling the floor prior to installation. Failure to address this can compromise the integrity of the entire system, no matter how perfect the planned ​​drive in racking dimensions​​ are on paper.
