Transforming Your Warehouse Footprint with Intelligent Automation

In the relentless pursuit of logistical excellence, the modern warehouse is no longer a static storage facility; it’s the dynamic, pulsating heart of a supply chain. The greatest challenges faced by operations managers are universal yet crippling: sky-high real estate costs, escalating labor shortages, unprecedented demand for rapid order fulfillment, and the constant pressure to do more with less. The solution isn’t just to work harder; it’s to work smarter by leveraging technology that has matured and become accessible. Implementing advanced automated storage systems in warehouses represents the definitive answer to these challenges. This in-depth guide moves beyond superficial lists to provide a granular analysis of the five most impactful automated storage systems engineered to conquer space constraints and unleash transformative efficiency gains. The article will dissect how Automated Storage and Retrieval Systems (ASRS), Autonomous Mobile Robots (AMRs/AGVs), high-density dynamic storage solutions, automated conveyor and sortation systems, and sophisticated Warehouse Execution Software (WES) integrate to form a cohesive, future-proof operation. The goal is to provide readers with the foundational knowledge and strategic context needed to make an informed decision that will optimize their cube, slash operational costs, and propel productivity to a level previously unimaginable. The evolution of automated storage systems in warehouses is not a future concept; it is a present-day necessity for any business serious about scaling efficiently and competitively.

Beyond Square Footage: The True Cost of Inefficient Storage and the Case for Automation

Before diving into the solutions, it’s critical to fully quantify the problem. Inefficiency isn’t just an annoyance; it’s a massive, recurring drain on the bottom line. When experts talk about maximizing space, they aren’t just discussing the cost per square foot of a lease. They’re talking about the holistic financial impact of underutilized air space, wasted labor hours, and error-prone processes. These are the very pain points that modern automated storage systems in warehouses are designed to eradicate.

• The Vertical Cube Penalty: Most traditional racking systems barely utilize 30-40% of the available vertical height in a facility. This is essentially like paying for a three-story building but only using the ground floor. Every cubic foot of unused air above the racks is money left on the table—a fundamental flaw that automated storage systems in warehouses are architected to solve.

• Labor Inefficiency Symphony: Manual operations are riddled with non-value-added travel time. Pickers and put-away workers can spend upwards of 60-70% of their shift simply walking. This not only limits productivity but contributes to worker fatigue and higher turnover rates. One of the primary benefits of automated storage systems in warehouses is the drastic reduction of this wasteful travel, reallocating human effort to higher-value tasks.

• Error Rates and Customer Satisfaction: Manual picking is inherently prone to errors. A wrong item picked or a mis-shipped order doesn’t just cost the reverse logistics fee; it costs a customer’s trust and damages brand reputation irrevocably. The precision of automated storage systems in warehouses brings error rates down to a negligible fraction of a percent.

• Inventory Inaccuracy: Without a system that provides real-time, exact location data, WMS inventory counts will always drift from physical reality. This leads to stock-outs, over-ordering, and frustrated customers. The digital-first nature of automated storage systems in warehouses ensures perfect inventory synchronization at all times.

Investing in automated storage systems in warehouses is not merely a capital expenditure; it’s a strategic initiative to eliminate these pervasive costs. It’s about transforming a warehouse from a cost center into a competitive weapon. The return on investment (ROI) is calculated not just in equipment costs, but in reclaimed space, saved labor hours, regained customers, and realized growth potential.

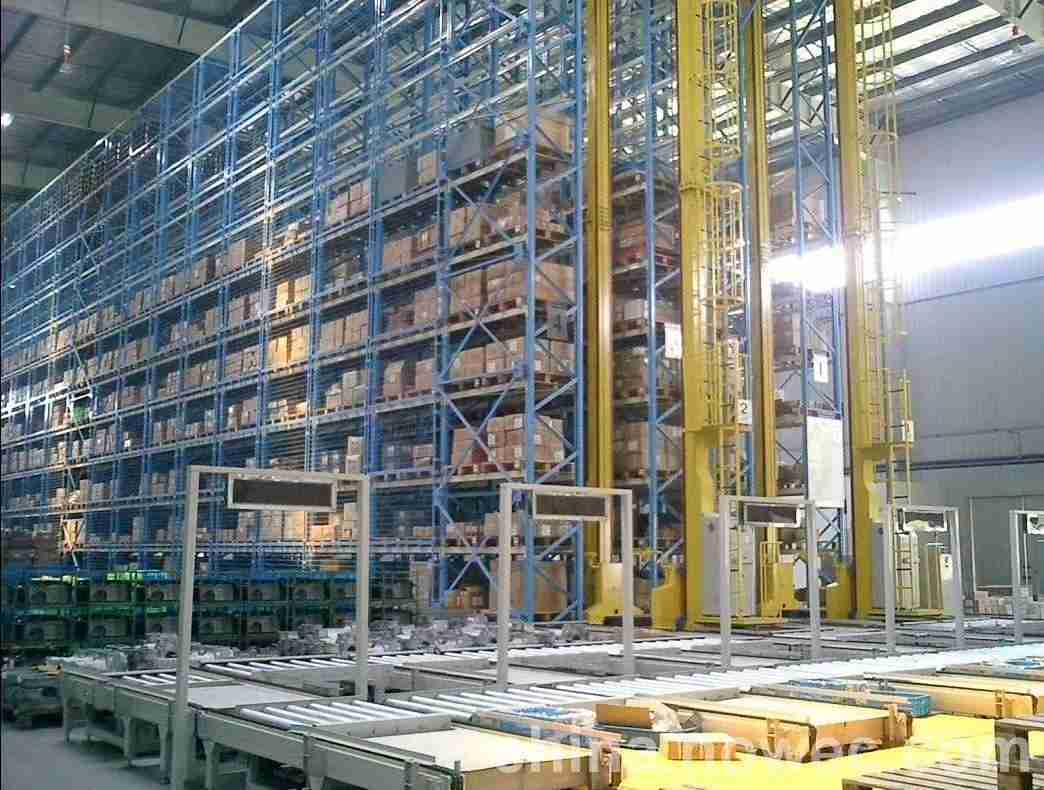

 1. Automated Storage and Retrieval Systems (ASRS): The High-Density Powerhouse

When most professionals think of warehouse automation, the image that often comes to mind is the ASRS. This is the workhorse of high-density, high-throughput automation, perfect for environments where space is at an absolute premium and inventory SKUs are vast. For companies looking to deploy automated storage systems in warehouses, the ASRS often serves as the central pillar of the entire operational overhaul.

How ASRS Revolutionizes Space Utilization and Operational Control

An ASRS typically consists of a series of narrow aisles with dedicated storage and retrieval machines (cranes) that travel within them. The system is controlled by sophisticated software that coordinates the movement of the cranes to store and retrieve loads from specific locations with pinpoint accuracy. This represents a paradigm shift in how automated storage systems in warehouses manage vertical space.

• Maximizing the Cube: By utilizing narrow aisles and storing products from floor to ceiling, an ASRS can increase storage density by 100% or more compared to traditional wide-aisle racking. Operations effectively double—or even triple—their storage capacity within the same building footprint, deferring the need for a costly expansion or relocation. This is the most direct and powerful example of how automated storage systems in warehouses tackle the space dilemma head-on.

• Types of ASRS for Different Needs: It’s crucial to understand the different configurations to identify the right fit for a specific operation. The versatility of automated storage systems in warehouses is evident in this range:

  • Unit-Load ASRS: Designed for handling full pallet loads. These are massive systems for high-volume manufacturing, distribution centers, and cold storage facilities. They are the giants of automated storage systems in warehouses, moving massive weights with impeccable precision.

  • Mini-Load ASRS: Designed for handling smaller loads stored in bins or totes. These are ideal for storing small parts, electronics, and pharmaceutical products. The retrievers are faster and more agile than their unit-load counterparts, perfect for fulfilling a high volume of small parts orders.

  • Vertical Lift Modules (VLMs) & Horizontal Carousels: These are “goods-to-person” ASRS technologies. They consist of vertically or horizontally rotating trays that bring the required item directly to an ergonomic work window for the operator, eliminating walking entirely. They are a highly efficient form of automated storage systems in warehouses for parts picking and kitting operations.

 The Tangible Efficiency and Accuracy Gains of Implementing ASRS

The benefits of integrating these automated storage systems in warehouses extend far beyond just space savings. The operational improvements are transformative.

• Dramatically Reduced Labor Costs: The system requires far fewer operators than manual picking. One operator can manage multiple machines, supervising the work rather than performing strenuous physical labor. This reallocation of human resources is a key financial driver for adopting automated storage systems in warehouses.

• Blistering Throughput and Accuracy: ASRS machines operate with relentless speed and precision, 24/7 if needed. They don’t get tired, take breaks, or make cognitive errors. Accuracies of 99.99%+ are the standard, virtually eliminating picking and mis-shipment errors. This reliability is a cornerstone of high-performing automated storage systems in warehouses.

• Enhanced Safety: By enclosing the storage and retrieval process within a defined structure, the risk of accidents from forklifts, falling items, or human error in the aisles is massively reduced. Improving safety is a critical, though often overlooked, benefit of automated storage systems in warehouses.

• Perfect FIFO/FEFO Inventory Control: The software can be programmed to enforce strict First-In-First-Out or First-Expiry-First-Out inventory management, which is critical for industries like food and beverage or pharmaceuticals. This level of control is a mandatory feature of automated storage systems in warehouses serving regulated industries.

An ASRS represents a significant investment but offers the most comprehensive solution for total control over inventory and space. It is the definition of a mature, robust automated storage systems in warehouses solution.

2. Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs): The Flexible Fleet

While ASRS represents fixed infrastructure, the revolution in robotics has brought an incredibly flexible and scalable solution to the fore: Autonomous Mobile Robots (AMRs) and their precursors, Automated Guided Vehicles (AGVs). This technology is arguably the fastest-growing segment of warehouse automation due to its relatively lower upfront cost and incredible adaptability. For many, AMRs are the gateway to automated storage systems in warehouses, offering a low-risk, high-reward entry point.

AGVs vs. AMRs: Understanding the Key Operational Difference

A common question when evaluating automated storage systems in warehouses is the difference between these two technologies.

• AGVs (Automated Guided Vehicles): Follow predefined paths, often using wires embedded in the floor, magnetic tape, or lasers. They are reliable for repetitive, point-to-point tasks (e.g., moving full pallets from the receiving dock to a designated staging area) but lack the intelligence to navigate around unexpected obstacles. They represent an earlier, more rigid generation of automated storage systems in warehouses.

• AMRs (Autonomous Mobile Robots): This is the newer, more advanced technology. AMRs use onboard sensors, cameras, and sophisticated mapping software to understand and navigate their environment dynamically. They can create their own optimal routes, avoid obstacles (like people, fallen debris, or other robots), and adapt to changes in the warehouse layout without the need to reprogram the entire facility’s infrastructure. This intelligence makes them the more flexible and future-proof choice for modern automated storage systems in warehouses.

 Space and Efficiency Advantages of a Robotic Fleet

The primary efficiency gain from AMRs isn’t in static storage density, but in the optimization of flow and the radical reduction of wasteful human movement. This represents a different philosophical approach to automated storage systems in warehouses, focusing on mobility over fixed density.

• Goods-to-Person (G2P) Paradigm: This is the killer application for most AMR deployments. Instead of having pickers walk miles each day, AMRs bring the entire shelving unit (a “pod”) directly to the picker at a stationary workstation. The picker’s time is then dedicated entirely to the high-value task of picking items, skyrocketing productivity by 2-4x or more. This model is revolutionizing the economics of automated storage systems in warehouses for e-commerce fulfillment.

• Incredible Scalability: Companies can start with a small fleet of 5-10 robots to handle peak season demands or to automate a single process loop. As the business grows, more robots can be simply added to the fleet. The software seamlessly integrates them, making this a low-risk, highly scalable version of automated storage systems in warehouses.

• Minimal Infrastructure Disruption: Unlike an ASRS, deploying an AMR system requires no major construction or fixed infrastructure. This means implementation can be faster and less disruptive to ongoing operations, a significant advantage for businesses that cannot afford extended downtime.

• Optimized Space Utilization: By using AMRs in a G2P model, the storage area can be configured for maximum density, as there is no longer a need for wide aisles for human travel or forklift operation. Products can be stored closer together, again maximizing the available cube. This creates a de facto high-density system, proving that automated storage systems in warehouses can be both flexible and space-efficient.

3. High-Density Dynamic Storage Systems: Flow and Compactness

This category encompasses technologies designed to maximize density and enforce perfect inventory rotation through gravity or mechanical movement. They are often integrated with other automated storage systems in warehouses like ASRS or AMRs to create a hybrid, ultra-efficient solution. They are the unsung heroes of space optimization.

Push-Back and Pallet Flow Racking: Mastering FIFO and Density

These systems are a testament to the elegance of simple physics in the world of automated storage systems in warehouses.

• Pallet Flow Racking: Utilizes gravity rollers on a slight decline. Loads are placed at the high end and flow gently to the low end for picking. This is the ultimate FIFO system, ensuring the oldest inventory is picked first. It’s ideal for high-turnover, perishable goods. It also allows for deeper storage lanes, reducing aisle space and increasing density without the full cost of robotic automated storage systems in warehouses.

• Push-Back Racking: A LIFO (Last-In, First-Out) system where pallets are stored on nested carts on rails. When a new load is pushed into a lane, it pushes the existing loads back. When retrieving a load, the subsequent loads flow forward. This allows for deep-lane storage (2-5 pallets deep) without the need for a dedicated ASRS machine, offering a superb balance of density and selectivity. It’s a semi-automated workhorse in many automated storage systems in warehouses.

Mobile Pallet Racking: The Ultimate Space Saver

This is one of the most effective ways to drastically increase storage capacity in an existing building. Instead of fixed aisles, the storage racks are mounted on motorized bases that move on rails embedded in the floor. Only one aisle is opened at a time, directly where needed. For operations where space is the absolute primary constraint, this is often the chosen solution among automated storage systems in warehouses.

• Space Savings: By eliminating all but one aisle, mobile racking systems can increase storage capacity by up to 85% or more within the same footprint. This is a game-changer for facilities storing lower-turnover inventory or in extremely expensive urban real estate markets. It is the purest form of space-focused automated storage systems in warehouses.

• Integration with Automation: While traditionally manual, the latest mobile racking systems can be fully integrated with AGVs or ASRS cranes. The software can coordinate the movement of the racks with the retrieval machine, creating a semi-automated, ultra-high-density solution. This integration is the future of automated storage systems in warehouses, combining different technologies for a superior result.

4. Automated Conveyor and Sortation Systems: The Arteries of Throughput

Storage is only half the battle. Getting products in and out efficiently is just as critical. Automated conveyor and sortation systems act as the central nervous system, connecting receiving, storage, picking, and shipping areas into a seamless, continuous flow. No discussion of comprehensive automated storage systems in warehouses is complete without addressing the critical role of material movement.

Orchestrating Product Movement with Precision and Speed

A well-designed conveyor system eliminates manual cart movement, pallet jacking, and the associated labor and time delays. It is the glue that binds other automated storage systems in warehouses together.

• Types of Sortation: Depending on the application, different sortation technologies are employed within these automated storage systems in warehouses:

  • Popup Wheel/Chain Diverters: For diverting cases or totes.

  • Sliding Shoe Sorters: Gentle and effective for a wide variety of products.

  • Cross-Belt Sorters: Comprised of individual carts with belts, perfect for high-speed, precise sorting of small items to specific destination chutes.

  • Tilt-Tray Sorters: Similar to cross-belts, but the entire tray tilts to discharge the product.

• Efficiency Gains: By automating the movement and sorting of goods, these systems ensure that products are never waiting. They are continuously moving to the next stage of the process, minimizing cycle times and ensuring orders are assembled and shipped faster than ever before. The synergy between storage and movement is what defines world-class automated storage systems in warehouses.

5. Warehouse Execution Software (WES): The Brain Behind the Brawn

A facility can have the most advanced ASRS, a fleet of AMRs, and a mile of conveyor, but without intelligent software to orchestrate it all, it is nothing but a collection of expensive parts. This is where Warehouse Execution Software (WES) comes in. It’s the evolved, sophisticated successor to the traditional Warehouse Management System (WMS) and Warehouse Control System (WCS). The WES is the operating system for modern automated storage systems in warehouses, and its selection is as critical as the choice of hardware.

Why WES is the Critical Differentiator in Modern Automation

A WMS is a broad-stroke planner, while a WCS is a machine-level controller. A WES sits between them, acting as a real-time optimizer that makes intelligent decisions on the fly. It is the intelligence that transforms hardware into a smart automated storage systems in warehouses ecosystem.

• Real-Time Resource Allocation: A WES dynamically assigns tasks to the most appropriate resource. For example, it can decide whether an order should be picked by an AMR, a person, or an ASRS crane based on current system congestion, priority, and resource availability. It balances the workload for maximum overall efficiency, ensuring all parts of the automated storage systems in warehouses are working in harmony.

• Synergizing Automation: This is its core function. The WES is the maestro that ensures the AMRs seamlessly interface with the conveyor, which feeds the sortation system, which is coordinated with the ASRS. It prevents bottlenecks and ensures a smooth, continuous flow of goods through the entire automated ecosystem. Without a WES, automated storage systems in warehouses are just isolated islands of automation.

• Data and Predictive Analytics: A modern WES collects vast amounts of operational data, providing unparalleled visibility into operations. It can predict bottlenecks, suggest layout improvements, and provide the data needed for continuous improvement initiatives. This data-driven approach is what allows automated storage systems in warehouses to evolve and become more efficient over time.

Investing in the hardware without investing in the intelligence to run it is the most common mistake in automation projects. The WES is not an afterthought; it is the centerpiece of any successful implementation of automated storage systems in warehouses.

The Integration Imperative: Building a Cohesive Automated Ecosystem

The true magic, and the path to ultimate efficiency, doesn’t lie in choosing just one of these systems. It lies in their strategic integration. A warehouse shouldn’t be a collection of siloed technologies; it should be a harmonious ecosystem where each component complements the others. The most advanced automated storage systems in warehouses are those that leverage the strengths of multiple technologies.

• Scenario: An e-commerce order comes in. The WES determines the optimal picking path. It dispatches an AMR to retrieve a pod containing the required items and bring it to a pick station. The picker places the item into a tote on a conveyor. The conveyor transports the tote to a sortation system, which directs it to a packing station based on its destination. Meanwhile, the ASRS is handling full-pallet replenishment of the fast-moving items in the AMR’s storage zone. This seamless hand-off between different automated storage systems in warehouses is what creates mind-blowing efficiency gains that dwarf the benefits of any single system. The whole becomes vastly greater than the sum of its parts.

Choosing the Right System: A Strategic Framework for Investment

There is no one-size-fits-all solution. The right choice depends on a meticulous analysis of the unique operation. Selecting from the various automated storage systems in warehouses requires a disciplined, data-driven approach.

• SKU Profile: Number of SKUs, their physical dimensions, weight, and turnover velocity (ABC analysis). A high-SKU-count, small-parts environment screams for a Mini-Load ASRS or AMRs, while a full-pallet operation points to Unit-Load ASRS or dynamic flow rack.

• Order Profile: Average lines per order, number of orders per day, peak season demands. High-volume, multi-item e-commerce orders are ideal for AMR-based goods-to-person systems.

• Growth Trajectory: Where is the business in 5 years? The system must be scalable. AMRs offer excellent scalability, while ASRS can be designed for future expansion.

• Facility Constraints: Existing building dimensions, column spacing, floor condition, and ceiling height. These physical factors can immediately rule certain types of automated storage systems in warehouses in or out.

• Budget and ROI: Not just the initial investment, but the total cost of ownership and the projected payback period based on labor savings, space recovery, and accuracy improvements.

A reputable automation provider will conduct a full feasibility study, often including simulation modeling, to validate the expected performance and ROI of the proposed automated storage systems in warehouses before a contract is ever signed.

Conclusion: The Future of Your Warehouse Starts with an Informed Decision Today



The question is no longer if a company should automate, but how and when. The landscape of automated storage systems in warehouses offers a solution for virtually every budget and operational challenge, from the flexible, scalable entry point of Autonomous Mobile Robots to the ultra-high-density, high-throughput power of Automated Storage and Retrieval Systems. The goal is clear: to maximize every cubic foot of valuable space and to streamline operations to a level of efficiency that provides a definitive competitive advantage. This requires viewing automation not as a mere capital purchase, but as a strategic philosophy—an integrated ecosystem of hardware and software, physically represented by technologies like 立体库 (the Chinese term for ASRS, underscoring its global prevalence), all working in concert under the intelligent command of a Warehouse Execution System.

By taking a holistic, informed approach now, operations managers are not just solving today’s problems; they are future-proofing their logistics operation for the demands of tomorrow. The journey toward implementing automated storage systems in warehouses is a complex but rewarding one, paved with data, strategic planning, and the promise of a transformed, hyper-efficient supply chain.

---

Frequently Asked Questions (FAQs)

1. What is the typical payback period for investing in an automated storage system?
Payback periods can vary widely based on the scale and complexity of the system, but a well-designed project typically aims for a return on investment within 2-4 years. This is calculated based on hard savings from reduced labor costs, increased throughput, the avoidance of errors, and the deferred cost of expanding to a new facility. Many clients see enough savings in labor and improved efficiency alone to justify the investment in automated storage systems in warehouses.

2. Can automation be implemented in an existing warehouse operation without halting productivity?
Absolutely. Phased implementations are a standard practice for minimizing disruption. A good systems integrator will design a rollout plan that allows a facility to continue operating, often by automating one functional area (e.g., returns processing or a specific picking zone) at a time. This modular approach also helps staff adapt gradually to the new technology, ensuring a smoother transition to automated storage systems in warehouses.

3. How do I know if my warehouse is a good candidate for high-density ASRS versus a more flexible AMR system?
The choice hinges on the inventory and order profile. ASRS excels with very high SKU counts, especially for smaller items, and where maximum storage density is the paramount goal. AMRs shine in environments with a high volume of small, multi-item orders (e-commerce fulfillment) and where flexibility and scalability are key concerns. Many state-of-the-art facilities successfully utilize both automated storage systems in warehouses in different areas to leverage the strengths of each.

4. How does automation impact our current workforce?
While automation reduces the need for manual, repetitive, and physically strenuous tasks, it creates new, more technically skilled roles. The focus shifts from lifting and walking to managing, maintaining, and optimizing the automated systems. Proactive training and upskilling programs are a critical part of any rollout, allowing an existing workforce to transition into these higher-value, more engaging roles such as robot operators, automation technicians, and system analysts. The implementation of automated storage systems in warehouses is an opportunity for workforce evolution.

5. What kind of maintenance do these automated systems require?
All automated storage systems in warehouses require scheduled, preventive maintenance to ensure longevity and uptime. This includes regular inspections, software updates, and component checks. Most providers offer comprehensive annual maintenance contracts (AMCs) managed by their certified technicians. The key is that this maintenance is planned and predictable, unlike the reactive repairs common with manual equipment, and overall downtime is typically far lower. The sophisticated software also includes predictive analytics to flag potential issues before they cause a failure, maximizing the reliability of the automated storage systems in warehouses.
