The Linchpin of Automated Logistics

In the meticulously engineered world of modern warehousing, where AGVs (Automated Guided Vehicles) glide silently and AS/RS (Automated Storage and Retrieval Systems) tower with precision, success hinges on synergy. The most sophisticated automation software and the most advanced robotic hardware can be hamstrung by a single, underestimated foundational element: the iron pallet.

This is not a purchase; it is a critical systems integration decision. The selection of the correct industrial iron pallet directly dictates the performance, uptime, and safety of the entire automated material handling ecosystem. An ill-suited iron pallet introduces points of failure that can ripple through operations, causing catastrophic downtime, damaging expensive equipment, and crippling throughput. This comprehensive guide delves beyond basic load specifications to provide a masterclass in selecting an iron pallet engineered for seamless harmony with automation equipment.

We will explore how the geometric precision, structural dynamics, and surface engineering of a heavy-duty iron pallet are paramount to achieving flawless AGV pallet handling, impeccable forklift compatibility, and maximizing the long-term ROI of your automation investment. For the discerning logistics manager, the pragmatic automation engineer, and the visionary operations director, this resource offers the technical depth and strategic perspective essential for making an informed choice—ensuring your automated infrastructure is built upon a foundation of absolute reliability.

The Strategic Imperative: Why Pallet Selection is an Automation Engineering Decision

The evolution of the iron pallet from a simple load-bearing platform to an active, intelligent component of the automated workflow represents a paradigm shift in logistics philosophy. In a manual warehouse, a pallet’s failure is a localized event. In an automated facility, the failure of a single iron pallet can trigger a system-wide cascade of inefficiency. An AGV blocked by a misaligned iron pallet creates a traffic jam that halts the flow of goods.

A warped iron pallet jamming in an AS/RS shuttle brings retrieval to a standstill. A protruding nail or weld on a substandard iron pallet can snag and damage a high-speed conveyor belt, resulting in hours of costly repair.

Therefore, the selection process for an iron pallet must be elevated to an engineering discipline. It is about selecting a component that guarantees interoperability. The right industrial iron pallet acts as a universal adapter, ensuring perfect communication between the digital instructions of the WMS and the physical actions of the automation equipment. It is the one constant that interacts with every piece of hardware in the loop.

Ignoring its importance is akin to building a Formula One race car and fitting it with low-grade tires; the potential is there, but the performance and safety are severely compromised. The goal is to find an iron pallet that doesn’t just carry weight, but actively enhances system reliability, predictability, and efficiency.

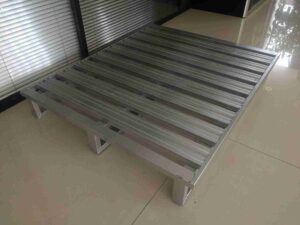

Deconstructing the Iron Pallet: A Symphony of Specifications for Automation

While suppliers often lead with static load capacity, the true metrics of an automation-grade iron pallet are found in a more nuanced set of engineering specifications. These parameters define how the iron pallet will behave in the dynamic, high-speed environment of an automated facility.

Dimensional Tolerance: The Religion of Consistency

In automation, millimeters matter. Manual handling can accommodate slight variations; automated systems cannot. The entire workflow is predicated on predictable, repeatable physical interactions.

• Overall Length, Width, and Height (LxWxH): A variance of even a few millimeters in an iron pallet can prevent it from being accepted into a tightly toleranced storage location within an AS/RS. It can cause misalignment on transfer stations between conveyor systems, leading to jams and product falls.

• Fork Pocket Geometry: The Critical Interface: This is arguably the most crucial specification. The fork pockets of an iron pallet must be consistently wide, high, and deep enough to accommodate the forks of your AGV or automated forklift. Crucially, the entry must be generously chamfered. This angled entry acts as a guide, compensating for the minuscule positioning errors that occur in high-cycle operations, ensuring the forks slide in smoothly every time, rather than crashing into a sharp 90-degree corner.

• Bottom Deck Configuration: The layout and spacing of the bottom deck boards on the iron pallet must be meticulously aligned with the rollers, chains, or support dogs of your automated equipment. Incorrect spacing can cause the iron pallet to hang up, drag, or fail to transfer correctly, halting the entire line.

Structural Integrity: The Science of Rigidity and Deflection

While static load capacity is a basic requirement, dynamic load capacity and rigidity are the hallmarks of a superior iron pallet. When an AGV carrying a loaded iron pallet makes a sharp turn or comes to an abrupt stop, it imposes significant lateral and torsional forces.

• Dynamic Load Performance: A high-performance iron pallet is engineered to withstand these forces without excessive flexing. This rigidity prevents load shifting, which is a primary cause of product damage and instability in automated systems.

• Minimized Deflection: Under maximum load, a quality iron pallet will exhibit minimal deflection (bending). Excessive deflection can cause the load to bulge, potentially interfering with overhead sensors, racking beams, or other equipment in tight quarters. It also places undue stress on stretch wrap, leading to failure.

Surface Topography: Engineering the Perfect Grip

The surface of an iron pallet must be engineered for conflicting needs: it must allow easy sliding during robotic depalletizing and automatic loading, yet provide sufficient friction to prevent load shifting during high-speed transport.

• Deck Surface Design: Most automation-grade iron pallet designs feature an expanded metal or heavily textured deck. This provides an excellent grip for stacked goods and plastic wrapping, drastically reducing the risk of load shifting compared to a perfectly smooth surface.

• Underside Smoothness: The underside of the iron pallet, however, must be as smooth as possible. Any protruding welds, bolts, or rough edges act as a brake on conveyor rollers, increasing motor strain, energy consumption, and causing premature wear on both the iron pallet and the conveyor itself.

The AGV Handshake: A Dialogue of Precision Between Machine and Pallet

The moment of interaction between an AGV and an iron pallet is a ballet of precision engineering. This “handshake” must be flawless millions of times over. The design of the iron pallet is a primary factor in ensuring this reliability.

Facilitating Flawless Fork Engagement

Modern AGVs use a combination of LIDAR, machine vision, and physical guide horns to locate and engage with an iron pallet. The pallet must be designed to be “seen” and “felt” easily.

• Chamfered Openings as a Guidance System: The chamfered fork pockets on a well-designed iron pallet are not just a nice-to-have feature; they are an essential guidance system. They physically funnel the AGV’s forks into the correct position, preventing mis-picks and damage to both the iron pallet and the AGV’s expensive hardware.

• Clearance for Technology: The fork pockets must provide ample clearance not just for the forks themselves, but for any sensors or cameras mounted on or near them. A low-hanging deck board on the iron pallet can easily smash these critical components.

Maintaining Stability in Motion

An AGV operates based on a precise digital model of its load’s physics. The iron pallet contributes significantly to this model.

• Low Profile for a Low Center of Gravity: An automation-optimized iron pallet often features a low-profile design. This lowers the overall center of gravity of the loaded unit, allowing the AGV to navigate turns and execute maneuvers at higher speeds without risking a tip-over.

• Predictable Weight and Balance: Every iron pallet in a fleet must be identical in weight and balance. Asymmetry or significant weight variation can confuse the AGV’s load stabilization algorithms, causing it to operate overly cautiously or, conversely, to miss a genuine instability.

Integration Ecosystem: The Iron Pallet’s Role in the Automated Orchestra

The iron pallet is the common thread that runs through the entire automated workflow. Its compatibility must extend far beyond the AGV.

Automated Storage and Retrieval Systems (AS/RS)

The AS/RS is the most demanding master for an iron pallet. The tolerances are unforgiving, and the consequences of failure are severe.

• Dimensional Perfection is Non-Negotiable: An iron pallet stored 100 feet in the air must slot into its location with absolute precision. A slight warp or a bulge on the side of the iron pallet can prevent the shuttle from depositing or retrieving it, requiring manual intervention and bringing a entire aisle to a halt.

• Racking Compatibility and Load Distribution: The design of the iron pallet‘s bottom structure must align perfectly with the support beams of the AS/RS racking. The iron pallet must be rigid enough to prevent bending over the span between beams, which could damage both the pallet and the racking over time.

Conveyor and Sortation Systems

On these systems, the iron pallet is in constant motion, and consistency is the key to smooth flow.

• The Imperative of a Smooth Underside: As it journeys across rollers, chains, and transfer plates, the underside of the iron pallet must be impeccably smooth. Welds must be ground flush, and there should be no protruding hardware to catch and cause a jam.

• Consistent Weight for Predictive Motoring: The consistent weight of a high-quality iron pallet allows for precise calibration of conveyor motor torques and speeds. This predictability leads to smoother operation, less energy consumption, and reduced wear and tear across the entire conveyor system.

Robotic Palletizing and Depalletizing Cells

Robotic arms are programmed to operate within millimeter-level tolerances. They depend on a perfectly predictable and stable foundation.

• Consistent Height for Perfect Stacking: A robotic palletizer relies on a known iron pallet height to execute its stacking pattern perfectly. Variation in pallet height leads to an unstable and potentially dangerous load.

• Flat and Level Deck for a Stable Base: The deck of the iron pallet must be perfectly flat and level. Any warping provides an unstable foundation for the first layer of product, compromising the integrity of the entire stack and risking a collapse downstream.

The Unassailable Economic Argument: Total Cost of Ownership (TCO)

The initial purchase price of a high-quality iron pallet is higher than that of wood or plastic. However, this perspective is myopic. The true measure of value is Total Cost of Ownership (TCO), a calculation where the iron pallet is the undisputed champion in automated environments.

• Durability and Longevity: A premium industrial iron pallet is a capital asset with a service life measured in decades, not years. It is immune to the rot, splintering, and breakage that plague wooden pallets. It does not become brittle and crack like plastic in cold environments. This virtual elimination of replacement costs is a massive financial advantage.

• The Astronomical Cost of Downtime Avoidance: This is the most powerful argument. The cost of a single hour of downtime in a fully automated distribution center can run into tens of thousands of dollars in lost productivity, missed shipments, and emergency labor. The absolute reliability of a properly specified iron pallet is a powerful insurance policy against these catastrophic events. It prevents the jams, mis-picks, and equipment damage that trigger downtime.

• Hygiene, Safety, and Sustainability: Iron pallets are impervious to moisture, pests, and bacteria, making them mandatory for food, pharmaceutical, and other hygienic-sensitive industries. They eliminate the safety hazards of splinters and protruding nails. At the end of its multi-decade life, the iron pallet is 100% recyclable, often with a recoupable scrap value, contributing to corporate sustainability goals and providing a final return on investment.

Selecting a Partner: From Supplier to Systems Integrator

Your choice of vendor for your iron pallet needs is as critical as the specification itself. You are not buying a commodity; you are sourcing a critical system component.

• Engineering Collaboration: The right partner will have engineering staff willing to engage with your team and review your system specifications. They should act as consultants, able to recommend or even custom-design an iron pallet optimized for your specific mix of AGVs, AS/RS, and conveyors.

• Demonstrable Quality Control: Insist on understanding their quality control process. How do they ensure every iron pallet that leaves the factory meets the exact same tight tolerances? Certifications like ISO 9001 are a strong indicator of a commitment to quality.

• Proven Automation Pedigree: Request case studies and references from other large-scale automation projects they have supplied. A supplier with a proven track record in automation understands the language and the stakes, and their product will reflect that experience.

Conclusion: The Bedrock of Automated Efficiency

In the relentless pursuit of logistical perfection, the integrity of the entire system depends on the integrity of its most fundamental component. The iron pallet is the bedrock upon which automated efficiency is built. It is the silent partner to the AGV, the perfect tenant for the AS/RS, and the stable platform for the robot. Selecting the right iron pallet is a strategic decision that protects millions of dollars in automation investment, ensures continuous operational flow, and secures the promised return on investment.

It is a decision that resonates through the daily performance of the warehouse for decades to come. By prioritizing engineering precision over mere price, logistics leaders can ensure their automated systems operate not just with speed, but with flawless and resilient reliability.

Frequently Asked Questions (FAQs)

1. How does the electromagnetic signature of a large fleet of iron pallets potentially interfere with AGV guidance systems, such as magnetic tape followers or wireless communication?
This is an excellent and technically astute question. For AGVs that follow magnetic tapes, the iron content in the pallets is negligible compared to the strength and proximity of the guided tape’s magnetic field, so interference is not a concern. However, for wireless communication (Wi-Fi, 5G) that controls AGV traffic management, large masses of metal can create signal attenuation (“dead zones”) or multipath reflection issues.

Reputable iron pallet manufacturers design their products with open grid patterns (like expanded metal) rather than solid plates, which helps mitigate RF blocking. Furthermore, a well-designed facility network will have strategically placed access points to ensure comprehensive coverage, accounting for the presence of metal assets like racking and iron pallet fleets.

2. In a multi-temperature environment (e.g., moving from freezer to ambient storage), how does thermal expansion and contraction affect the dimensional stability of iron pallets, and could this cause issues with AS/RS tolerances?
Steel contracts in cold and expands in heat. The coefficient of linear thermal expansion for steel is a known and predictable value (approximately 12 x 10⁻⁶ per °C). For a standard 1200mm long iron pallet moving from a -25°C freezer to a +20°C ambient dock, the calculated change in length is about 0.65mm. While this is a very small change, high-precision AS/RS systems are engineered with tolerances that account for this known physical property of steel.

The critical advantage of the iron pallet is that this change is consistent and predictable across the entire fleet. This allows the system’s software to account for it universally. This is far superior to wood, which can warp and swell unpredictably with moisture and temperature changes, introducing random and disruptive variables.

3. Can existing wooden pallets be retrofitted or modified to be more compatible with our new automated handling systems?
Generally, this is not a viable or recommended strategy. The core issues with wood—its inherent variability, susceptibility to moisture, and lack of rigidity—cannot be solved through modification. While one could theoretically trim a wooden pallet to specific dimensions, you cannot control how it will warp, twist, or splinter over time and under load.

You cannot easily add the critical chamfered fork entries or ensure the precise bottom deck configuration required for smooth transfer. Retrofitting wooden pallets for automation is a temporary fix that introduces significant risk and is likely to result in higher costs from downtime and damage than the investment in a purpose-built fleet of iron pallet solutions.

4. What specific maintenance and inspection protocols should we implement for a fleet of iron pallets in continuous automated use?
Even the most durable iron pallet requires a basic maintenance regimen to ensure peak performance throughout its decades-long life. Implement a periodic inspection checklist that includes:

• Visual Inspection for Damage: Check for cracks, severe rust, or stress fractures, particularly around weld points.

• Fork Pocket Inspection: Look for excessive wear or deformation on the chamfered entries and inside the pockets themselves.

• Flatness Check: Use a simple straightedge jig to verify the deck remains flat and level.

• Underside Smoothness: Feel for any protruding welds or damage that could catch on conveyors.

• Hardware Check: Ensure any bolts (on demountable models) are tight and flush.

• Cleaning: Regularly clean pallets to prevent debris buildup that could interfere with sensors.
  Pallets that fail inspection should be quarantined for repair or recycling.

5. How do the weight differences between iron, plastic, and wood pallets impact AGV battery life and overall energy consumption in a high-throughput facility?
It is true that an iron pallet is heavier than most wood or plastic alternatives, and this additional mass requires more energy for an AGV to accelerate and decelerate. However, this must be viewed in the context of TCO. The consistency of weight across an iron pallet fleet allows for perfect calibration of AGV motion profiles, leading to predictable energy draw.

More importantly, the elimination of downtime events caused by broken pallets (a common issue with wood and plastic) saves a far greater amount of energy that would otherwise be wasted by idle, stopped machines. The long-term energy penalty of moving a slightly heavier, more reliable iron pallet is almost always offset by the massive energy savings gained through uninterrupted, efficient operation.
