H1: AGV Racking System Design: The Ultimate Guide to Maximizing Storage Density and Robot Efficiency

For warehouse operators and logistics managers, the dream is a seamless, high-throughput operation where space is utilized to its absolute maximum and automation systems work in perfect, uninterrupted harmony. Yet, the reality often involves a frustrating trade-off. Operations can have high-density storage, or they can have agile automation, but achieving both simultaneously has traditionally been a significant challenge. That is, until decision-makers approach the challenge with the correct design philosophy.

This comprehensive guide delves into the critical engineering principles behind AGV Racking System Design, providing a masterplan for unlocking unprecedented levels of both storage density and robot efficiency. This process is not merely about installing shelves and robots; it involves architecting a single, integrated ecosystem where every component is optimized for synergy, delivering a rapid return on investment through superior space utilization and relentless operational throughput. A properly engineered AGV racking system serves as the backbone of this modern logistics transformation.

---

H2: The Core Synergy: Why Your AGV and Racking System Must Be Designed as One

Companies cannot simply purchase an AGV racking system off the shelf. The most common and costly mistake logistics planners make involves treating the racking and the Automated Guided Vehicles (AGVs) as separate projects that merely need to coexist. This siloed approach inevitably leads to systemic inefficiencies, safety risks, and chronic underperformance. The racking structure constitutes the static, physical landscape of a warehouse. The AGVs represent the dynamic, intelligent workforce navigating that landscape. If the landscape is not purpose-built for that specific workforce, the result creates bottlenecks, wasted motion, and unnecessary wear and tear.

Think of the process like building a city. Planners would not design narrow, winding streets for massive container trucks and expect efficient logistics. Similarly, a business cannot deploy a fleet of sophisticated AGVs into a racking layout designed for 20th-century forklifts and expect 21st-century results. The design of one intrinsically dictates the capabilities and limitations of the other. A truly integrated AGV racking system is engineered from the ground up as a unified entity.

The racking specifications inform the AGV’s required navigation precision, turning radius, and load-handling mechanisms. Conversely, the AGVs’ performance characteristics dictate the racking’s aisle widths, beam heights, and structural tolerances. This symbiotic relationship forms the foundation upon which all other efficiencies are built. Investing in a cohesive AGV racking system design from the outset prevents a lifetime of operational compromises.

H3: The High Cost of a Disconnected Design

When the racking and AGV design processes are disconnected, the operational penalties are severe and multifaceted. These issues directly impact the bottom line and can jeopardize the entire automation investment.

• Chronic Bottlenecks: Aisles that are just a few inches too narrow can become gridlock points, forcing AGVs to wait for clearance and destroying the promised throughput gains of the AGV racking system.

• Premature Wear and Damage: Constant minor impacts and misalignments from poorly fitted systems lead to damaged racking uprights, compromised AGV sensors, and costly downtime for repairs. This degradation directly undermines the durability and long-term value of the AGV racking system.

• Suboptimal Space Utilization: Without a holistic view, planners end up with wasted vertical space or excessively wide aisles “just to be safe,” directly sacrificing the storage density potential a correctly specified AGV racking system should deliver.

• Inflated Operational Costs: Inefficient travel paths and waiting times inherent in a poorly integrated setup consume more battery power, reduce overall task completion rates, and often force companies to purchase more AGVs than should be necessary to achieve the same output. This inflates the total cost of ownership of the AGV racking system.

H2: Foundational Principles of AGV-Optimized Racking Design

To avoid these costly pitfalls, several non-negotiable principles must guide the engineering of any AGV racking system. These principles distinguish a high-performance installation from a problematic one.

H3: Precision and Tolerance Engineering: It’s All in the Millimeters

Traditional warehousing allows for a degree of human improvisation. A forklift driver can visually compensate for a slightly bent beam or an uneven pallet. An AGV cannot. These robots operate with millimeter-level precision, and the racking system must match this exactitude for the AGV racking system to function reliably.

• Column and Upright Alignment: Every single upright frame within the AGV racking system must be perfectly plumb and aligned within a very tight tolerance, typically within ±3mm over the entire system length. This ensures that the AGV’s guidance system, whether based on lasers, magnets, or vision, can navigate predictably and safely.

• Beam Levelness and Height Consistency: Each pair of load beams must be perfectly level and at a consistent height across all bays. Variations can cause the AGV’s retrieval mechanism (like a fork or shuttle) to misalign, leading to failed picks, dropped loads, or structural damage. Experts specify the use of high-precision, cold-formed steel racking components to guarantee this consistency, far exceeding the standards for manual systems. This level of precision is a hallmark of a professionally engineered AGV racking system.

H3: Structural Integrity for a Dynamic Environment

The loads in an AGV racking system are not static. Unlike pallets that sit undisturbed for days, they are in constant motion—being inserted, retrieved, and transported. This creates dynamic forces and potential impact loads that the racking must be designed to withstand over its entire operational lifespan.

• Impact Resistance: Uprights require robust protective guarding, such as 10-gauge steel column guards or reinforced concrete footings, to absorb the occasional minor impact from an AGV without compromising the structure’s integrity. Incorporating these protections is not a sign of a poor AGV racking system; it is a realistic and essential safeguard for a 24/7 operation.

• Increased Load Cycle Considerations: The racking components in an active AGV racking system will undergo a significantly higher number of load cycles (placement and removal) over their lifespan. This demands a higher safety factor and potentially different material specifications to combat metal fatigue over time, ensuring the AGV racking system remains safe and operational for years.

H2: Maximizing Storage Density in an AGV-Driven Warehouse

The primary driver for many automation projects is the soaring cost of industrial real estate. Maximizing the pallet positions per square foot is paramount. An intelligently designed AGV racking system achieves this critical goal through several advanced configurations that leverage the unique capabilities of automation.

H3: The Narrow-Aisle Revolution: How AGVs Unlock Vertical Space

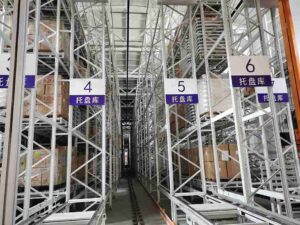

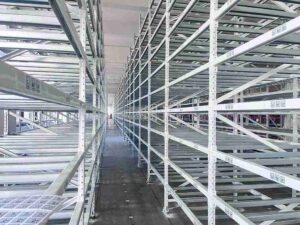

The single biggest contributor to density is aisle width. Traditional forklift operations require aisles of 11 to 13 feet. AGVs, with their pinpoint guidance, can operate reliably in aisles as narrow as 5.5 to 7 feet, which is a core advantage of a modern AGV racking system.

• The Density Calculation: This simple change can increase storage capacity by 30-50% without adding a single square foot to a building’s footprint. For a 50,000 sq. ft. warehouse, this is the equivalent of gaining 15,000 to 25,000 sq. ft. of usable space, a transformative benefit of the AGV racking system approach.

• Very Narrow Aisle (VNA) Configurations: For even greater density, AGVs can be configured for VNA operations with aisles as tight as 5 feet. This often requires a shift from counterbalanced AGVs to specialized units like unit-load carriers or forklift AGVs that work within the racking channels themselves, pushing the limits of what a high-density AGV racking system can achieve.

H3: Dynamic Storage Systems: Going Beyond Static Racking

For the ultimate in density and efficiency, static racking can be replaced or supplemented by dynamic systems, fully leveraging the AGV’s programmability within a sophisticated AGV racking system.

• Push-Back Racking: While a conventional system, its operation is perfectly suited for AGVs. The AGV only needs to access the front pallet position on a lane, making put-away and retrieval incredibly fast. The system’s internal dynamics handle the depth. This is ideal for high-throughput, FIFO or LIFO applications within a versatile AGV racking system.

• Pallet Live Storage (Flow Racking): This system uses inclined rails with skate wheels, allowing pallets to flow from the loading (high) end to the picking (low) end by gravity. AGVs are ideal for loading the replenishment side continuously, creating a perfect, high-density buffer for fast-moving SKUs. The synergy here is exceptional, as the AGV handles the labor-intensive replenishment, and the flow racking ensures perfect product rotation, a powerful combination in an AGV racking system.

• Mobile Pallet Racking: This is the pinnacle of density for slower-moving goods. Entire rows of racking are mounted on motorized bases that move on rails, creating a single, accessible aisle only where and when needed. An AGV system can be programmed to coordinate with the mobile base controllers, requesting an aisle to open precisely when needed for a put-away or retrieval task. This can achieve storage densities of over 80% of the total floor area, representing the most space-efficient configuration of an AGV racking system available today.

H2: Engineering for Peak AGV Operational Efficiency

While density saves space, efficiency drives throughput and ROI. The design of the racking landscape directly influences how hard and how smart an AGV fleet can work, making operational efficiency a central goal of any AGV racking system project.

H3: Optimizing AGV Travel Paths and Navigation

The racking layout is the map that AGVs will navigate millions of times. A poor layout creates traffic jams; a smart one creates a superhighway, and this is a fundamental aspect of a well-planned AGV racking system.

• Unidirectional vs. Bidirectional Aisles: Designing for unidirectional travel (AGVs only move in one direction in an aisle) can simplify navigation and prevent deadlocks, but it may increase travel distance. Bidirectional travel is more flexible but requires sophisticated traffic management software and designated passing points, which must be designed into the layout of the AGV racking system from the beginning.

• Deductive and Inductive Loop Guidance: For the highest level of precision and reliability, many of the most successful AGV racking system implementations use wire guidance. A low-voltage wire is embedded in the warehouse floor, creating an invisible, unwavering path for the AGV to follow. This eliminates any drift or positioning errors that can occur with inertial or natural feature navigation, especially in vast, uniform racking environments. This is a classic example of how the physical infrastructure supports the digital performer within a robust AGV racking system.

• Integration with the Warehouse Management System (WMS): The racking locations are not just physical coordinates; they are logical addresses in the WMS. The AGV system must be deeply integrated, receiving task orders directly from the WMS. This allows for intelligent batching of tasks—sending an AGV to a specific aisle to perform multiple put-aways and retrievals in a single trip, dramatically reducing empty travel miles and maximizing the productivity of the AGV racking system.

H3: The Critical Role of Pick-Up and Drop-Off (P&D) Stations

The interface points between the AGV system and other warehouse zones (e.g., receiving, staging, shipping) are critical chokepoints. The design of these P&D stations is a core part of the overall AGV racking system design and is essential for maintaining fluid material flow.

• Staging and Queuing Lanes: Ample space must be designed for AGVs to queue with loaded pallets waiting for a human operator or another machine to process them. Without this dedicated space designed into the AGV racking system layout, an AGV remains blocked, unable to take on its next task, creating a cascade of delays.

• Standardized Load Positioning: P&D stations must have physical guides or laser markers to ensure pallets are placed in the exact same position every time. This allows the AGV to approach and acquire the load with 100% reliability, using a standardized and repeatable routine. This attention to detail at the interfaces is what separates a good AGV racking system from a great one.

H2: Selecting the Right AGV Type for Your Racking Configuration

Not all AGVs are created equal. The choice of vehicle is a direct function of the racking design and operational requirements, and this decision fundamentally shapes the character of the AGV racking system.

H3: Fork-Type AGVs vs. Unit Load Carriers

• Fork-Type AGVs: These mimic traditional forklifts and are highly versatile. They can interact with standard pallet racking, pick up loads from the floor, and even work at dock doors. However, they typically require wider aisles and have a more complex mechanical system, which can influence the overall layout of the AGV racking system.

• Unit Load Carriers: These are simpler, more robust vehicles designed to move a single pallet that is already on a stand or a roller bed. They are ideal for high-density, narrow-aisle systems where they shuttle between the racking face and a transfer station. They are often faster and more reliable for dedicated, high-volume tasks, making them a preferred choice for a throughput-focused AGV racking system.

H3: The Rise of Autonomous Mobile Robots (AMRs) in Racking Environments

While AGVs traditionally follow fixed paths, Autonomous Mobile Robots (AMRs) use cameras and sensors to navigate more freely. In a racking environment, this distinction is crucial for the design of the AGV racking system.

• AGVs for Predictable, High-Volume Throughput: For moving hundreds of the same pallets between fixed points (e.g., from receiving into high-density racking, or from racking to a production line), a guided AGV system is often more cost-effective and reliable. Its predictability is a feature, not a bug, in a tightly orchestrated AGV racking system.

• AMRs for Flexible, Dynamic Operations: If an operation involves frequently changing SKUs, mixed pallet sizes, or a need to dynamically re-route around obstacles, AMRs offer more flexibility. However, their navigation can be less precise in very narrow aisles, and they may require more “white space” or maneuvering room at the racking face, which can slightly reduce the ultimate storage density of the AGV racking system.

H2: The Digital Twin: Simulating Your AGV Racking System Before You Build

Given the complexity and capital investment involved, companies cannot afford to discover design flaws after installation. This is where advanced simulation technology becomes an indispensable part of the planning process for a major AGV racking system.

Industry leaders create a “Digital Twin”—a full 3D, physics-based computer model of the proposed AGV racking system. They populate it with virtual AGVs running actual operational data and logic. This powerful tool allows planners to:

• Stress-test the layout under peak season volumes, validating the robustness of the AGV racking system design.

• Identify potential traffic congestion points and bottlenecks invisible on a 2D drawing, enabling pre-emptive optimization of the AGV racking system.

• Optimize the number of AGVs required to meet specific throughput targets, right-sizing the fleet for the AGV racking system.

• Validate that the chosen racking configuration and AGV type will perform as expected, providing a data-driven guarantee of performance for the AGV racking system before a single piece of steel is erected.

H2: Advanced Integration: Linking AGV Racking with Broader Automation

A truly modern warehouse is a symphony of automated systems. An AGV racking system should not be an island; it must be a fully integrated part of a larger automation orchestra to unlock its full potential.

H3: Seamless Handoff to AS/RS and Conveyor Systems

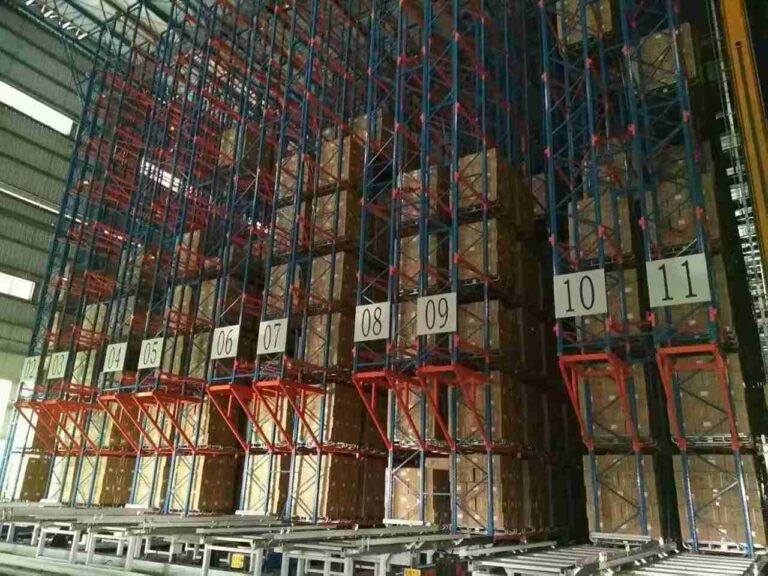

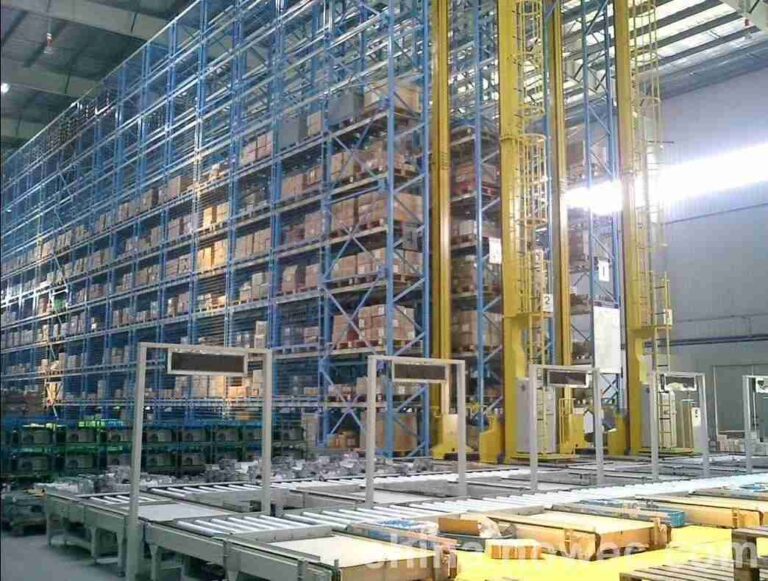

For the highest levels of automation, AGVs act as the feeder system for larger automated storage and retrieval systems (AS/RS) or conveyor networks, with the AGV racking system serving as a critical buffer or staging area.

• AGV to AS/RS Interface: AGVs can deliver pallets to the input stations of a mini-load or unit-load AS/RS. The racking design around these interfaces must include precise positioning guides and communication protocols so the AGV can signal the AS/RS that a load is ready for intake. This seamless handoff is a key integration point for the AGV racking system.

• Conveyor Integration: AGVs can deposit and retrieve loads from designated conveyor spur locations. The racking layout in these zones must account for the conveyor footprint and provide clear pathways for the AGVs to approach and depart without crossing conveyor lines, which would create safety and efficiency risks for the entire AGV racking system and connected equipment.

H2: The Indisputable Business Case: Calculating Your ROI

Investing in a properly designed AGV racking system is a strategic business decision with a clear and compelling financial return. The ROI is driven by two powerful forces that directly impact the balance sheet.

1. Capital Avoidance (The Density Dividend): By increasing storage capacity by 30-50%, a company delays or eliminates the need for a costly warehouse expansion or relocation. The value of this avoided capital expenditure, often running into millions of dollars, is a direct credit to the AGV racking system automation project.

2. Operational Efficiency (The Labor and Throughput Dividend): AGVs work 24/7 without breaks, shift changes, or fatigue. They reduce reliance on manual labor in a tight job market, lower energy consumption compared to traditional forklifts, and increase order accuracy to near 100%. The combined savings in labor, energy, and error reduction typically deliver a full ROI for a well-executed AGV racking system within 2-3 years, making it one of the most sound investments a logistics-dependent business can make.

H2: The Future-Proof Warehouse: Designing for Scalability and Adaptability

A business will change; its AGV racking system must be designed to change with it. Forward-thinking engineers build scalability into the core of the AGV racking system design to protect the long-term investment.

• Modular Racking Design: Using a standardized beam and upright system allows for easy reconfiguration of bays, addition of new levels, or extension of runs as the inventory profile changes. This modularity is essential for a future-proof AGV racking system.

• Scalable AGV Fleet: The software that manages the AGV fleet should allow for the seamless addition of new vehicles. The racking layout should be designed with this expansion in mind, ensuring that adding more robots does not lead to terminal congestion, thus preserving the integrity of the AGV racking system over time.

• Software-Upgradable Navigation: Choosing AGVs with software-based controls allows businesses to benefit from future algorithm improvements, new safety features, and enhanced integration capabilities without replacing the hardware, extending the useful life and capabilities of the AGV racking system.

Conclusion

The journey to a fully optimized, high-density automated warehouse is complex, but the destination provides unparalleled efficiency and a powerful competitive advantage. The key lies in rejecting the compartmentalized approach and embracing a holistic, integrated design philosophy where the AGV racking system is conceived, engineered, and implemented as a single, intelligent organism. From the millimeter-level precision of the racking structure to the sophisticated traffic flow of the AGVs, every detail matters profoundly.

By partnering with experts who possess deep, practical experience in this specific synergy, companies are not just purchasing equipment; they are investing in a strategic asset that will maximize storage space, supercharge operational throughput, and deliver a dominant return on investment for decades to come. The future of warehousing is not just automated; it is intelligently integrated around a perfectly harmonized AGV racking system.

Frequently Asked Questions (FAQs)

1. How does the weight and load stability of pallets impact AGV racking system design?
Pallet weight and stability are more critical in an AGV racking system than in a manual one. The dynamic movement of the AGV can shift an unstable load. The racking must be rated for the specific weights, and the AGV’s acceleration/deceleration profiles are often programmed to be gentler for unstable loads. Planners often recommend using slip sheets or pallet stabilizing films to ensure integrity during transport within the AGV racking system.

2. What kind of facility and floor requirements are necessary for a successful AGV racking system installation?
The warehouse floor must be exceptionally flat and level—typically with a tolerance of ±5mm over a 3-meter span—for a reliable AGV racking system. Any significant deviation can cause AGV navigation errors, load instability, and mechanical stress. The facility also requires consistent, bright lighting for AGVs that use vision-based navigation and robust Wi-Fi coverage throughout the operating area for real-time communication with the AGV racking system‘s control software.

3. Can existing traditional racking be retrofitted for an AGV system, or is a full replacement always required?
It is possible to retrofit, but it is often a compromise that may limit performance. The existing racking must be meticulously surveyed for alignment and levelness. Aisles will likely need to be widened or narrowed, which can trigger a domino effect of reconfiguration. Often, the cost and operational disruption of retrofitting an old system outweigh the benefits. A purpose-built new AGV racking system is almost always the superior long-term investment for achieving target performance metrics.

4. How do you ensure safety for human workers who need to occasionally enter the AGV racking system operating area?
Safety is paramount in any AGV racking system implementation. A multi-layered approach is essential: physical barriers where possible, designated pedestrian pathways, AGVs equipped with LiDAR, 3D cameras, and physical bumpers that trigger an immediate stop upon detecting an obstacle. Furthermore, zone control software can slow down or stop AGVs in specific areas of the AGV racking system when a worker’s badge is detected nearby, ensuring a safe shared environment.

5. What is the typical lead time from design to full operational deployment for a large-scale AGV racking system?
For a large, greenfield project, the timeline for a complete AGV racking system is typically 9 to 14 months. This includes 2-3 months for detailed design and simulation, 4-6 months for racking and AGV manufacturing, 2-3 months for on-site installation and commissioning, and 1-2 months for phased testing and go-live. This timeline can vary based on the complexity of the AGV racking system and prevailing supply chain conditions.
